Seiko Gen 1

This Seiko 7A28-7120 chronograph came in for a full service, a new crystal and a seal change recently, it also had a problem with the chronograph minute counter which wasn’t working. More commonly referred to as the Seiko Gen 1 (generation 1) these were first issued by the MOD to British military pilots in October 1984 and weren’t replaced until November 1990. Seiko supplied a Gen 2 chronograph later on in the 1990’s. The Gen 1’s were also the first quartz powered chronographs issued by the MOD replacing the venerable mechanical Valjoux 7733 powered ones that were issued for the preceding decade or so. The MoD bought and issued a total of 11,307 Gen 1’s, which makes it one of the most popular issued military chronographs to date. This particular watch had been sent by the owner to Seiko UK for the work to be carried out but it was returned as they don’t carry the spare parts anymore, this was when it made its way to me. The movement has a crown at 8 and the start, stop and reset at 2, 4 and 10. The large seconds hand is the chronograph running seconds hand, the sub dial at three is the 1/10th second counter, the one at 9 is the minute counter and the one at 6 is the running seconds.

DSCN6488a

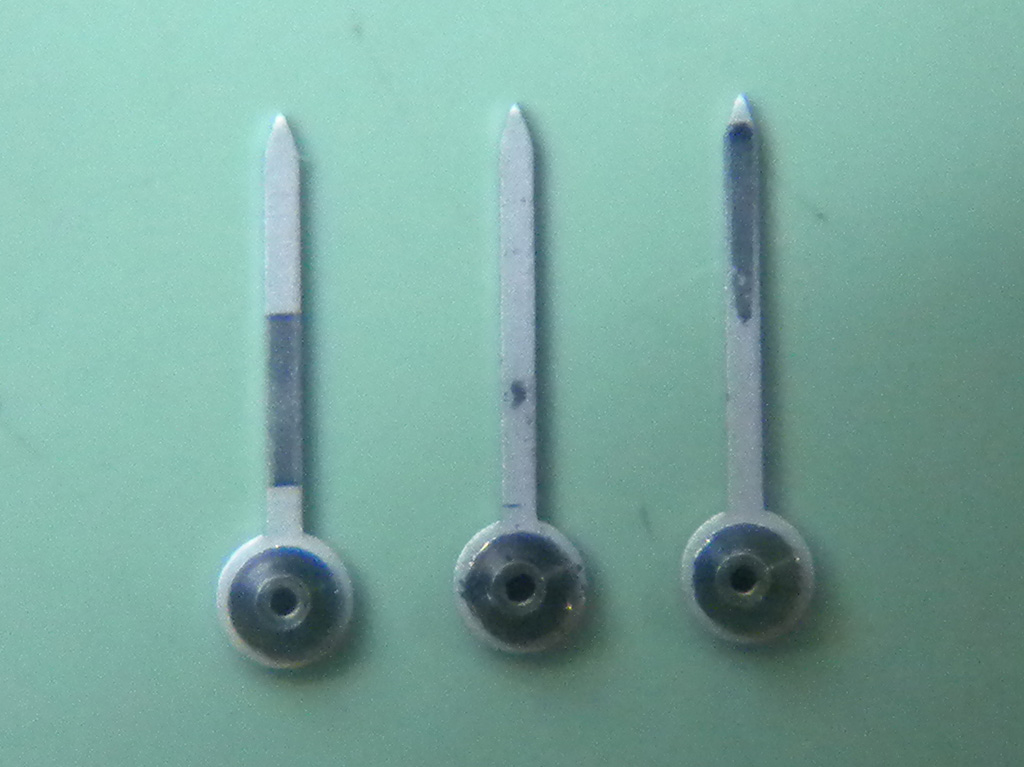

When stripping any chrono always identify which hand comes from which sub dial so that they go back on the same pinion, with chronographs it’s a must as the pinions are generally different sizes. The easiest way I find to do this is to turn them over, place them in the correct order (left to right) and photograph the back, they always seem to differ and makes selecting the correct hand a breeze.

DSCN6491a

These 7A28’s are very well designed and engineered movements, made before the practice of using plastic mainplates was developed.

DSCN6494a

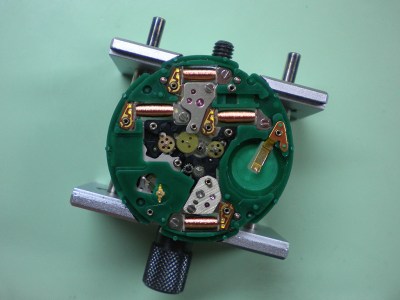

With the chrono and main bridge removed you can see the running train is remarkably compact. There is a separate coil and step rotor for the 1/10th second counter, the minute counter, the chrono seconds counter and the hour, minute and seconds train.

DSCN6496a

The substantial (for a quartz) mainplate after stripping.

DSCN6502a

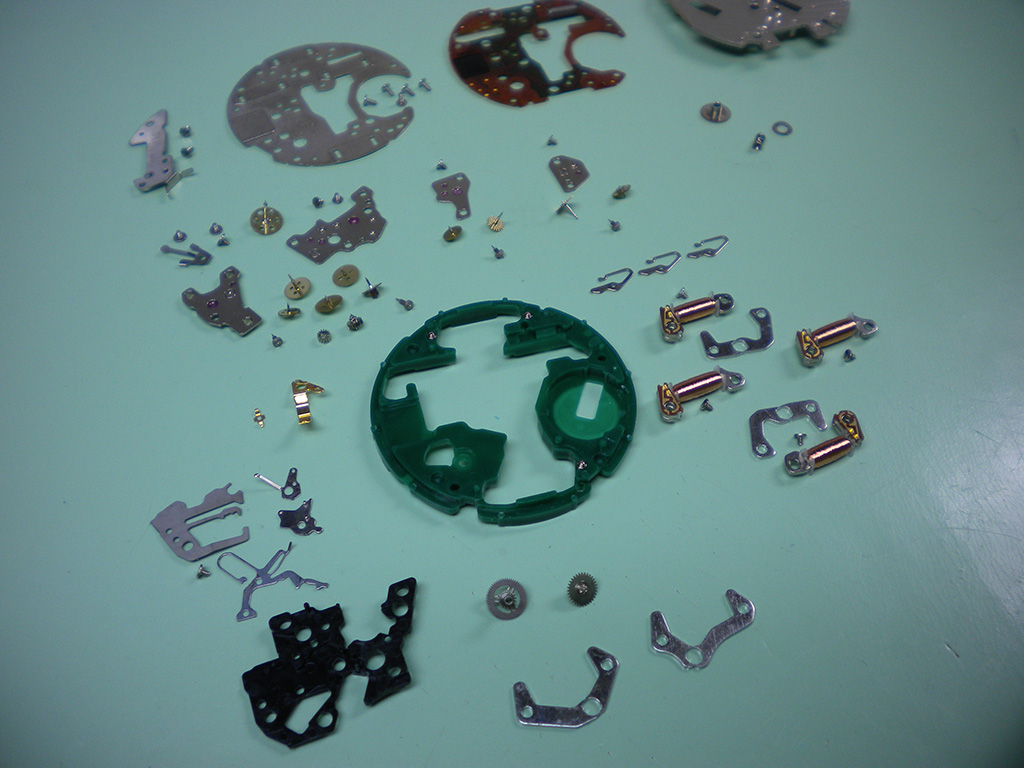

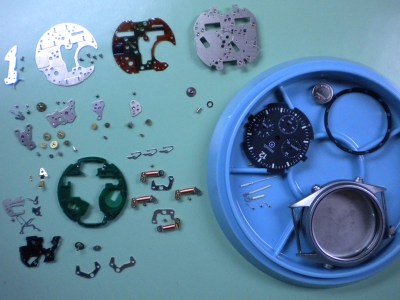

The parts stripped and ready for cleaning.

DSCN6506a

DSCN6510a

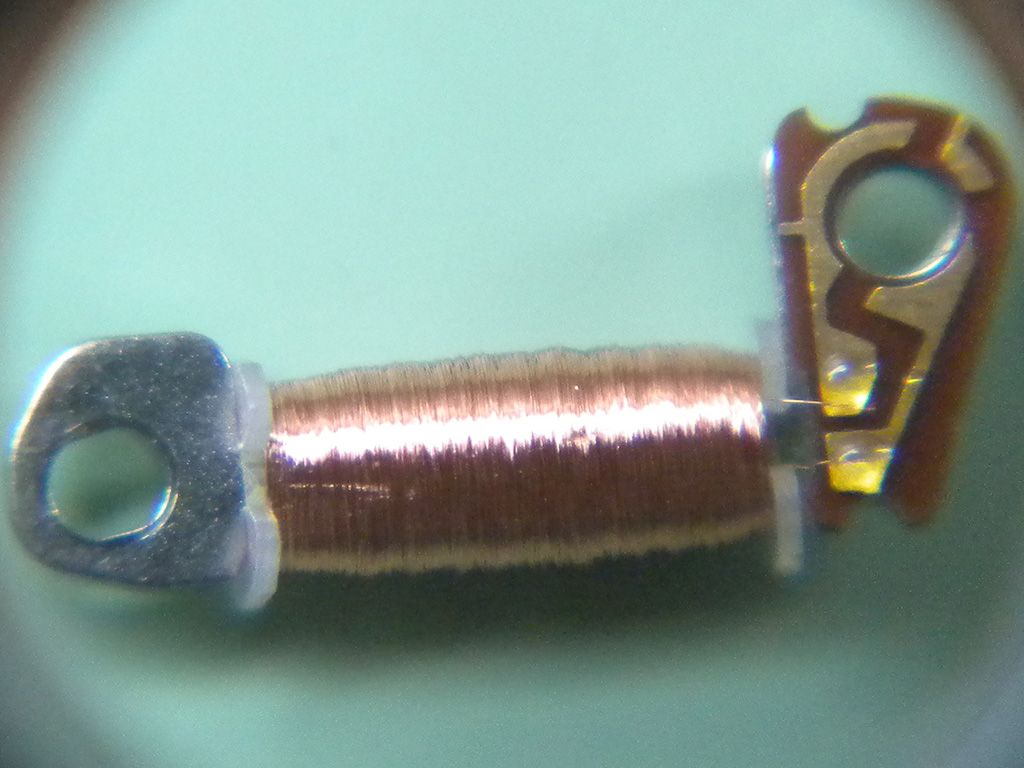

This was the minute counters coil, you can see where it had been poked with something (usually a screwdriver at a battery change), it checked out as having an open circuit so I made a note to source a new one. When I examined it again I noticed one of the fine wires wasn’t actually making contact with the brass terminal so the soldering iron was fired up and the joint was remade which did the trick.

DSCN6511a

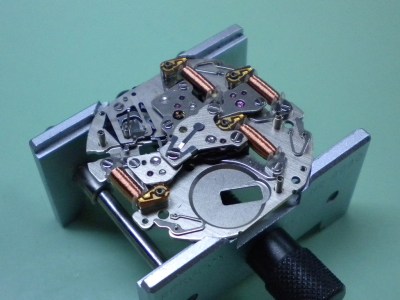

The movement was re-assembled after cleaning and inspection.

DSCN6519a

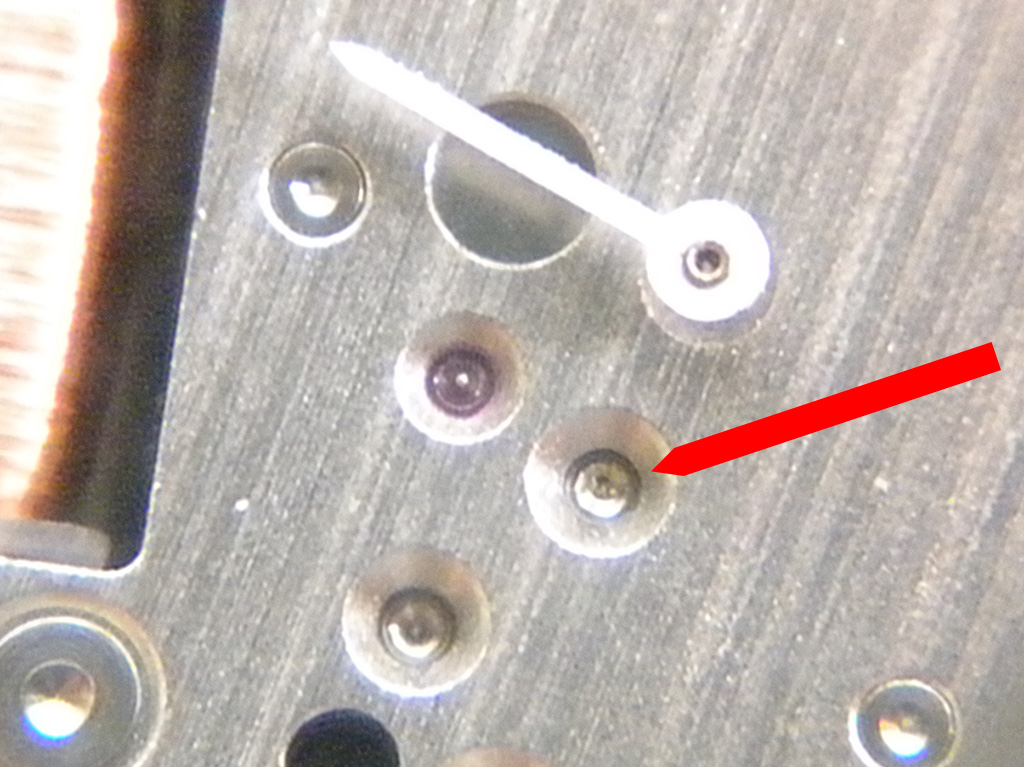

When I put the movement on test the chronograph function worked perfectly including the minute counter which was great, however, the running seconds and time indication (hour and minute hands) didn’t want to run! After much head scratching I eventually traced the problem down to a worn bush on an intermediate wheels pivot. It looked like the bush had a figure of eight hole and when I reassembled it the pivot had gone in the wrong hole of the eight. It was a strange problem that I’ve never seen before, I think it must have been a manufacturing glitch as there was no wear what so ever on the wheels pivot and when I reassembled the pivot into the wrong half of the hole it must have been enough to open out the slot and allow it to move about. A new mainplate would have to be sourced.

DSCN6526a

The replacement mainplate arrived complete with the motion work and bridges, here it is next to the original.

DSCN6611a

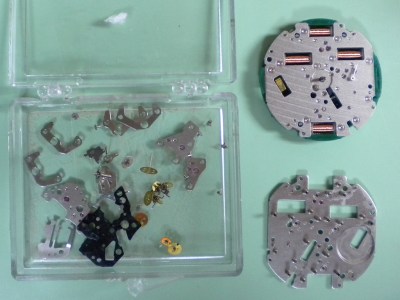

It was fully stripped and cleaned.

DSCN6612a

And the original movement had to be stripped once more to swap all the components over.

DSCN6619a

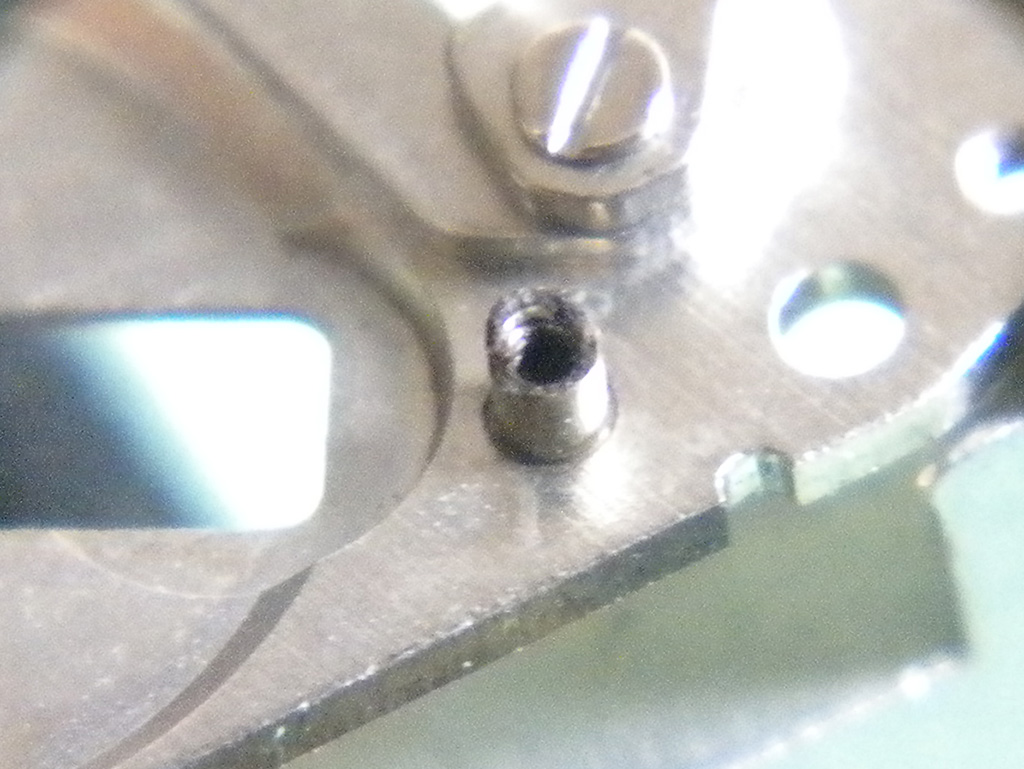

One problem with the replacement plate that I didn’t spot until I came to fit the top cover was one of the posts had been cut down.

DSCN6625a

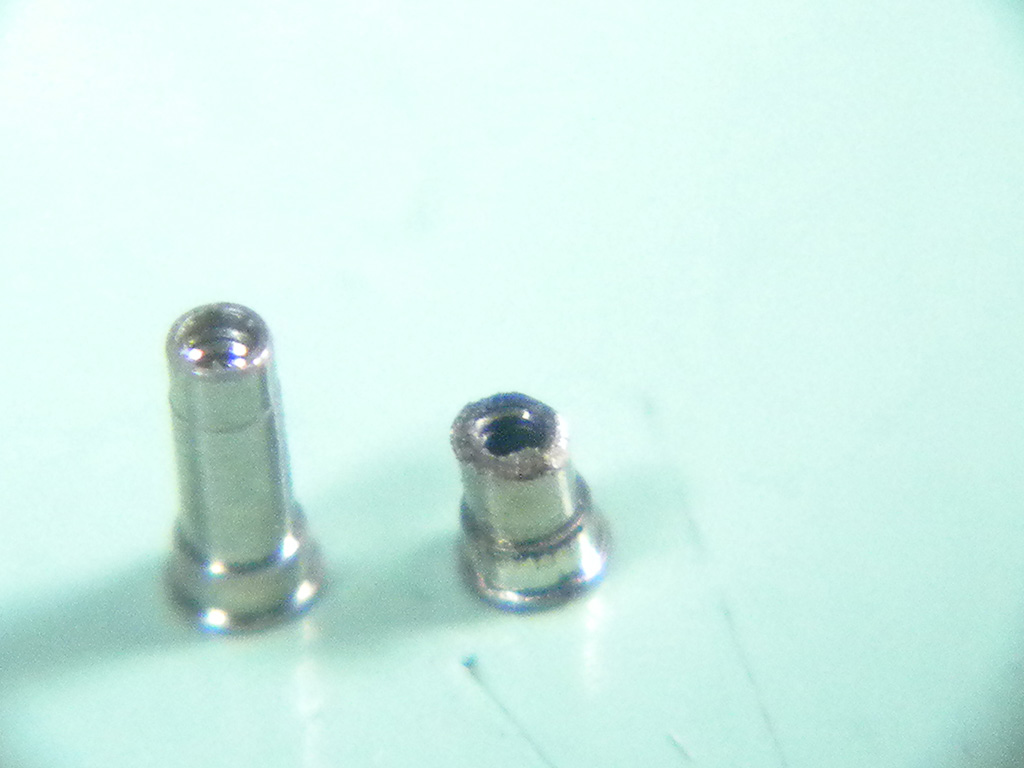

A replacement was pressed out of the original mainplate and transferred across to the new one.

DSCN6628a

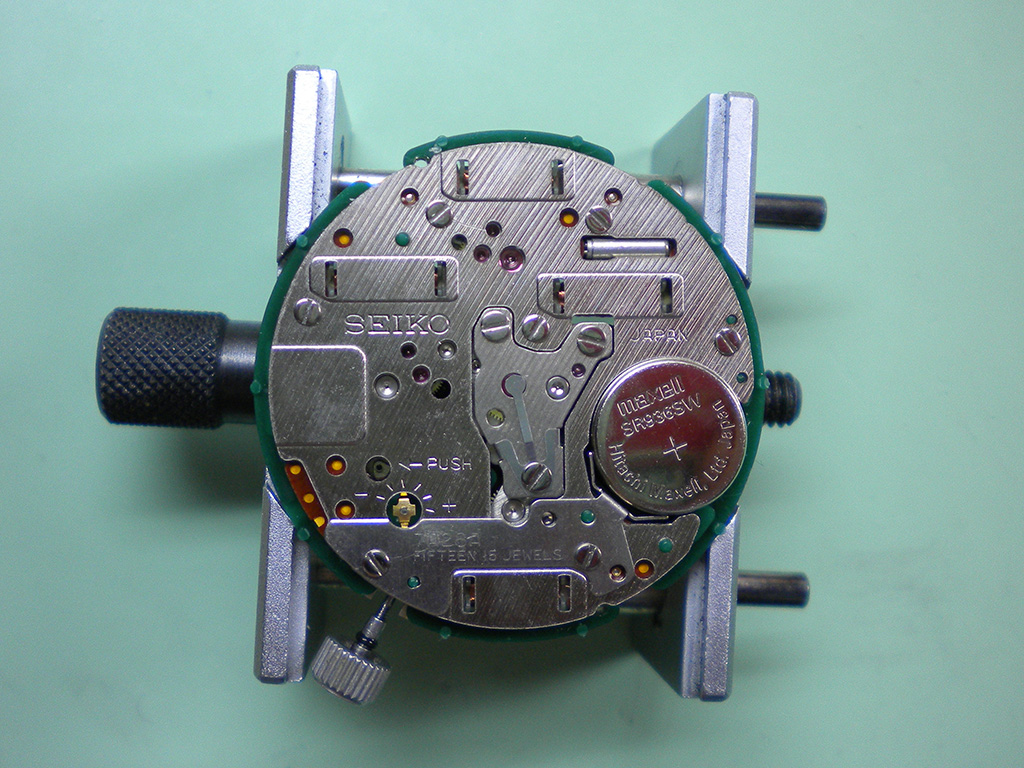

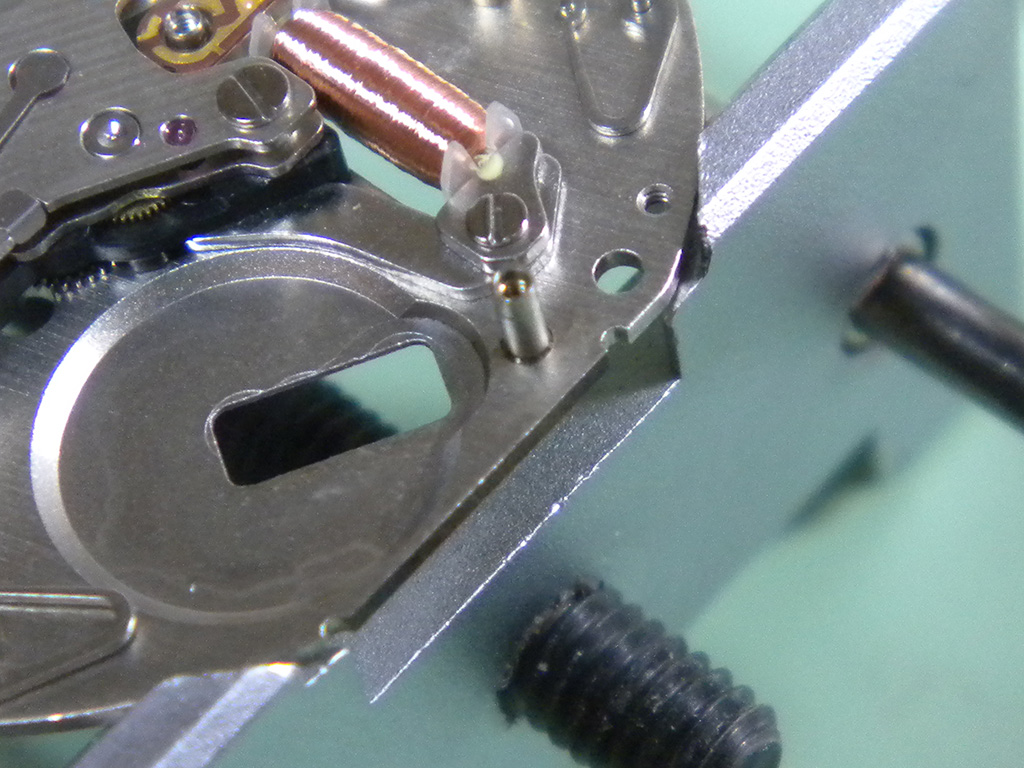

Once it was fitted the movement could be completed.

DSCN6630a

DSCN6633a

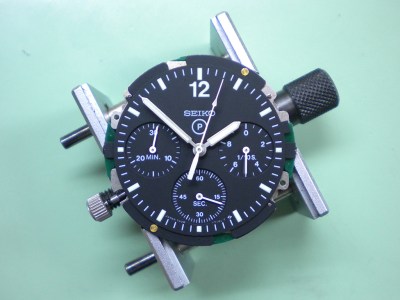

The dial and hands were installed and my attention turned to the case.

DSCN6638a

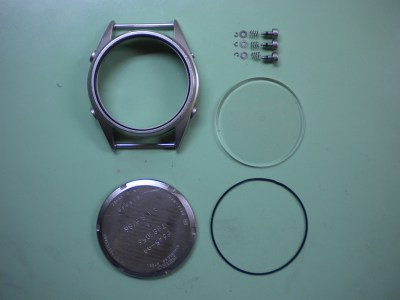

The case was completely stripped and all the components were ultrasonically cleaned.

DSCN6573a

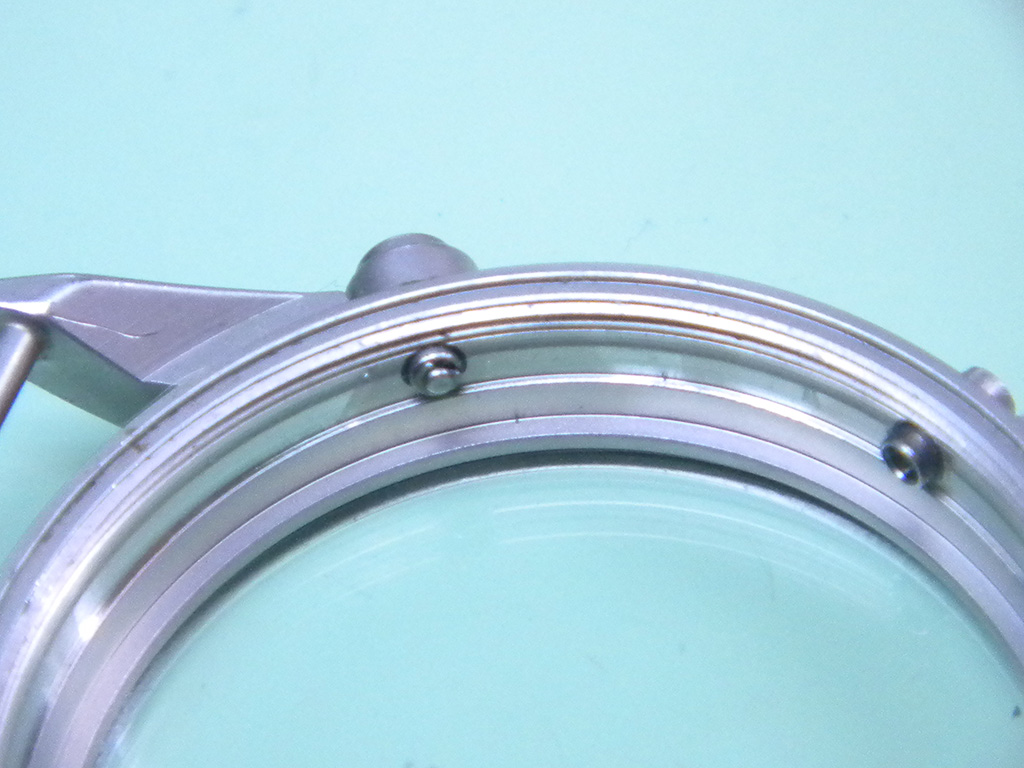

The pushers were re-sealed and lubricated. These are held in place by tiny clips that take a bit of a knack to fit, I’ve lost many of these into the ether in the past!

DSCN6570a

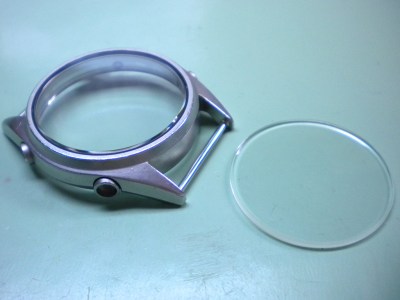

The replacement NOS crystal was fitted.

DSCN6576a

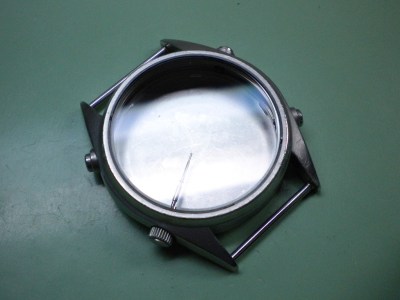

Which meant the case was now complete with lovely smooth functioning pushers.

DSCN6582a

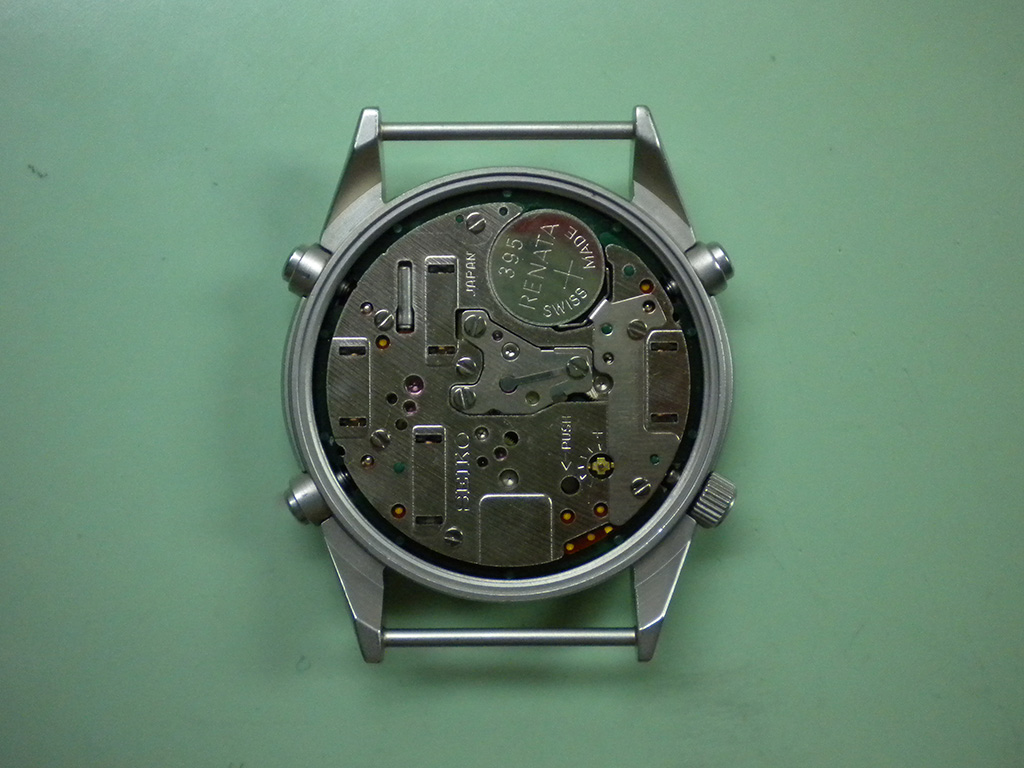

The movement was re-installed into the case and fitted with a new battery, the caseback was then fitted along with a new seal.

DSCN6639a

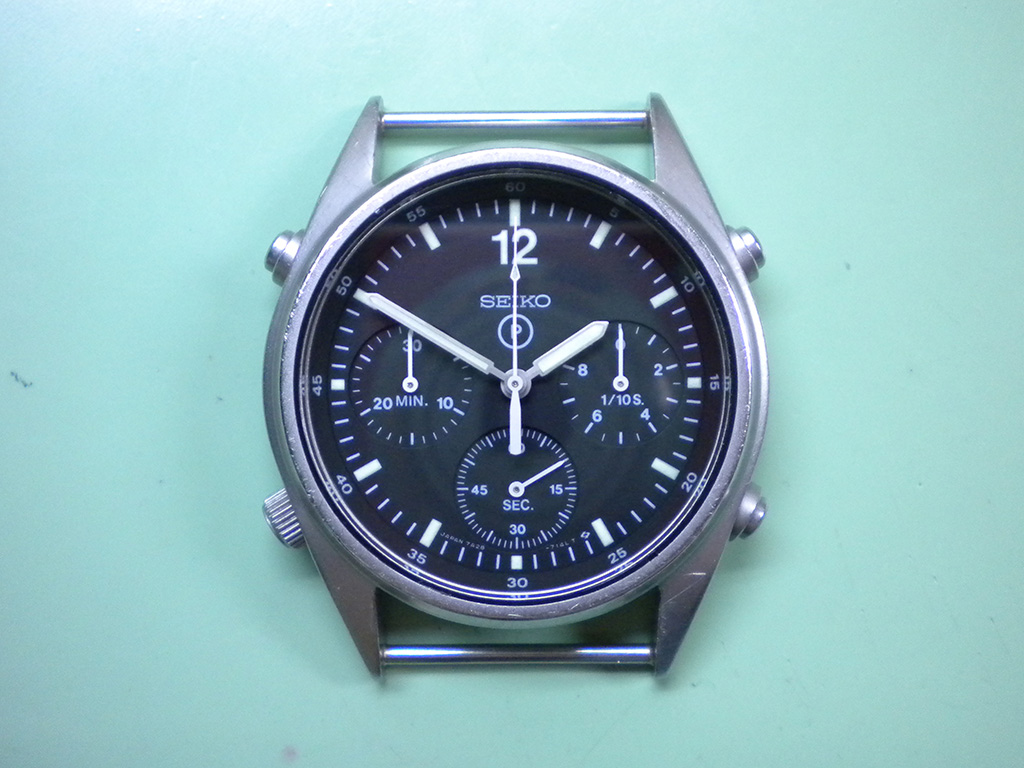

The finished article, a lovely example of an issued Gen 1 chronograph.

DSCN6644a

DSCN6645a

DSCN6646a
