Oris pointer

Oris have been making wristwatches in Hölstein Switzerland since 1904. They’ve been responsible for some iconic designs throughout that time, of note is the big crown pilots watch introduced in 1938 and of course the feature watch of this post (introduced in the same year), the pointer, which as the name suggests uses a hand to point to the date which is written around the periphery of the watches dial. This ladies example recently came in for a new crystal and a service and it typifies Oris’s pointer series of watches with its guilloche type ring beneath the numerals, it’s cathedral hands and crescent style date pointer hand.

P1010251a

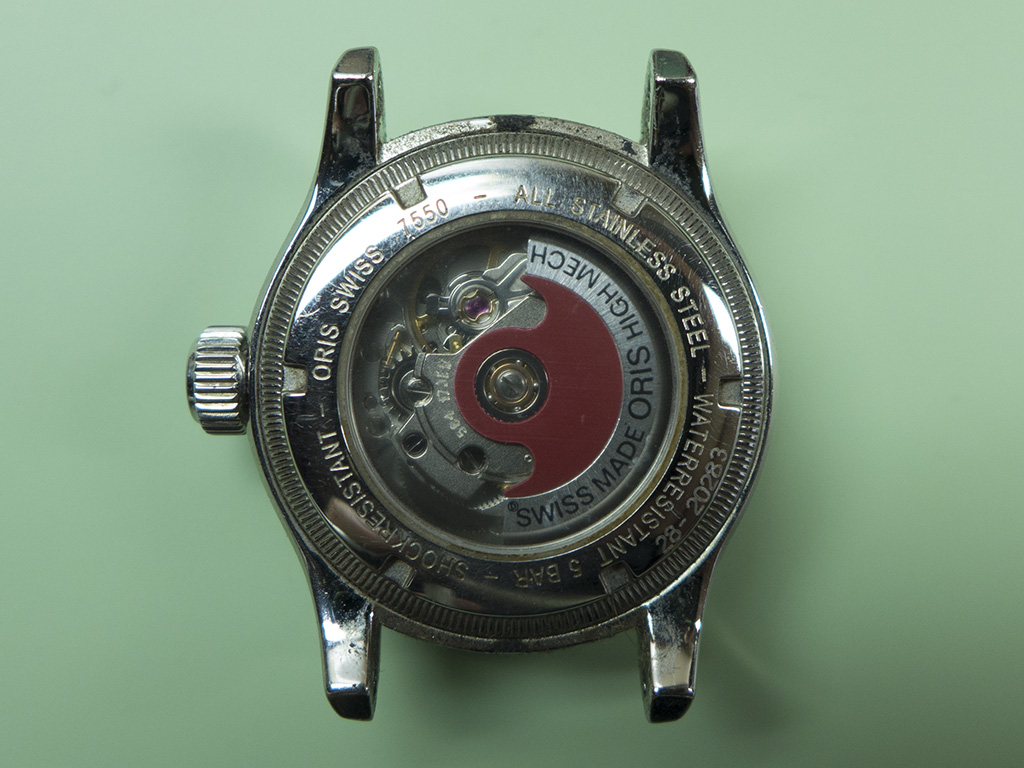

The rear view is just as appealing with its display back and red rotor.

P1010253a

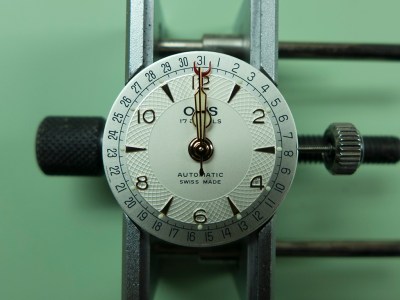

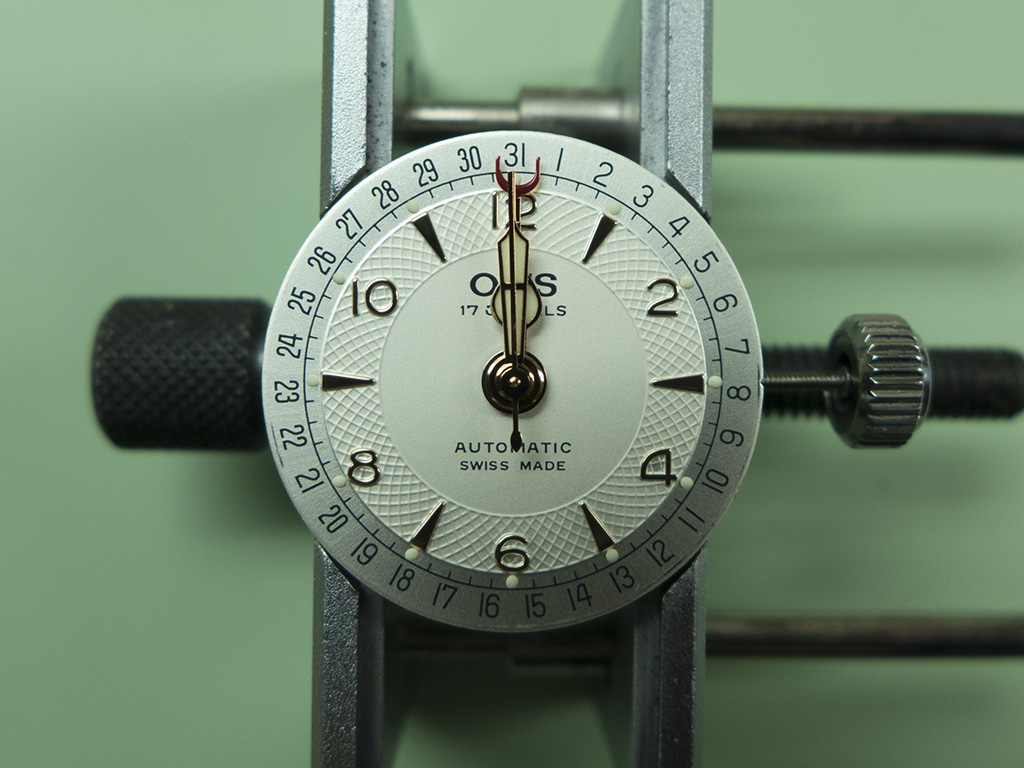

With the movement removed the hands are all lined up ready to be removed.

P1010254a

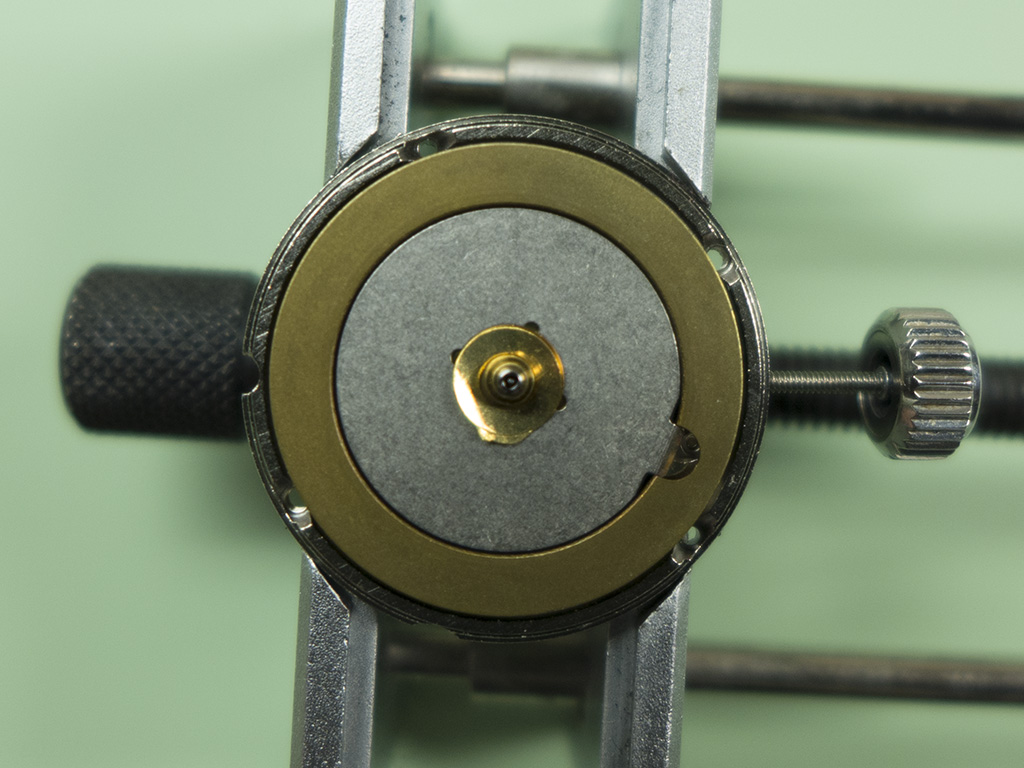

With the hands and dial removed you can now see the novel way the 4th pointer hand is driven. Some pointer movements drive the hand in the traditional way using a series of gears to drive a central wheel, this little ETA 2688 movement utilises a traditional calendar ring which drives a plate connected to a central wheel. As there’s no other calendar day or month display to be obstructed it can afford to use this novel technique.

P1010255a

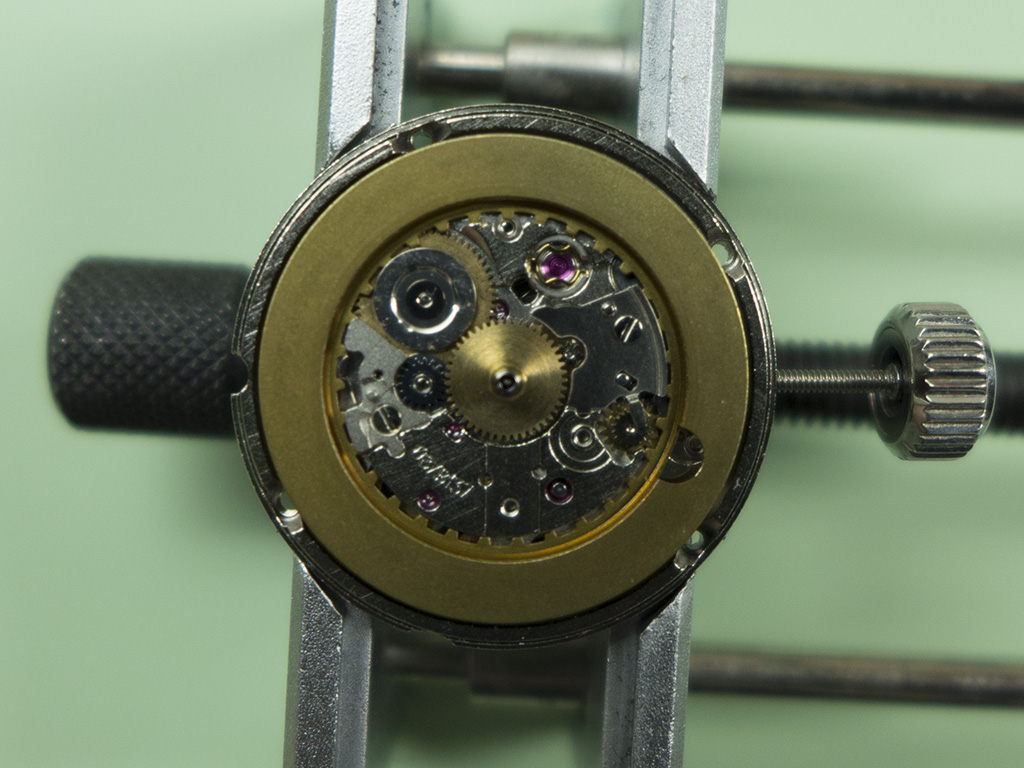

With the plate removed it looks a little more recognisable.

P1010256a

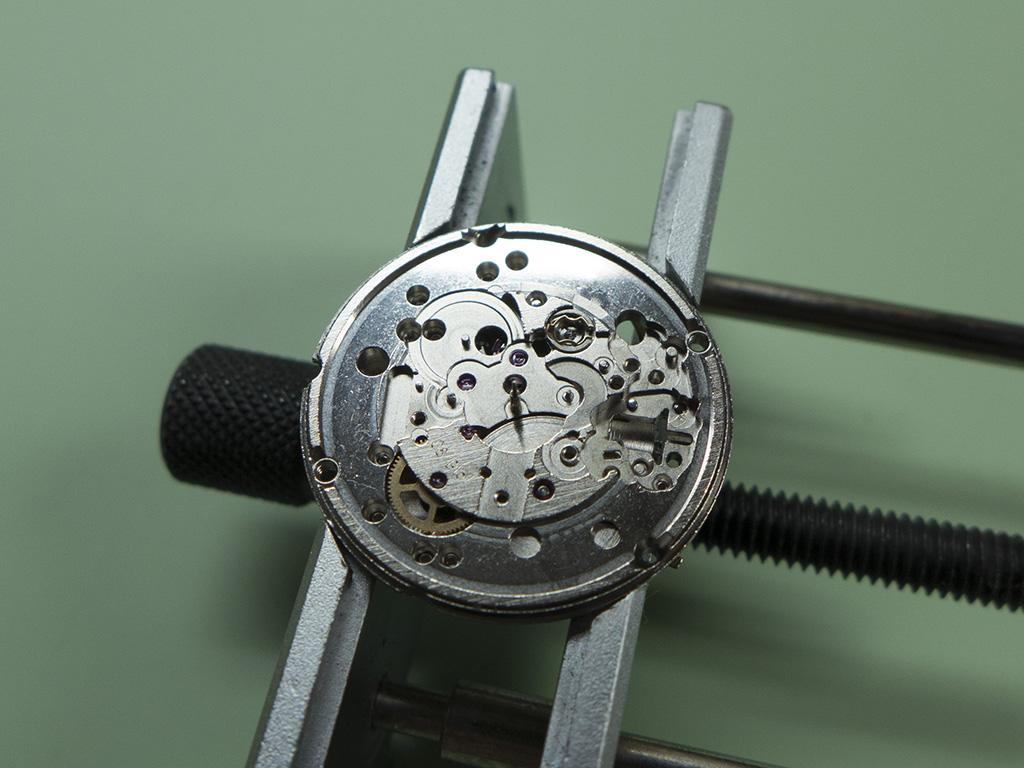

The watch with all the calendar side components and keyless work removed.

P1010259a

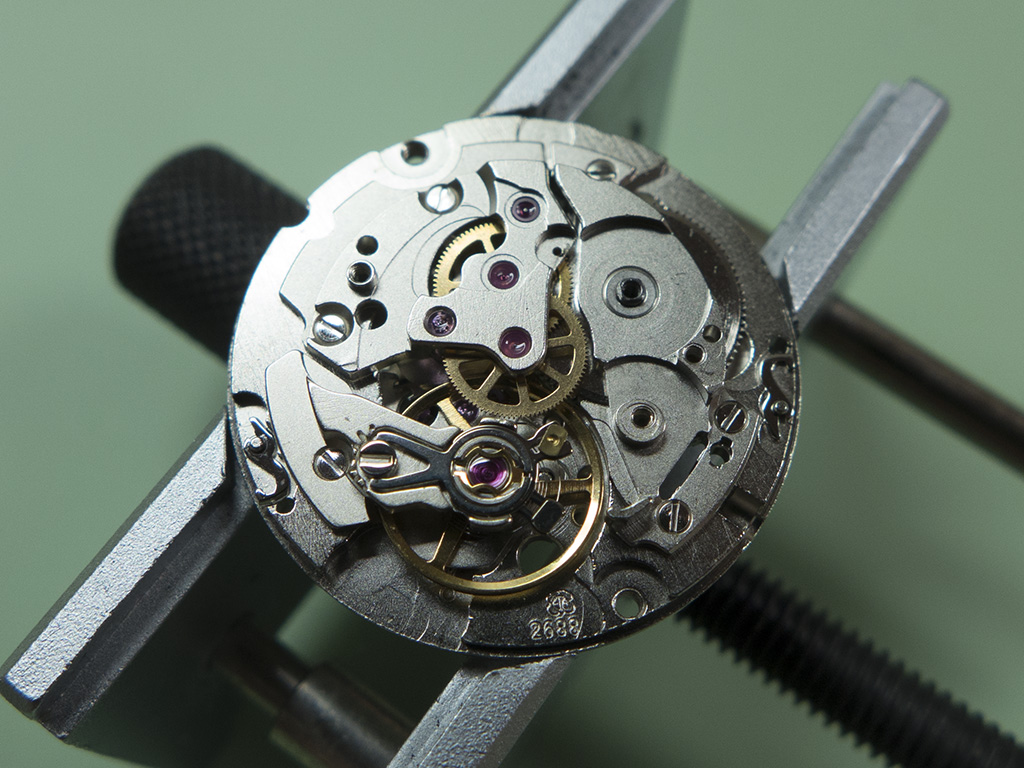

The motion work ready to be stripped, here the ratchet wheels and autowind bridge have been removed.

P1010263a

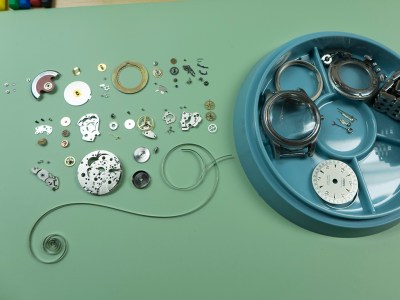

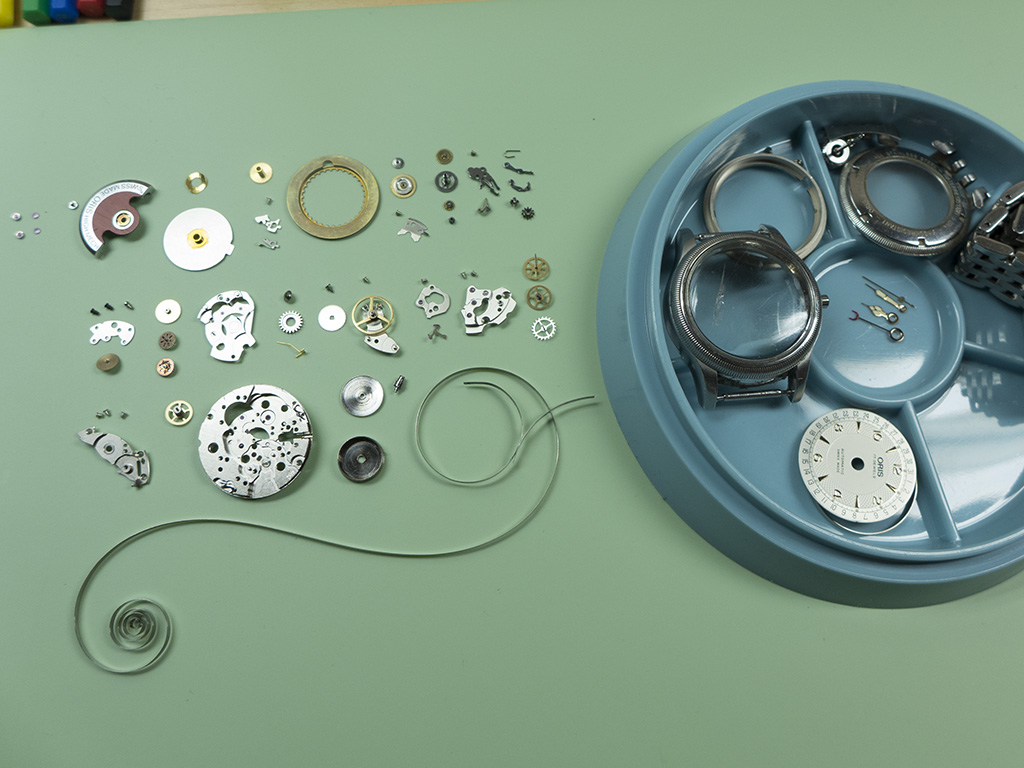

And the watch is fully stripped and ready for cleaning and inspection.

P1010265a

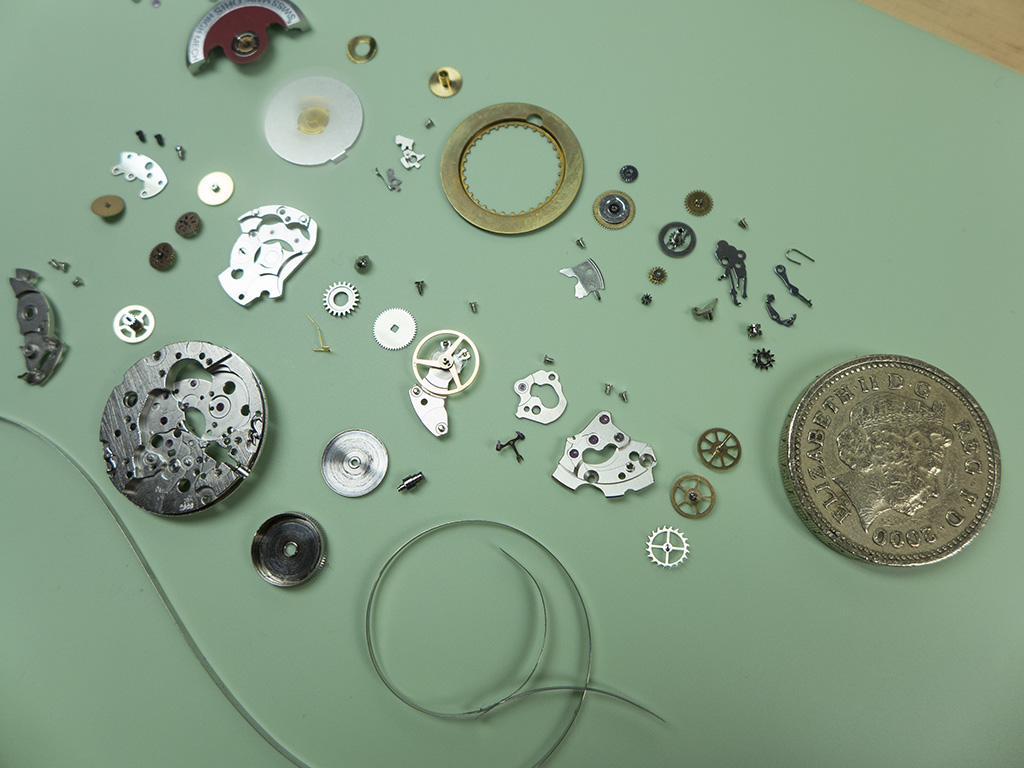

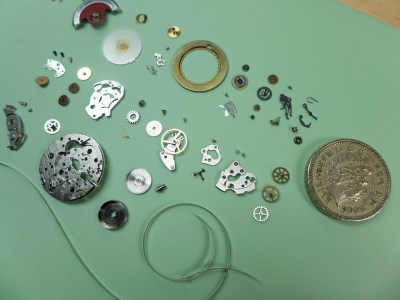

These ladies movements are on a scale that much smaller than a one from a gents watch, for comparison I’ve placed a one pound coin next to the components.

P1010267a

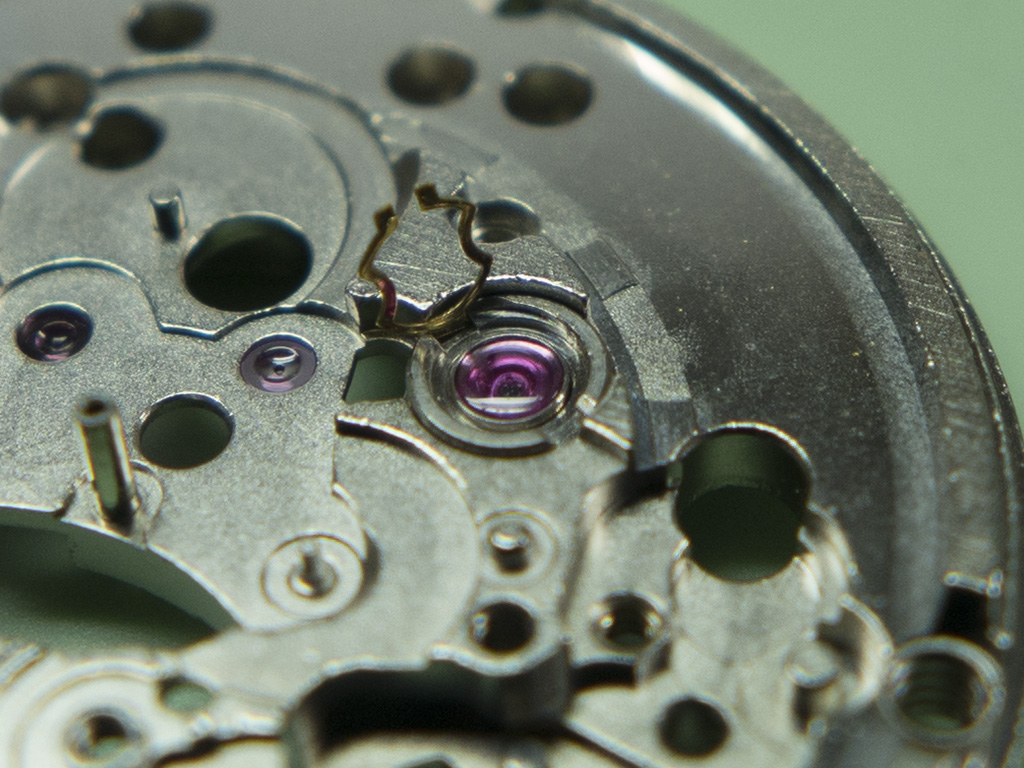

Once the components are clean the first thing I reinstall regardless of the movement is the top balance jewel and cap, it’s ready for the spring to be pressed in place here.

P1010270a

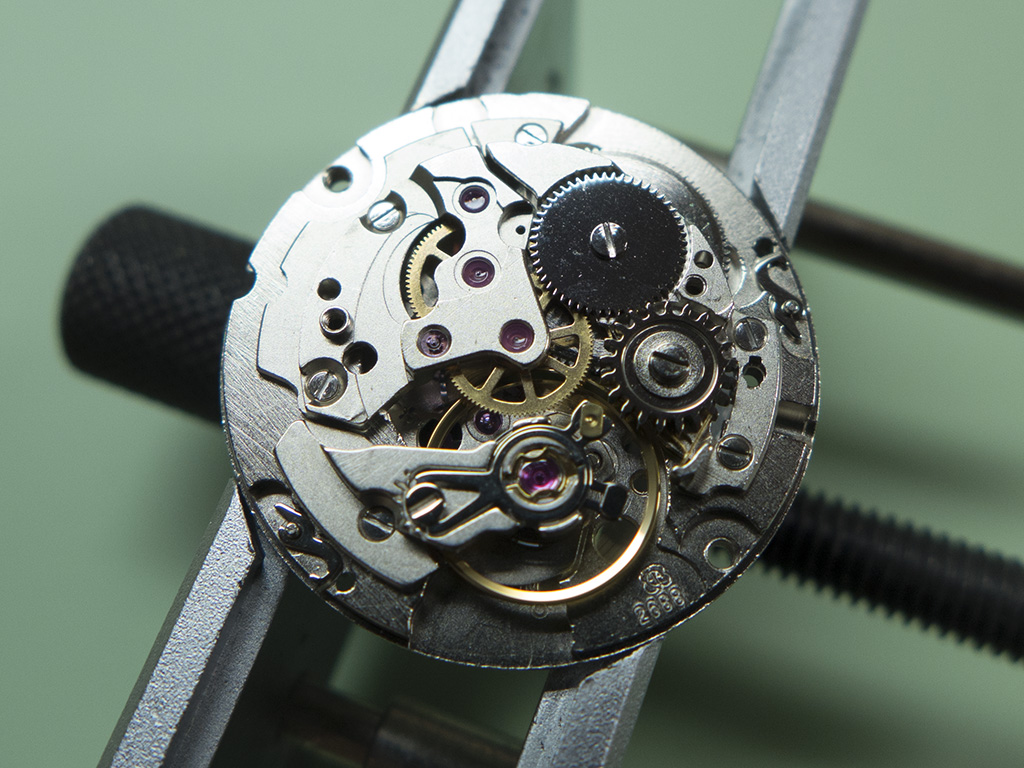

The motion work back together.

P1010275a

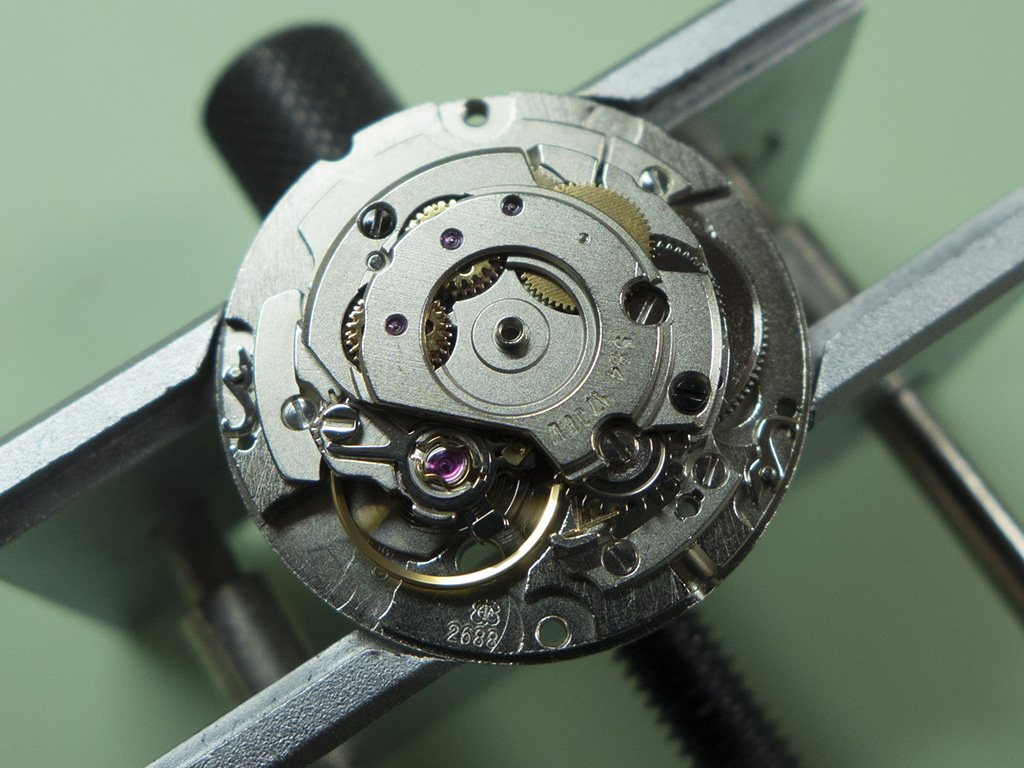

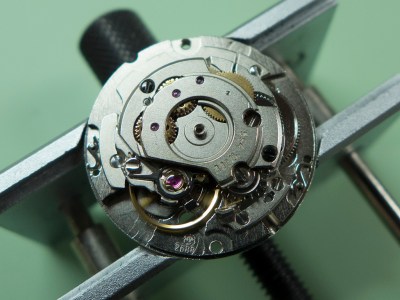

The autowind bridge reassembled and fitted with the movement ticking away nicely.

P1010279a

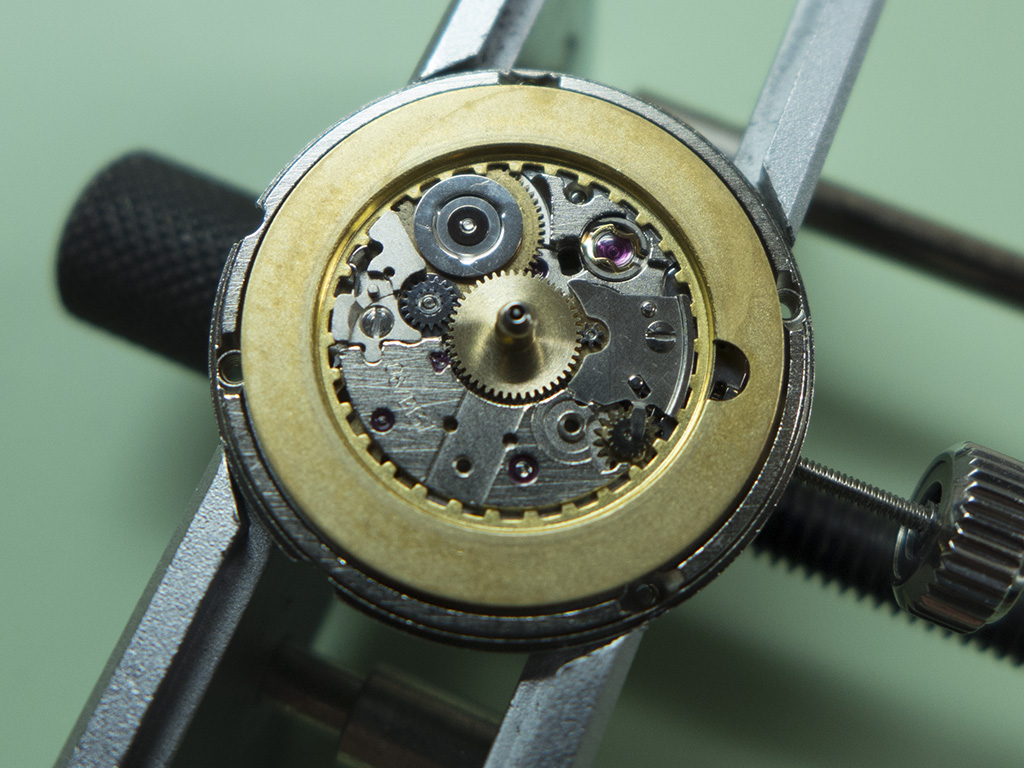

The calendar side nearly done.

P1010280a

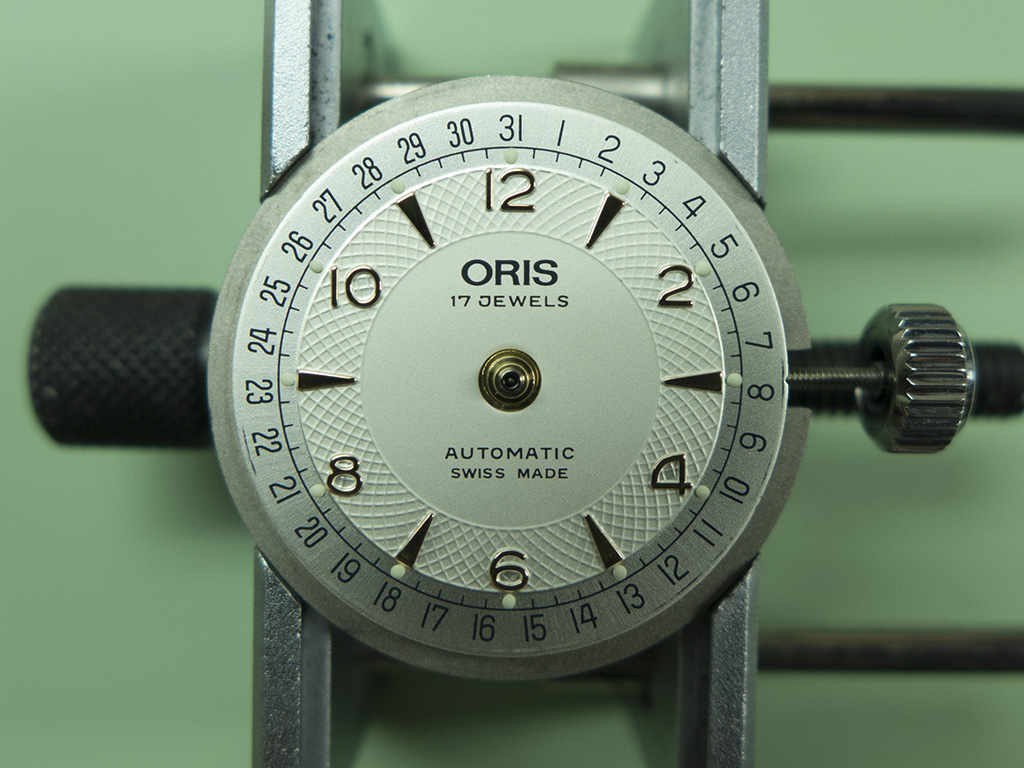

The dial……

P1010282a

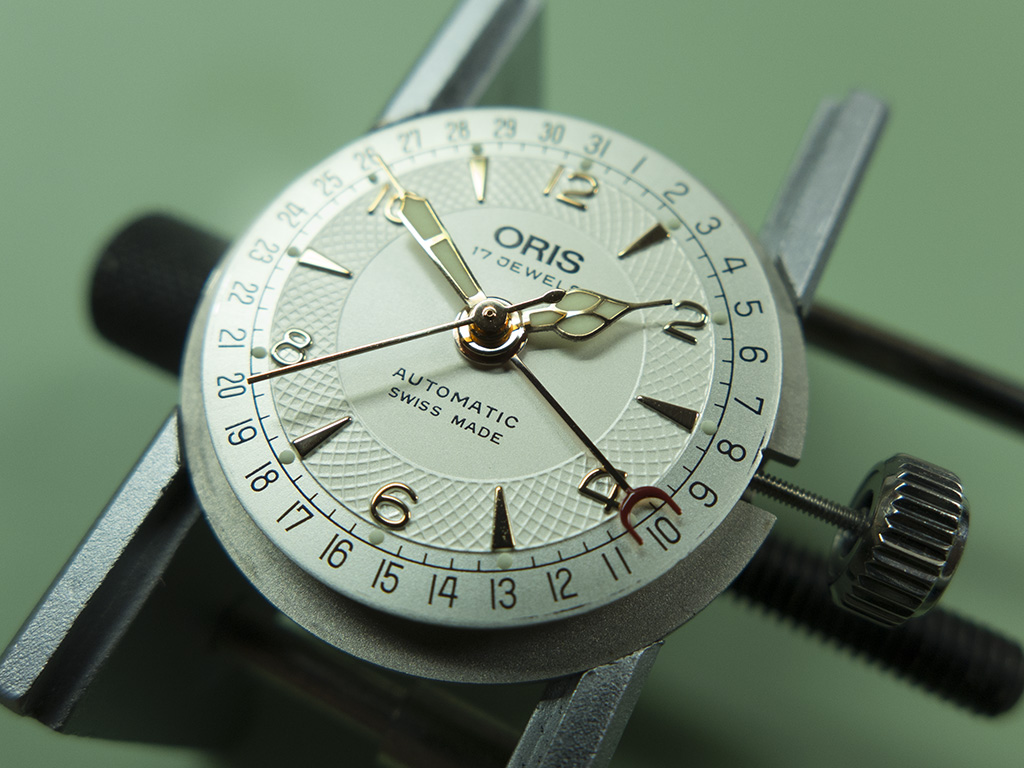

…. and hands fitted.

P1010284a

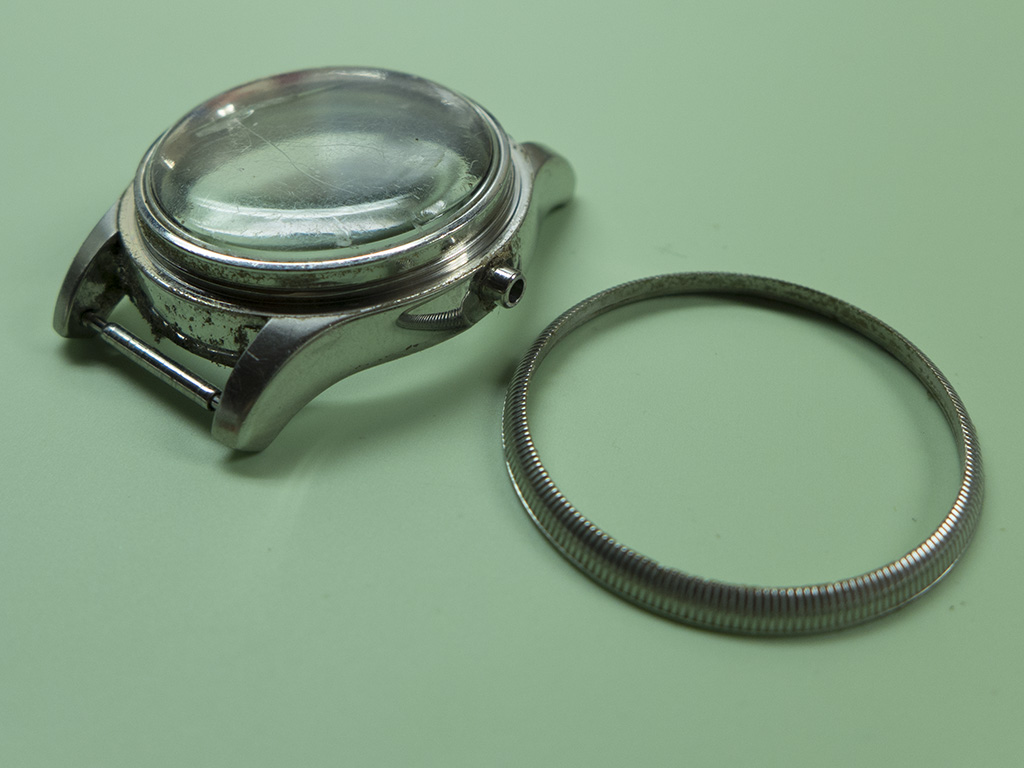

Which means I can now turn my attention to the crystal, here the “onion” bezel is off ready for the crystals removal. All the case components are then ultrasonically cleaned.

P1010268a

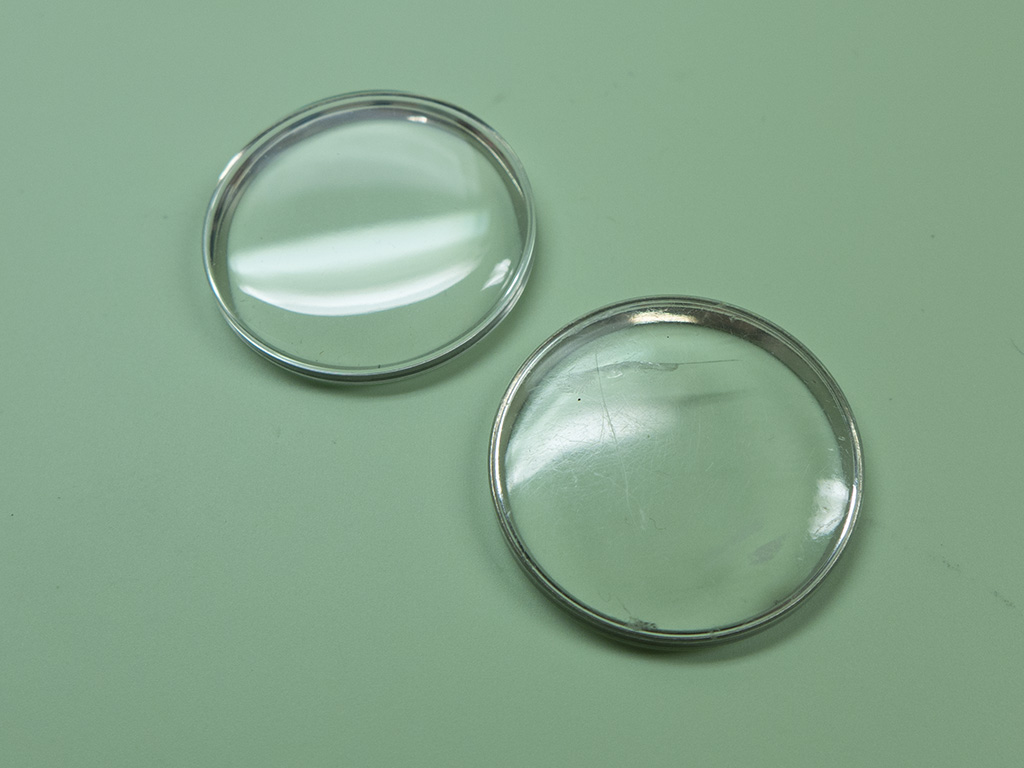

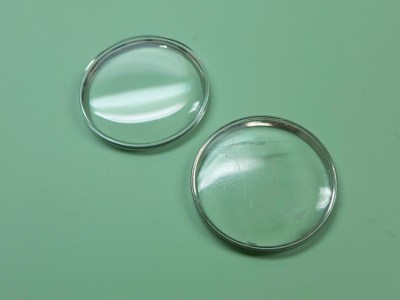

The new and the old.

P1010327a

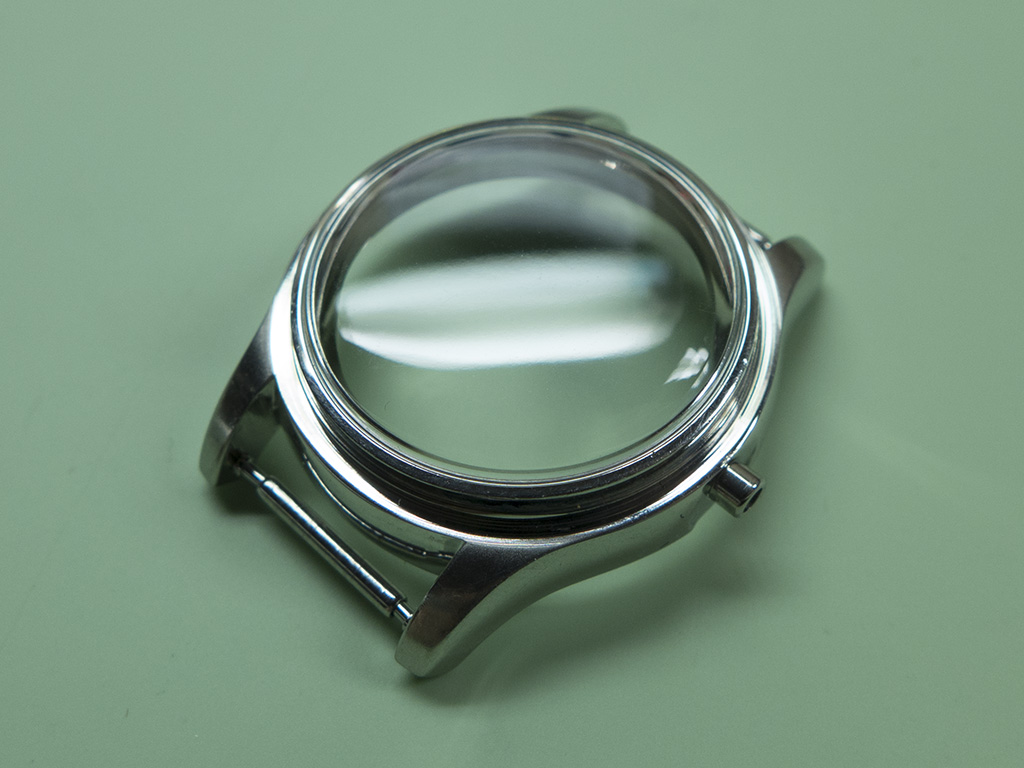

Nothing, and I mean nothing lifts a watch like a new crystal.

P1010328a

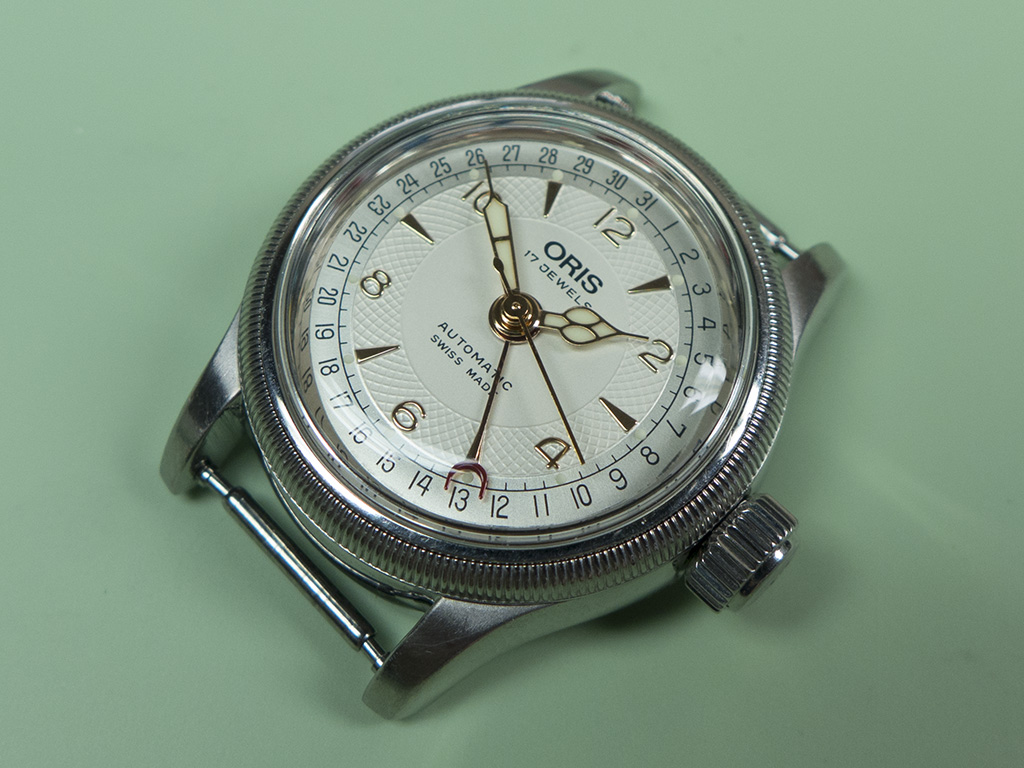

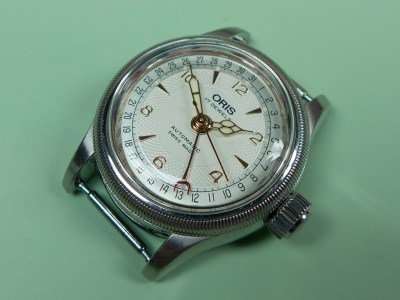

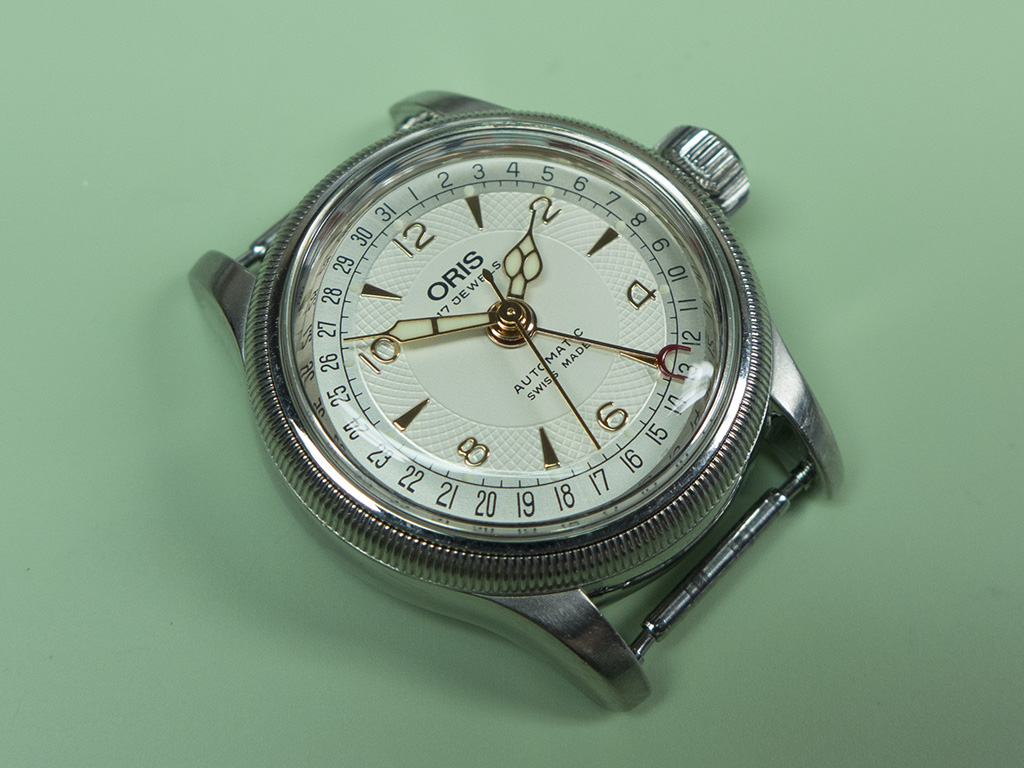

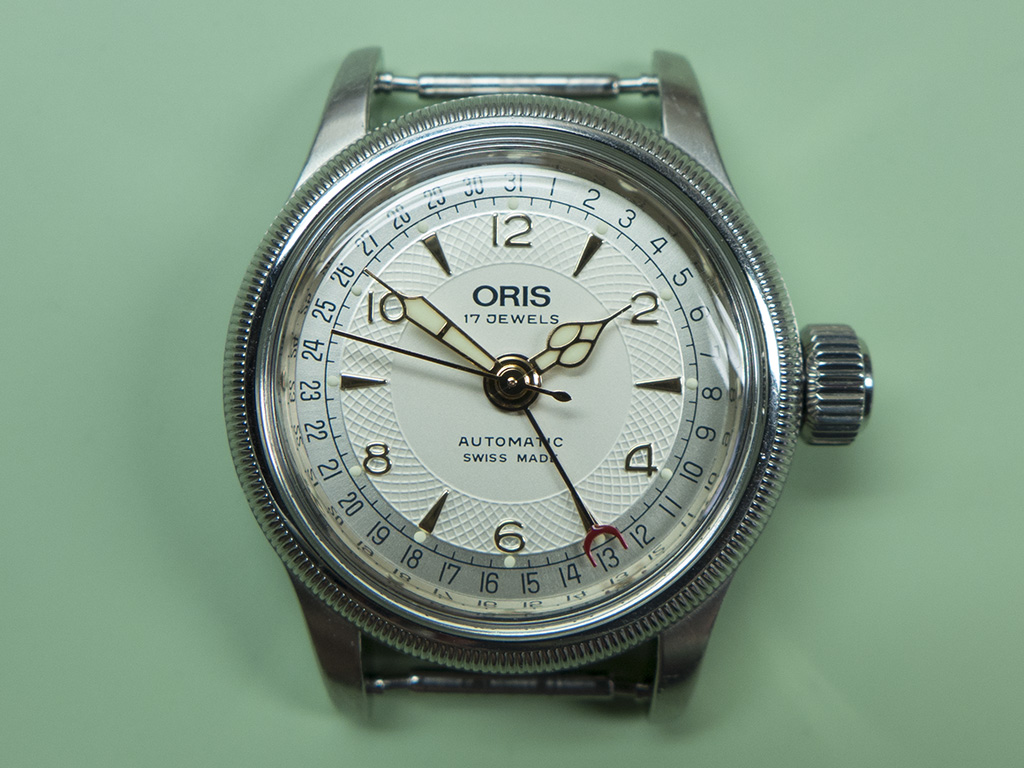

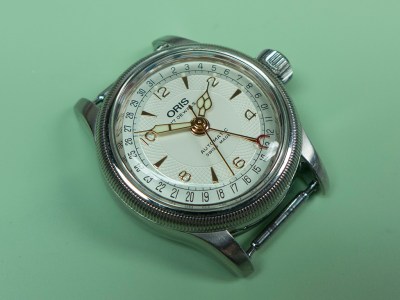

And here it is completed, an iconic piece I think you’ll agree.

P1010331a

P1010329a

P1010330a
