Seiko SKX007

Seiko’s SXK007 & 009’s are one of the companies most popular affordable dive watches and as such most collectors own or have tried one of these models at one time or another. They represent enormous value for money and are very popular in the modding community where different style dials, crystals, handsets, inserts even complete bezels can be bought and fitted to personalise it to your own taste. This particular example has been fitted with a domed crystal and thicker font insert.

P1010416a

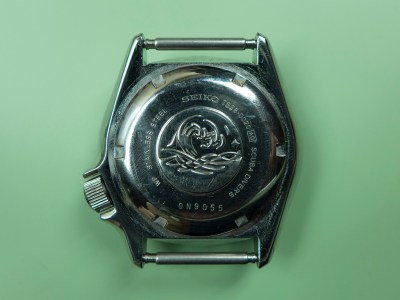

The caseback is stamped with the tsunami logo, an ever present feature on Seikos dive watches since it first appeared on the Silverwave line back in 1961.

P1010417a

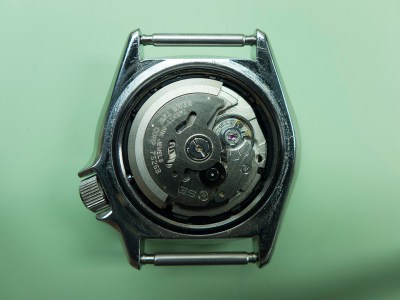

Remove the caseback and the 21 jewel 21,600bph calibre 7S26b automatic movement can be seen. The calibre 7S26 series have powered hundreds of different models of Seikos over the years, a Japanese workhorse movement if ever there was one.

P1010419a

This one needed a service and a gouge in the bottom right lug repairing, here the movement has been removed.

P1010421a

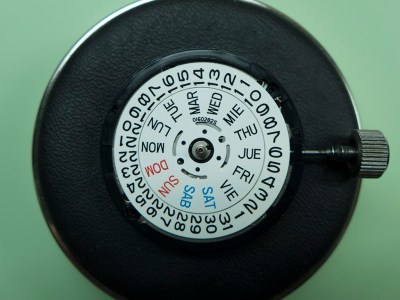

The dial and handset has been removed here exposing the calendar wheels. As you can see Seikos are furnished with dual language day wheels in English and the language of the market in which the watch was sold, in this case Spanish.

P1010422a

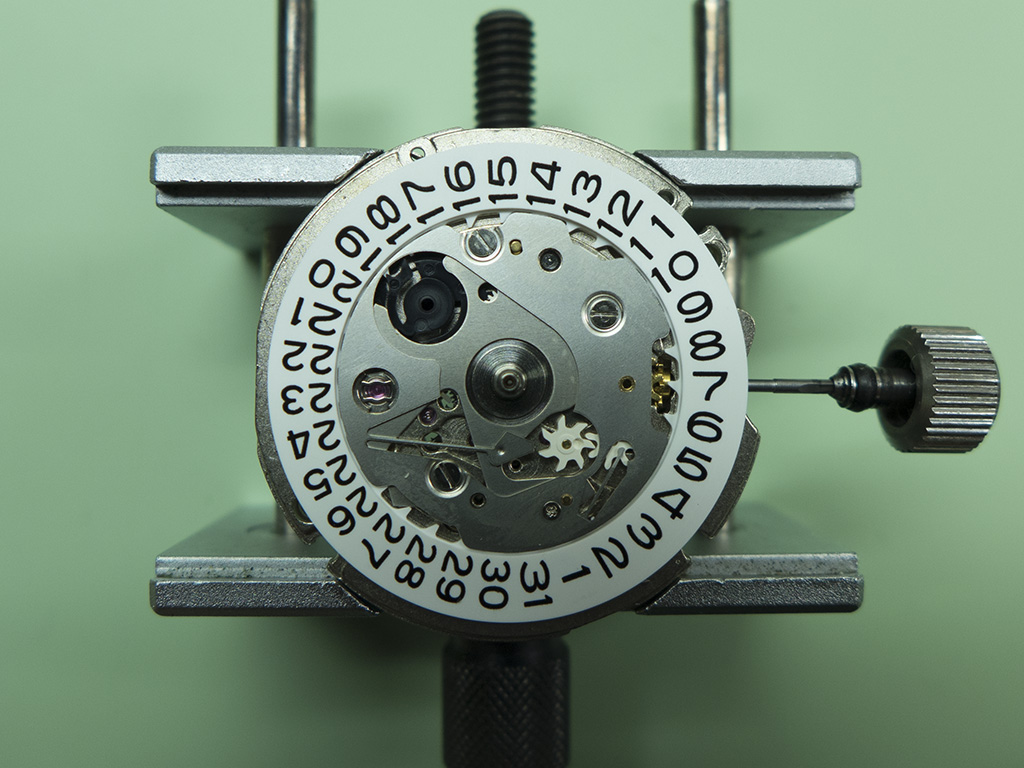

Remove the day wheel and the calendar mechanism is partly exposed. An oddity of these movements is the fact it has one single cross head screw adjacent to the number “1” on the date wheel. Every other screw in the movement is a slot head apart from this one and I still haven’t figured out why, knowing the way the Japanese develop and design stuff there must be a logical reason for it!

P1010423a

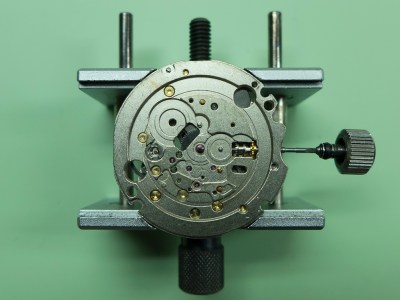

The calendar side stripped, another departure on the 7S26b is the fact the keyless work is situated on the motion work side of the movement, the normal practice is to have the keyless work on the calendar side.

P1010424a

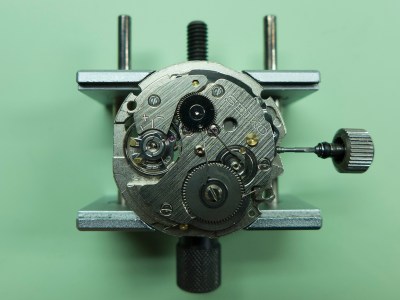

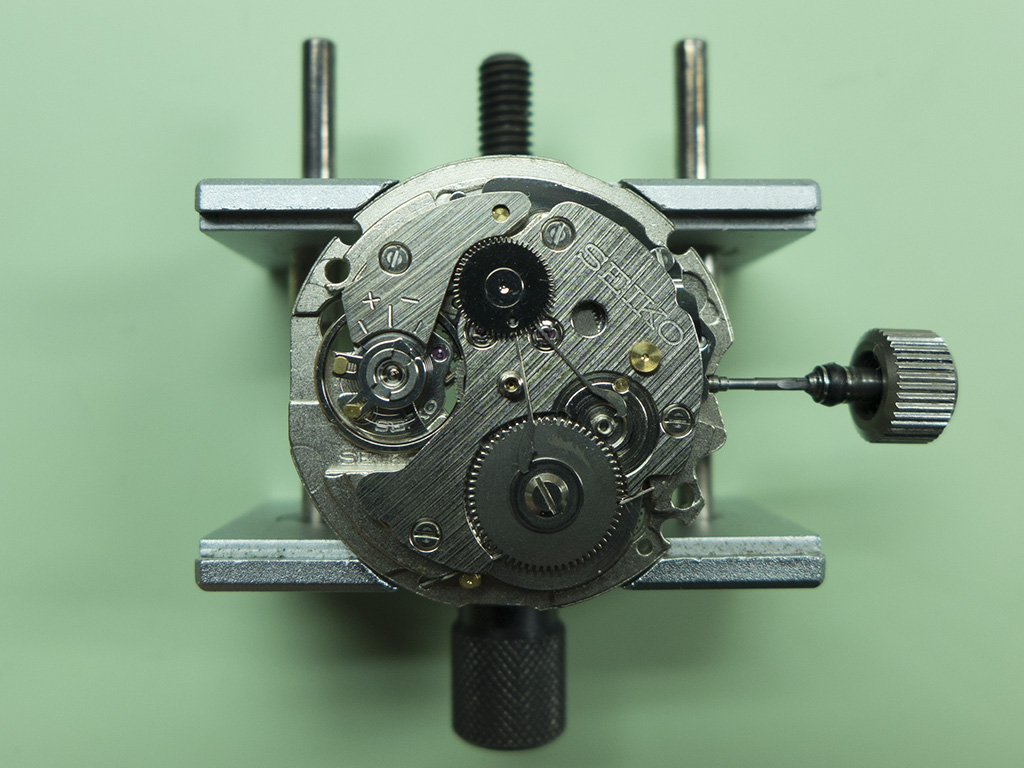

The motion work side with the rotor and the second reduction wheel (the one the autowind pawl works on) removed. The second reduction wheel needs to be removed to let the mainspring down.

P1010425a

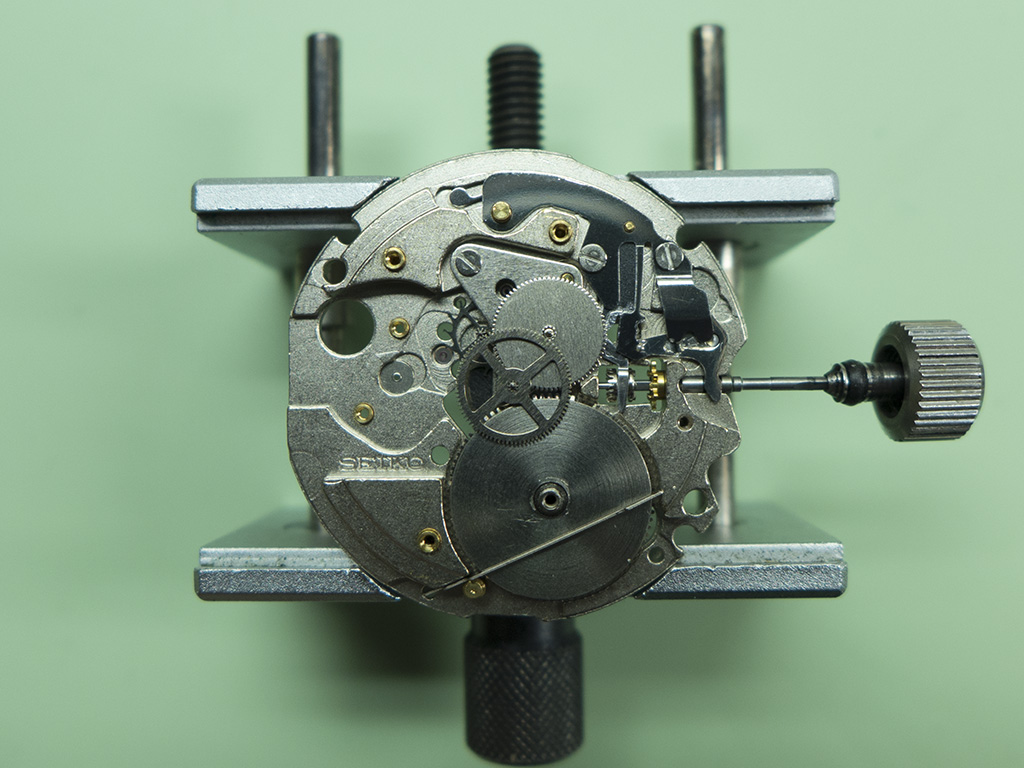

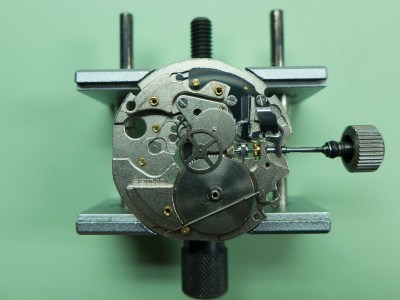

The balance, pallet fork and train wheel bridge removed exposing the train.

P1010426a

A typical mainspring after a few years of use, in need of stripping, cleaning and re-lubricating.

P1010427a

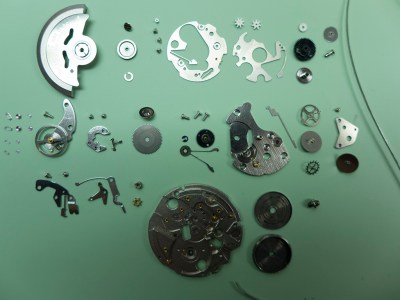

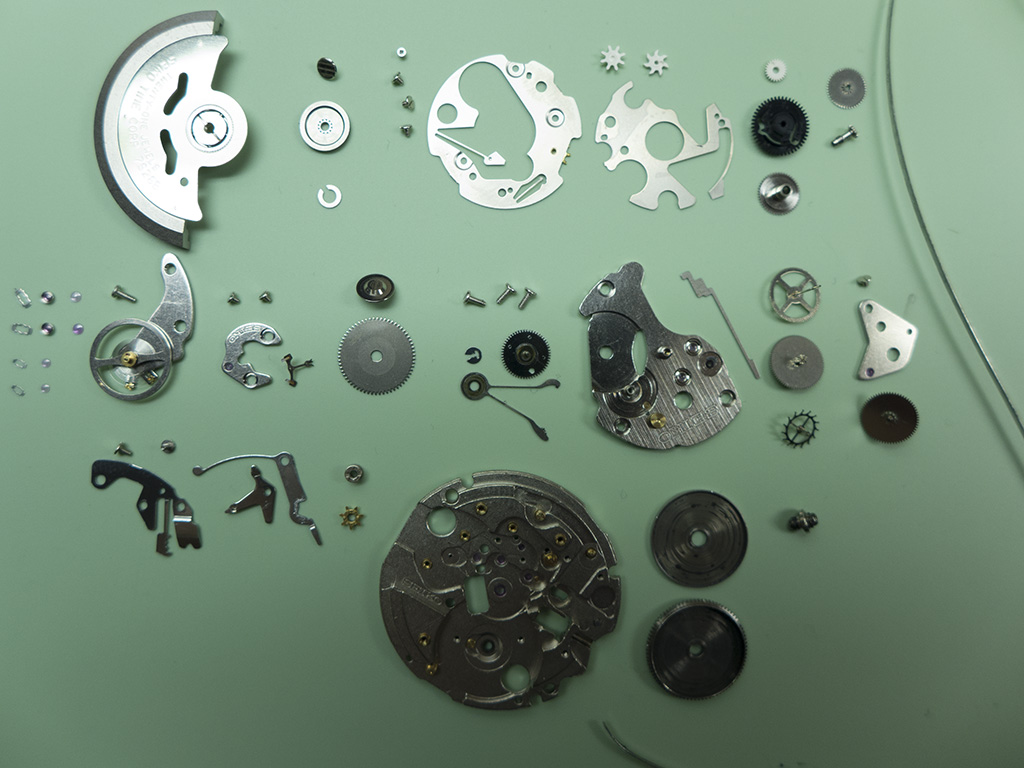

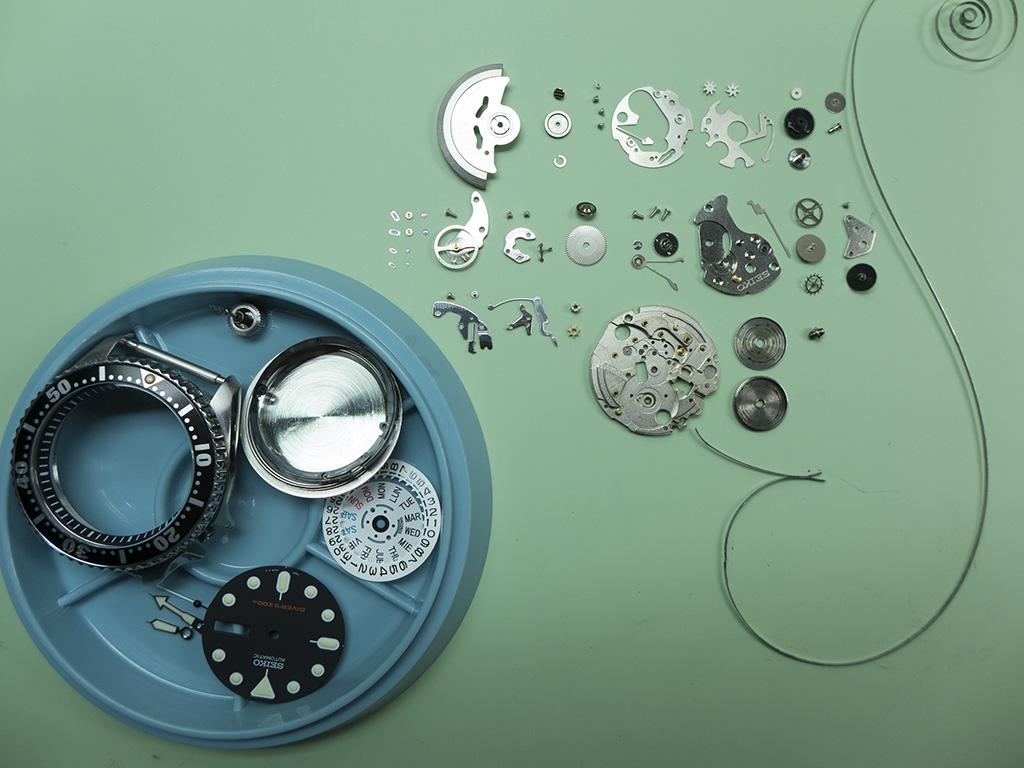

The movement was fully stripped ready for cleaning and inspection.

P1010429a

P1010430a

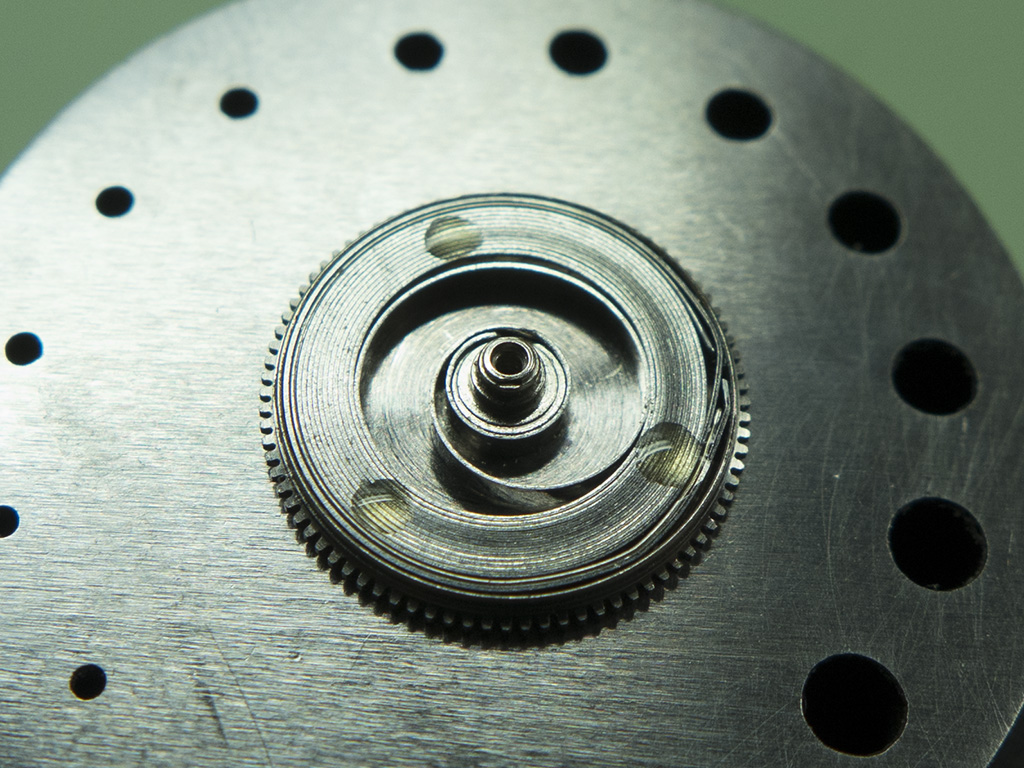

The cleaned and re-assembled barrel and mainspring.

P1010431a

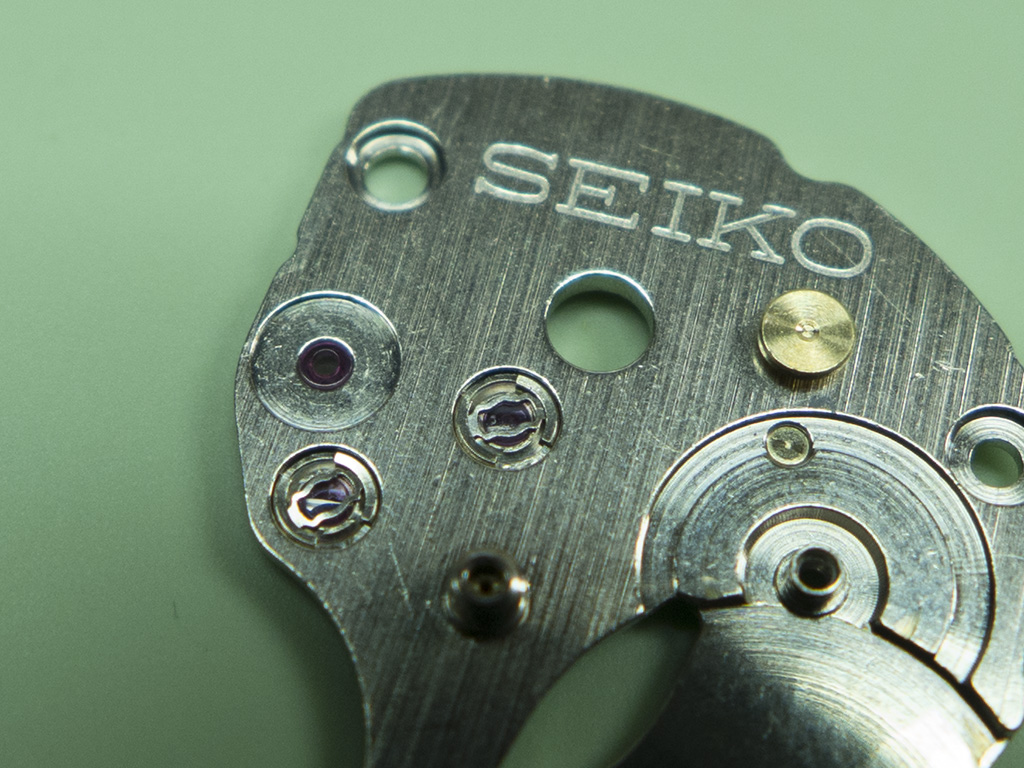

A fiddly part of the 7S26 service is the removal and replacement of the third and escape wheel jewel caps and springs on the train wheel bridge. There’s a bit of a technique involved in removing and replacing them without the springs pinging away never to be found, most watchsmiths use their own preferred methods.

P1010433a

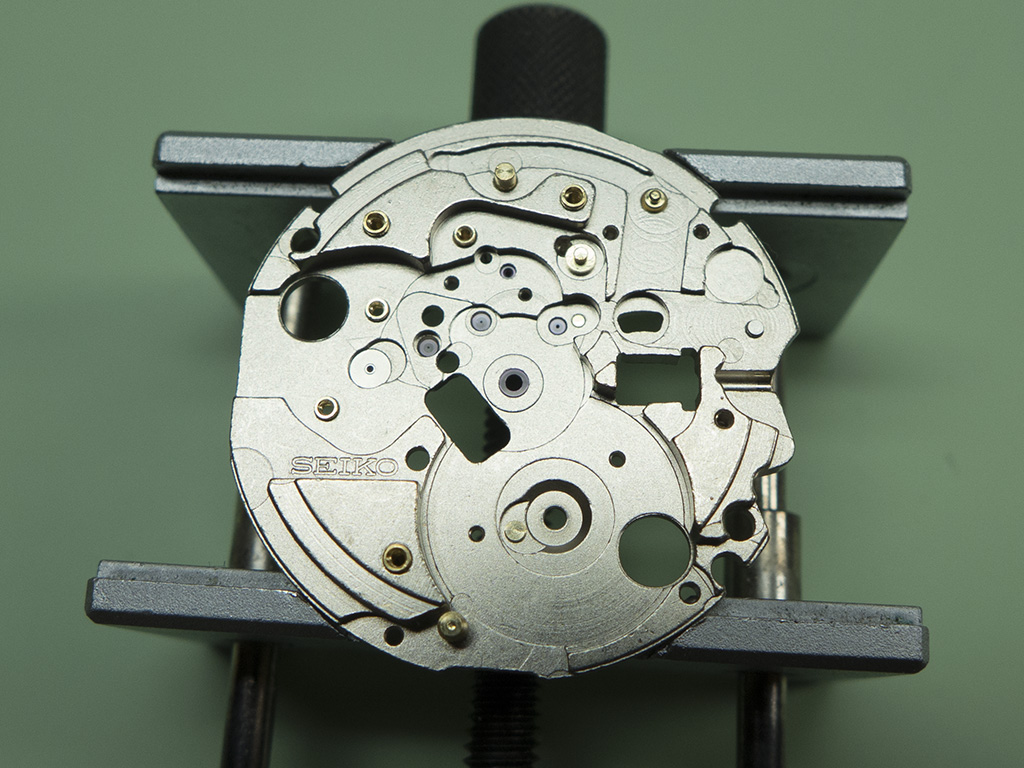

The mainplate ready for rebuild.

P1010434a

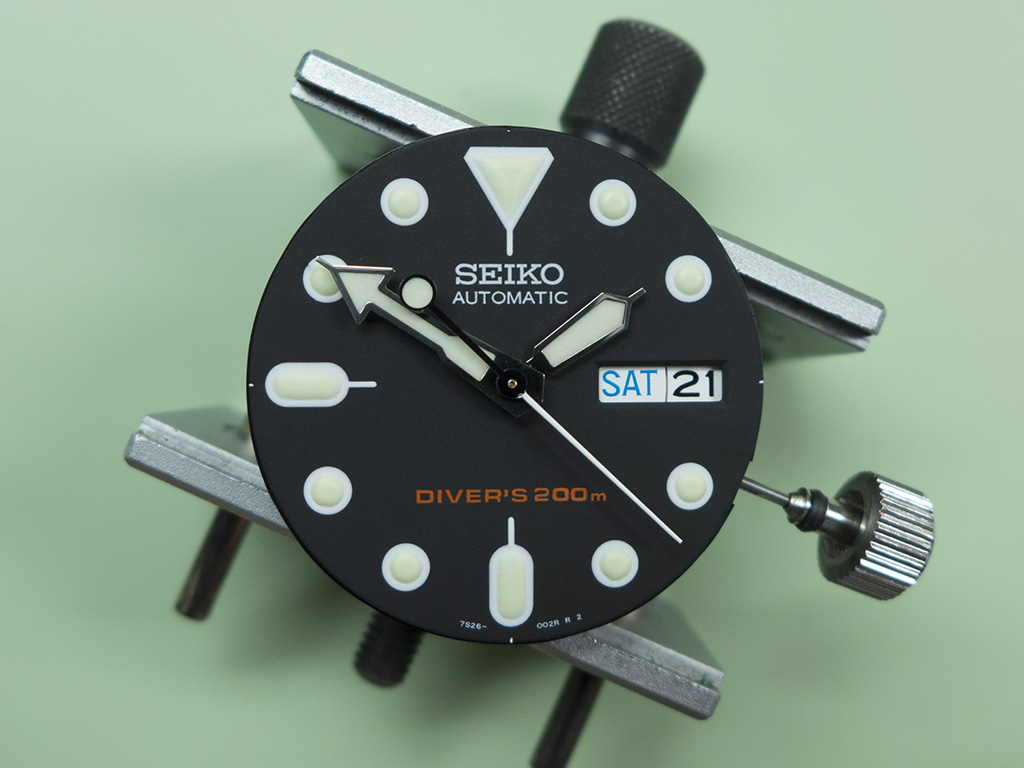

All went without any issues and the dial and handset was refitted.

P1010479a

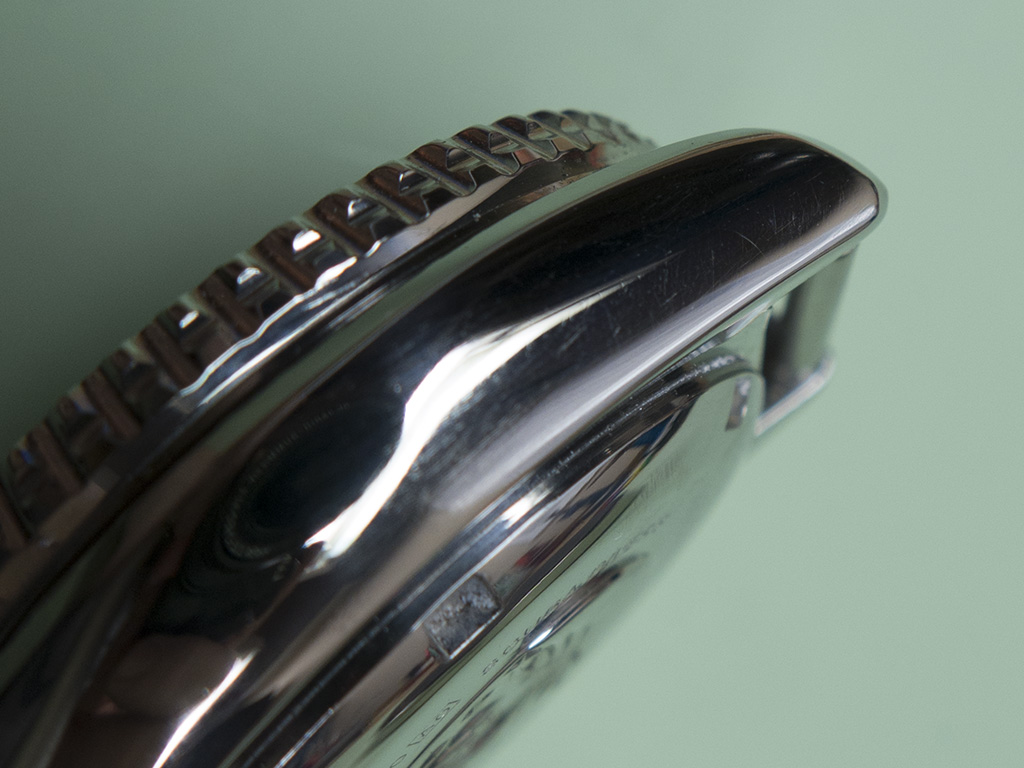

The damaged lug was smoothed and polished which improved it no end, it had quite a gouge in it caused when the owner inadvertently dropped the watch. There’s always a trade off when repairing damage such as gouges and dings between blending it in and not removing too much material.

P1010485a

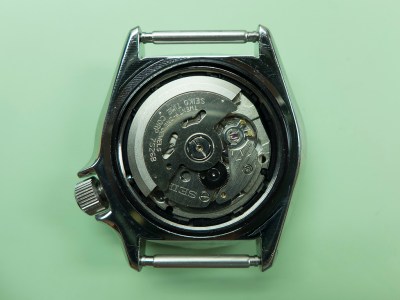

The movement was re-cased and sealed back up. It successfully passed a pressure test which wasn’t a surprise.

P1010480a

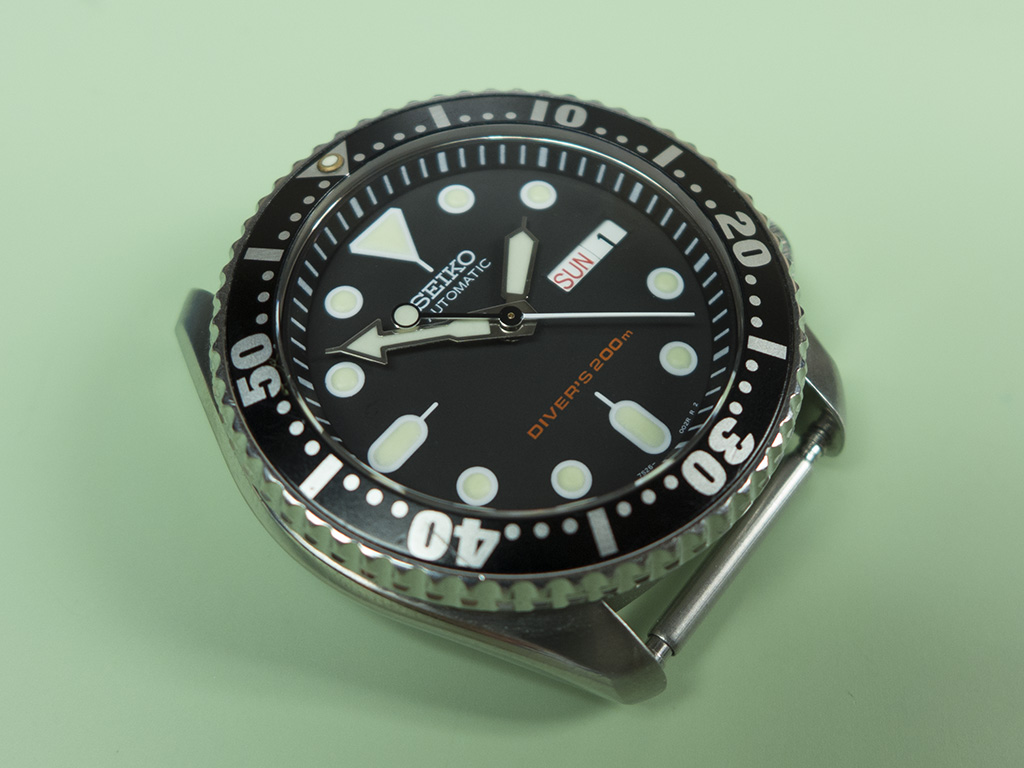

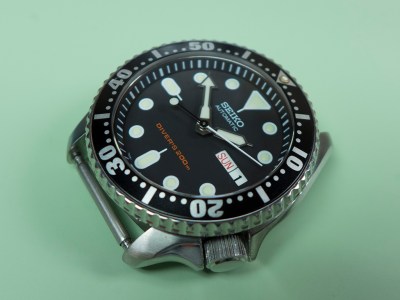

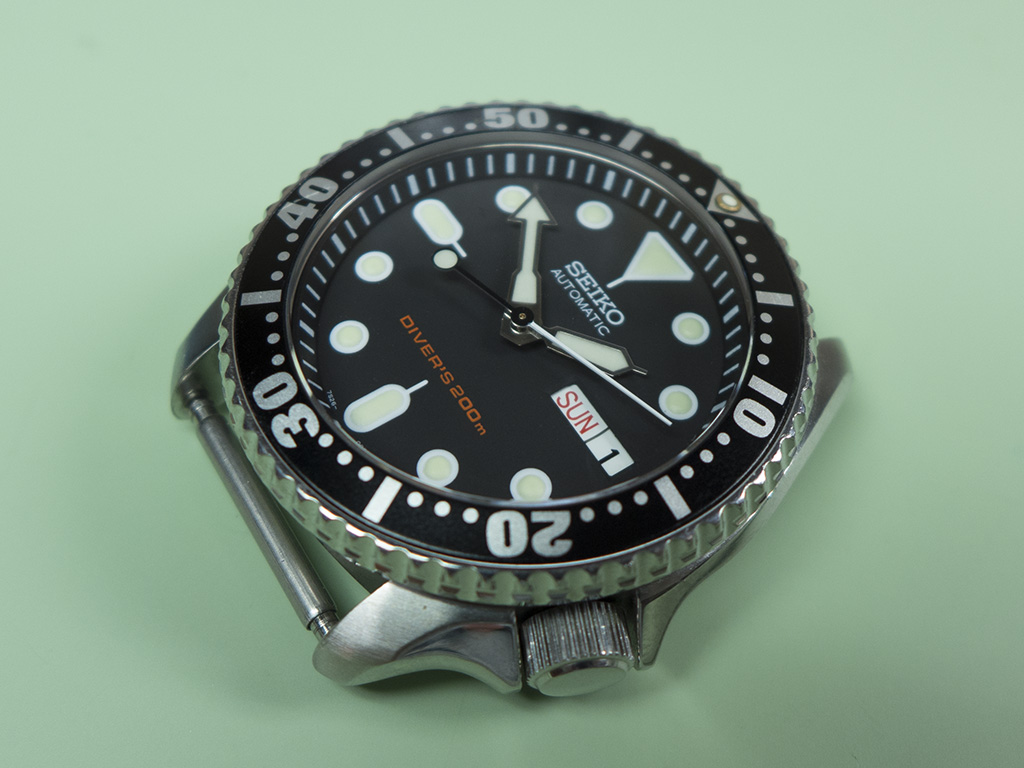

And here it is looking very smart. A few days on test to allow it to settle down, to allow any possible problems to surface and to fine tune the regulation if needed, then it will be on it’s way back to it’s owner.

P1010482a

P1010483a

P1010484a
