Poljot 3133 Chronograph

The Poljot Calibre 3133 is a 23 jewel, 21,600bph, cam controlled, manual wind chronograph with a coulisse lever system. It has running seconds at the 9 o’clock sub register, minutes elapsed at 3 o’clock and a central sweep seconds counter, it also has a date a 6 o’clock. In the 1970s, the Russian Poljot factory purchased the machinery to produce the 3133 from the Swiss firm Valjoux , at that time they were disposing of the machinery that once produced their chronograph caliber 7734. Poljot then used this to produce the 31mm calibre 3133. A good proportion of the parts of the Poljot 3133 are identical to the Valjoux 7734. The main differences between the two calibres are that the Poljot has all chronograph related gears running in jewels, and the glucydur balance swings in a Poljot developed shock protection system. The balance was modified to a smaller diameter which makes the 3133 run at 21,600bph compared to the 7734’s 18.000bph. This example has an inner 12 hour bezel that can be rotated by the crown on the left of the case and it came in for attention in a non running state.

Poljot 3133

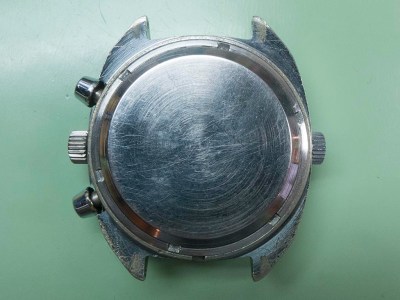

This particular Poljot has a plated base metal case with an undecorated caseback.

Poljot 3133

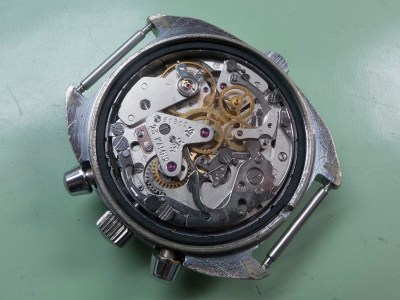

With the caseback removed we have a view of the completely undecorated movement, back in the 1970’s the Russians weren’t noted for doing anything that could be described as unnecessary decoration!

Poljot 3133

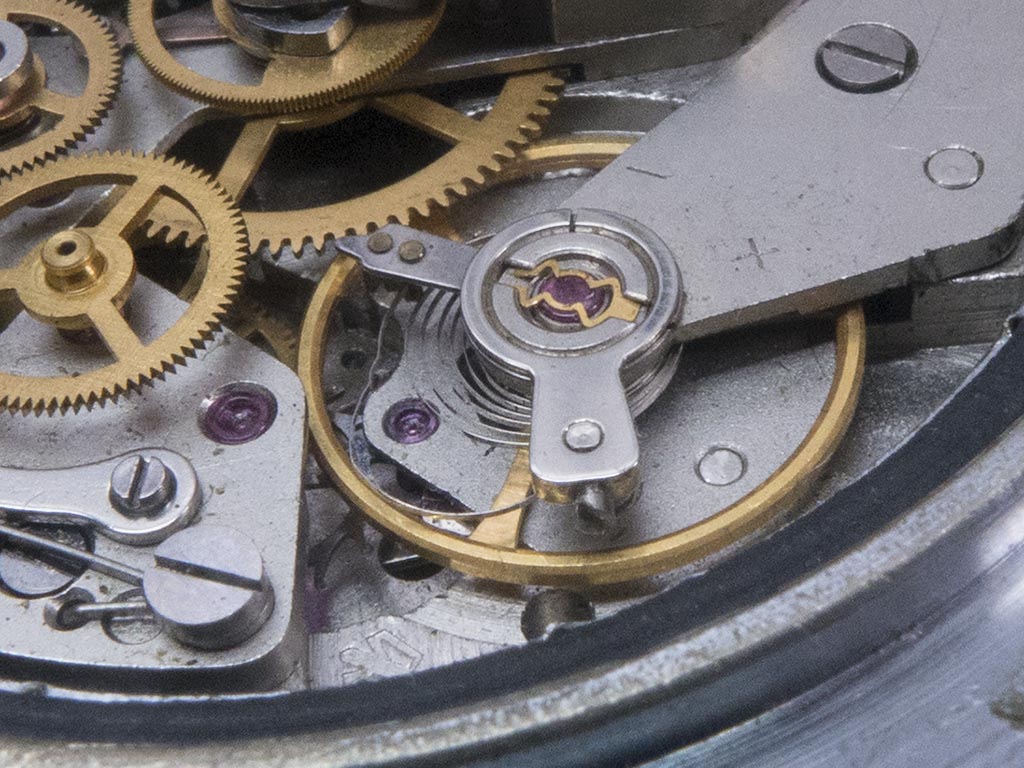

Apart from the movement being extremely dirty a problem was immediately spotted with the hairspring. A new balance/hairspring assembly was sourced and ordered.

Poljot 3133

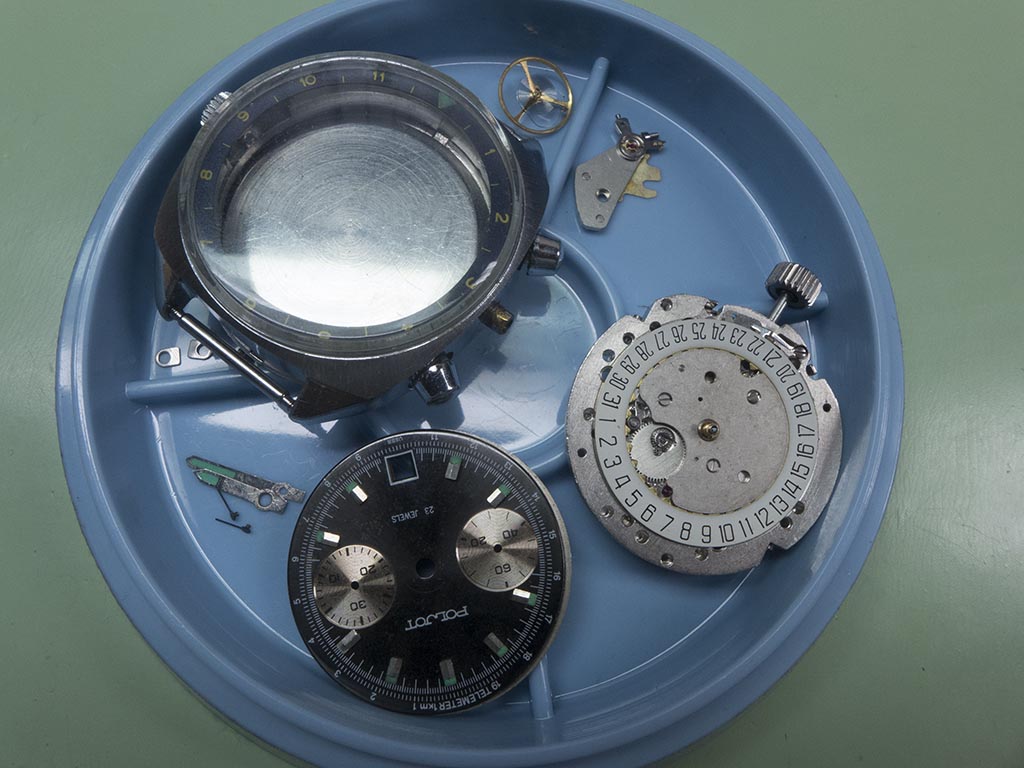

We have a nice clear view of the dial now the movement has been uncased.

Poljot 3133

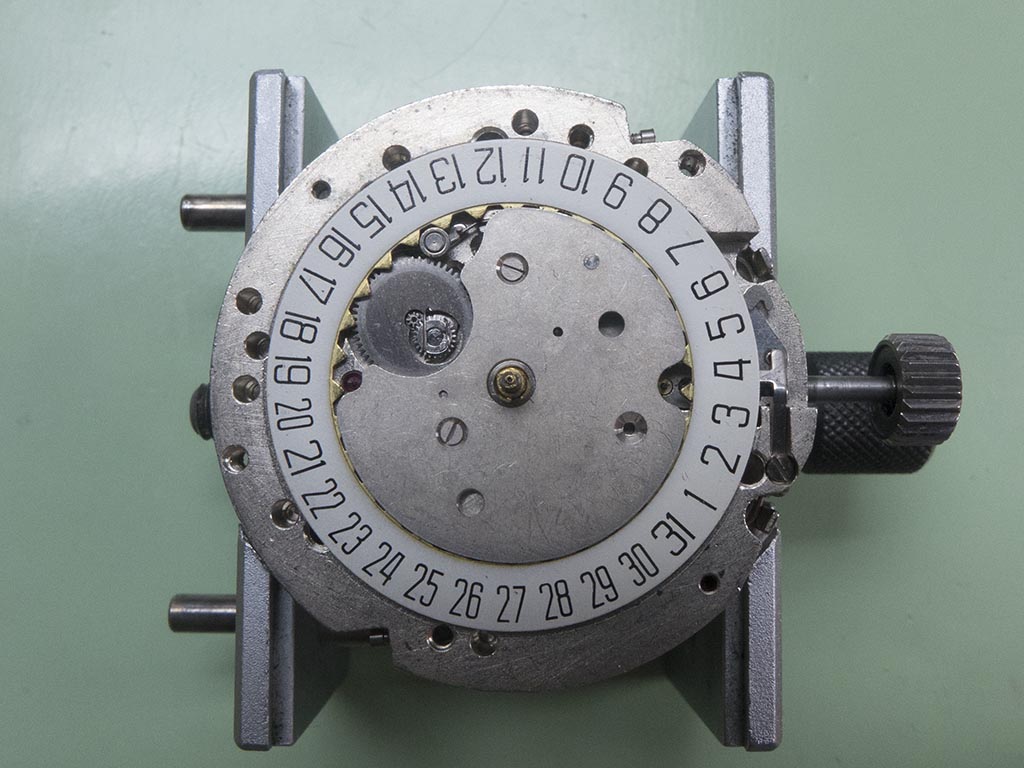

With the dial removed you can see the no nonsense calendar side components, the date ring numerals couldn’t look any more Russian in my opinion!.

Poljot 3133

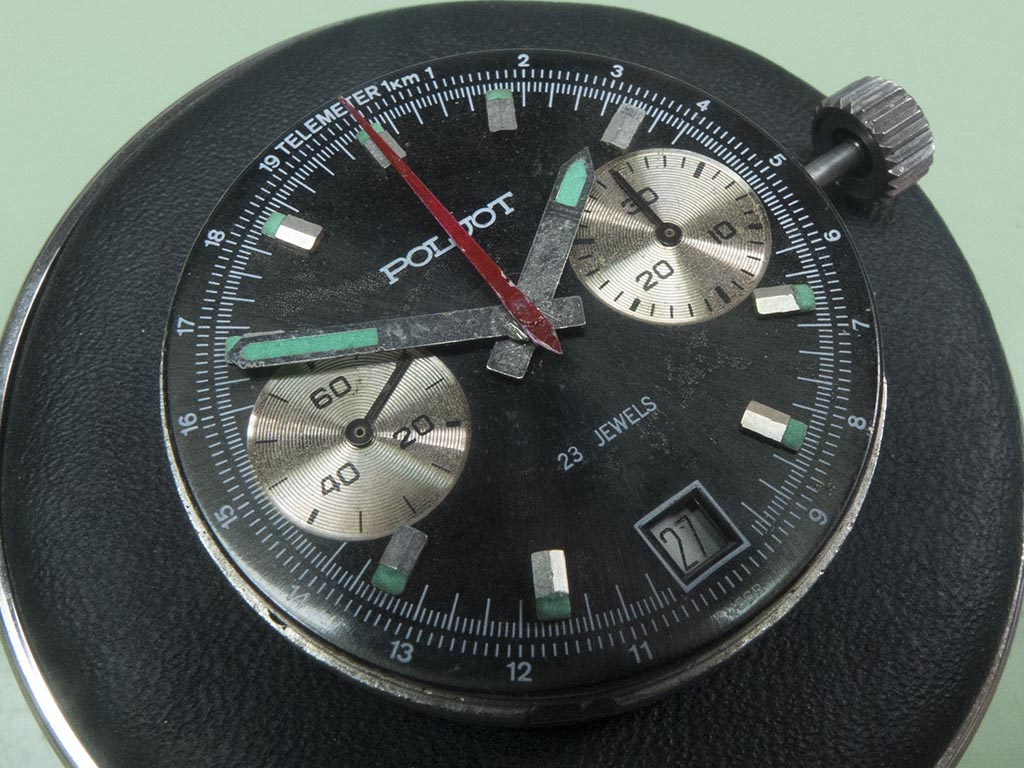

Unfortunately when the hands were removed the chrono seconds hand parted company with its pipe, a not uncommon occurrence with Poljots. You can see the pipe left on the central pinion.

Poljot 3133

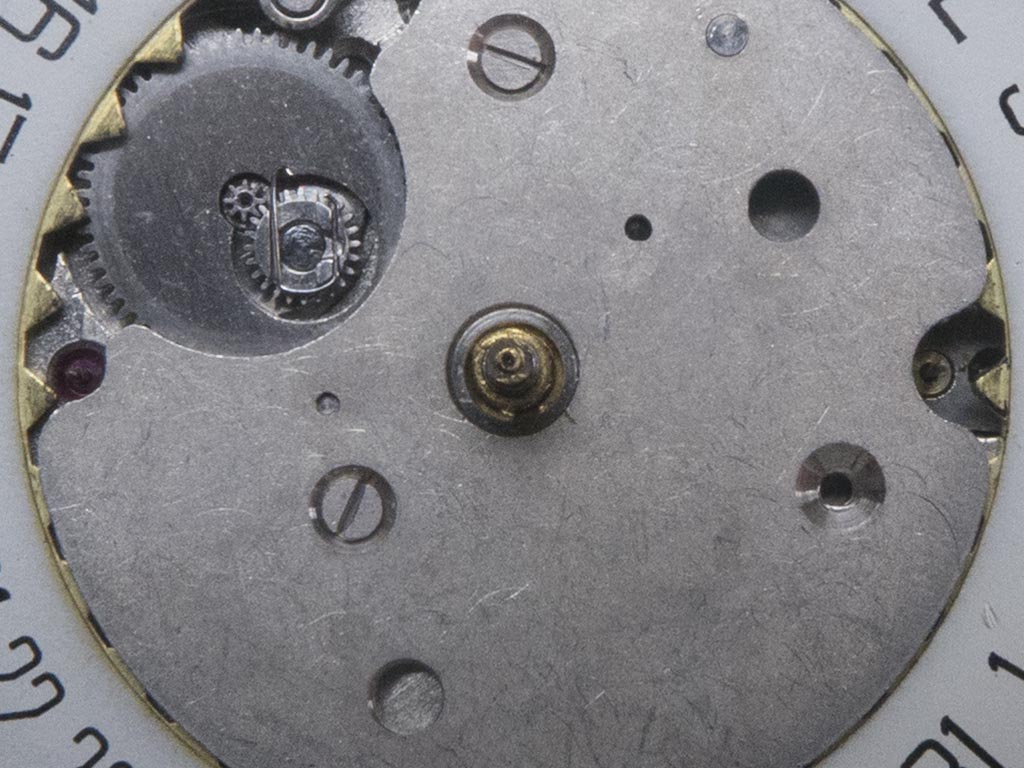

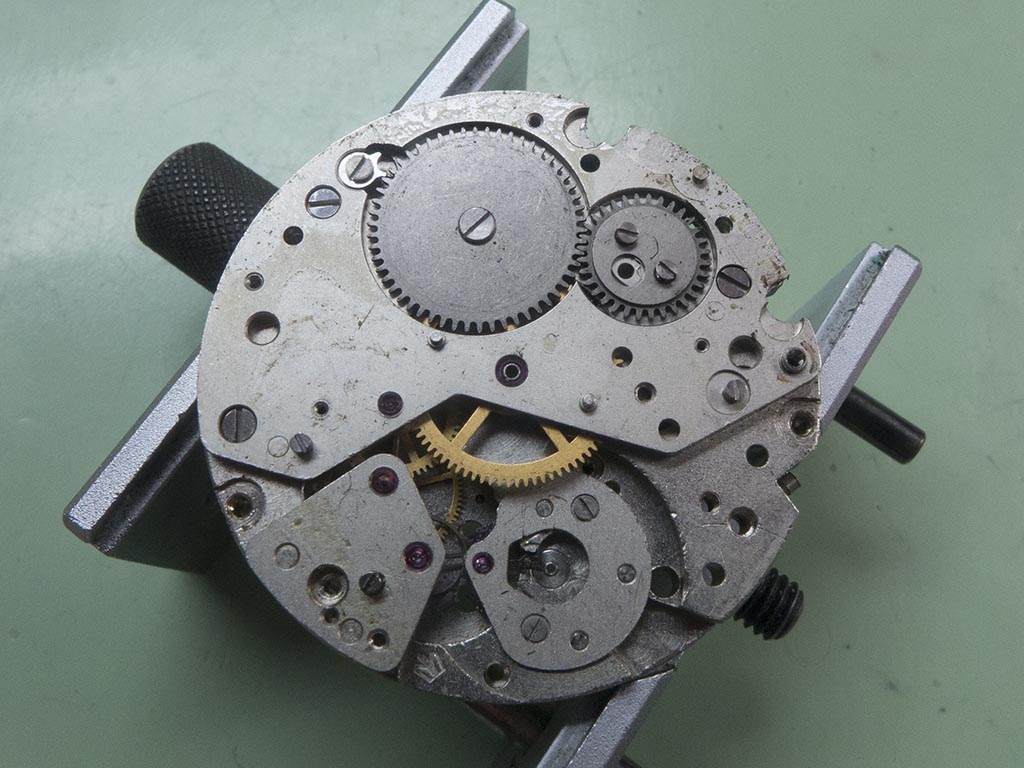

The calendar side coming apart nicely, you can see the balance top jewel which is normally located under the date ring.

Poljot 3133

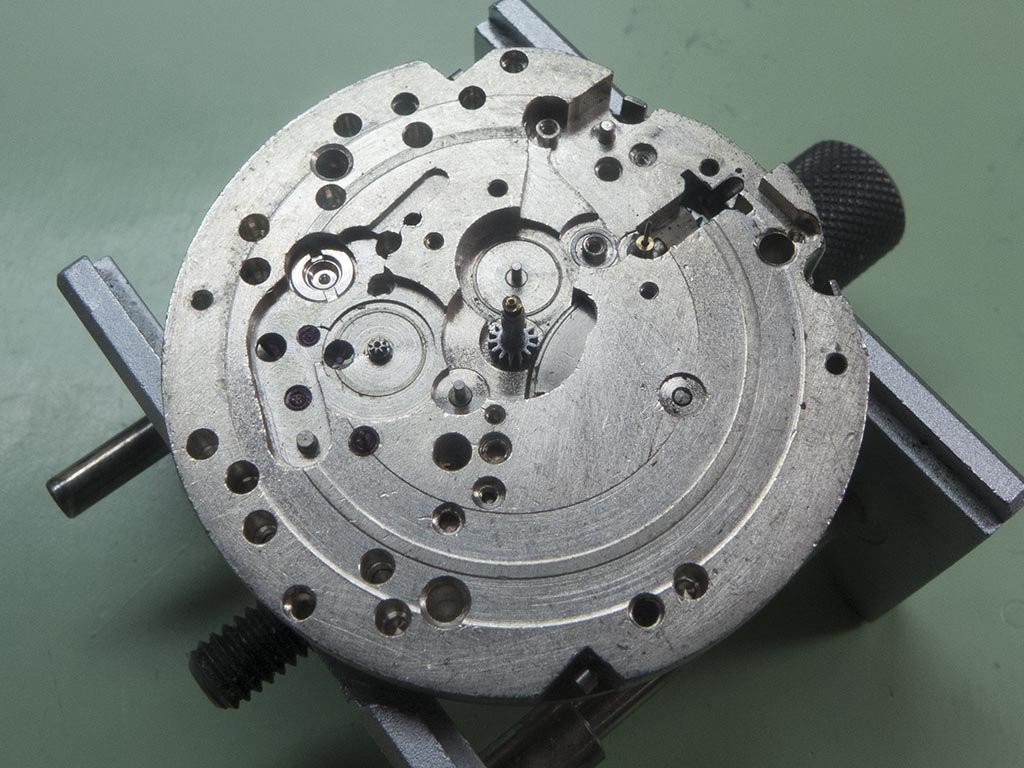

And this side is completely stripped now.

Poljot 3133

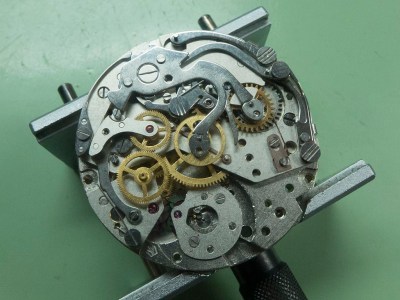

Work starts on the motion work side, here the balance, chrono bridge and main cam is removed.

Poljot 3133

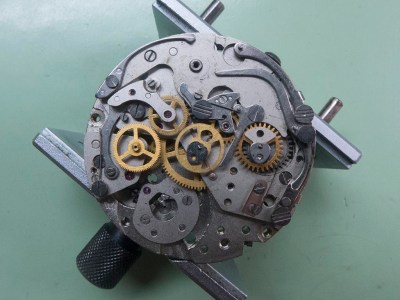

A shot with the all chronograph work removed.

Poljot 3133

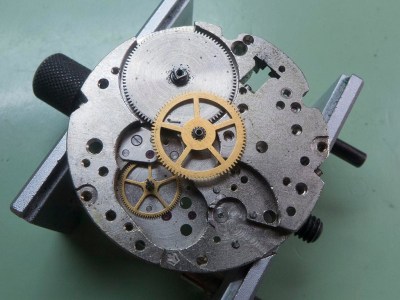

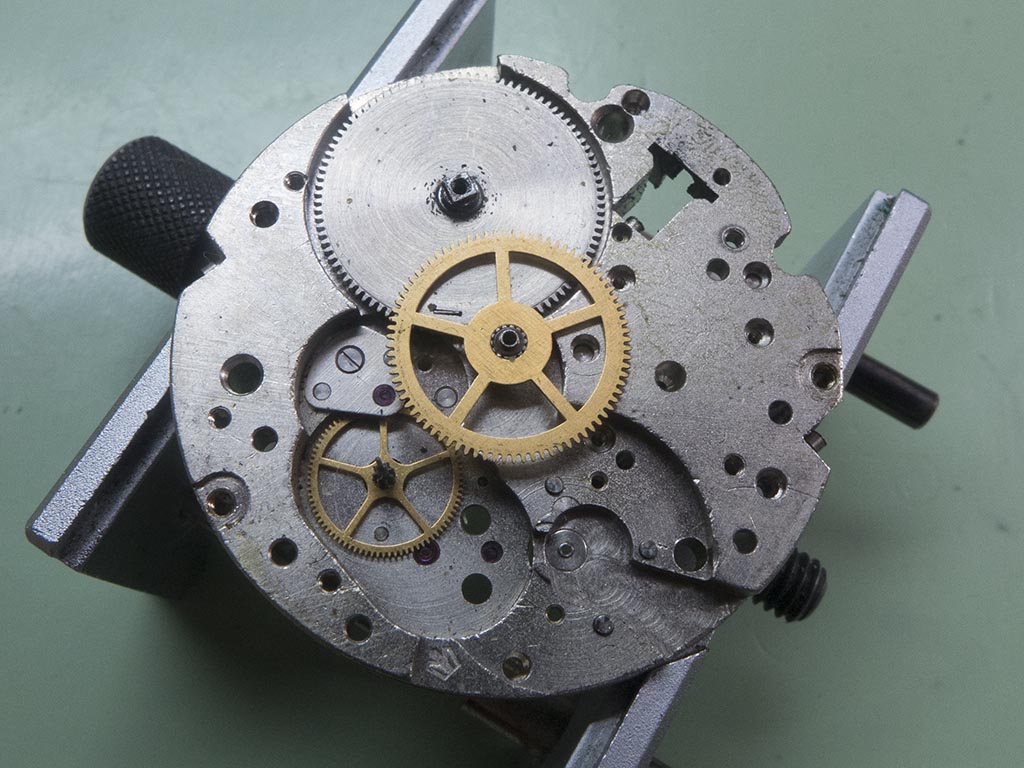

The motion work coming apart.

Poljot 3133

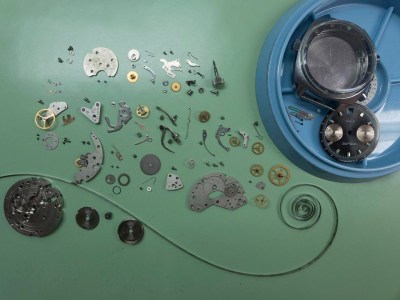

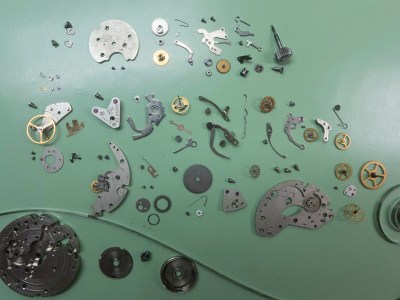

Finally the movement was completely stripped ready for cleaning and inspection.

Poljot 3133

P1030354a

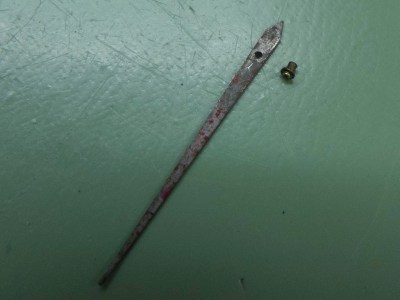

Whilst the parts were going through the Vari-Matic I turned my attention to the seconds hand which as you remember is now in two parts.

Poljot 3133

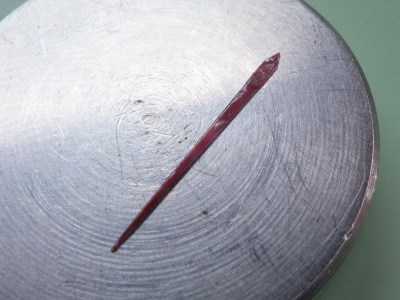

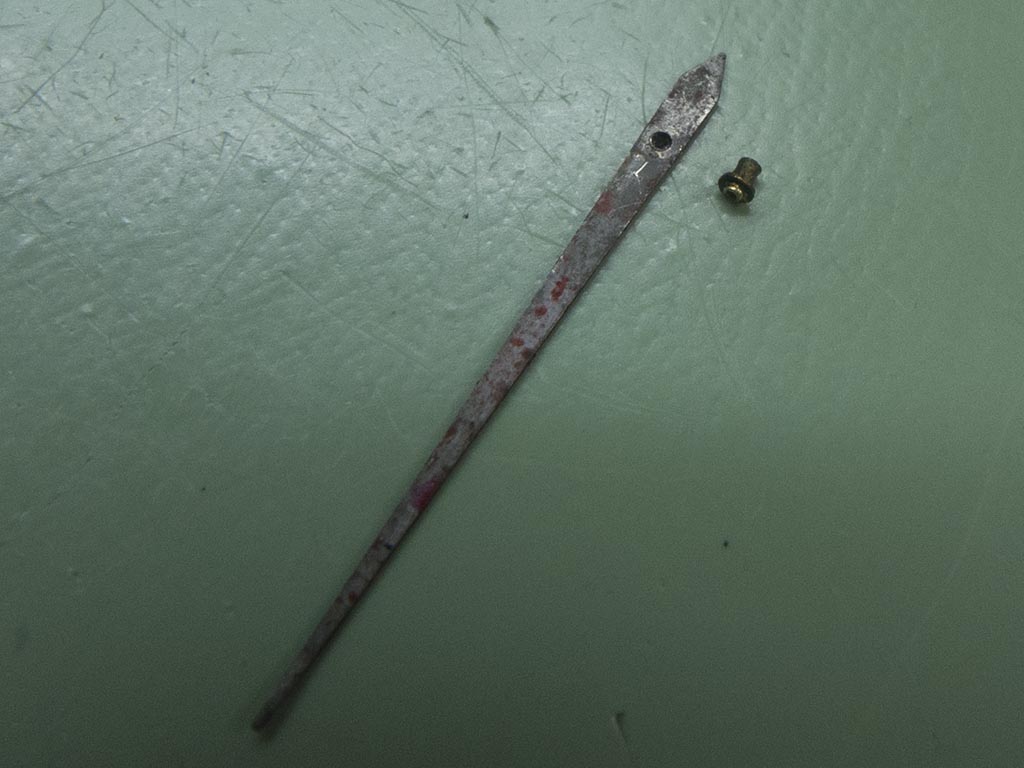

The first job was to remove the red paint.

Poljot 3133

Poljot 3133

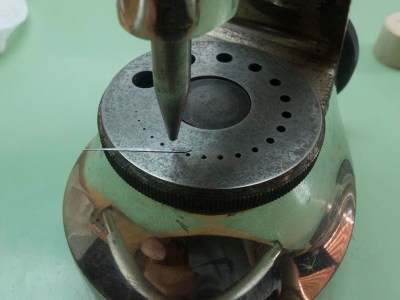

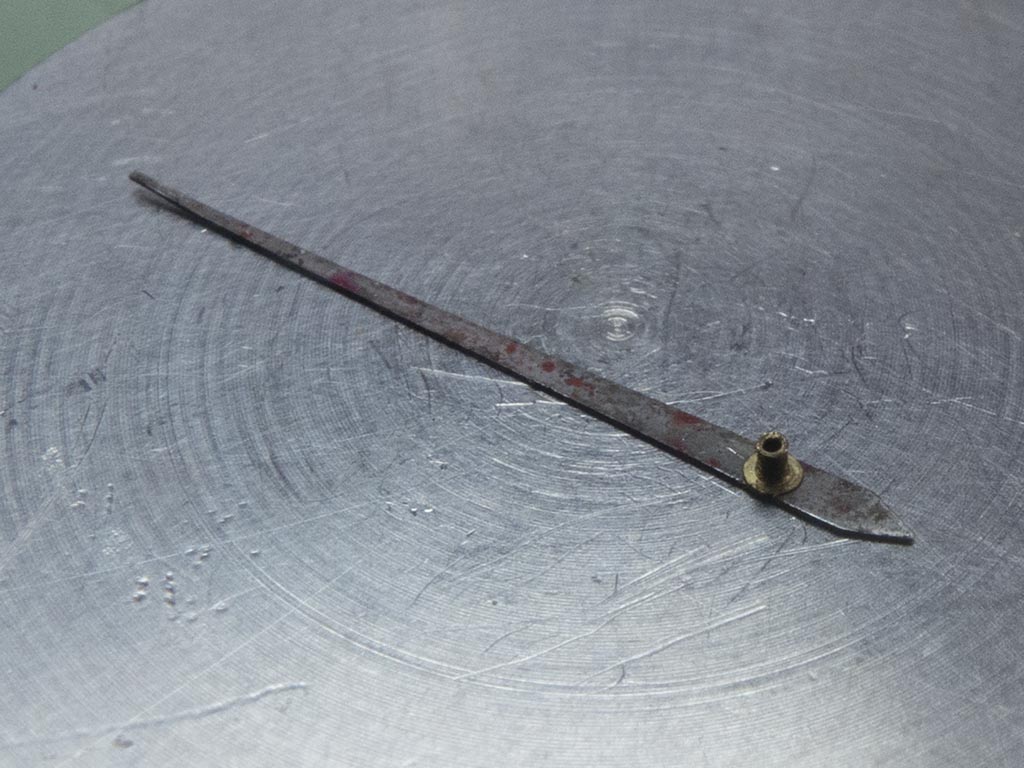

Once it was clean the hand was staked back onto its pipe.

Poljot 3133

Then the joint was acid fluxed….

Poljot 3133

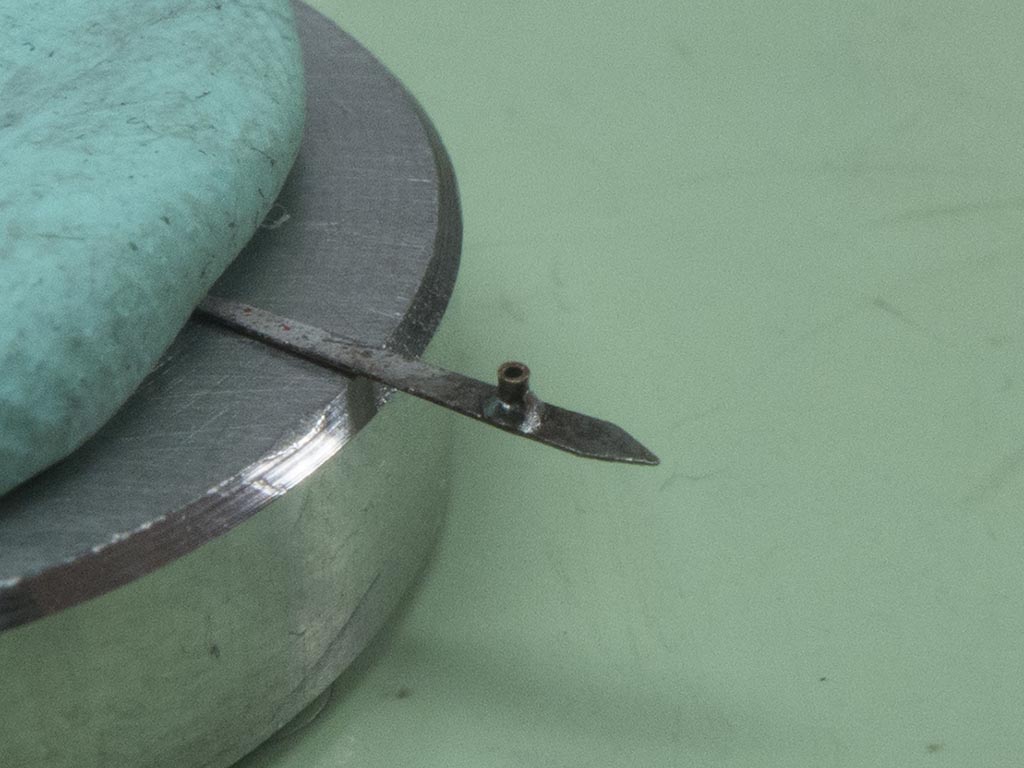

….and soldered to give it strength. Staking would be enough to secure a seconds hand on an ordinary movement, but to combat the forces encountered during a reset a chronograph seconds sweep hand needs a dab of solder.

Poljot 3133

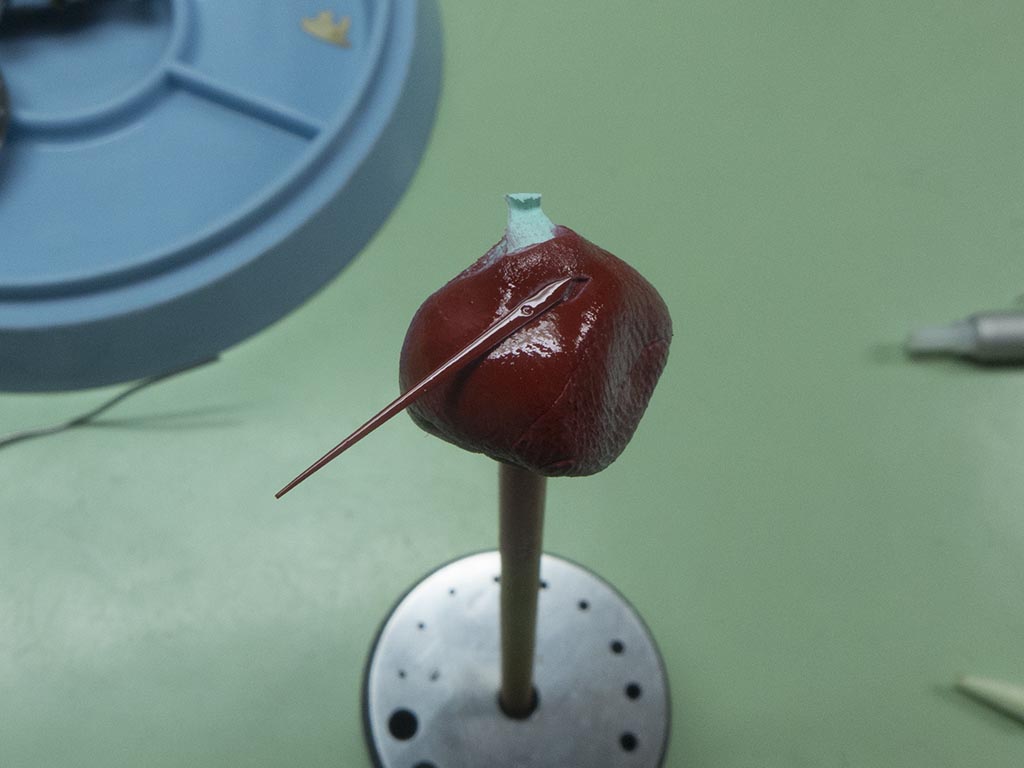

The flux was then cleaned off and the hand spray painted red again.

Poljot 3133

The components were inspected after cleaning and the rebuild began.

Poljot 3133

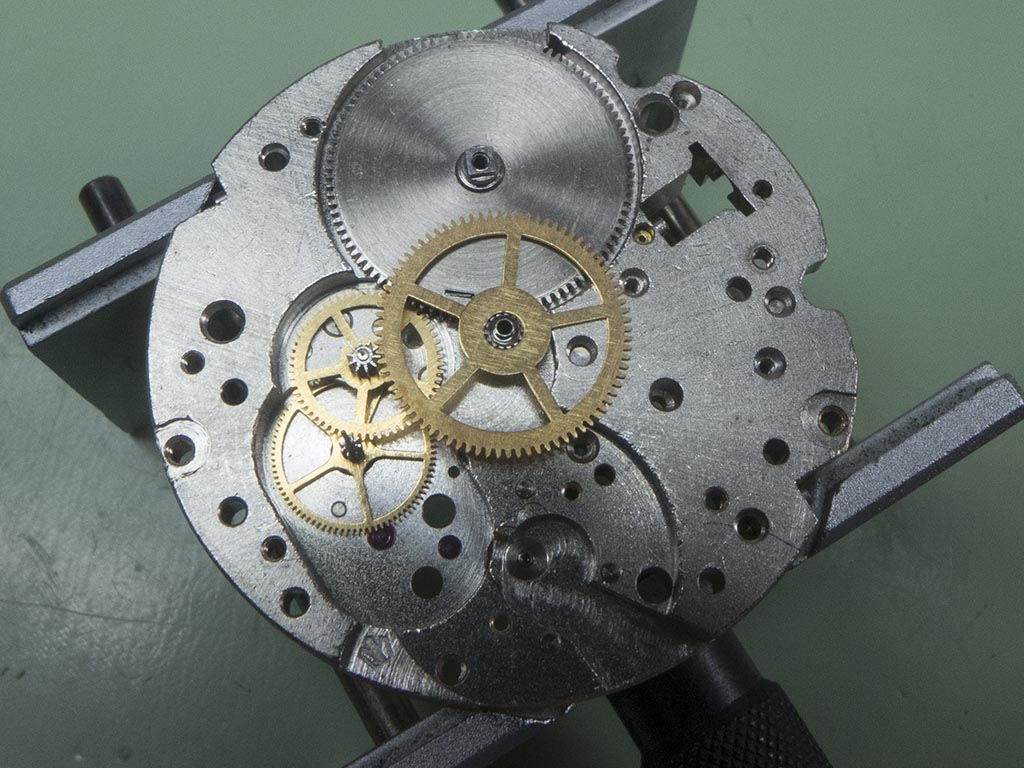

The train coming together.

Poljot 3133

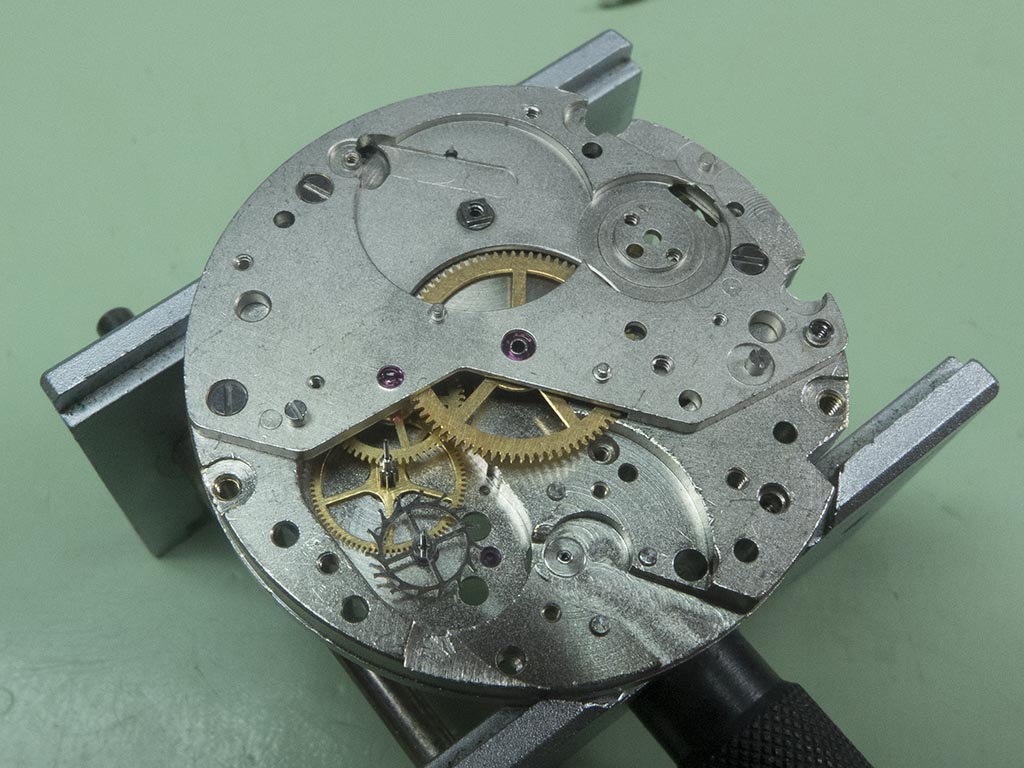

The main bridge and escape wheel in position.

Poljot 3133

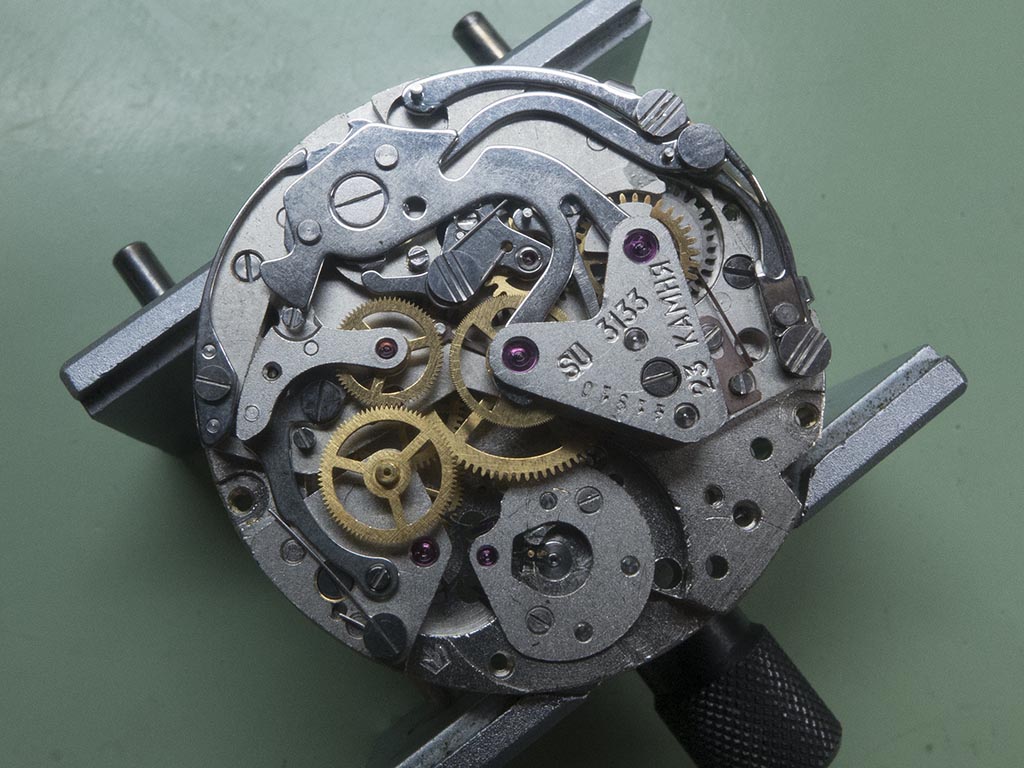

I’d normally fit the balance at this point and get the timing and balance adjustments roughly done. However as I didn’t have the new balance yet I continued with the chronograph layer.

Poljot 3133

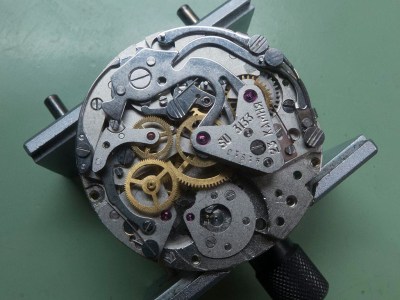

This was as far as I could go until the new balance arrived. The risk with this is if there is a problem with the train everything has to be removed again to gain access to it!

Poljot 3133

The watch was put away until the new balance arrived.

Poljot 3133

A few days later a package arrived from Germany with the part we needed, here it is in comparison with the old one.

Poljot 3133

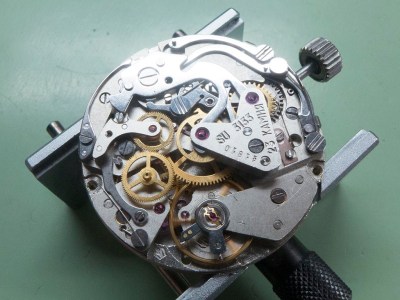

The balance was adjusted then fitted and the watch was finally ticking again. I thought I was going to have to strip everything again as the amplitude wasn’t as high as I’d expected but some adjustment of the endshake sorted that out. The staff was just a little too tight between the jewel caps which reduced it.

Poljot 3133

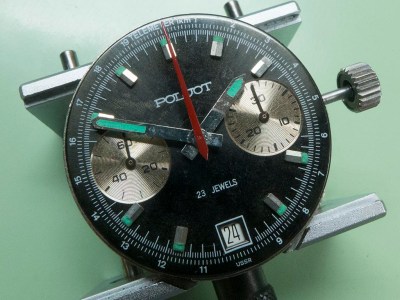

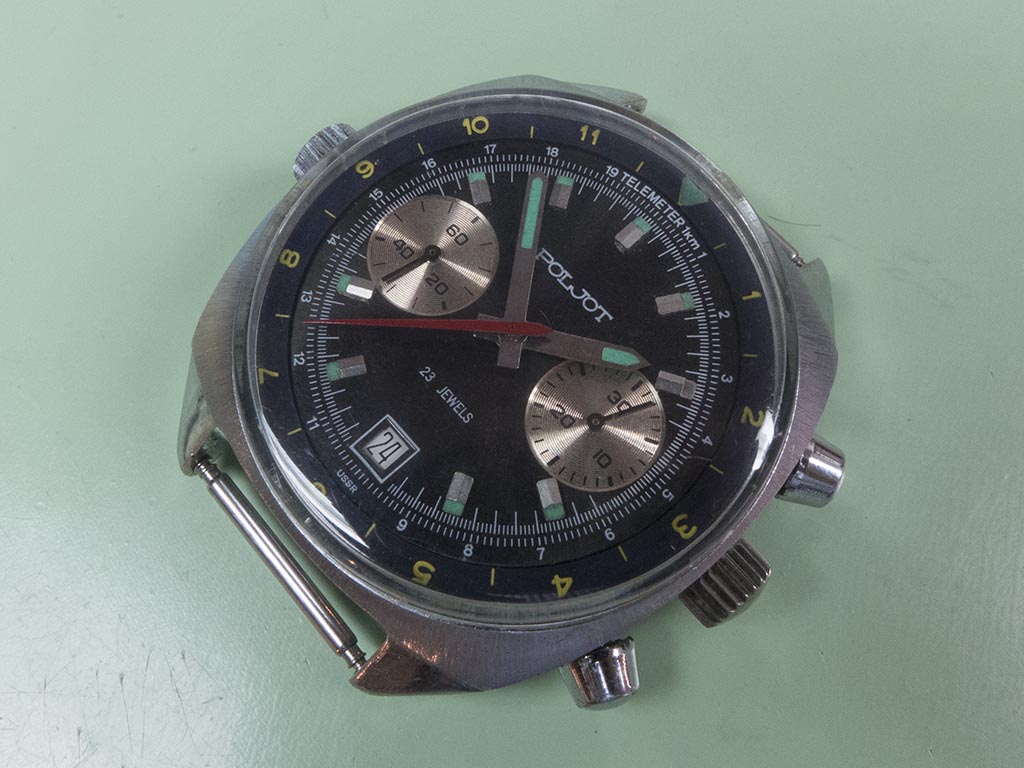

The dial and hands were refitted.

Poljot 3133

The movement was then recased, once this is done I then adjust the depthing (mesh) of the wheels.

Poljot 3133

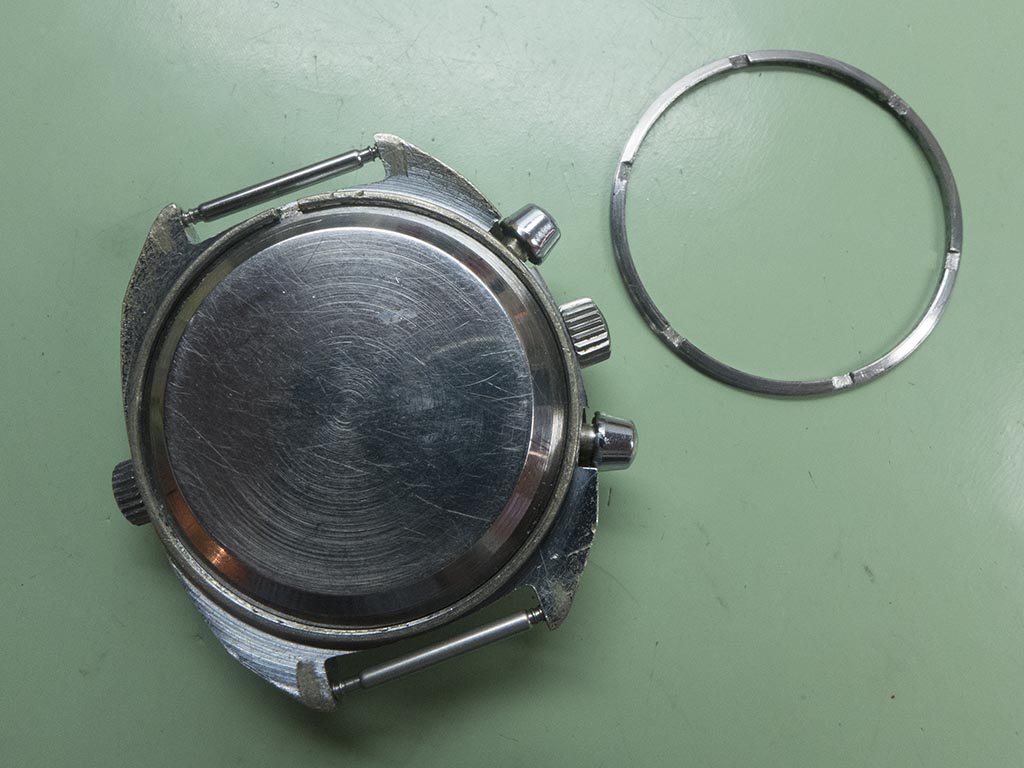

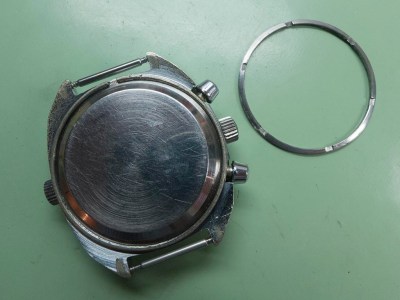

Once I was happy the caseback was refitted, this is a two piece affair with the back itself and a locking ring to hold it down tight.

Poljot 3133

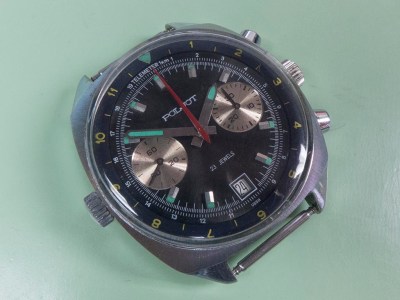

And here she is, running once more. A handsome example of cold war horology I think!

Poljot 3133

Poljot 3133

Poljot 3133

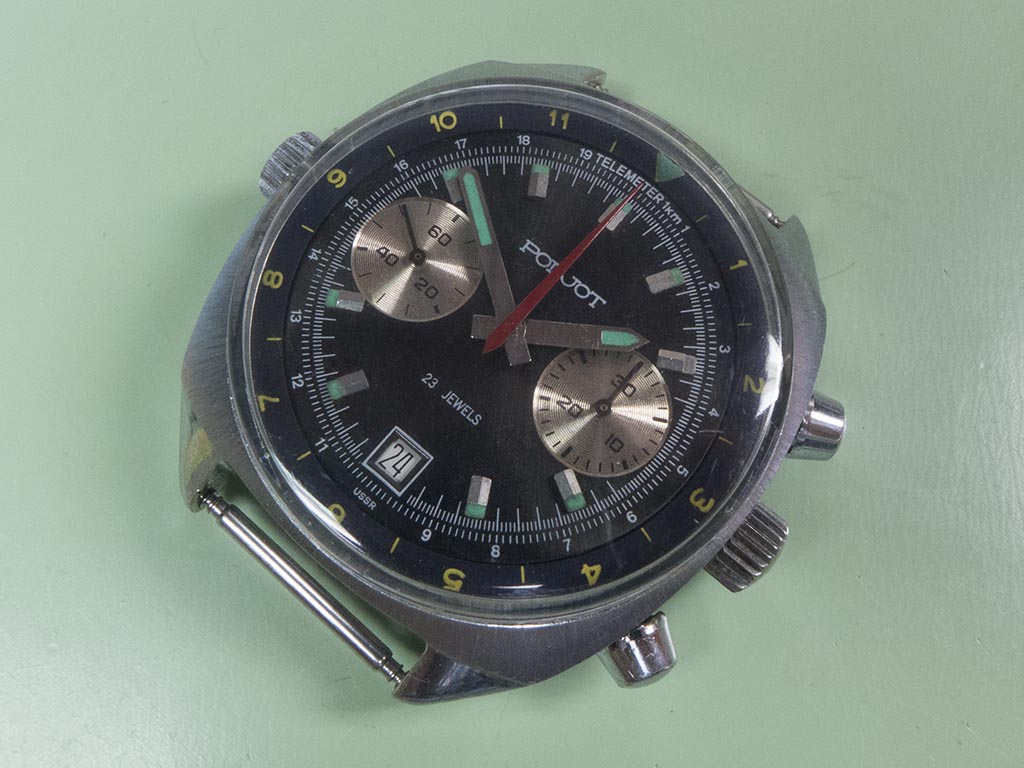

And one with the chronograph running.

Poljot 3133
