TAG Heuer Aquaracer Calibre 5

This Aquaracer came in recently described as “not working as it got wet, it looks clean inside though”. At first glance it looks in remarkably good shape considering it got waterlogged.

Tag aquaracer

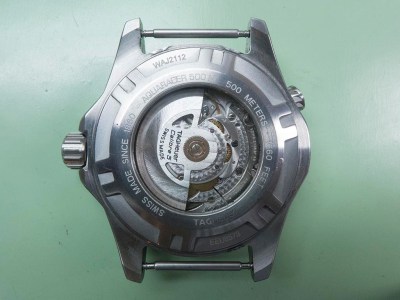

Even the movement didn’t look too bad through the display caseback, however the first warning of problems were that the hands were seized solid, the rotor didn’t turn and when I pulled the crown to try and put it into the time setting position it came completely out!

Tag aquaracer

With the caseback removed things started to go downhill fast, you can see there are a lot of particles on the movement. This is powered by a decorated Silleta 200.1, a very capable ETA 2824 clone.

Tag aquaracer

With the movement spacer removed it gets worse, the dreaded rust is now making it’s presence known!

Tag aquaracer

With the autowind bridge removed it was obvious the crown wheel was badly rusted.

Tag aquaracer

When the movement was uncased the lume from the 3 o’clock lume well had decided to drop out.

Tag aquaracer

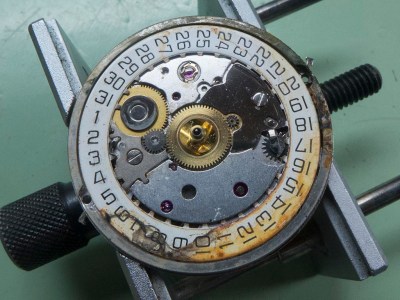

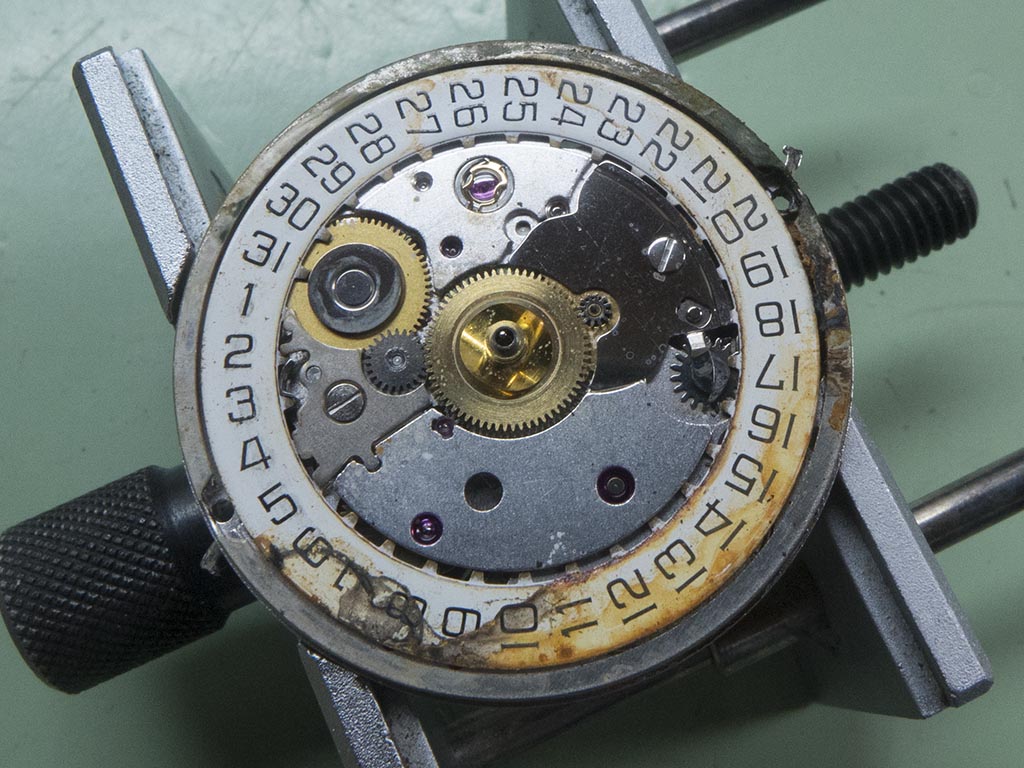

I could also see a little staining on the date ring, lets hope it doesn’t get any worse than that. You can also see the orientation the watch was left in as it dried out as there is a rust stain on the dials periphery from 10 o’clock around to 1.30.

Tag aquaracer

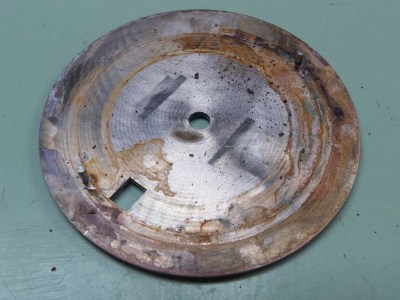

The dial did not want to be removed, it took some considerable pushing on the feet to get them to start moving. If I’d tried levering the dial up the feet would have parted company with the dial for sure. The reverse of the dial wasn’t looking good, where had all that rust come from?

Tag aquaracer

Never mind wherever it originated from it had ruined the date ring. Ordinarily this wouldn’t be a problem as a new date ring could be bought, but the date at 9 o’clock configuration of this watch means the ring is a unique Tag part.

Tag aquaracer

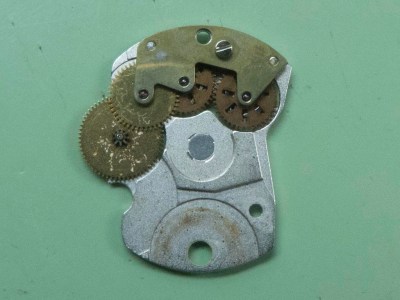

Every where I looked corrosion was present, even under the autowind bridge.

Tag aquaracer

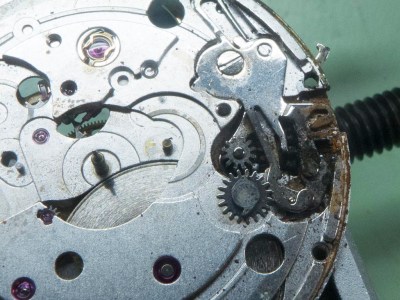

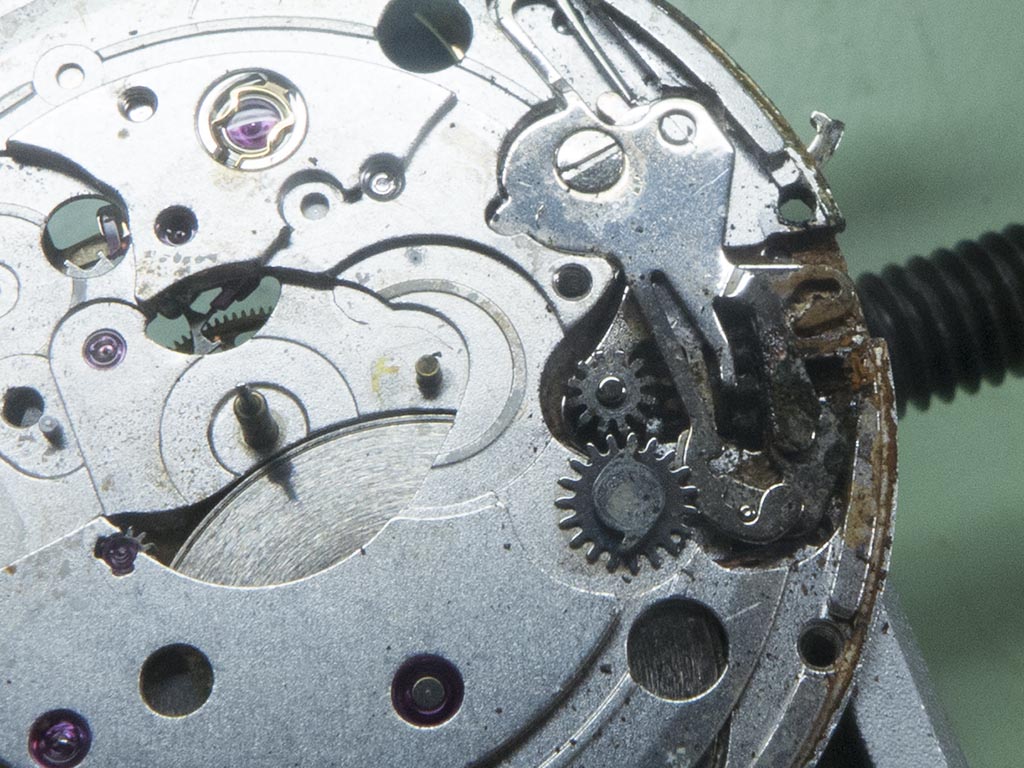

The keyless work looked awful, in fact most of the components were scrap.

Tag aquaracer

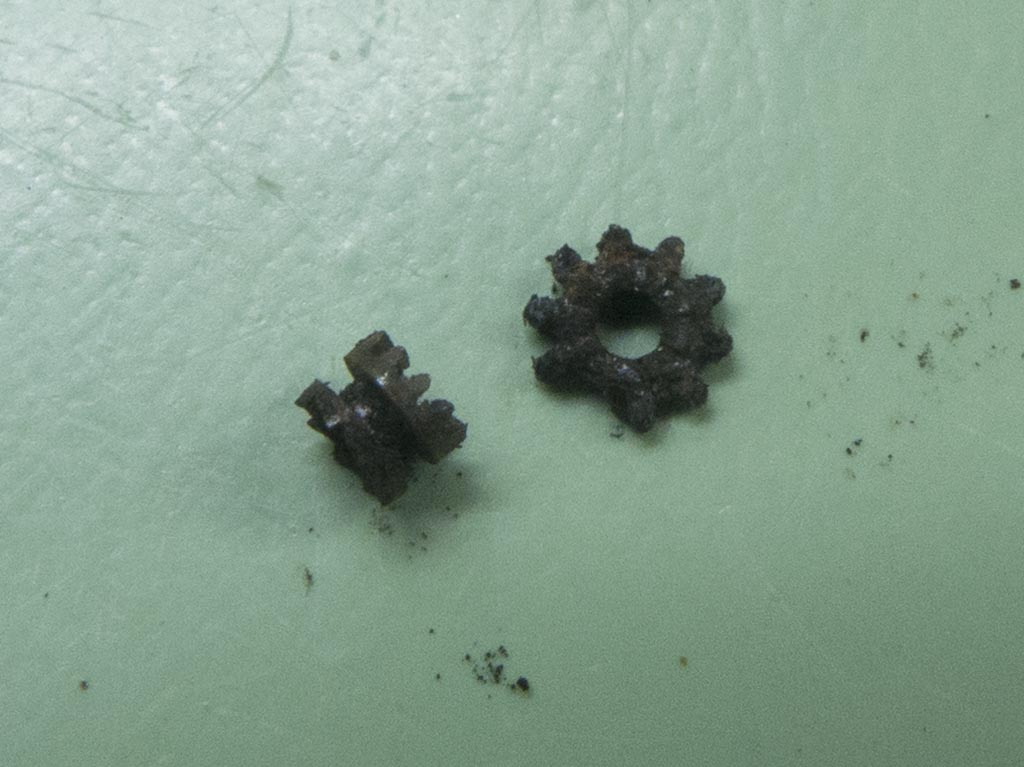

This is what was left of the winding pinion and clutch, the pinion was so corroded one of the teeth had rotted away.

P1030543a

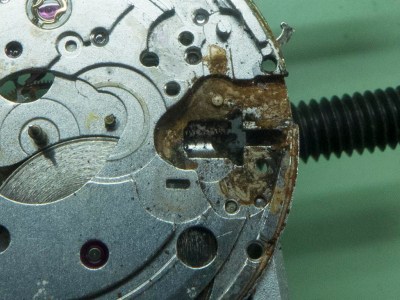

Which left the mainplate in a sorry state.

Tag aquaracer

The motion work side wasn’t much better but at least the wheels and pinions were unaffected by corrosion.

Tag aquaracer

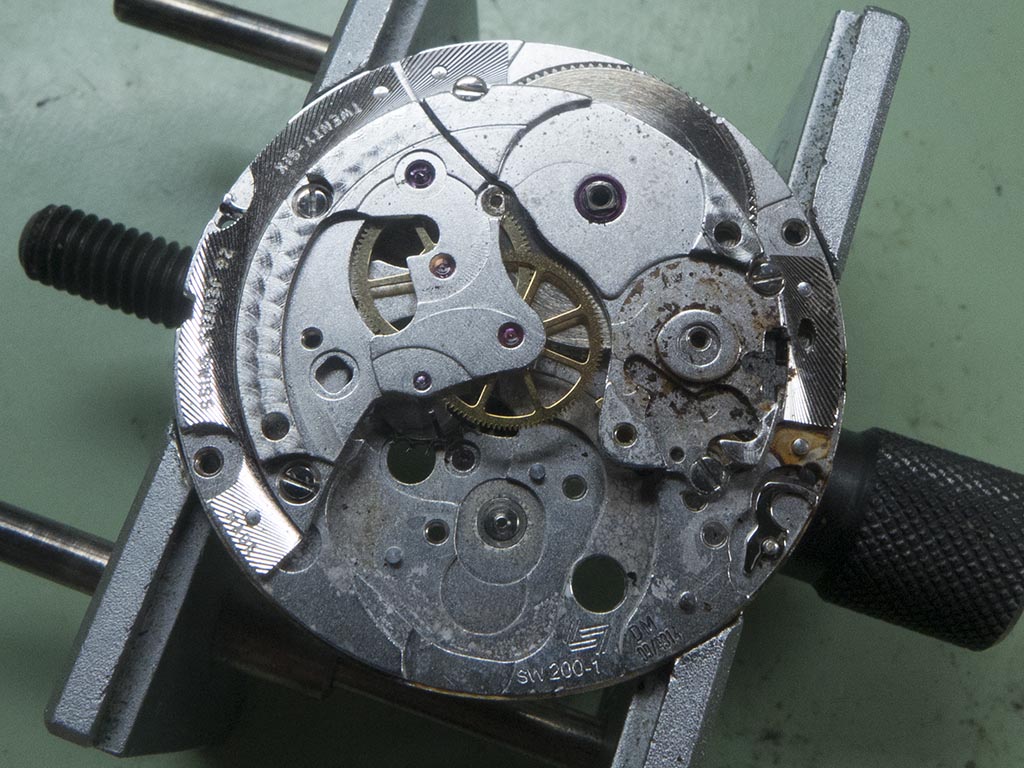

The crown wheel and click spring were toast.

Tag aquaracer

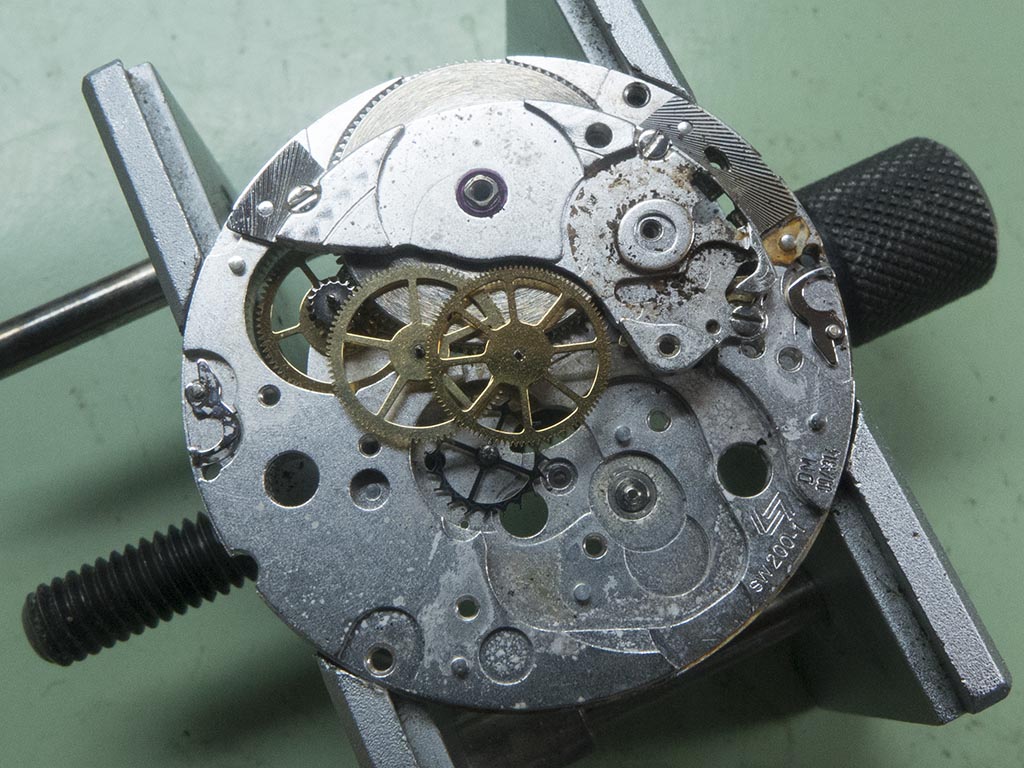

But as I mentioned the wheels and pinions were still good.

Tag aquaracer

Nearly there….

Tag aquaracer

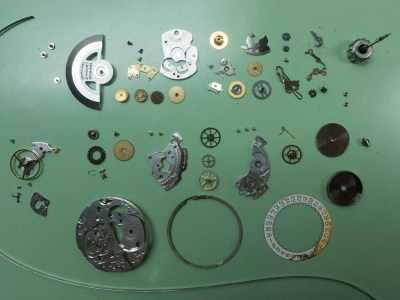

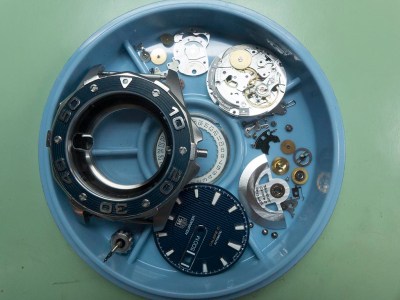

…and finally all apart. I was amazed I managed to get all the screws undone, had any been rusted into the plate it would have caused even bigger headaches.

Tag aquaracer

There was considerable time spent cleaning up the plates and components that were to be kept before it all went in the Vari-Matic.

Tag aquaracer

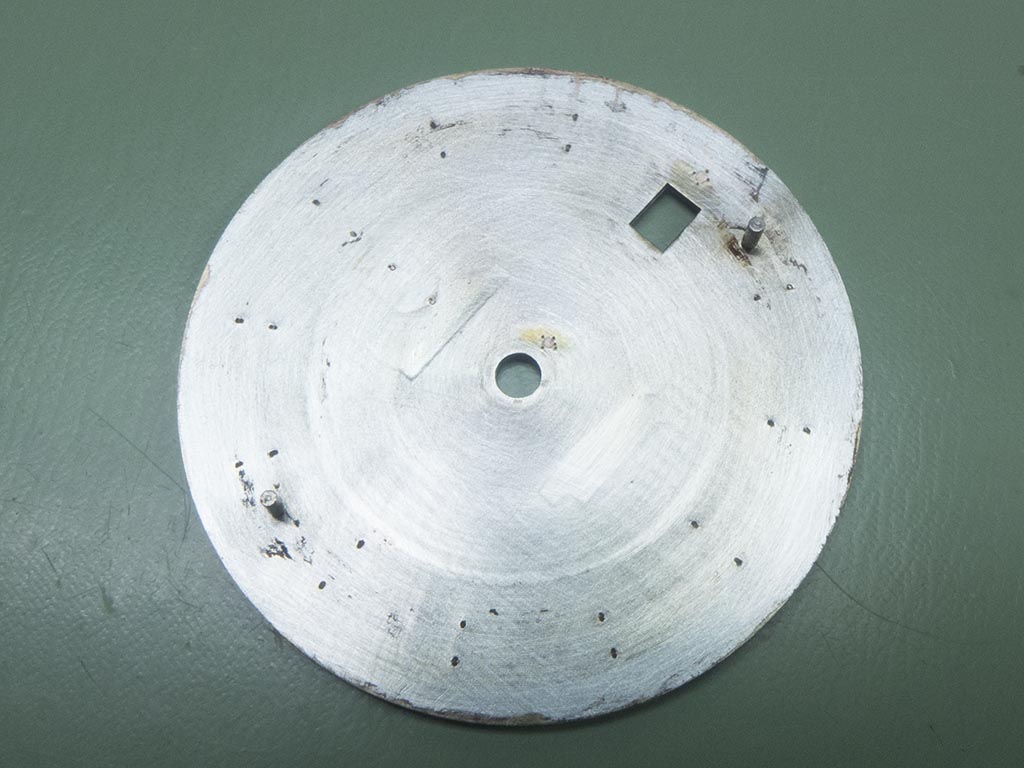

With the parts in the cleaner I turned my attention to the dial. I started by cleaning the back….

Tag aquaracer

….then turning over and putting a tiny dab of glue in the 3 o’clock lume well….

Tag aquaracer

….before securing the lume back in. Luckily it was still in one piece!

Tag aquaracer

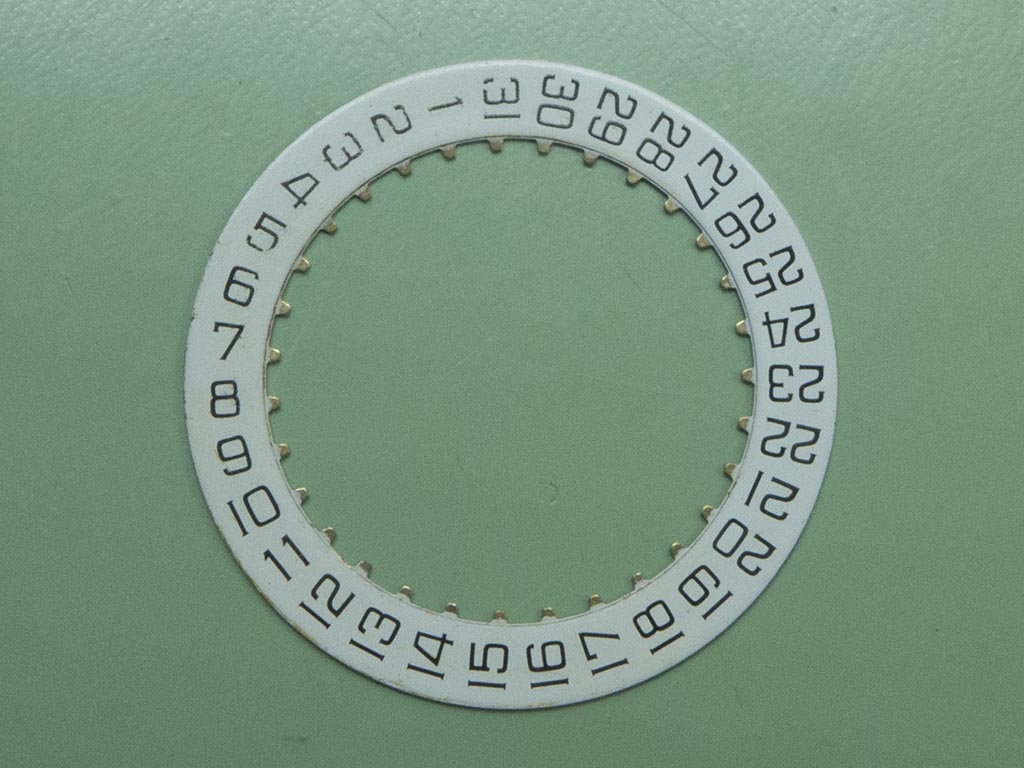

Next was the date ring, these are very difficult to clean as they’re so fragile. The numerals are transfer printed onto the white background and it doesn’t take much to dislodge them. I placed the ring in a 50/50 mix of water and white vinegar and left it to try and dissolve the rust stains. I rinsed it after a couple of hours and was quite pleased with how it turned out, a few of the numerals have faded a little but as a new Tag one isn’t available to me it’s a big win!

Tag aquaracer

Once the parts were cleaned and inspected the rebuild began.

Tag aquaracer

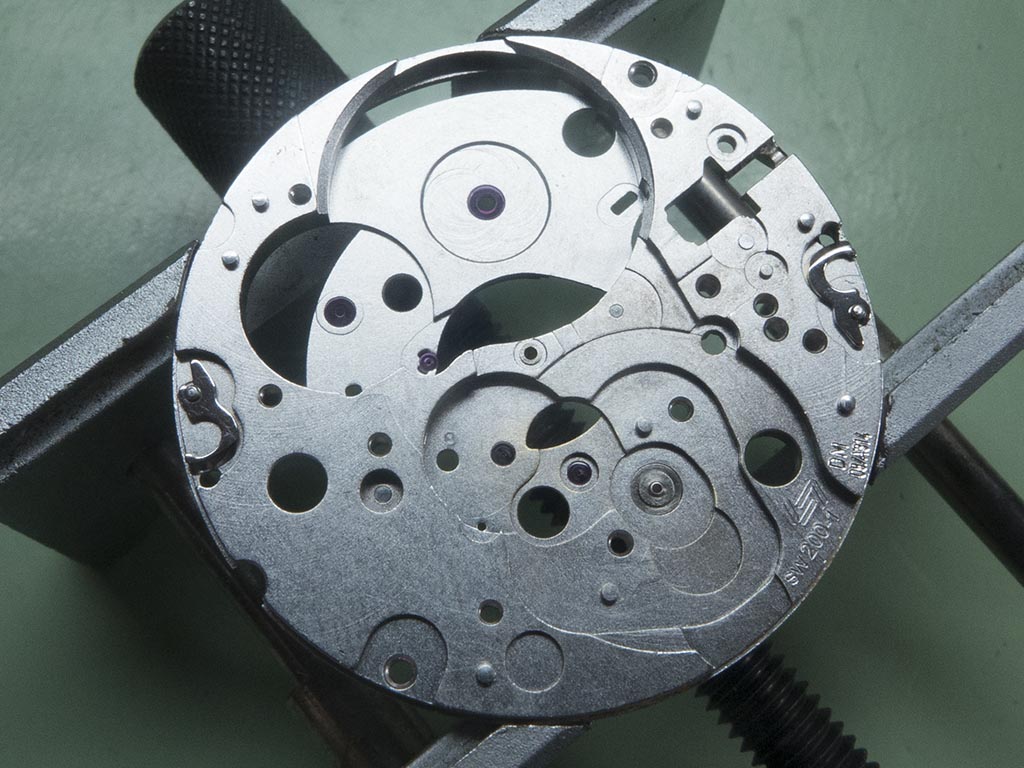

The mainplate took a while but cleaned up nicely in the end.

Tag aquaracer

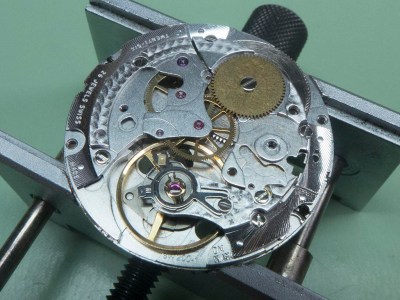

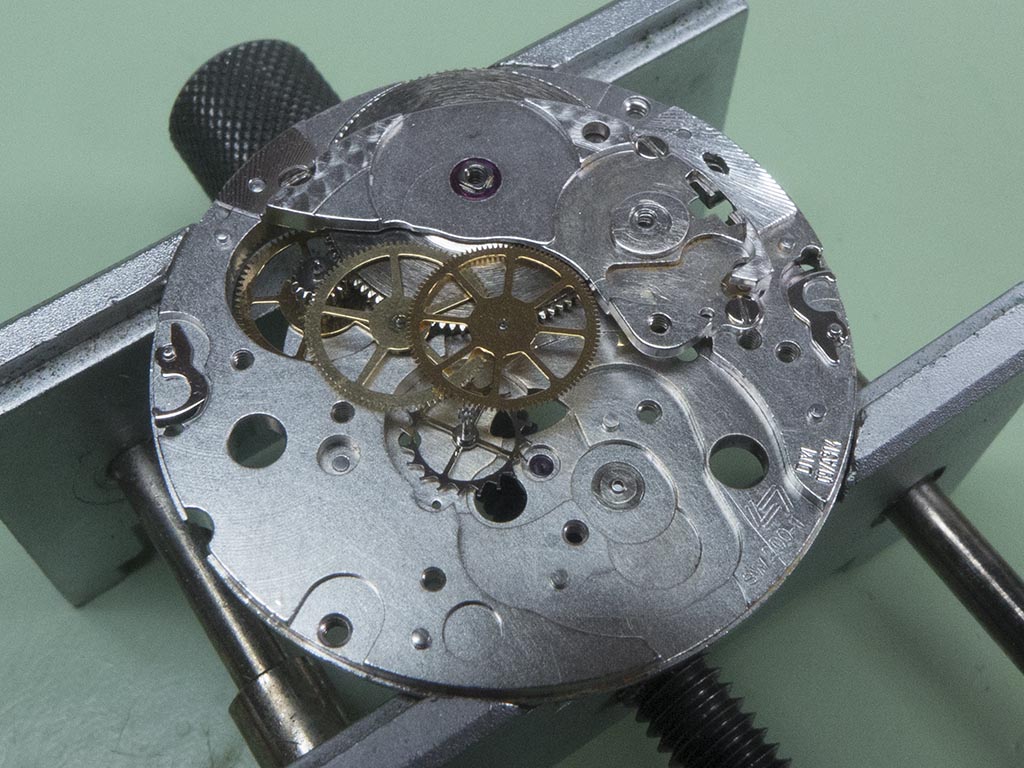

The train coming together.

Tag aquaracer

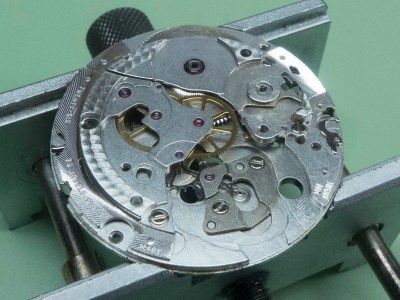

The bridges in place.

Tag aquaracer

And this was as far as I could go as I was still waiting for the new parts to arrive.

Tag aquaracer

The watch was put away until the parts arrived.

Tag aquaracer

A couple of days later they were here, the list was a new crown wheel, setting lever, return bar, clutch wheel, winding pinion, click spring and stem.

Tag aquaracer

The new crown wheel and click spring in place.

Tag aquaracer

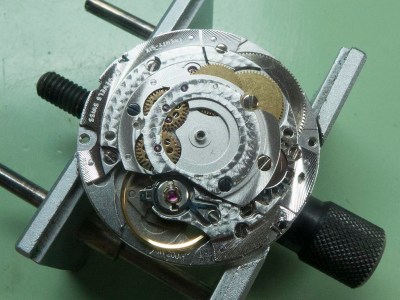

And the autowind bridge rebuilt and fitted.

Tag aquaracer

With the movement turned over I could start on the keyless work. You can see the damage to the setting lever here….

Tag aquaracer

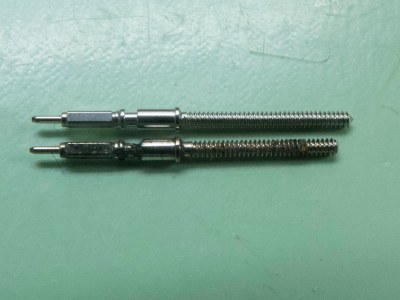

…and the stem. It’s no wonder the crown pulled straight out!

Tag aquaracer

The keyless work coming together.

Tag aquaracer

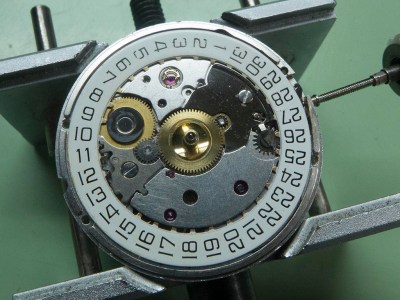

The date ring back on ready for the dial and hands.

Tag aquaracer

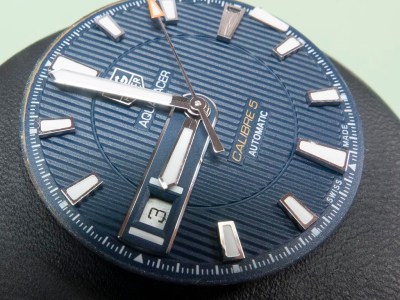

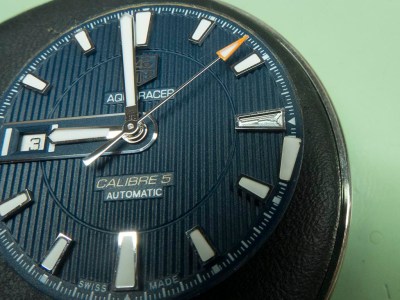

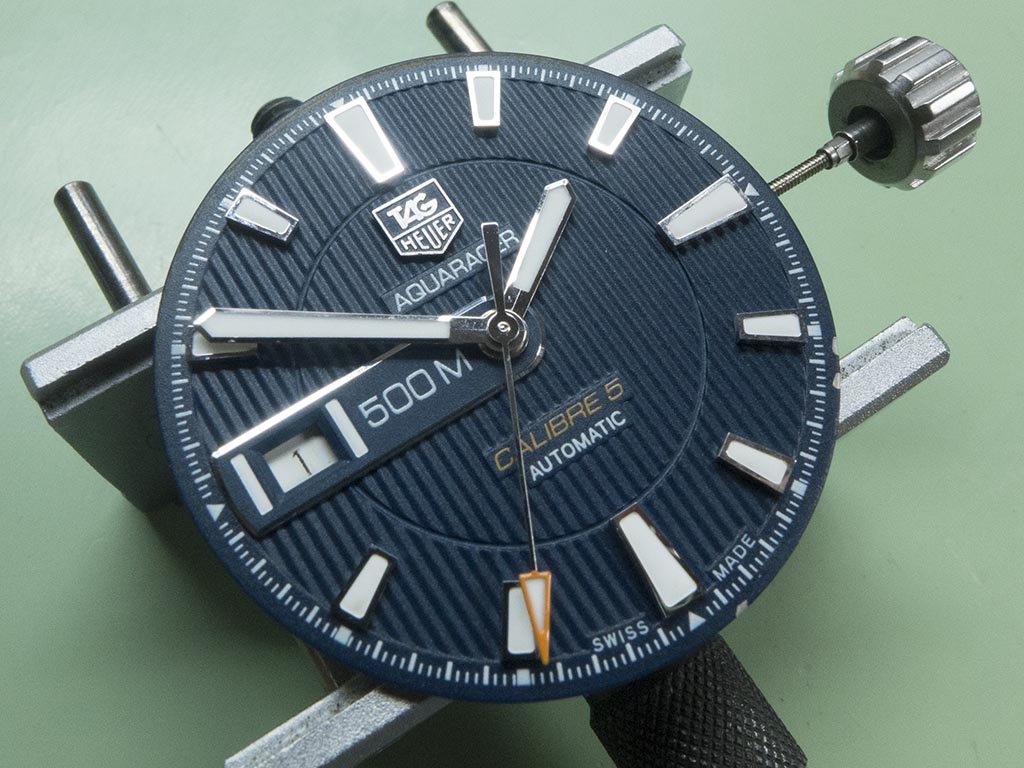

The dial and handset refitted.

Tag aquaracer

However, the movement had one final twist in store. I recased it and went to fit the rotor, as I tightened it the post sheared off the plate! I think the fact the rotor was siezed must have put undue strain on the post and weakened it, the saving grace was it wasn’t tight when it sheared which allowed me to remove the screw and post from the rotor without too much trouble. Once again everything went on hold whilst a new plate was ordered.

Tag aquaracer

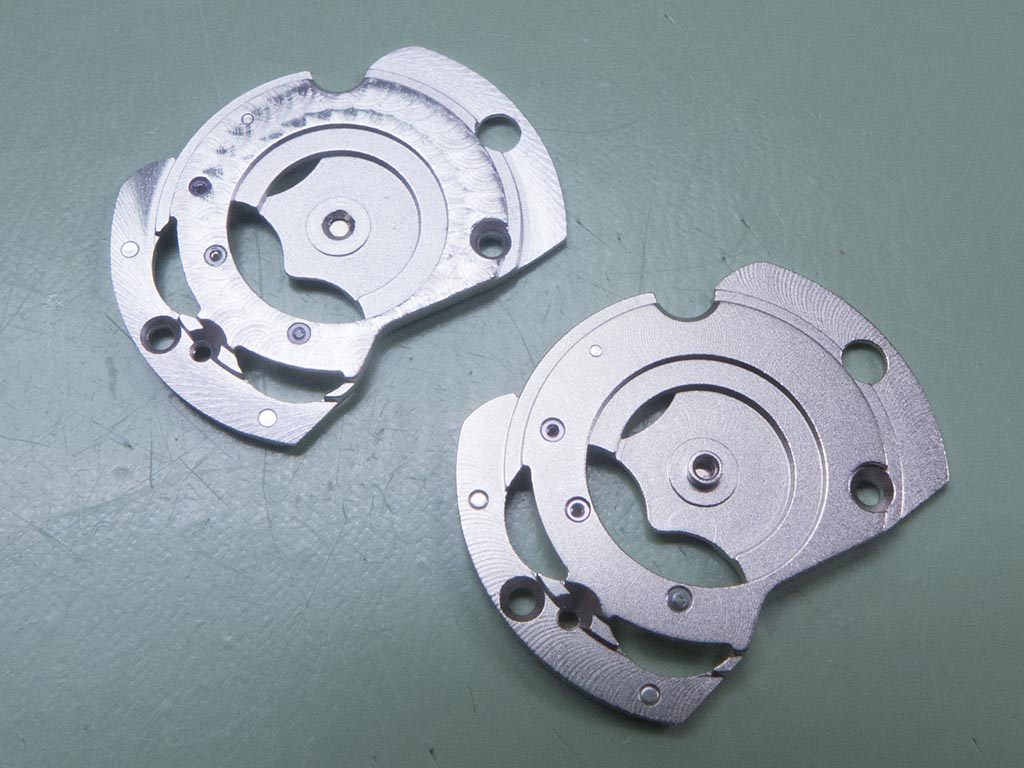

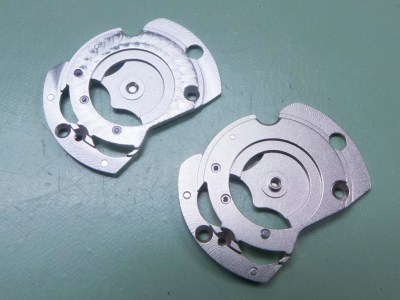

The new plate duly arrived, no perlage decoration on this one unfortunately but better than no plate at all.

Tag aquaracer

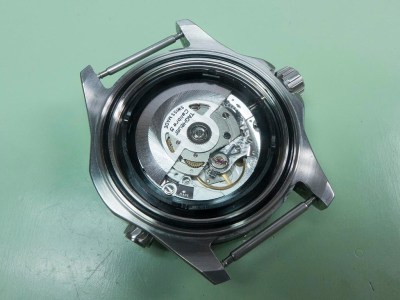

The rotor was fitted and it was then ready for the caseback….

Tag aquaracer

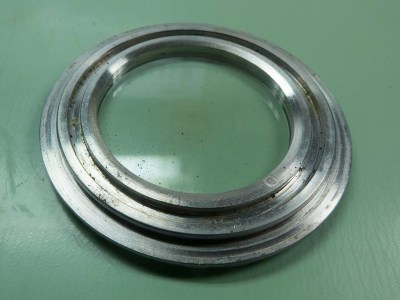

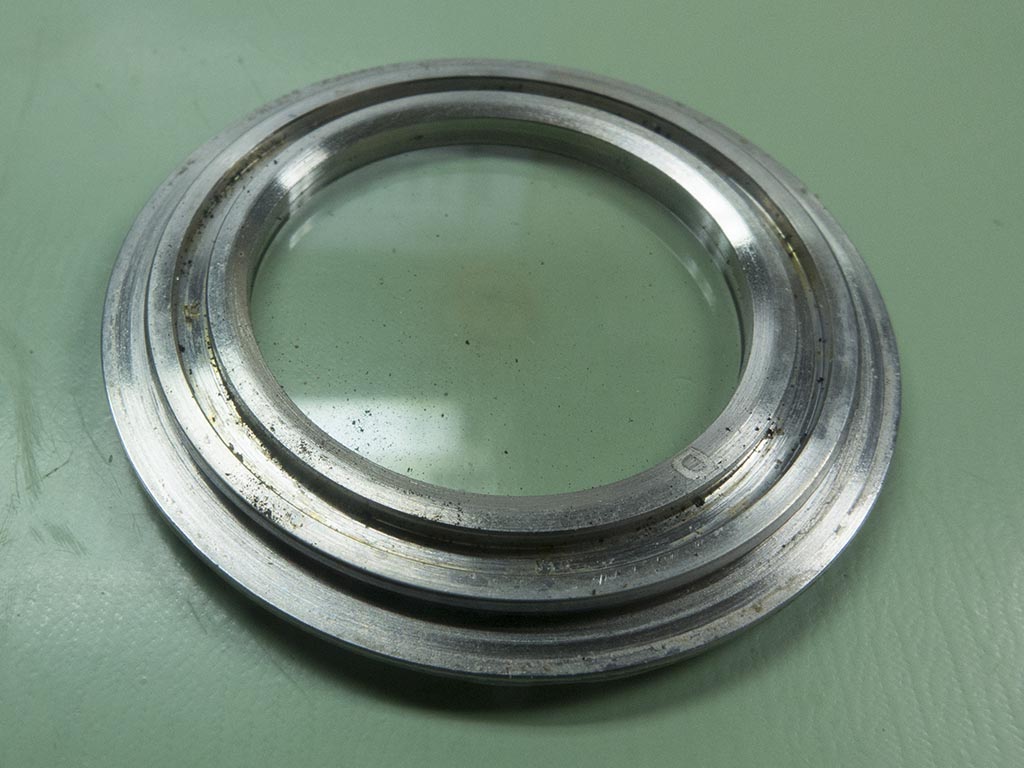

….which needed a good cleaning before fitting!

Tag aquaracer

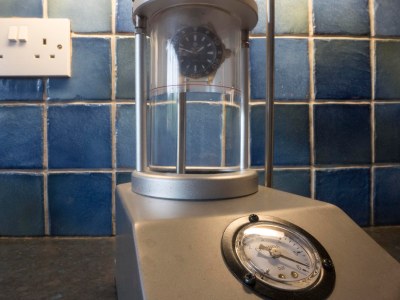

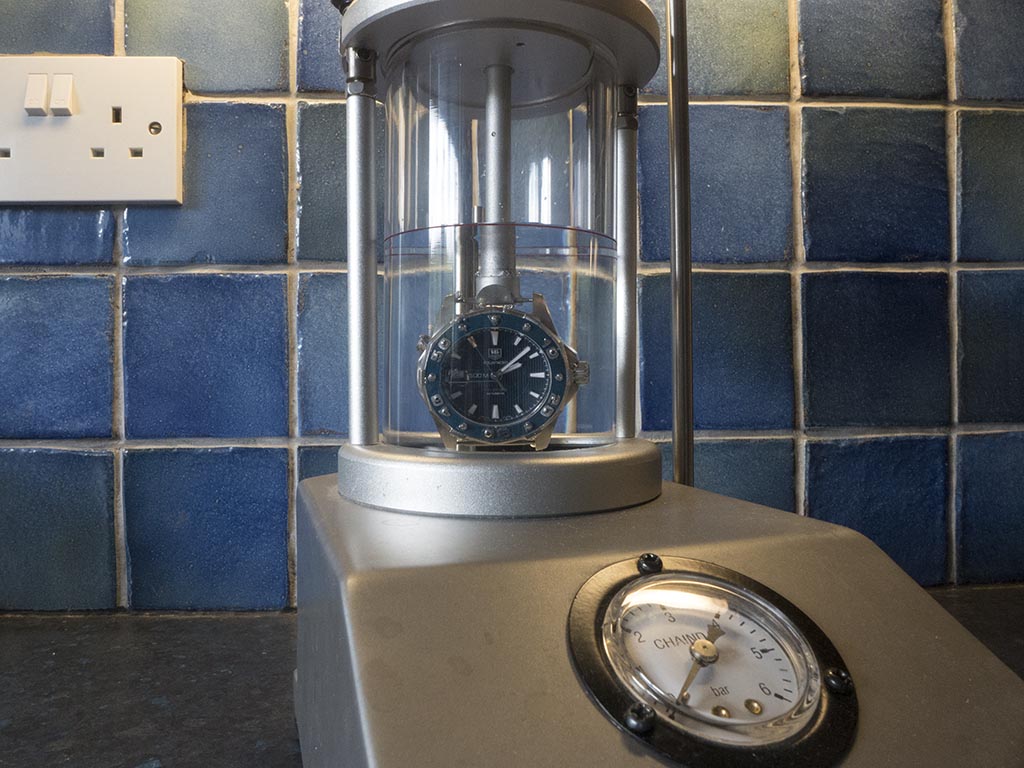

The next job was a leak test to check it wasn’t going to get wet again.

Tag aquaracer

Tag aquaracer

Tag aquaracer

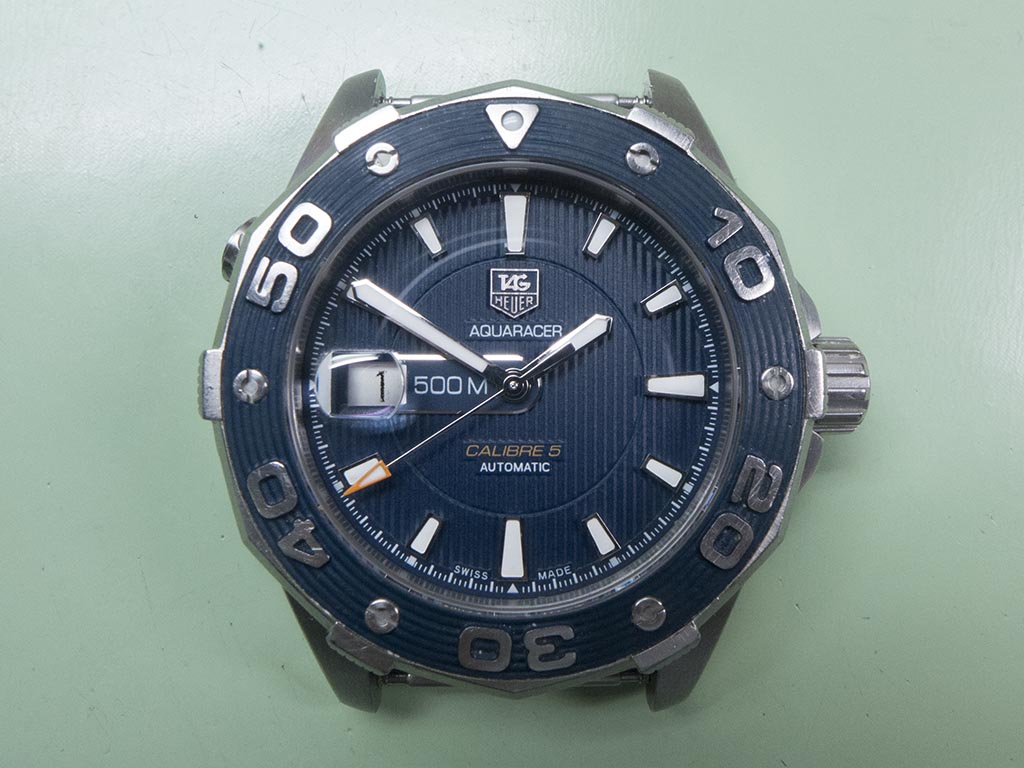

And here’s the final product, if you hadn’t read this you’d never know it had been flooded and left to rot!

Tag aquaracer

Tag aquaracer

Tag aquaracer
