1940’s Hamilton Milton

Hamilton began manufacturing and selling watches in Lancaster Pennsylvania back in 1892 when it bought the Keystone watch company which was facing bankruptcy. The company was named after James Hamilton, the owner of a vast amount of land (including what is now the city of Lancaster) that had been granted to him by William Penn, an English settler, Quaker and real estate developer who founded the province of Pennsylvania. The Milton featured here was manufactured when Hamilton was a watchmaking powerhouse in America producing 100% American made watches, but by 1966 Hamilton had acquired the Swiss watch manufacturer Buren and began utilising Swiss movements in production. Fast forward to today and Hamilton watches are still being manufactured, but now as a brand name of Swatch Group, the huge Swiss watch manufacturing company.

This particular Milton which was manufactured in the late 1940’s came in for a movement service and a bit of a spruce up.

before

As can be seen from this period advert it was quite an expensive watch with it’s 14k gold filled case and 18k gold numerals and dots on a silver dial. $71.50 is the equivalent of over $700 today!

periodadvert

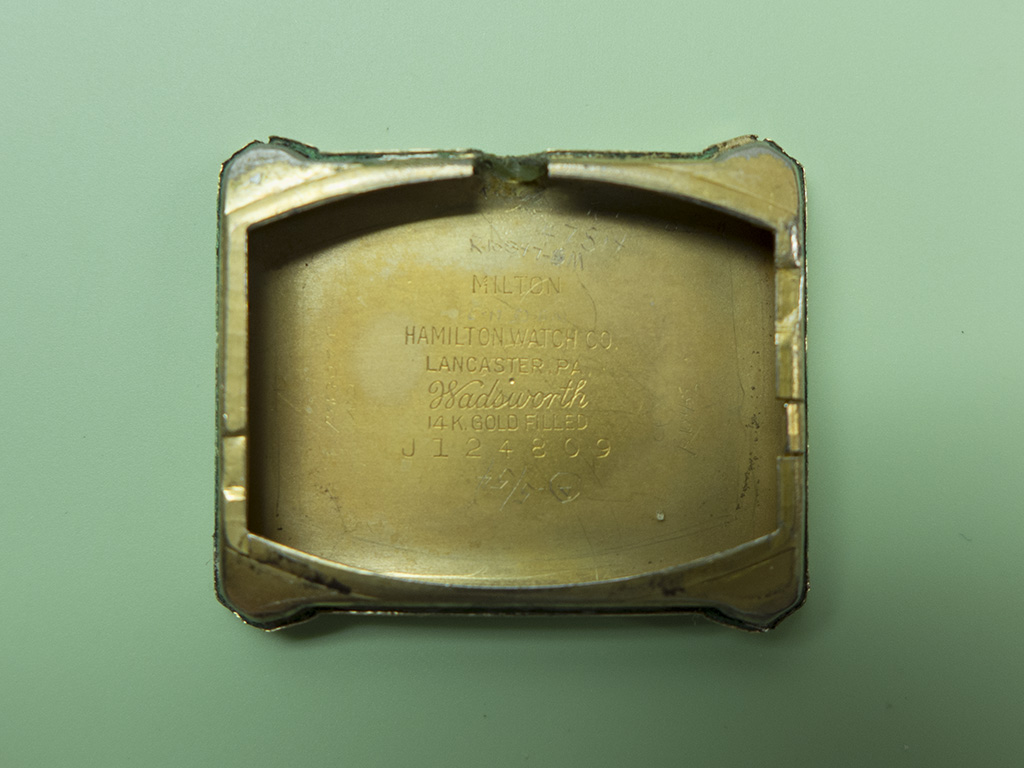

The term gold filled is also referred to as gold capped especially in Europe and is a lot more durable type of case than gold plated. Gold plated means a gold layer measured in microns that has been electroplated onto the base metal, whilst gold filled or capped is an actual layer of gold that measures about .1 to .3mm thick that has been melted over the base metal and tends to be a lot more durable than gold plate. If you look at the edges of the case you can actually see the thickness of the gold cap.

P1010705a

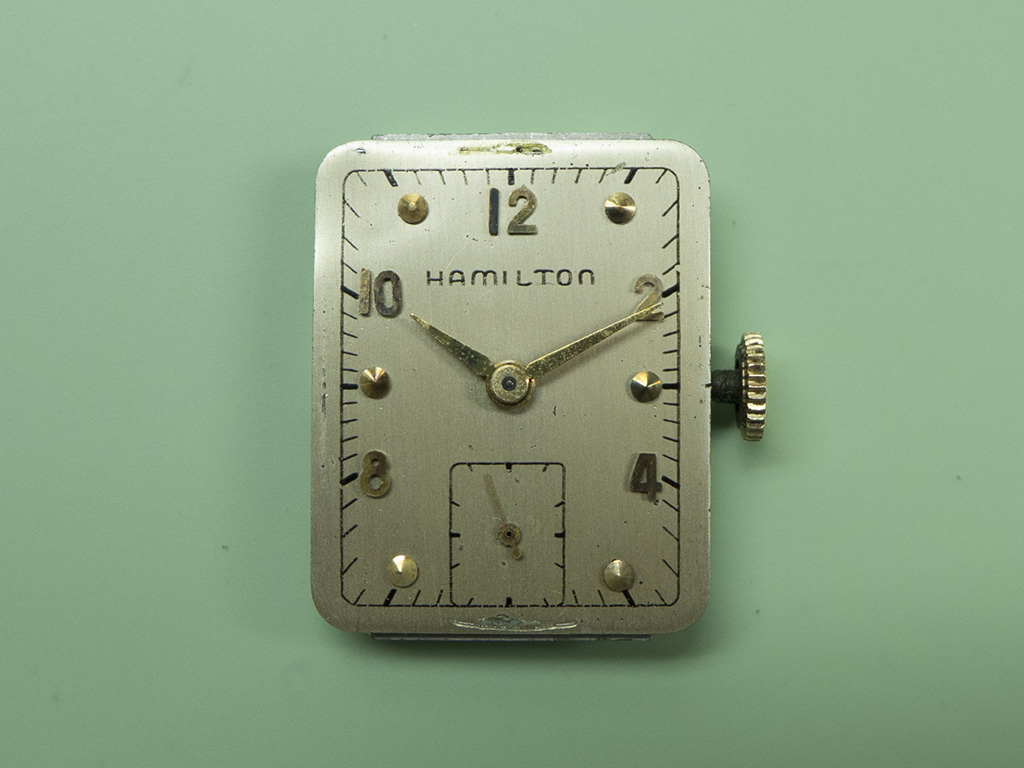

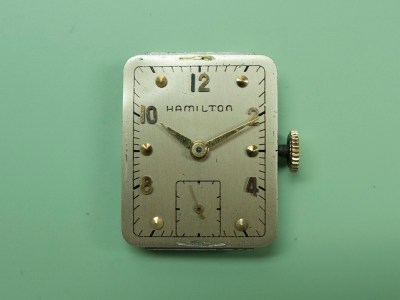

With the movement removed you can see the dial and handset are in pretty good shape considering they’re getting on for seventy years old.

P1010706a

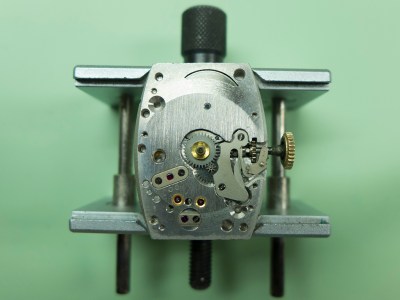

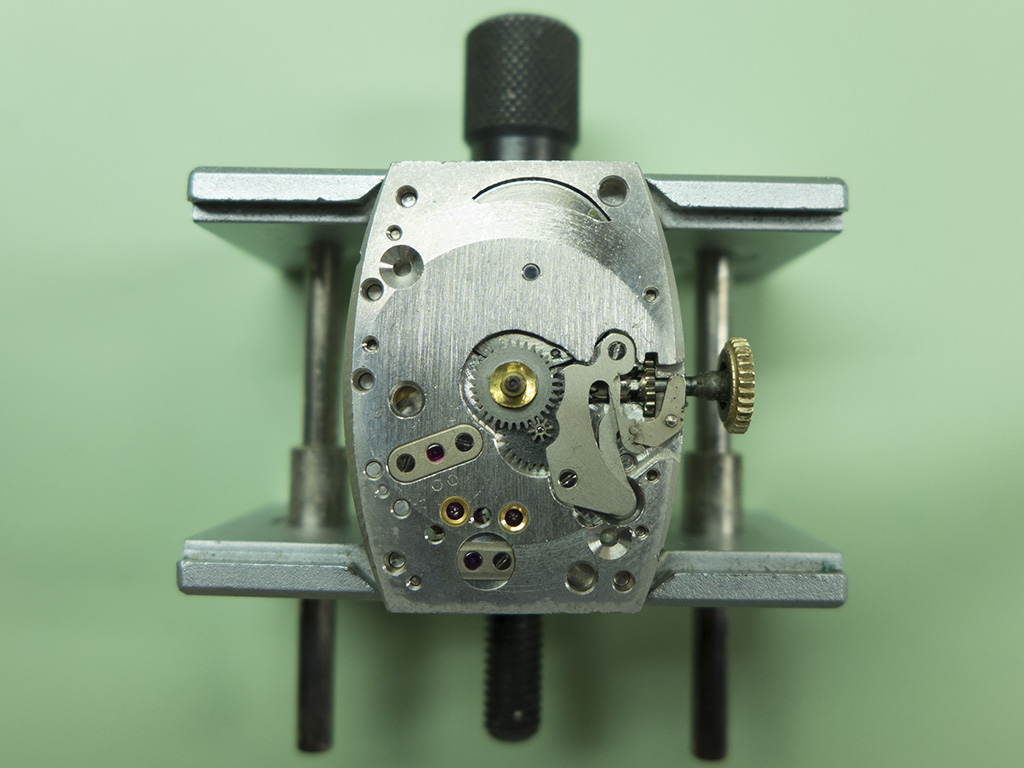

A look at the dial side of the movement, interesting to note that there’s no shock protection to the balance staff, even though it had been developed in 1934 it still hadn’t been universally adopted ten years later.

P1010707a

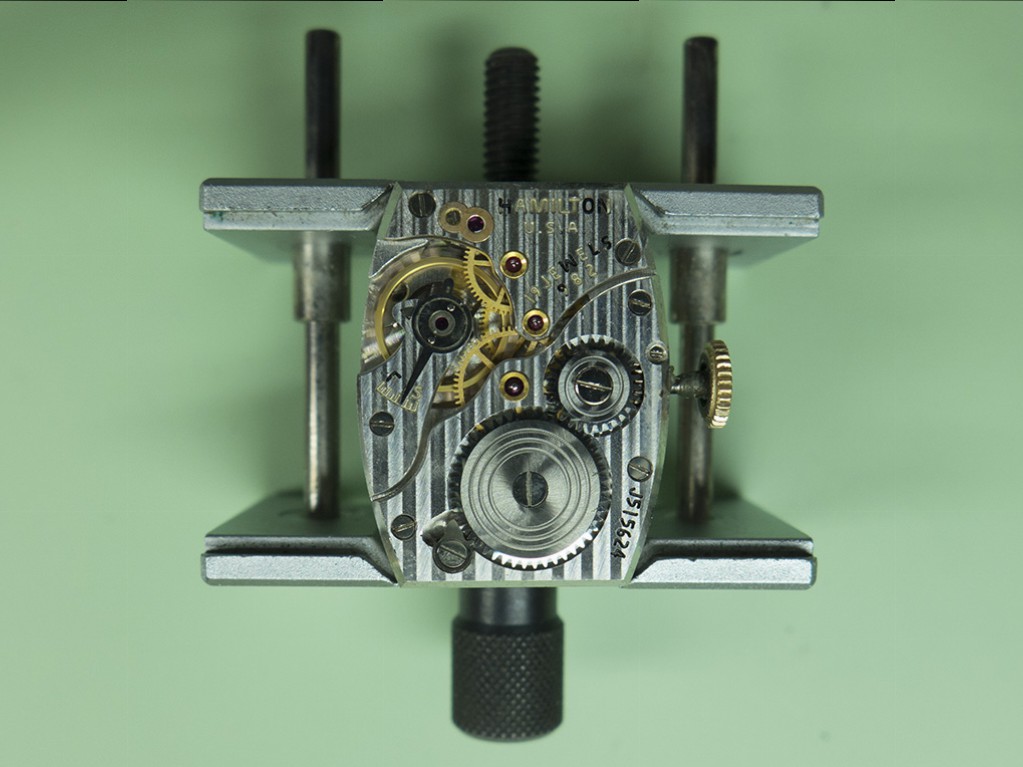

A view of the train side, movements in those days were still beautifully decorated and this 19 jewel, manual wind 18,000bph example is no exception with it’s decorative script and Geneva stripes.

P1010708a

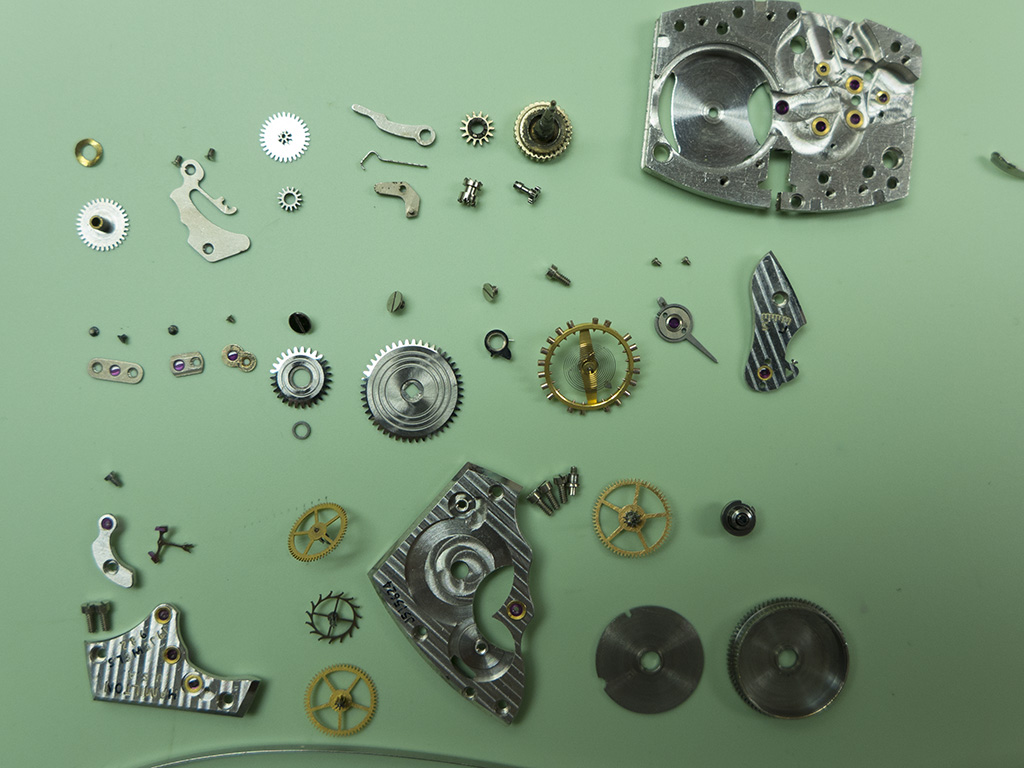

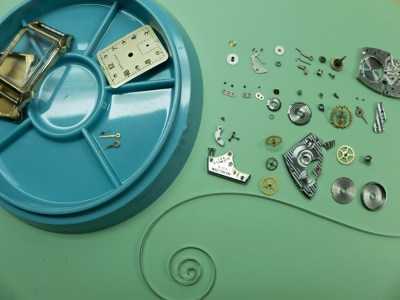

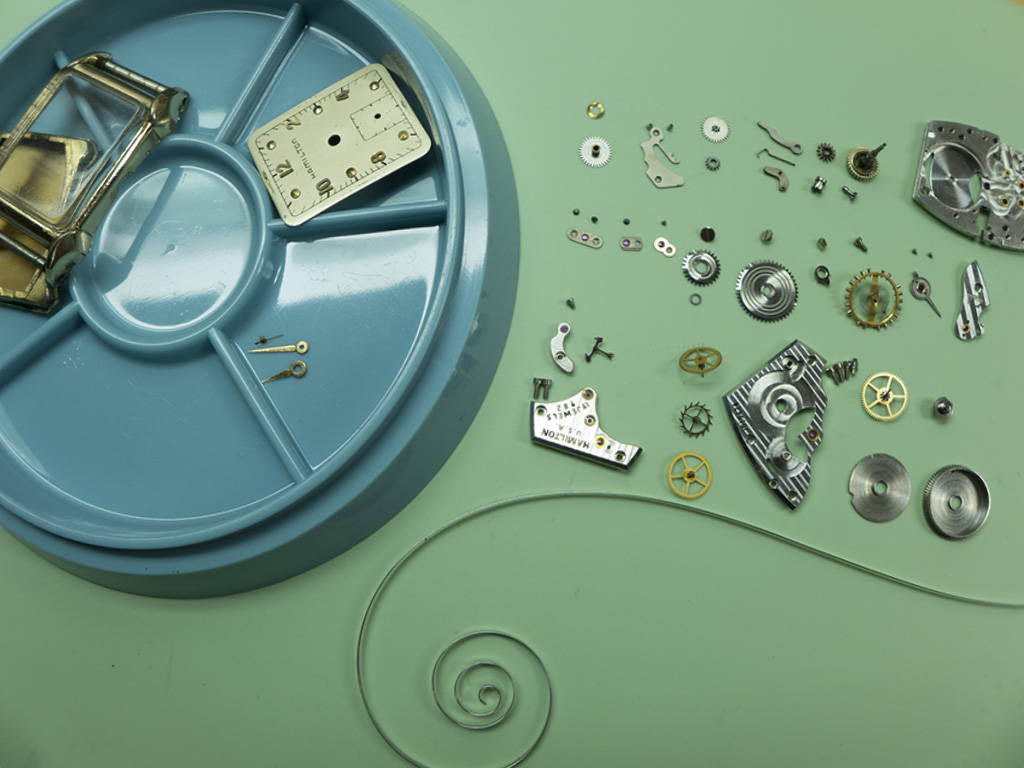

The movement was completely stripped ready for cleaning and inspection. Again another sign of quality is the Breguet overcoil hairspring which helps with achieving isochronism.

P1010711a

P1010712a

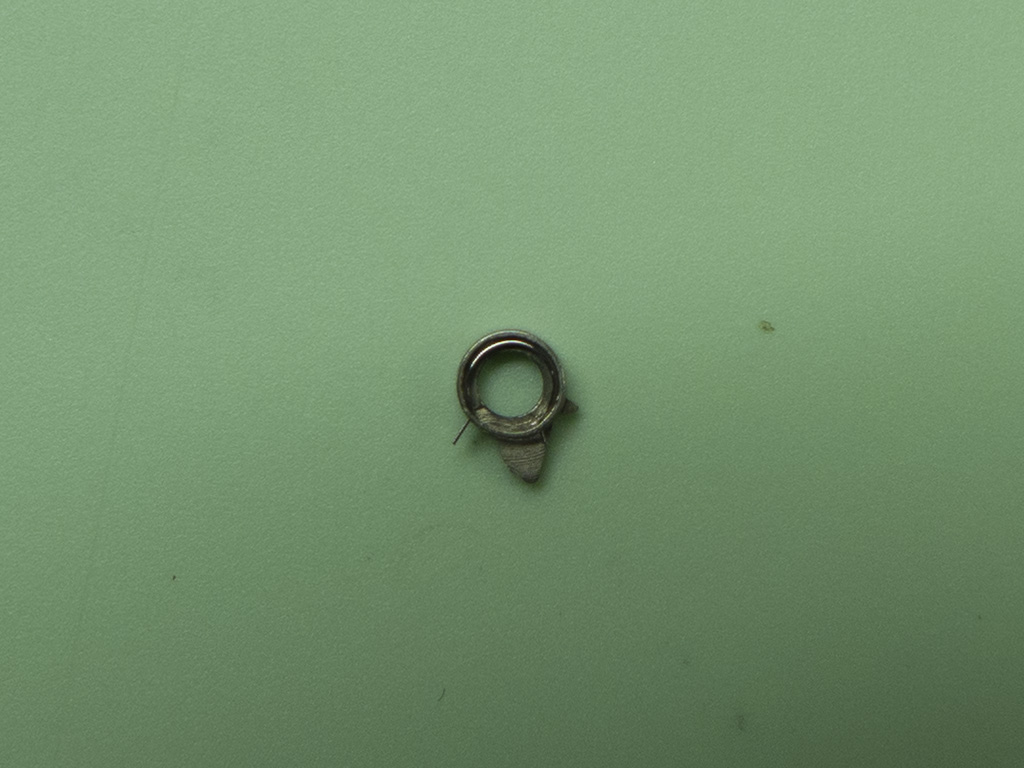

Another nice touch is the click spring held in place inside the actual click itself. It’s small points like this that I love to see.

P1010709a

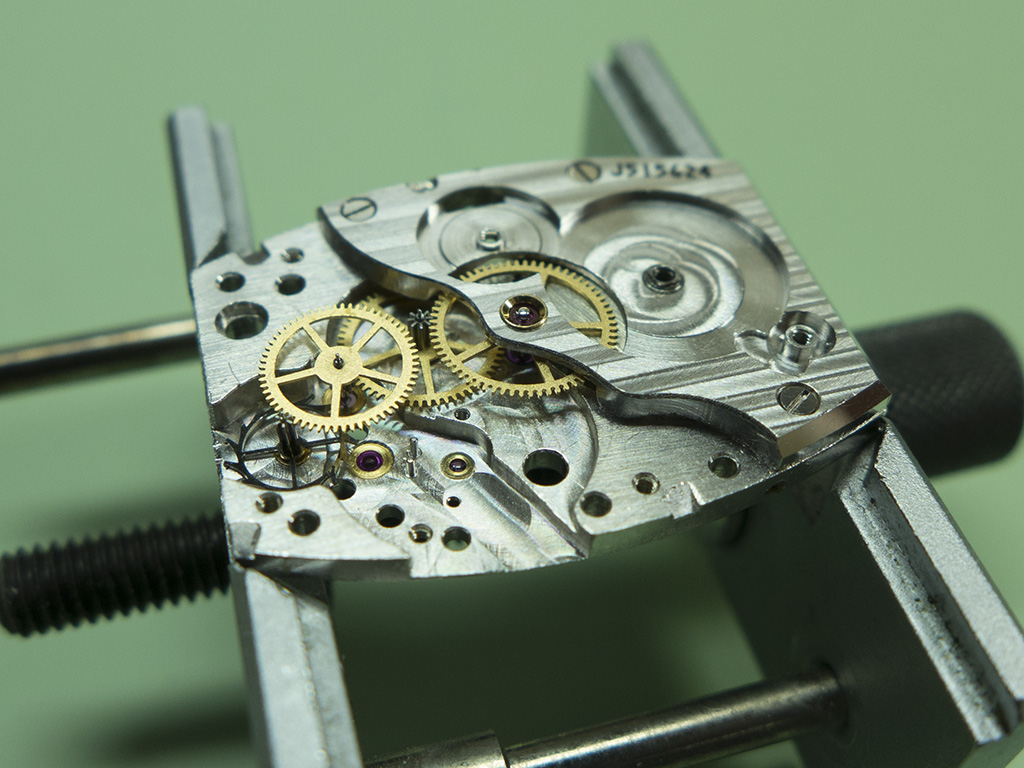

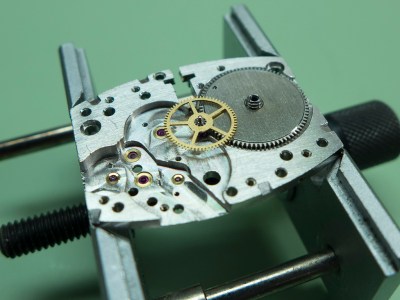

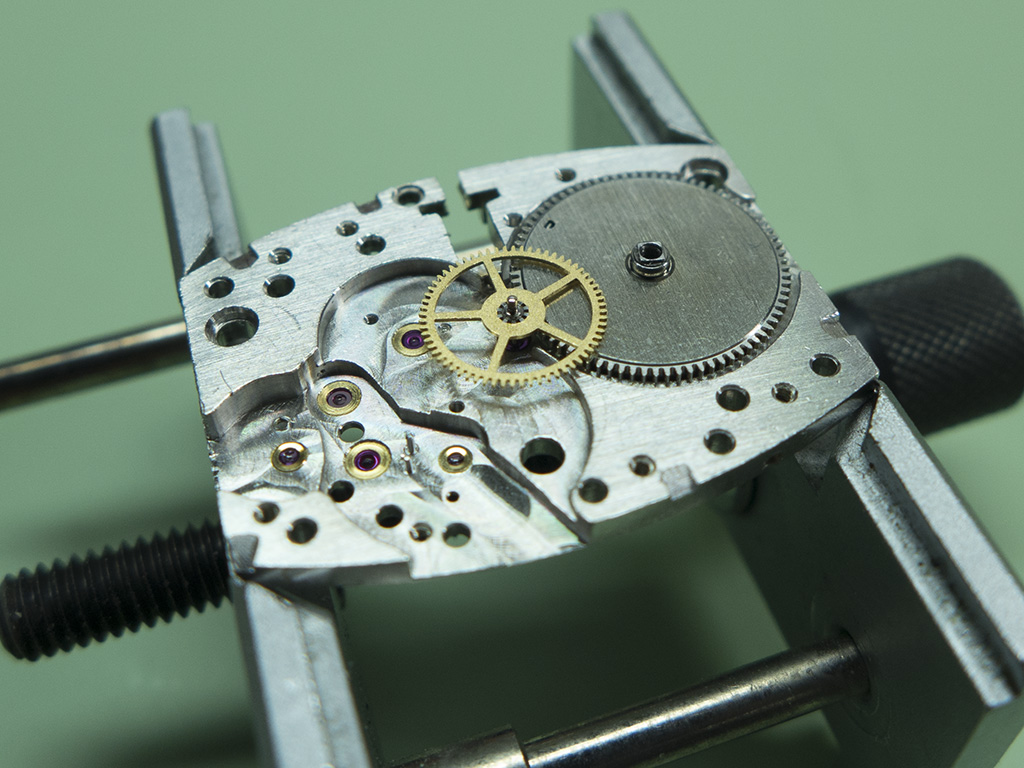

With the cleaning done and the components inspected it was time for reassembly, here the centre wheel and mainspring barrel are installed.

P1010720a

The rest of the train is now ready for the top plate.

P1010721a

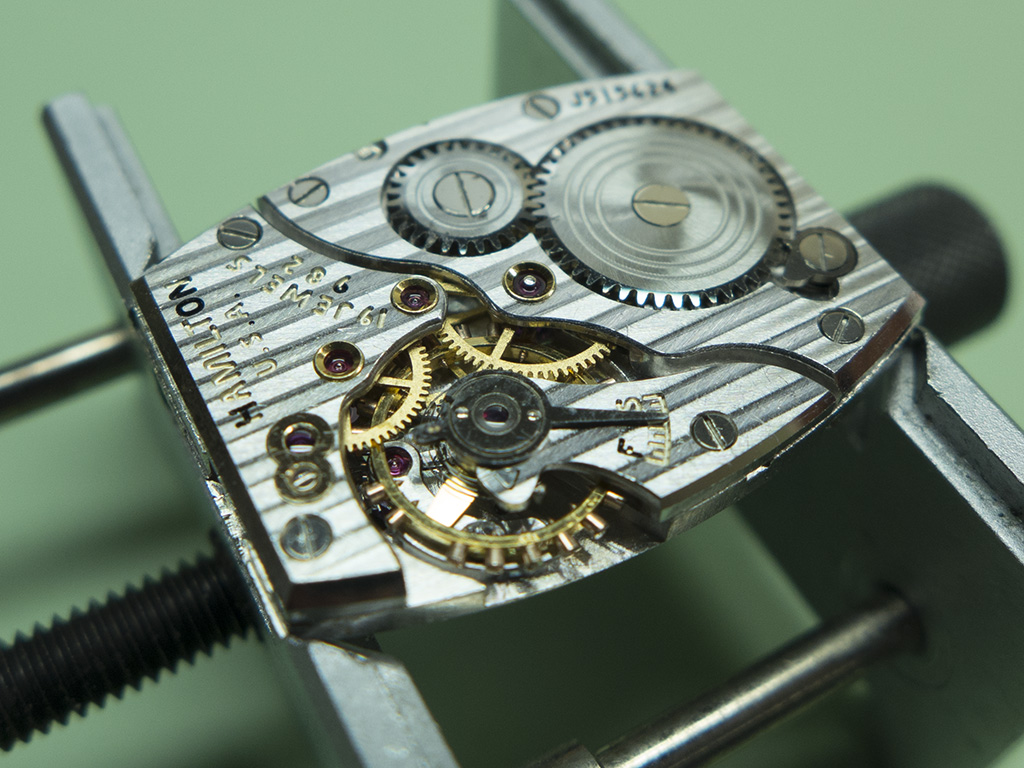

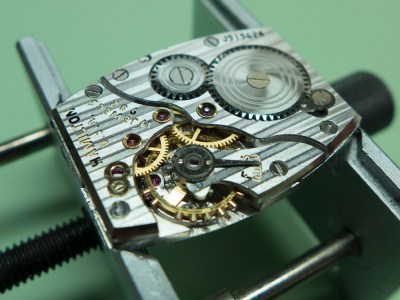

And here the train side is complete and ticking away nicely.

P1010722a

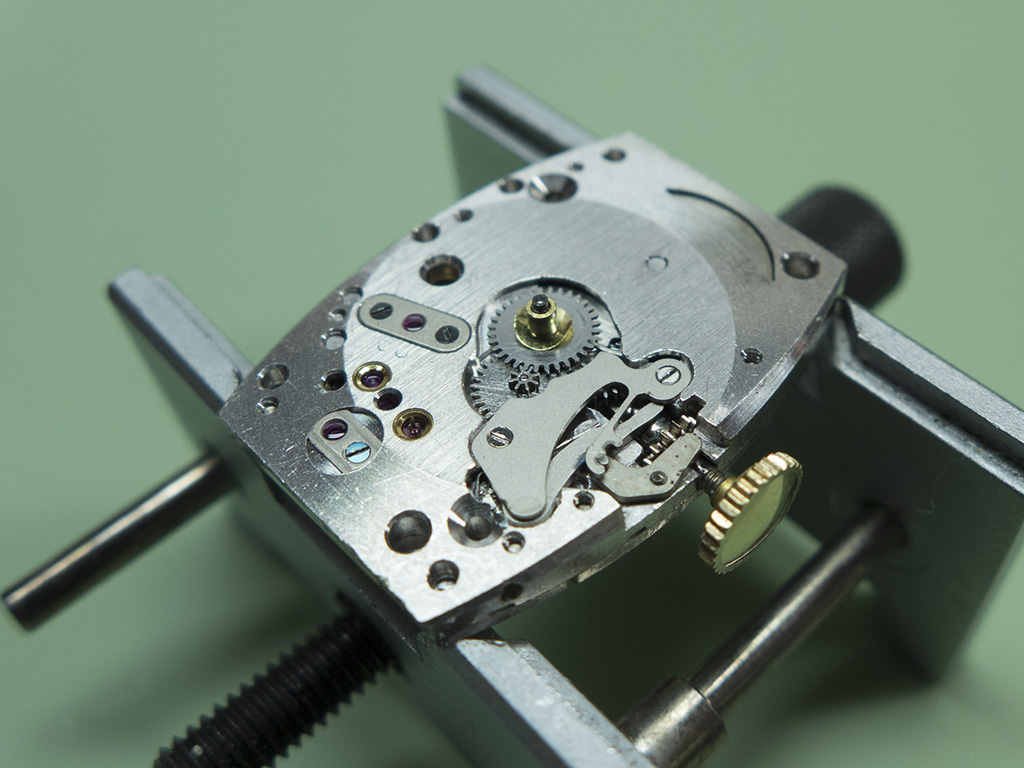

The dial side was reassembled (note the blued screws on the jewel caps – lovely)….

P1010723a

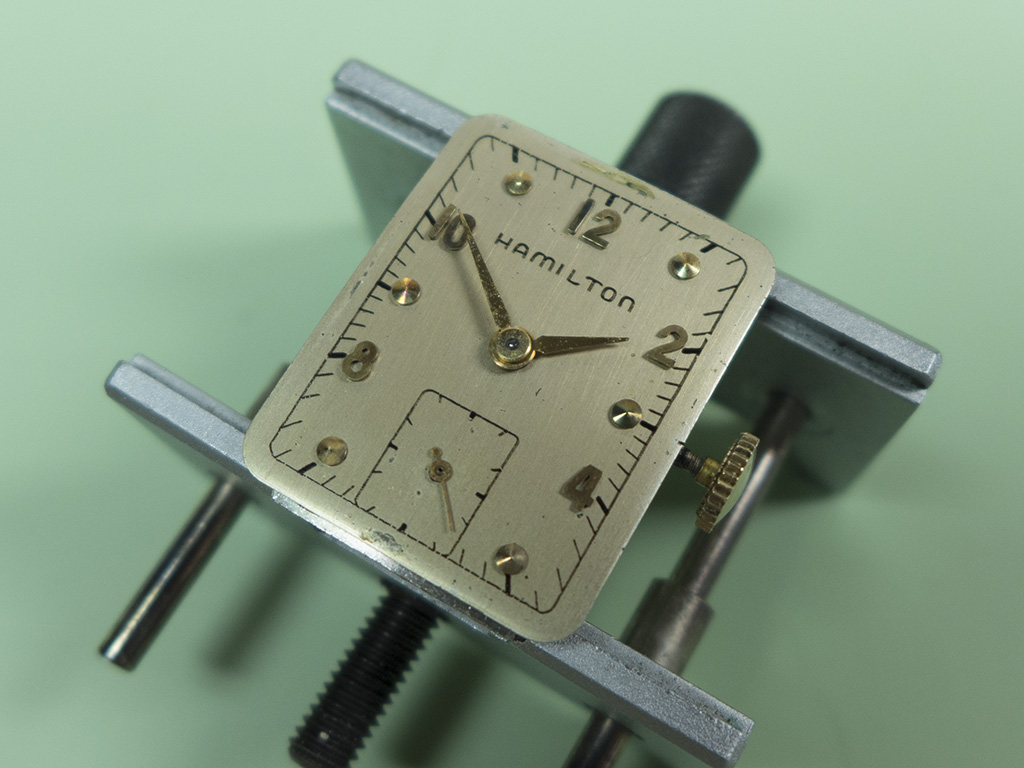

….and the dial and handset were cleaned and fitted.

P1010724a

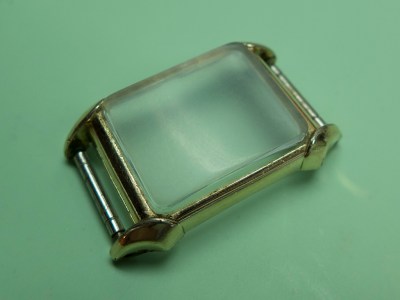

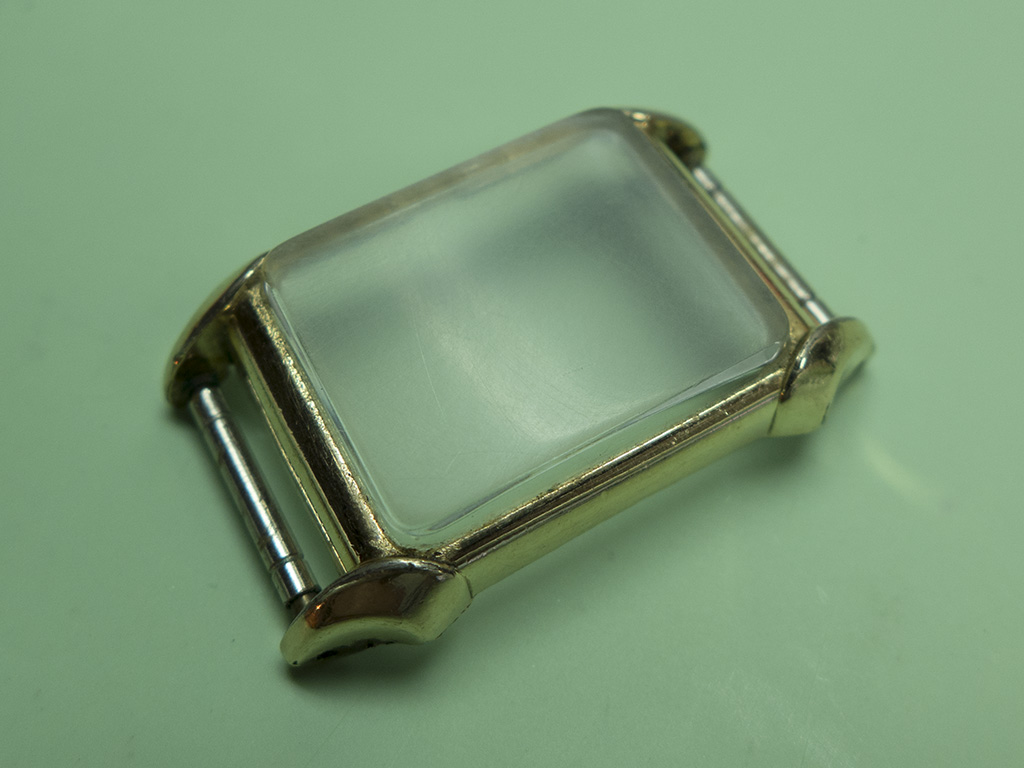

The crystal was a bit scratched but in otherwise good condition with no gouges or cracks so it was bought back to life with a good polish. The way to achieve this is to use the finest grade of emery paper that will actually take the scratches out and sand the whole surface. In this case I started with 2,400 grit which dulls the whole surface.

P1010725a

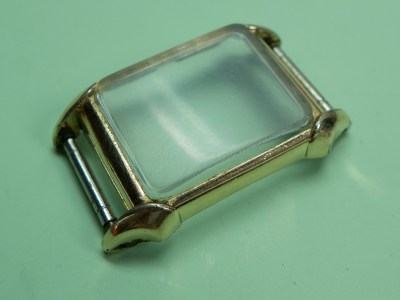

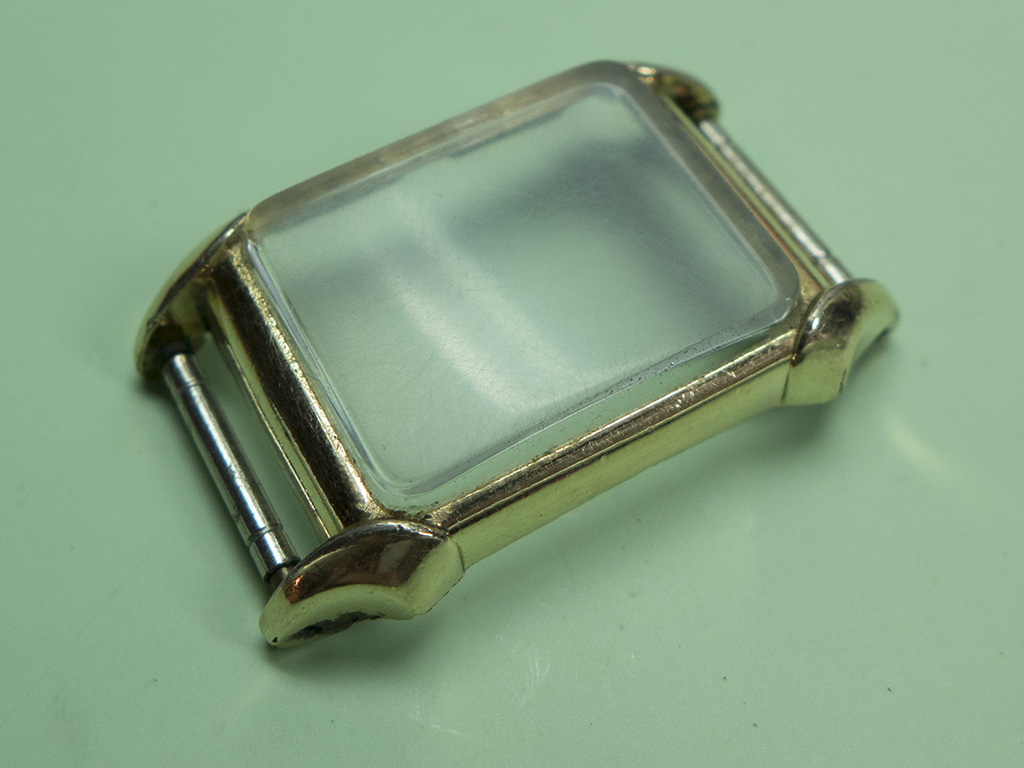

It’s then a case of using finer and finer grades, 3,200 grit next.

P1010726a

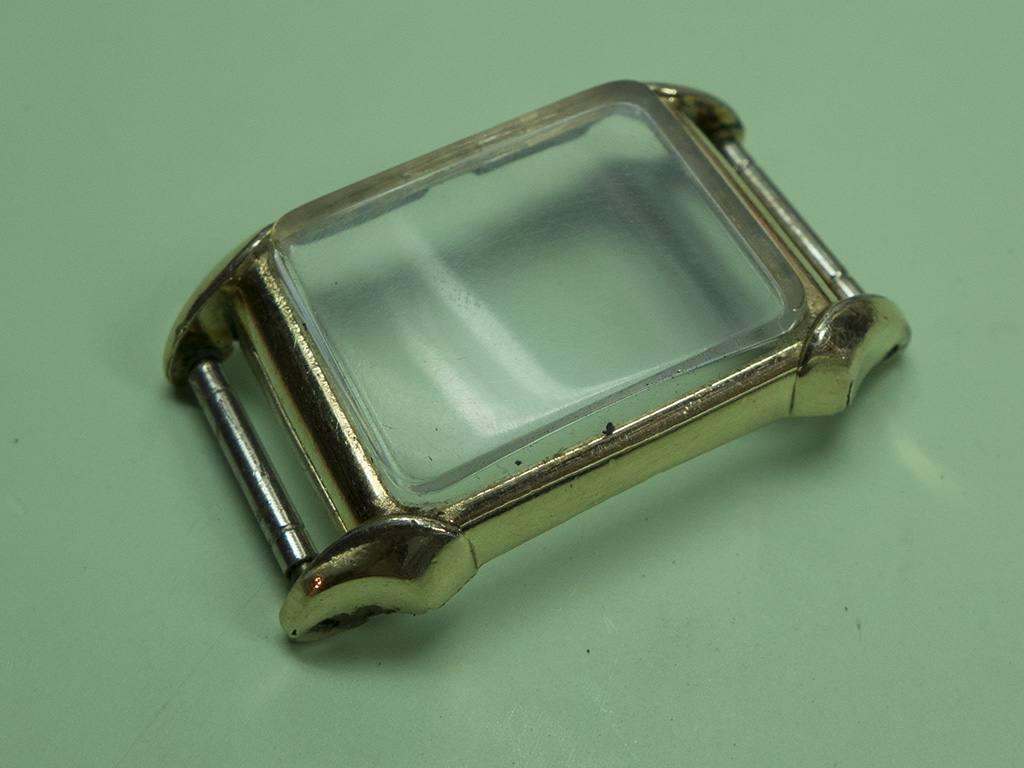

Then 4,000 grit….

P1010727a

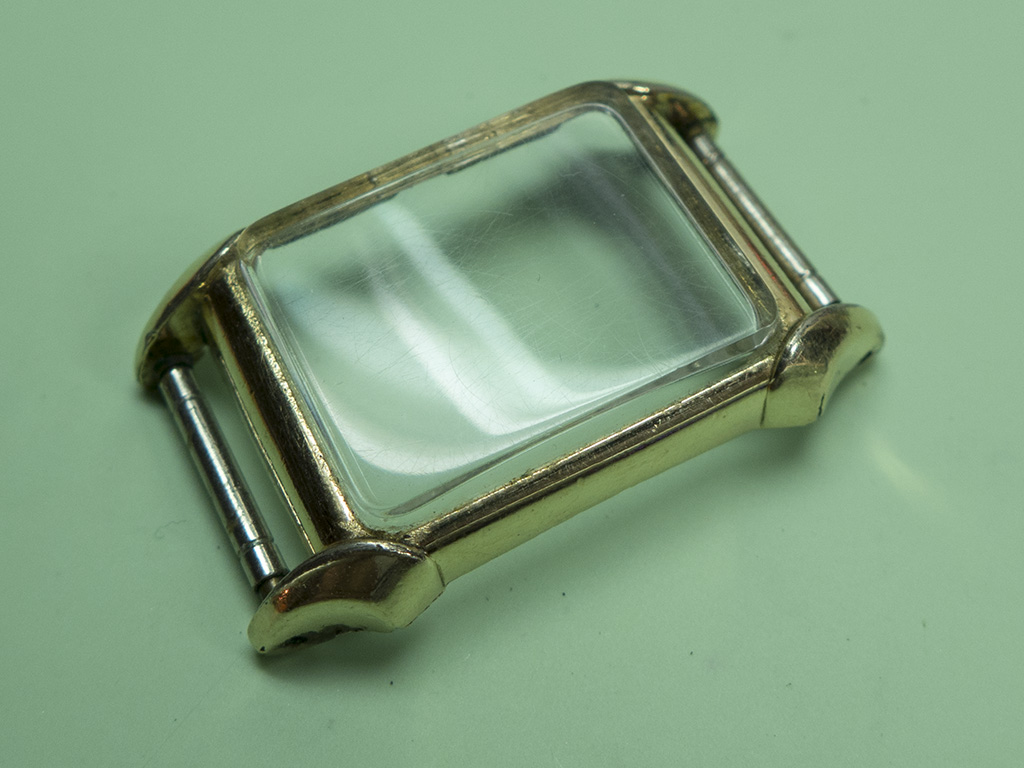

Then 6,000 and it’s starting to clear.

P1010728a

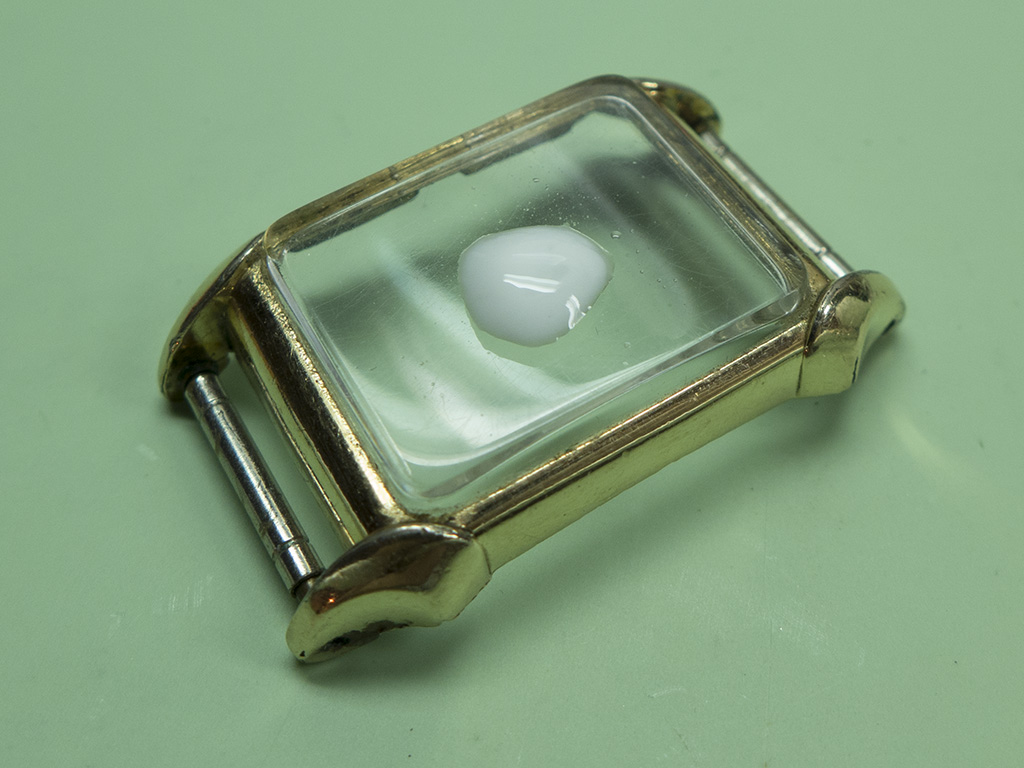

There’s not much to be gained from going finer with the emery paper on acryllic so it’s time to use some Polywatch and a cloth to blend the fine scratches together.

P1010729a

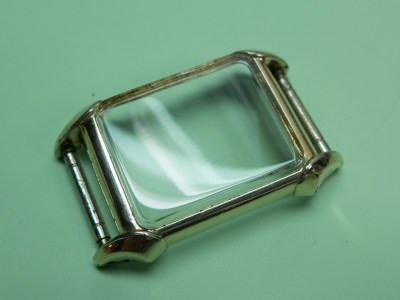

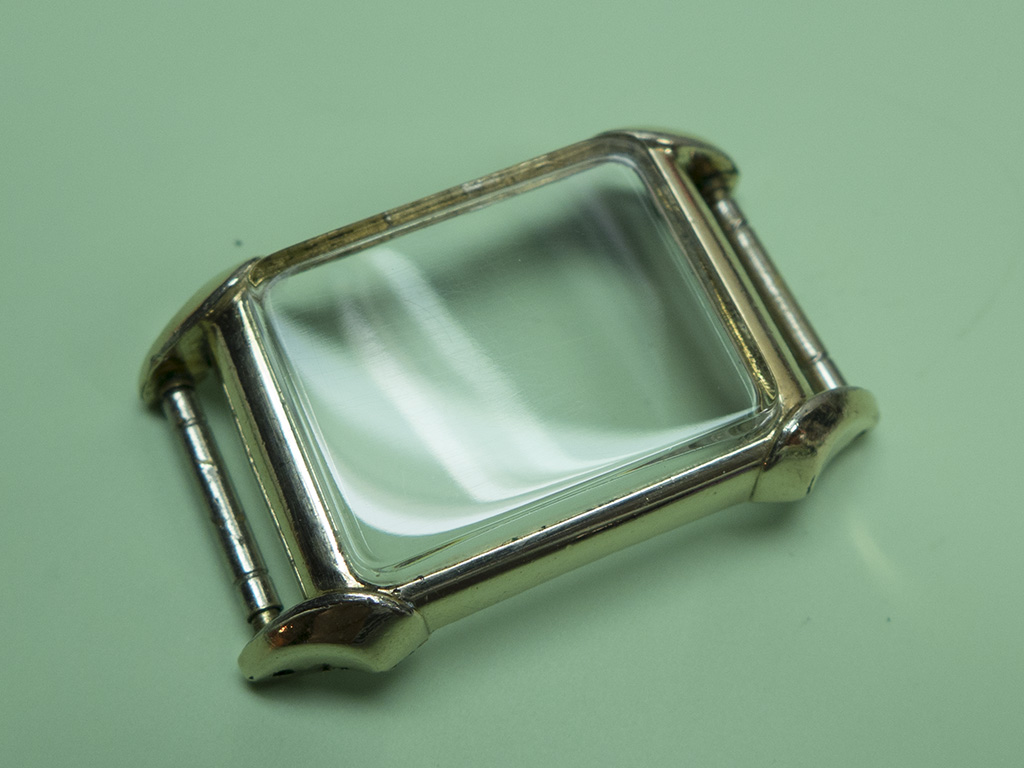

A while later it’s done, the large scratches are all gone and it’s looking so much better.

P1010730a

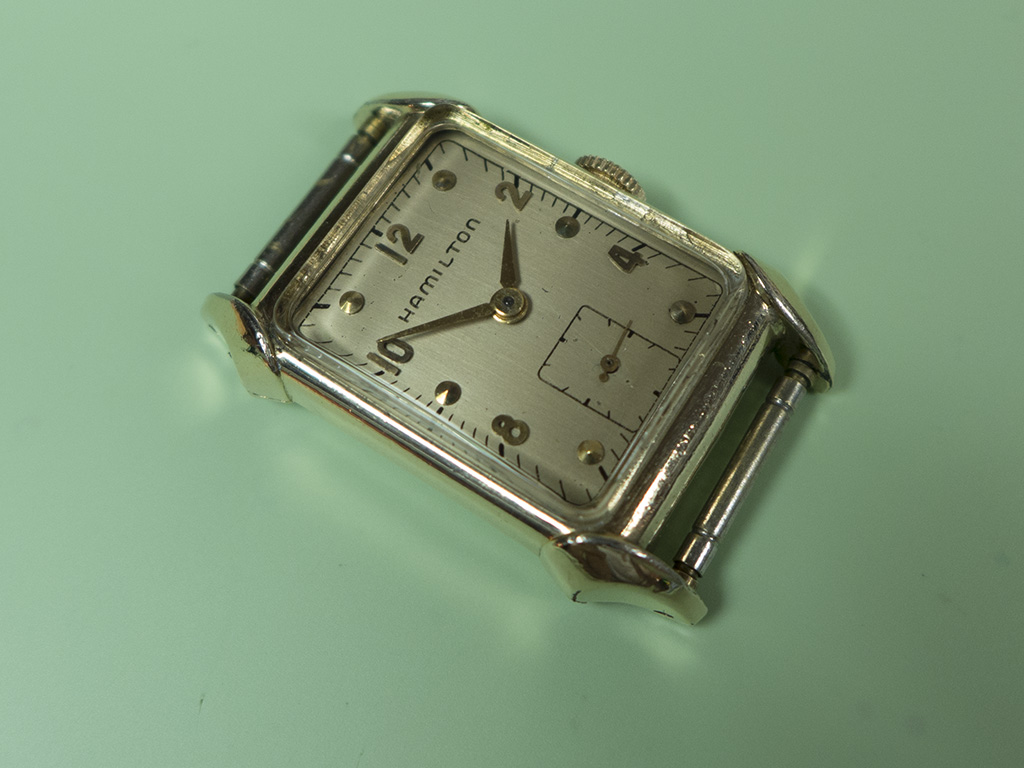

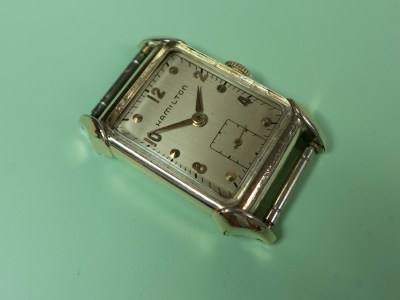

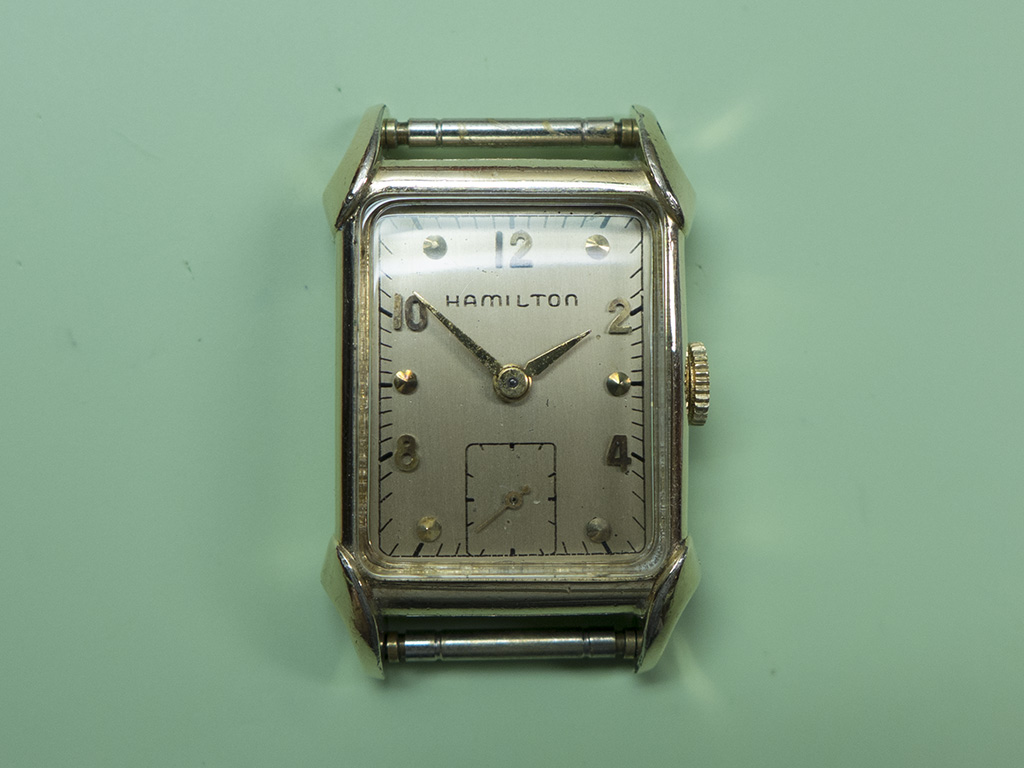

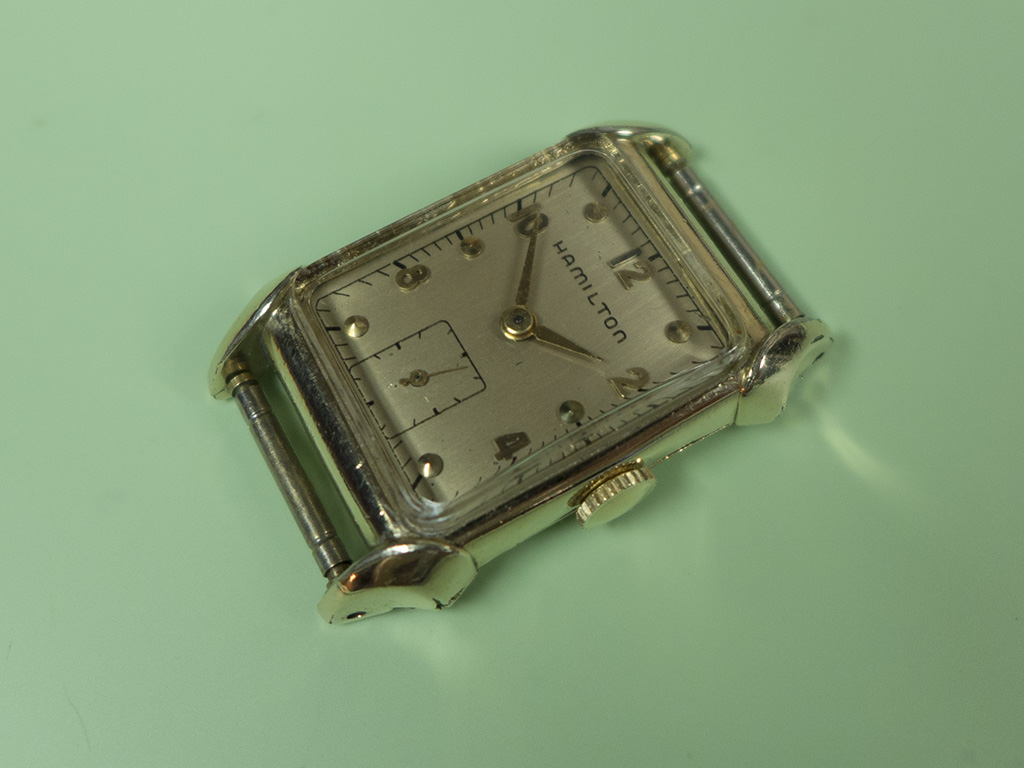

After a clean and polish of the case and springbars the watch is done, despite some wear on the edges of the gold cap in places it’s in remarkable condition and a lovely looking piece.

P1010733a

P1010731a

P1010732a
