Rolex 1603

This lovely gold dialled Rolex reference 1603 came in with a low power reserve, when I tested it I got 28 hours from a full wind which is about 33% down on what you’d expect from a healthy 1560 calibre. A service and new mainspring should sort this out! The watch dates from 1961 according to the inside of the caseback and is in exactly the condition I love to see vintage watches in that have been used as intended and looked after.

P1020192a

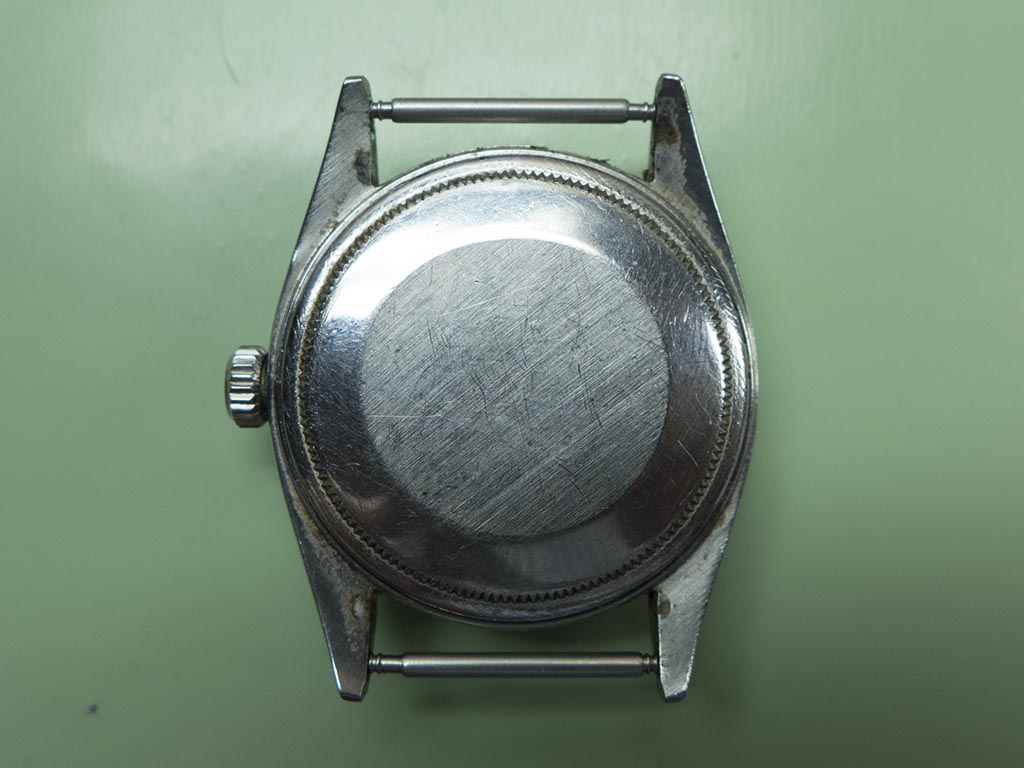

A typical Rolex caseback with thankfully with no signs of damage.

P1020193a

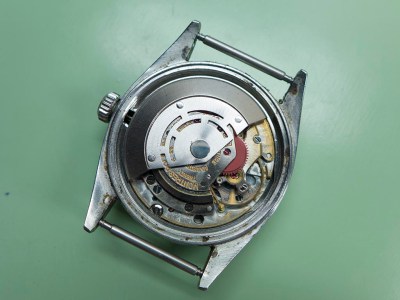

Inside things are looking good, I half expected the rotor axle to be worn looking at the witness marks on the plate made by the rotor coming in contact with it. However the axle appears to have been replaced at some point and there is minimal wear which is good, it shows it’s been serviced properly in the past.

P1020194a

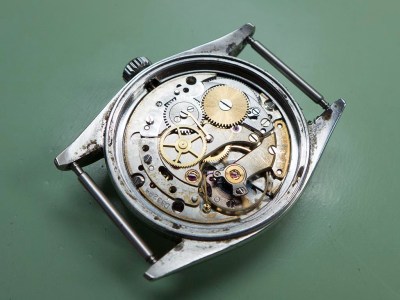

With the autowind bridge removed the movement is more visible with it’s indirect driven centre seconds and shock protected balance and escape wheel.

P1020196a

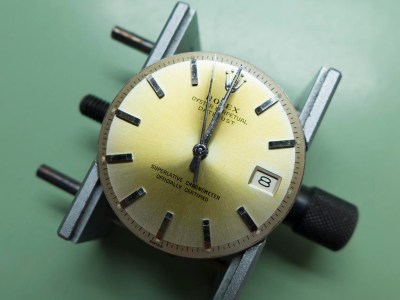

With the movement uncased we can see the dial has survived the past 50 years in very good shape.

P1020197a

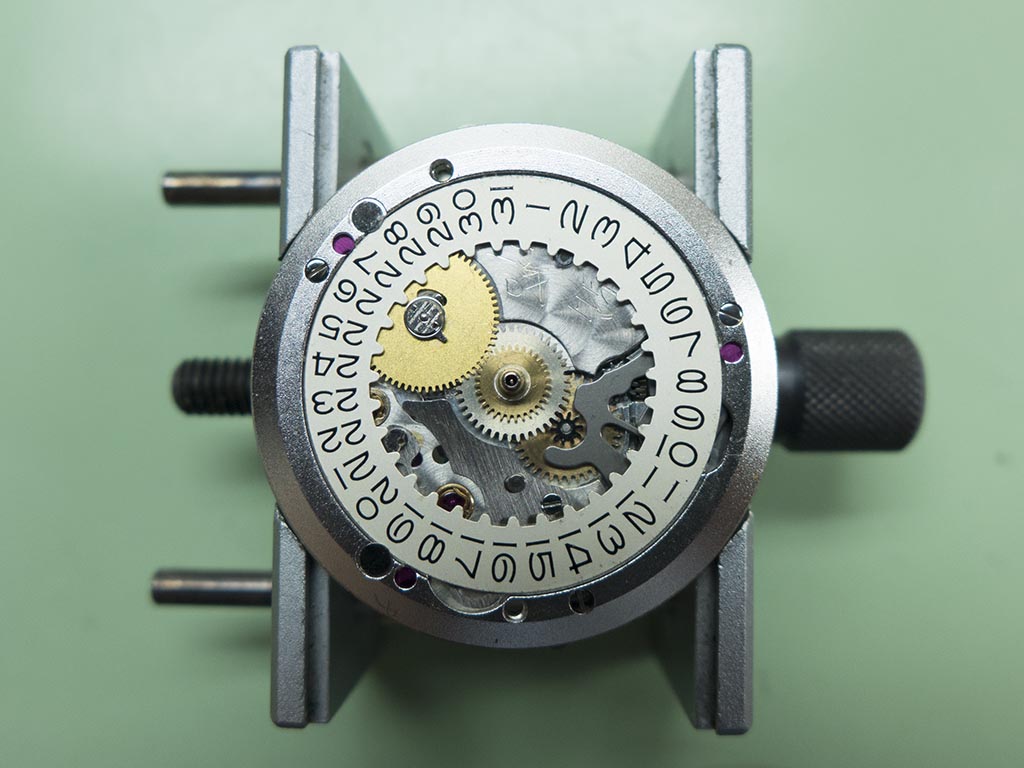

With the dial and handset removed the calendar components are exposed. Look at all those lovely open 6’s and 9’s on the date ring!

P1020198a

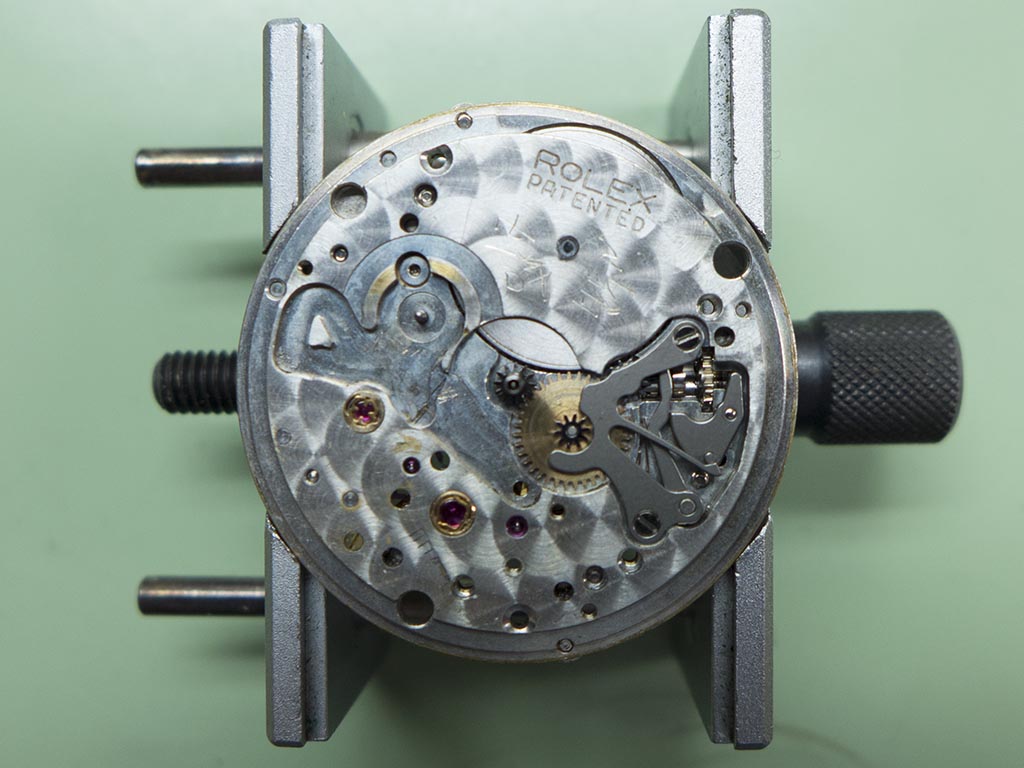

With the calendar components out of the way the keyless work can be seen.

P1020200a

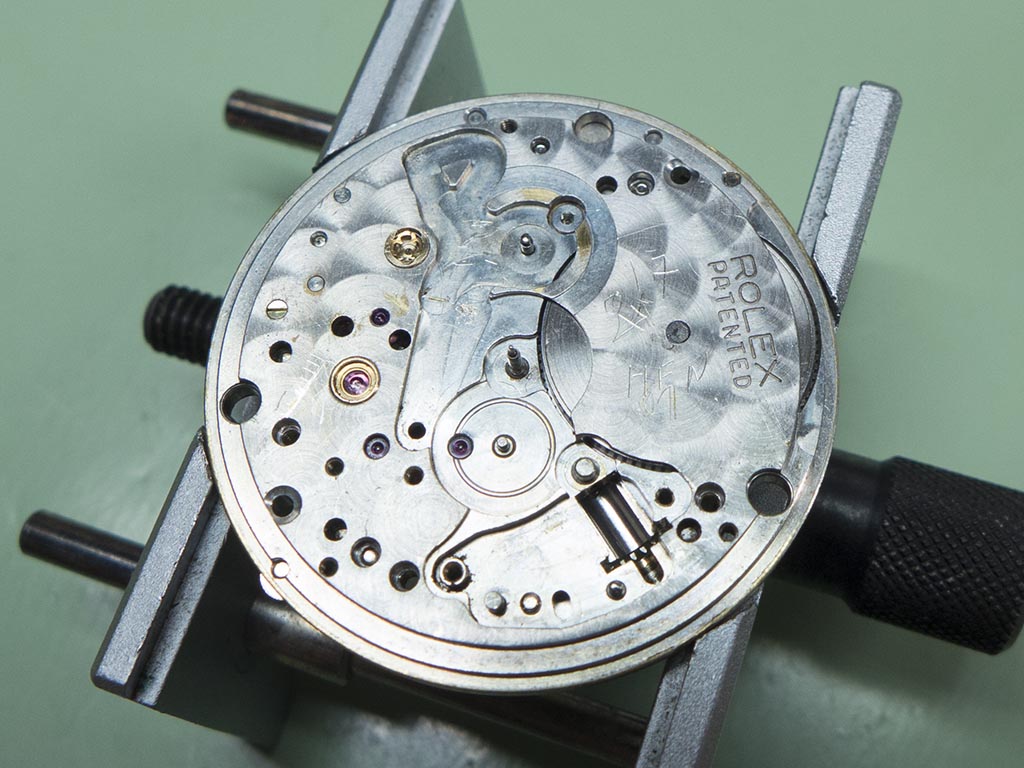

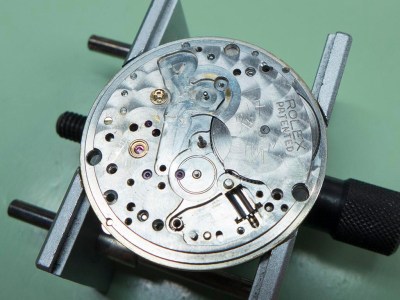

A bare plate ready to be turned over.

P1020202a

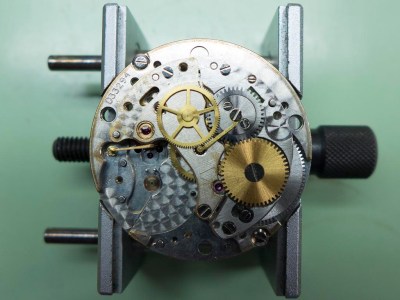

The stripdown continues, the balance and pallet fork are removed in this shot.

P1020203a

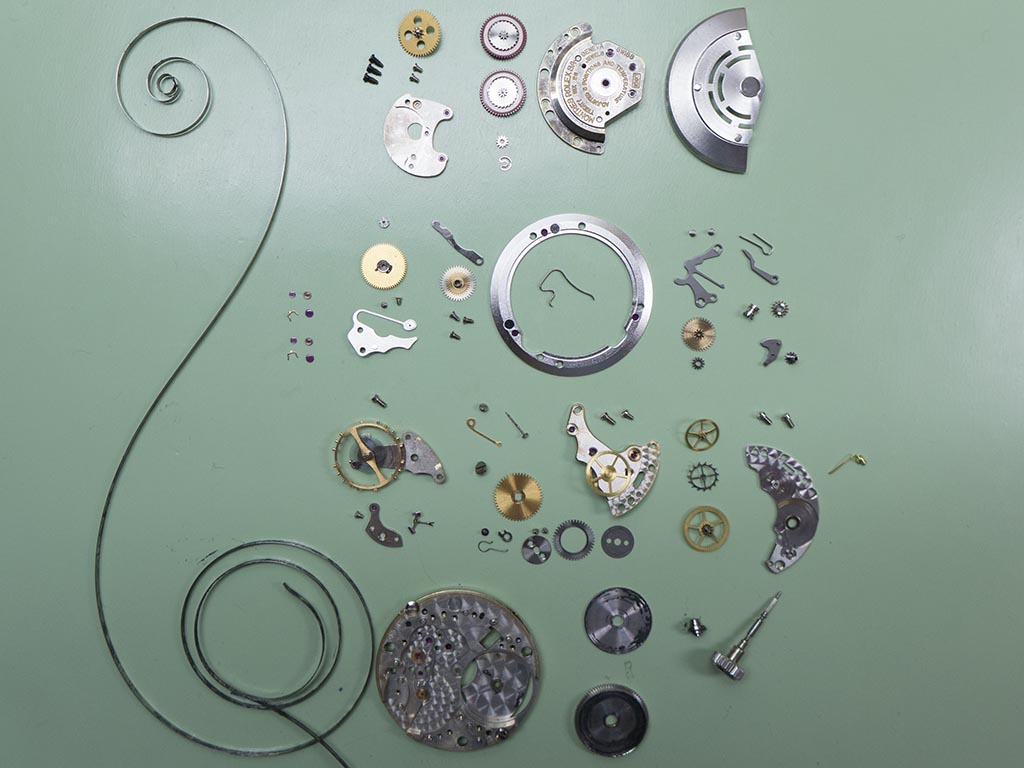

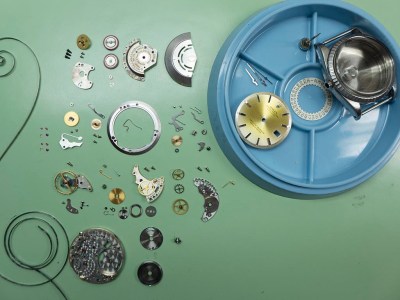

And the watch is now fully stripped ready for cleaning and inspection.

P1020207a

P1020209a

Whilst the cleaning machine was running I decided to tackle the case, I’d ordered a new crystal for it so it was time to remove the old one and ultrasonically clean all the case components.

P1020214a

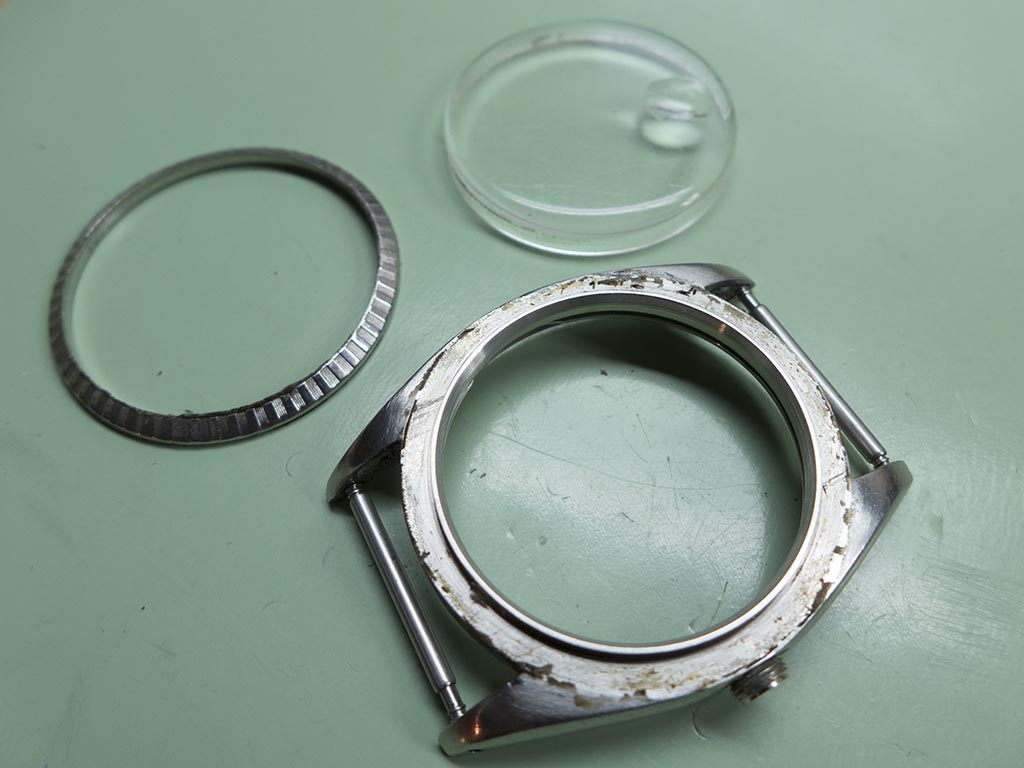

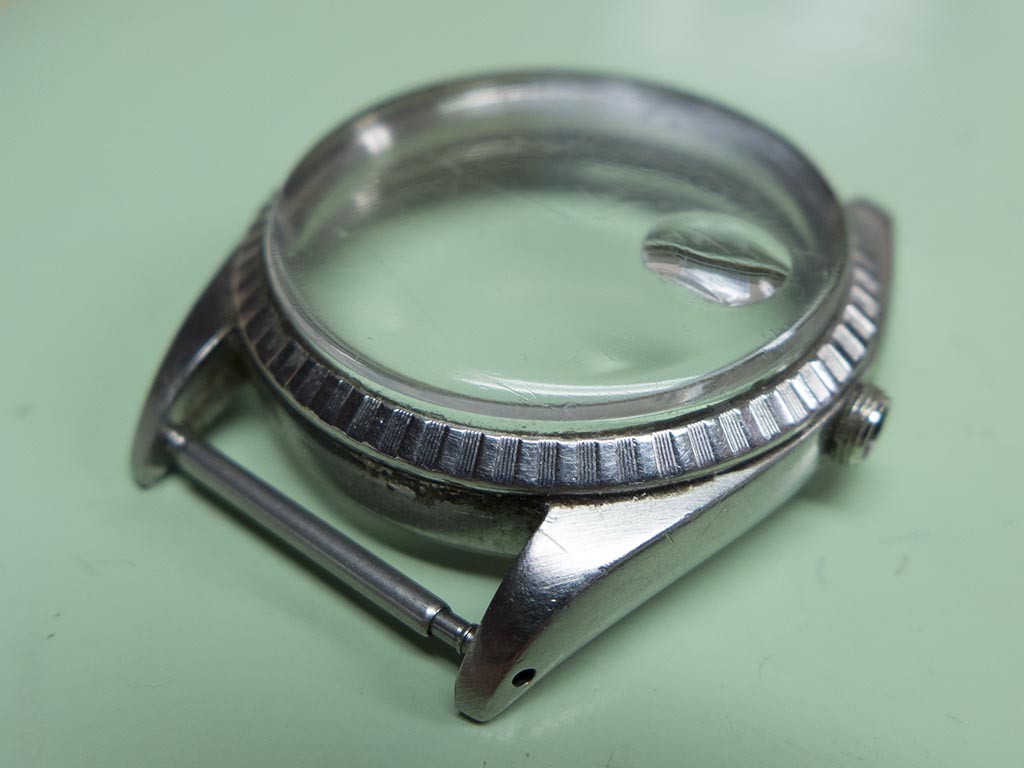

The bezel removed and crystal out.

P1020215a

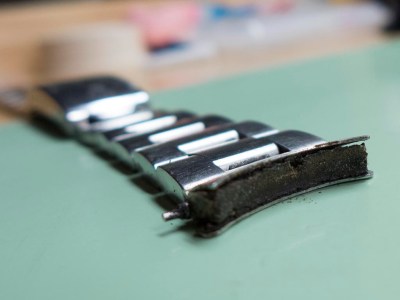

The oyster bracelet had a smidgen of muck in the endlinks!

P1020216a

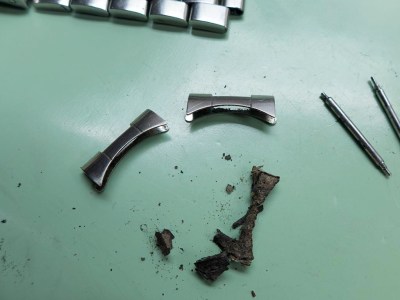

It’s amazing how dirty a bracelet can get when it’s worn everyday.

P1020218a

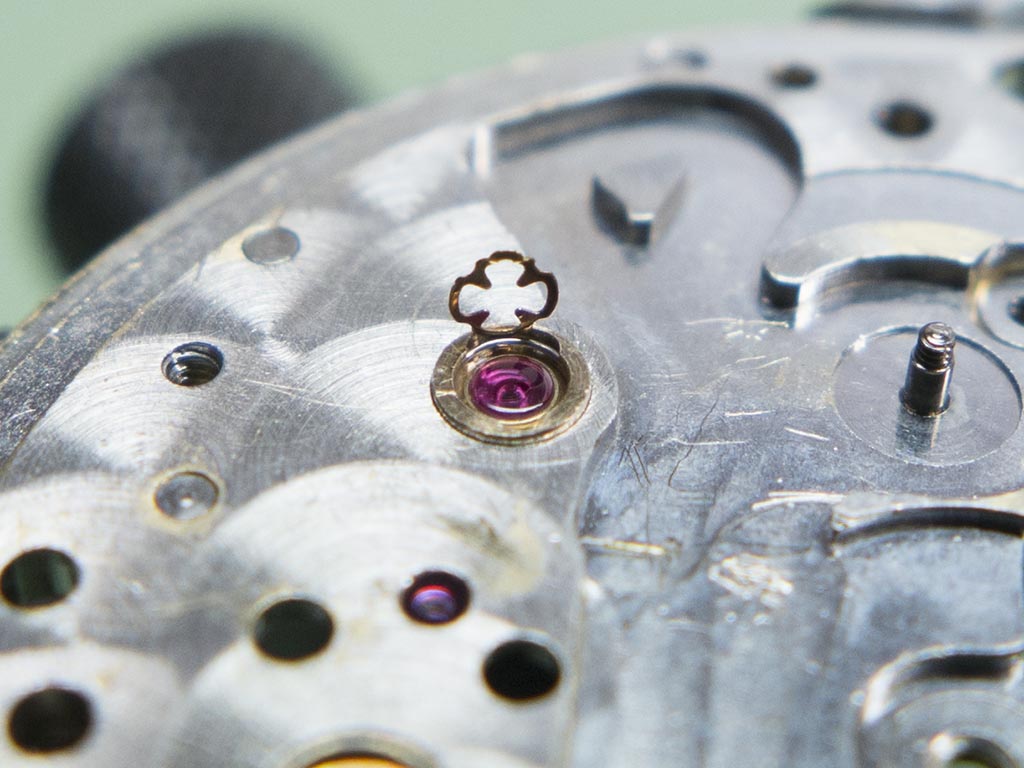

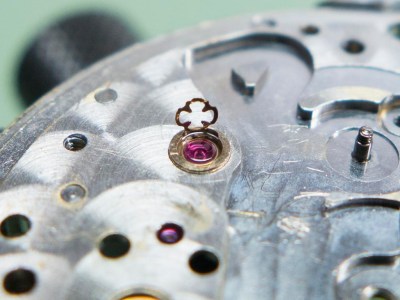

The bracelet and case was given a good old clean in the ultrasonic bath. I’d been waiting for the post to be delivered as I was expecting the new crystal, seals and mainspring to arrive but as usual the best laid plans tend to go awry! The post was delivered but no Rolex parts today so I continued with the reassembly as much as I could which is the reason it looks a bit of an odd way to go about it. The cap jewels and springs were lubed and reinstalled, I love the little four leaf clover spring on the balance cap.

P1020211a

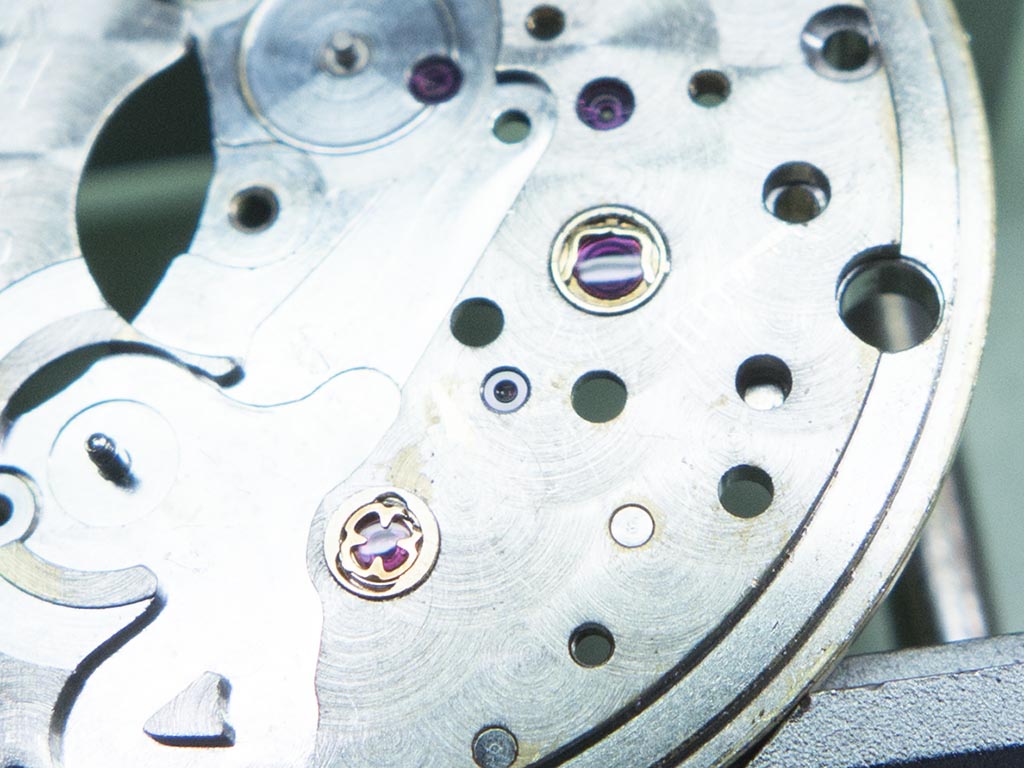

The escape wheel has a lyre type spring.

P1020212a

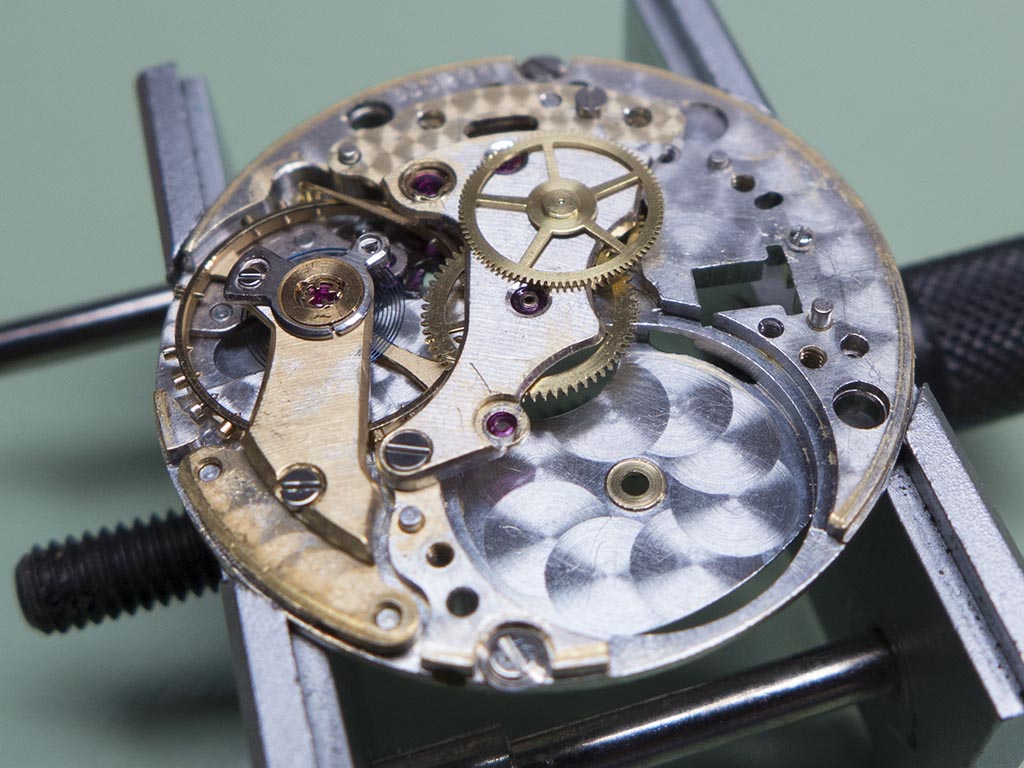

The train assembled as far as I could without a mainspring.

P1020219a

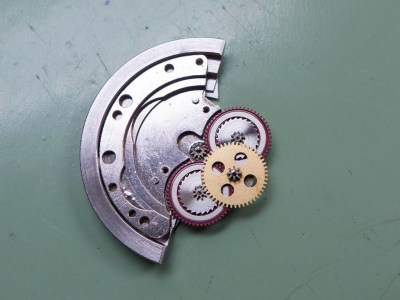

The reverser wheels ready for the bottom plate.

P1020213a

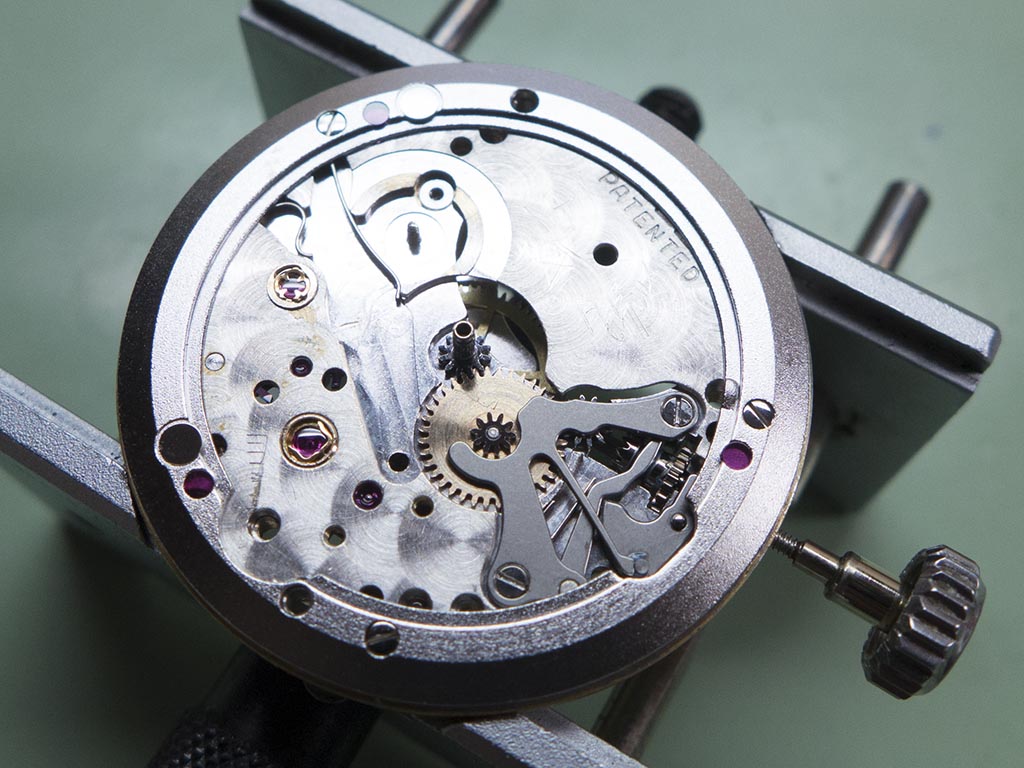

The calendar side coming together.

P1020220a

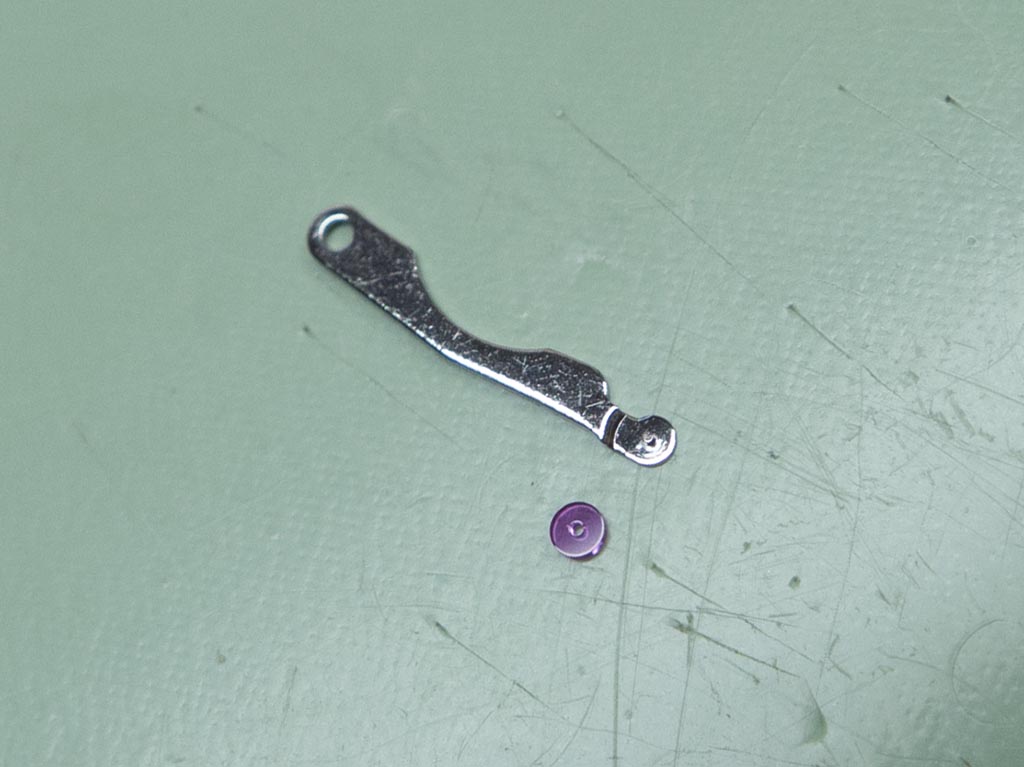

Pictured below is an important component of Rolex’s beautifully simple method of snapping the date over instantly, this spring loaded lever operates on a cam on the underside of the date change wheel and the little jewel fits on the axle on the end.

P1020221a

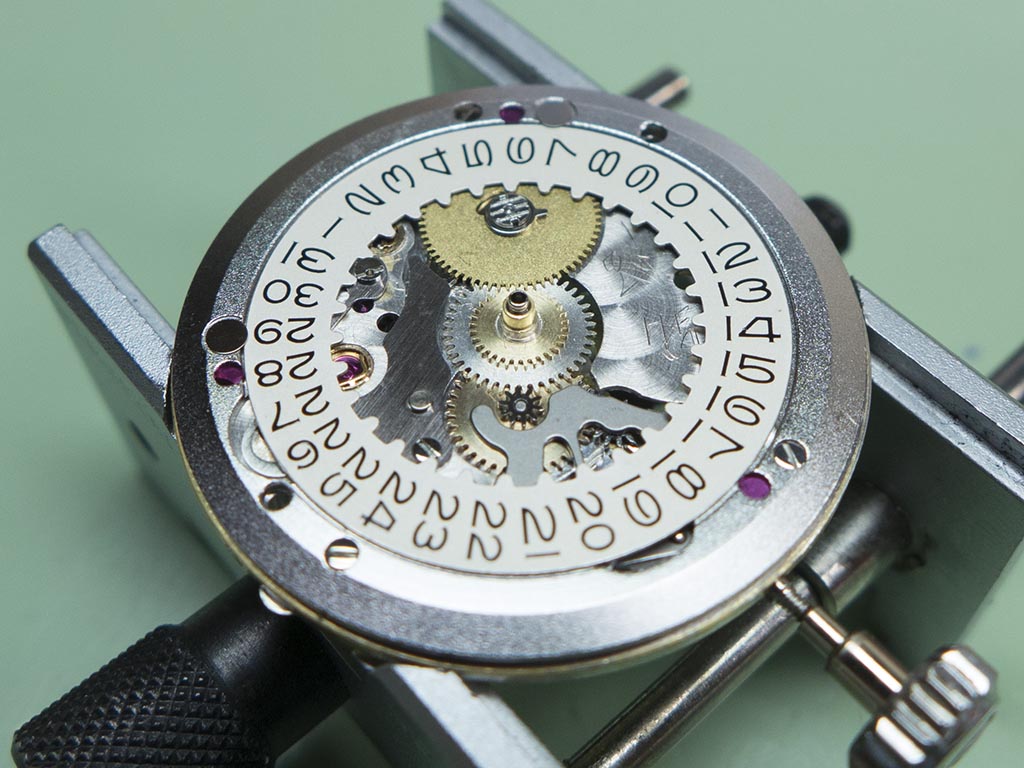

The calendar side ready for the dial to be fitted.

P1020223a

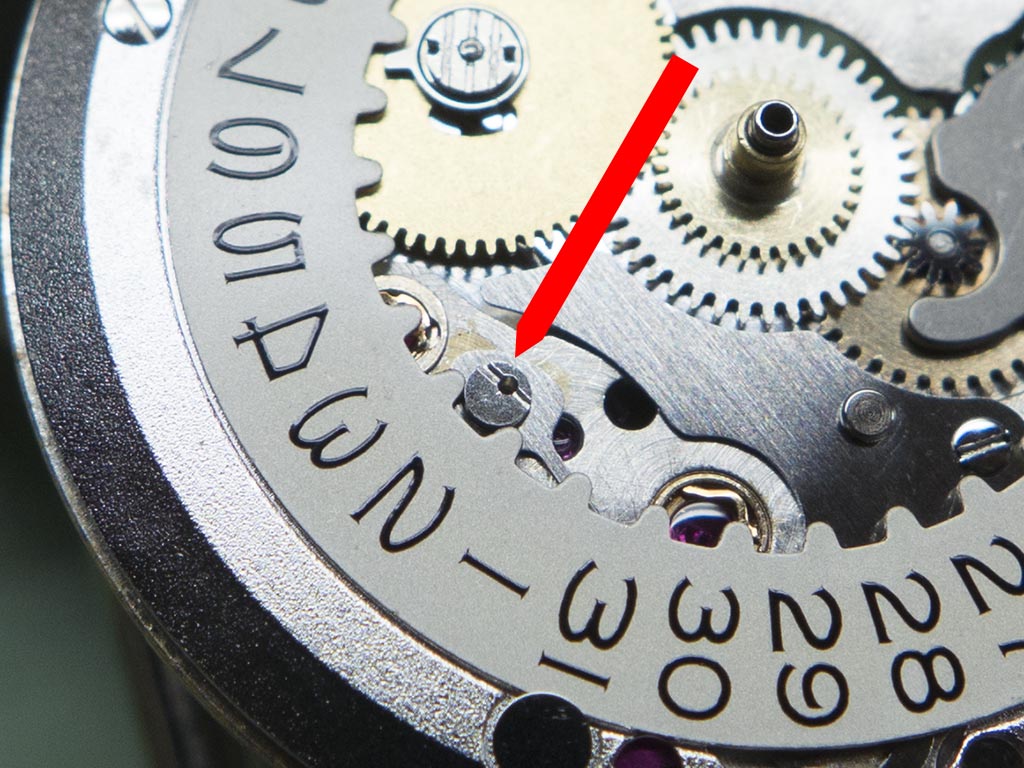

Another nice touch is the way the date can be centred in the window by adjusting this eccentric cam on the date jumper.

P1020225a

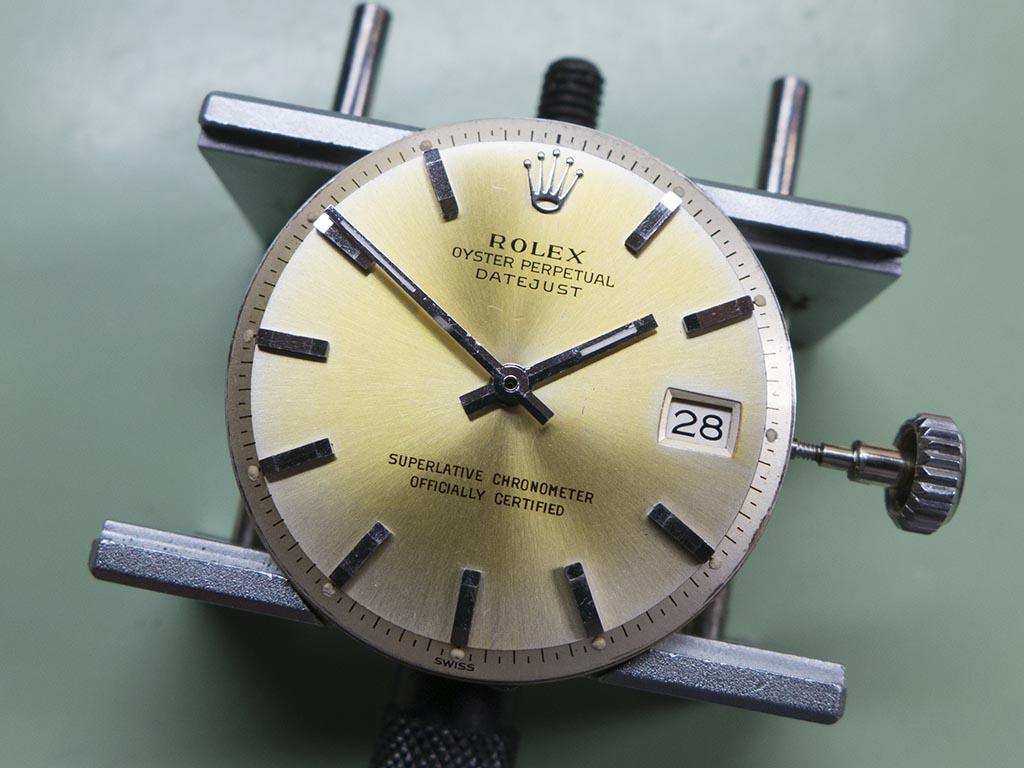

The dial and hands refitted.

P1020226a

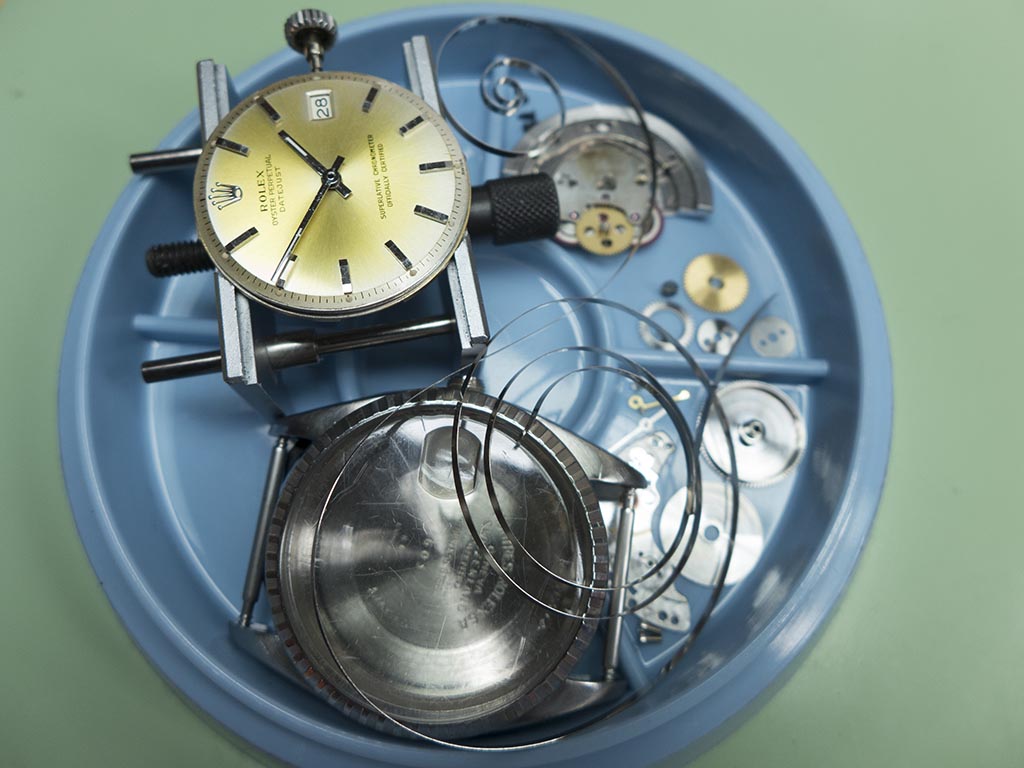

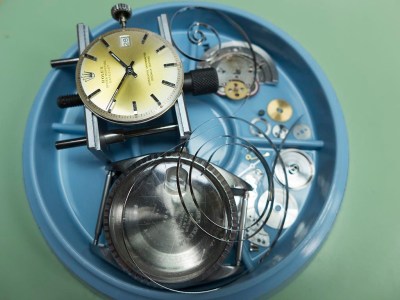

As I’d now gone as far as I could it all had to be put away until the following day, hopefully the new parts will arrive!

P1020228a

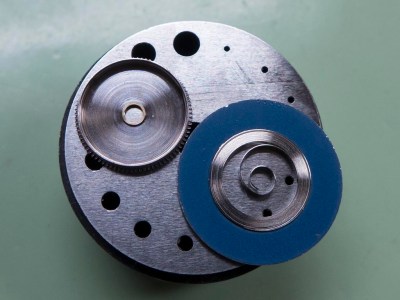

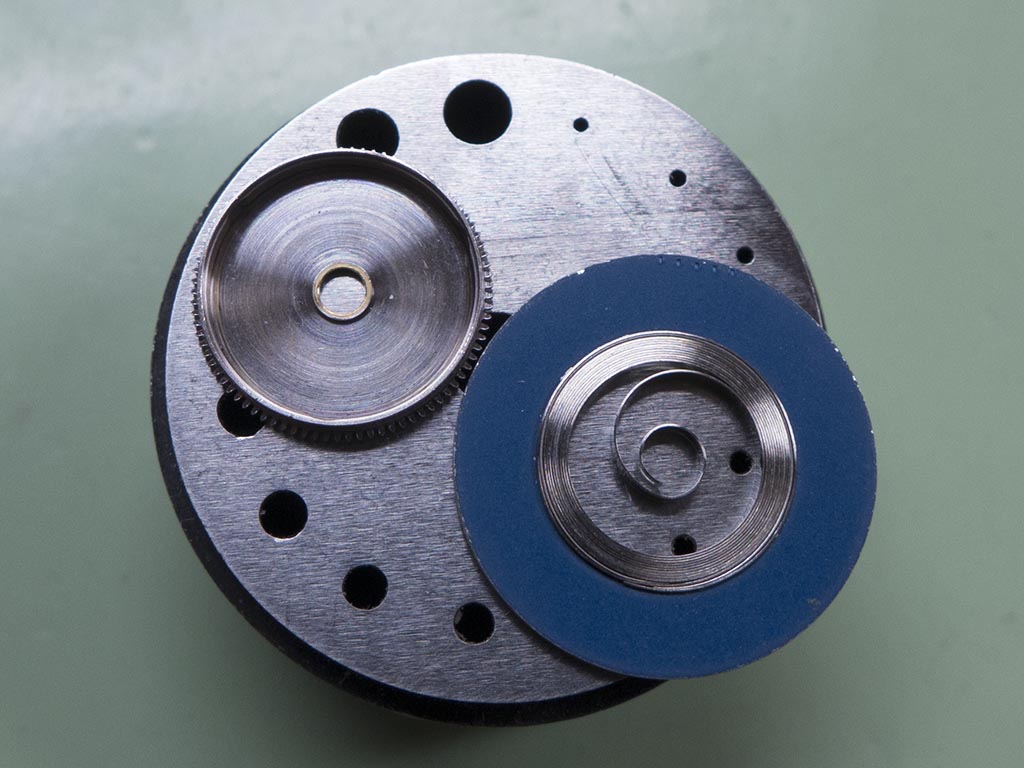

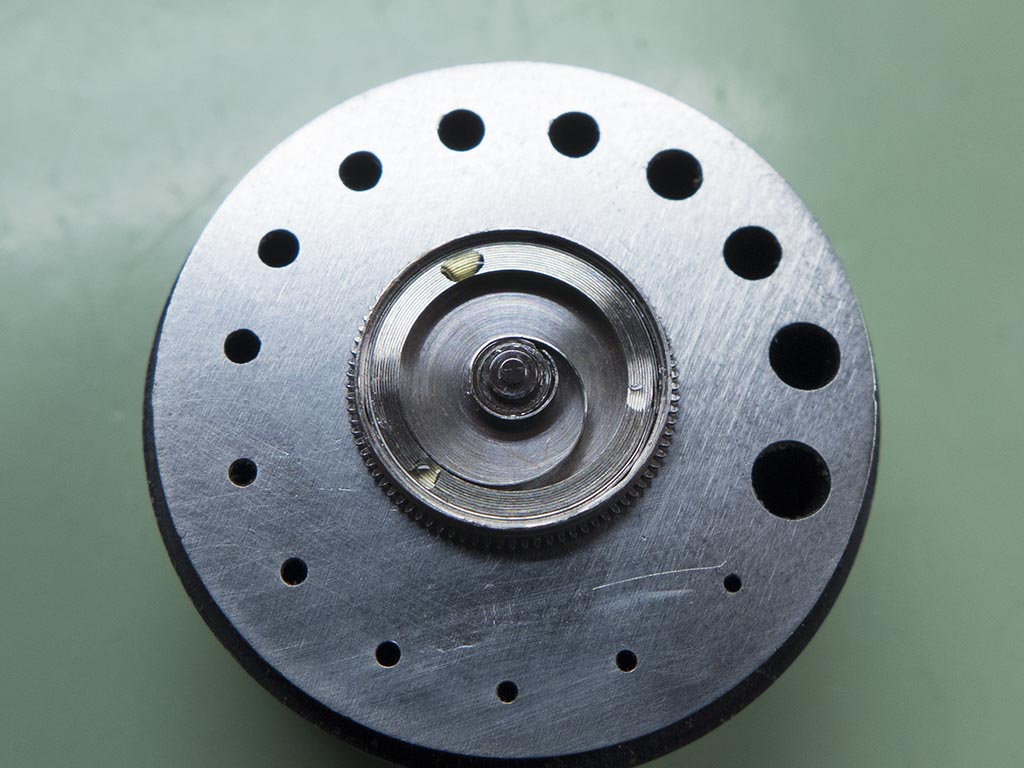

Unfortunately the parts didn’t arrive at all that week so I ordered another mainspring, seal and crystal thinking they were lost in the post. Of course the original order turned up the following day – typical! The new mainspring was then fitted.

P1020333a

P1020334a

The barrel was replaced…

P1020335a

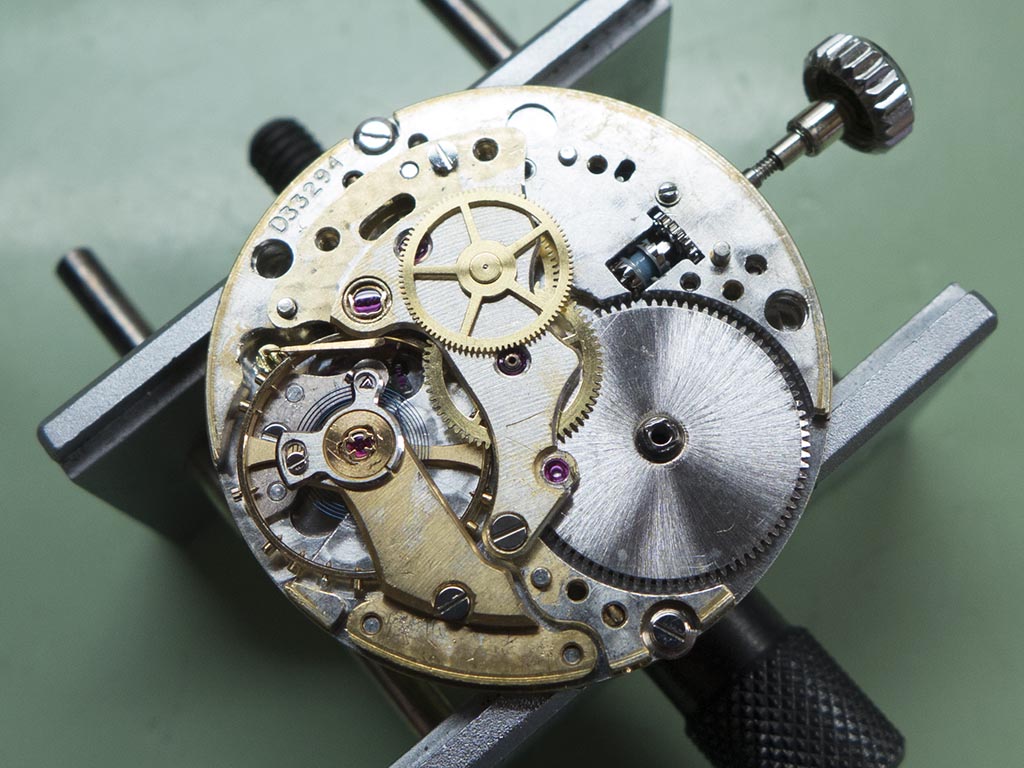

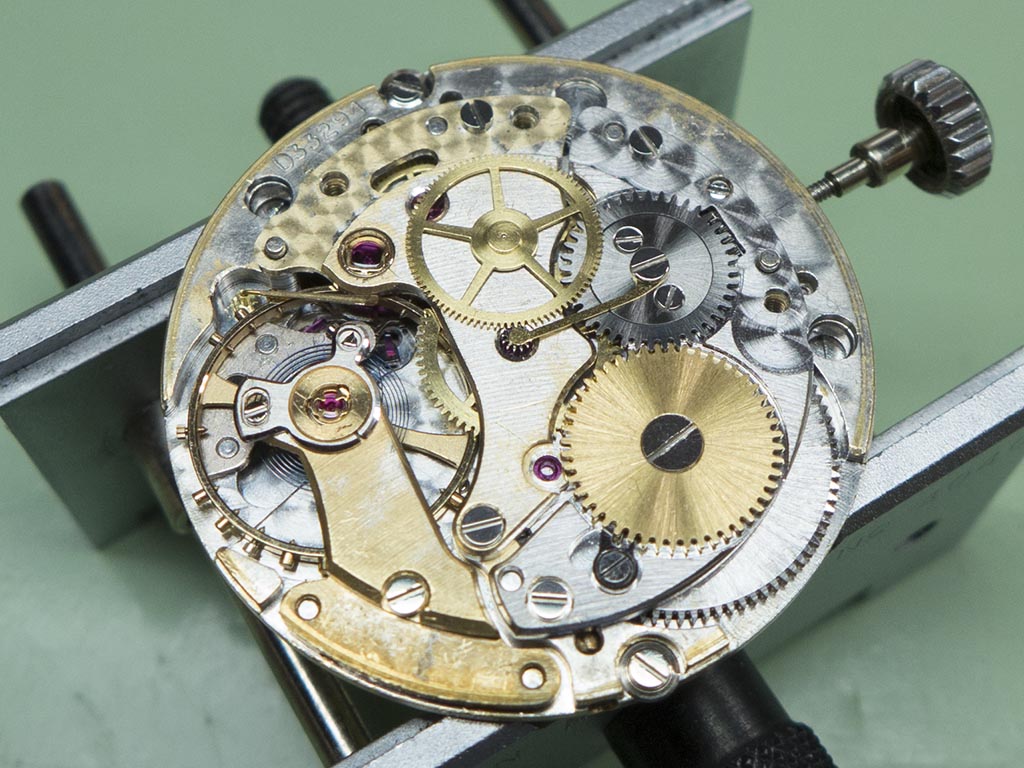

….and the bridge, wheels and centre seconds pinion were fitted.

P1020336a

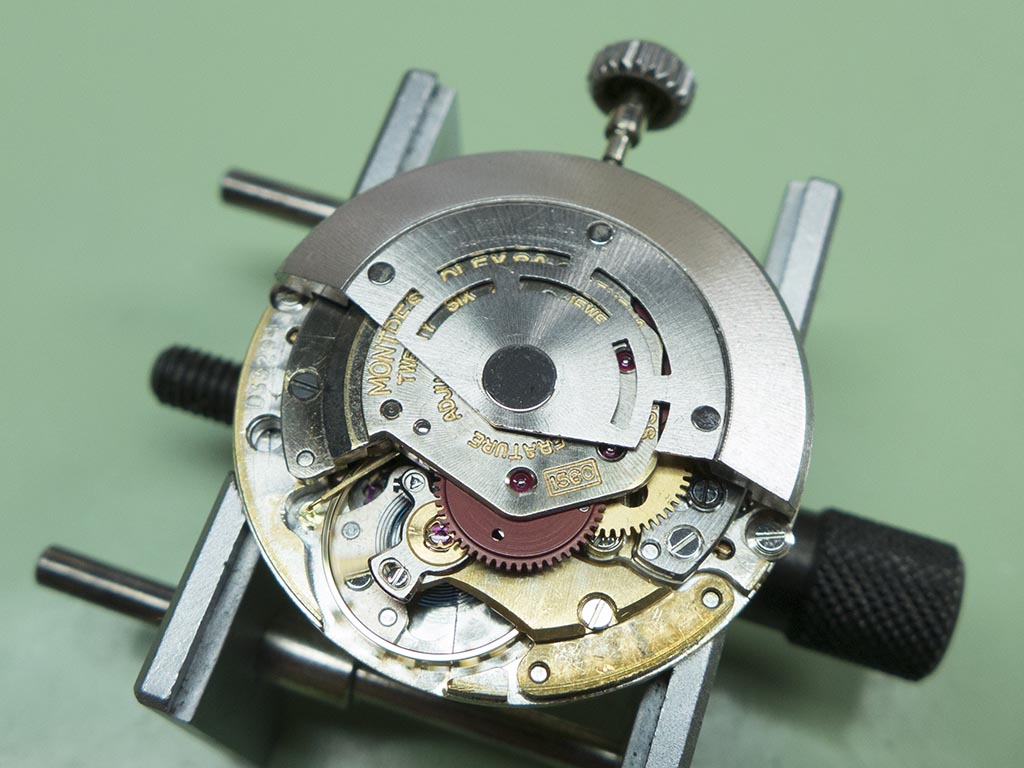

The autowind bridge and rotor was then replaced.

P1020337a

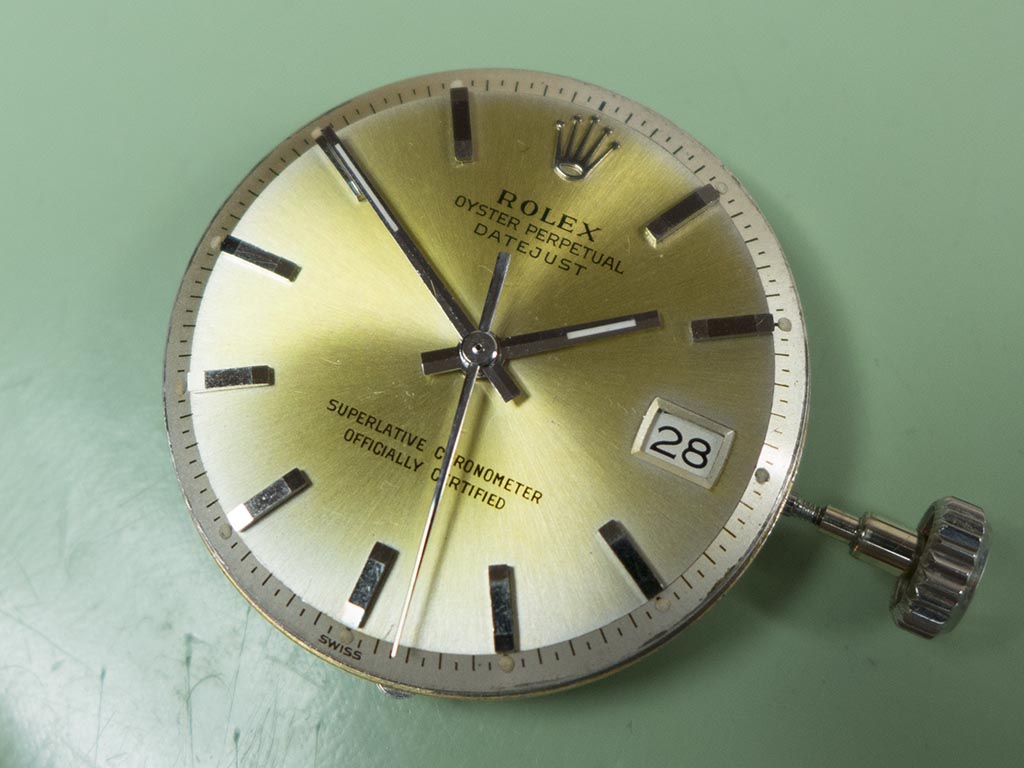

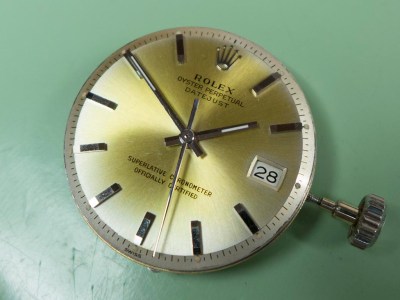

This meant the movement was now ready for recasing.

P1020338a

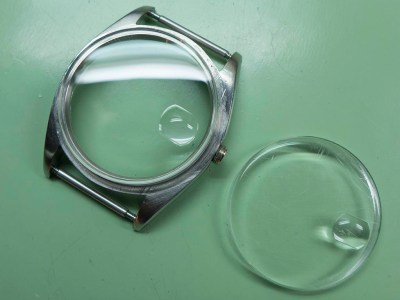

The new crystal was fitted along with a new caseback seal.

P1020339a

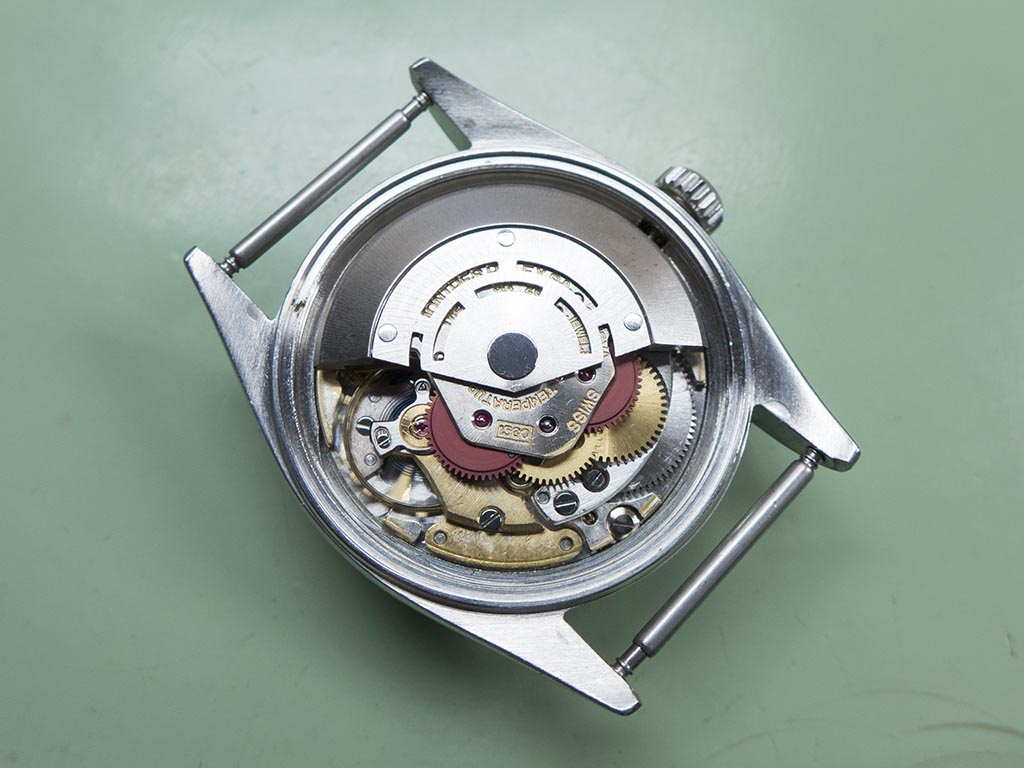

The movement was recased….

P1020340a

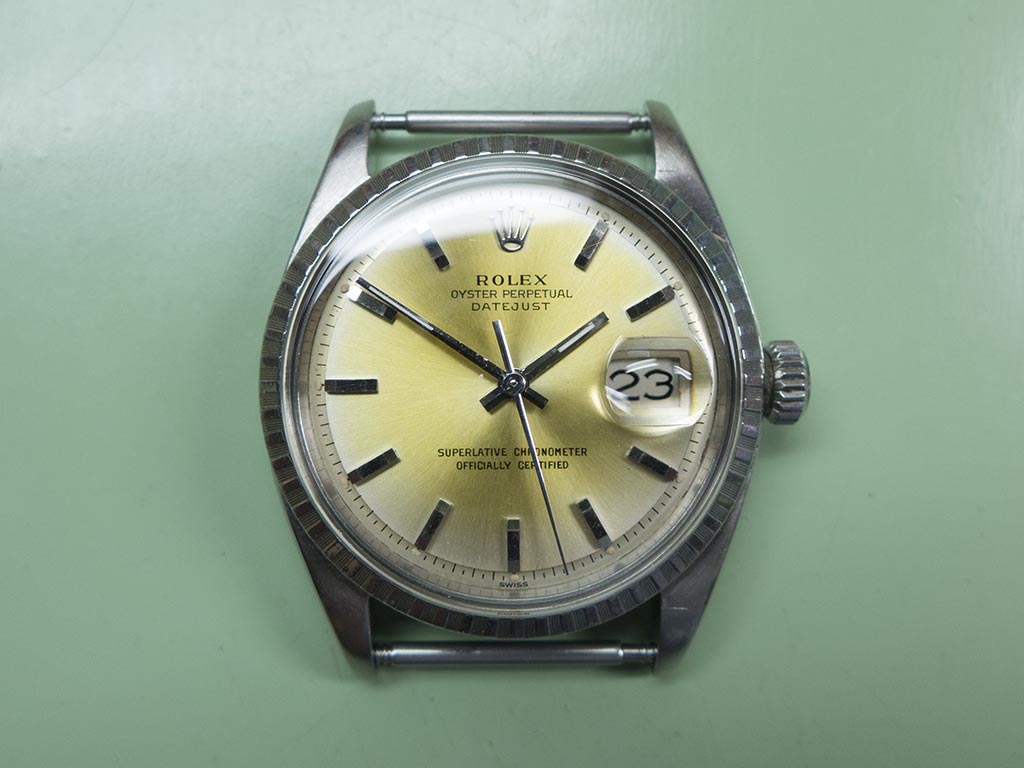

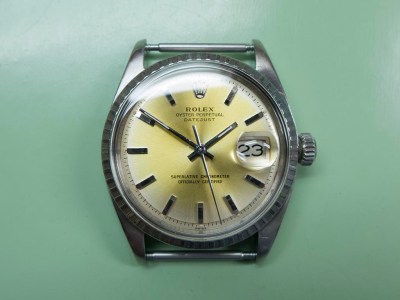

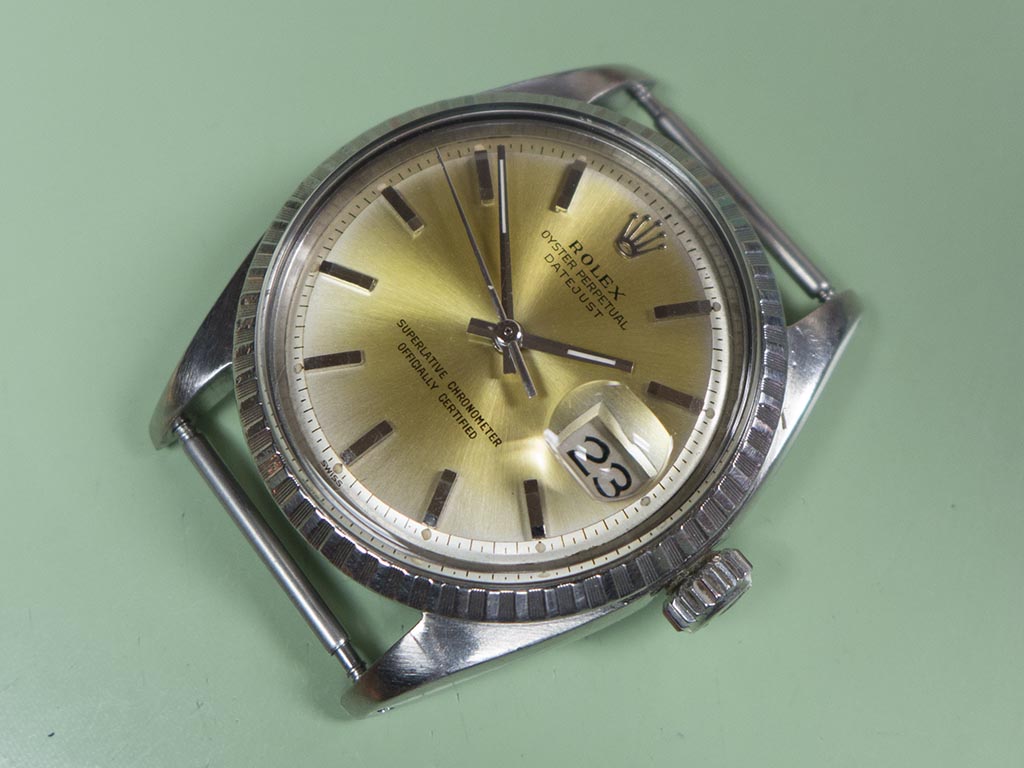

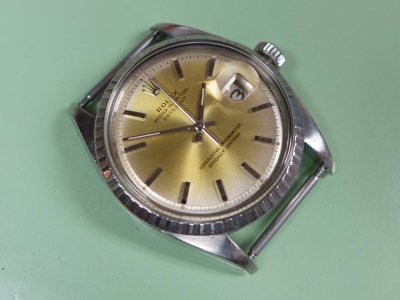

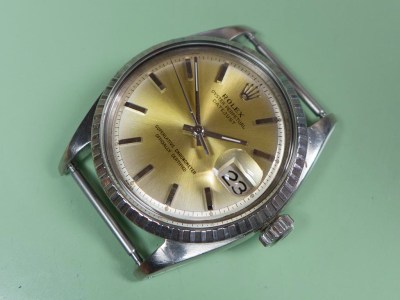

….and she was finally finished. A beautiful example of an early 1603 I think you’ll agree.

P1020341a

P1020342a

P1020343a
