Tag Heuer 1000

This Tag Heuer 1000 diver ref 980.013B came in for a service and a new dial foot recently. Powered by the ETA 955.114 quartz movement it’s a handsome looking watch.

P1020300a

When I removed the bracelet I found the spring bars were very worn, in fact one of them had actually spilt in half, the owner was lucky this didn’t cause the watch to fall off whilst being worn!

P1020301a

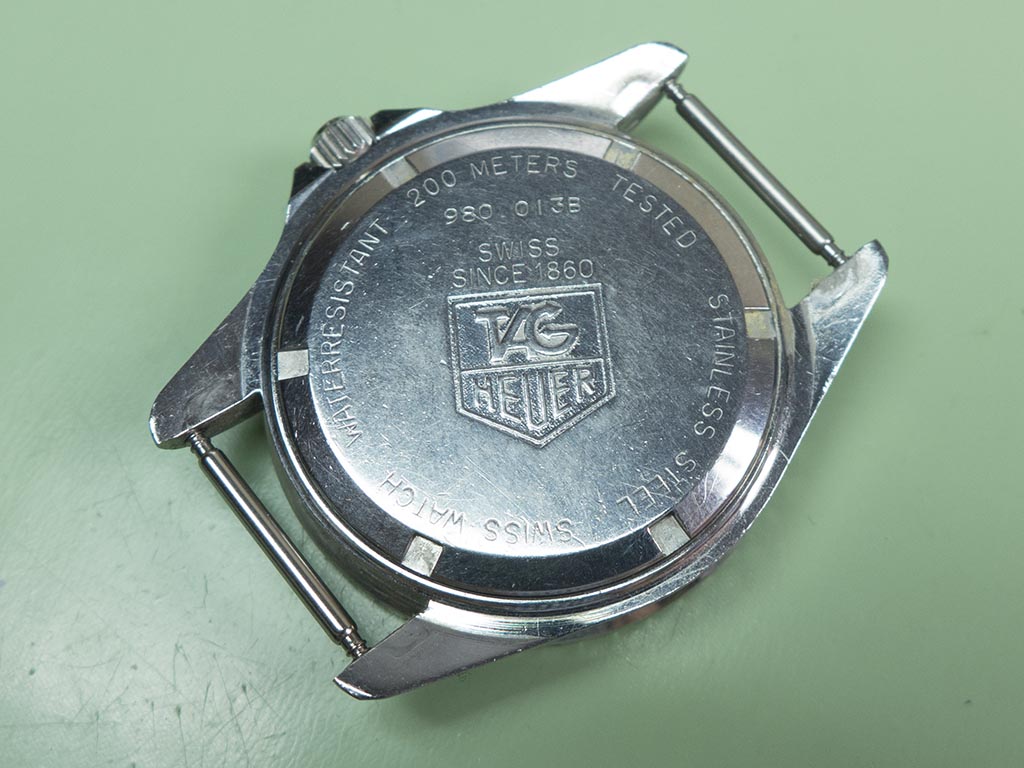

The caseback with the old style reference number.

P1020302a

Inside the movement appears OK if a little grubby, no leaked batteries here.

P1020303a

The movement removed reveals the Rolex style dial layout and handset. One oddity was the nylon movement ring had been smeared in grease, why I have no idea!

P1020304a

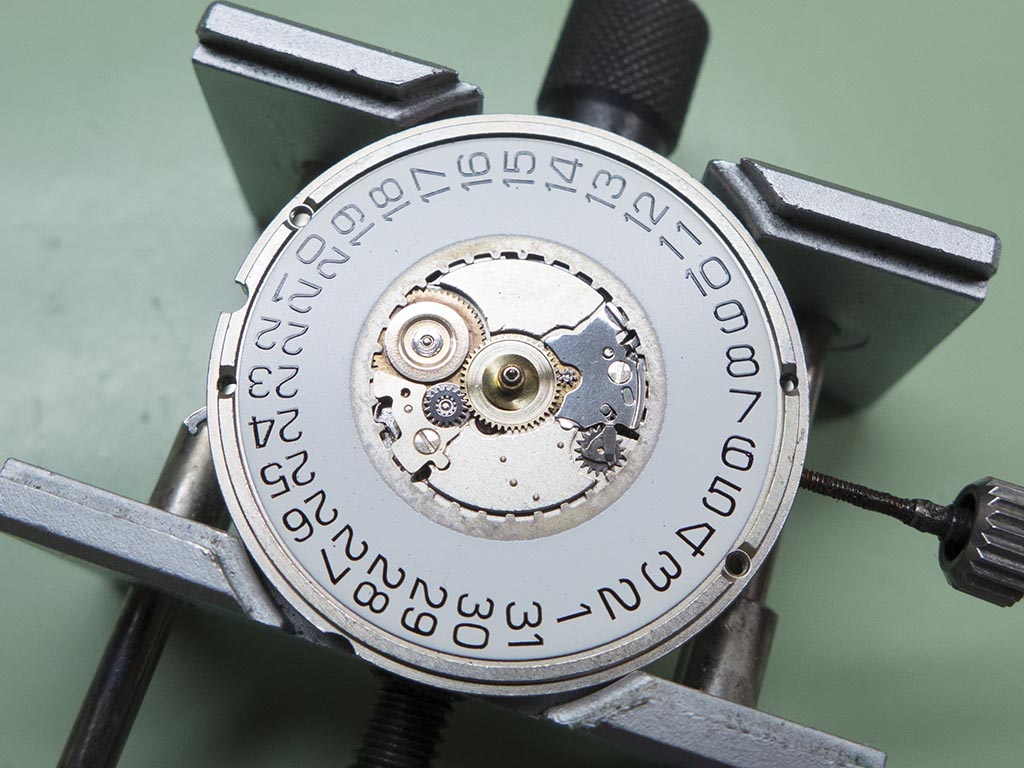

With the dial removed we can see the calendar components.

P1020305a

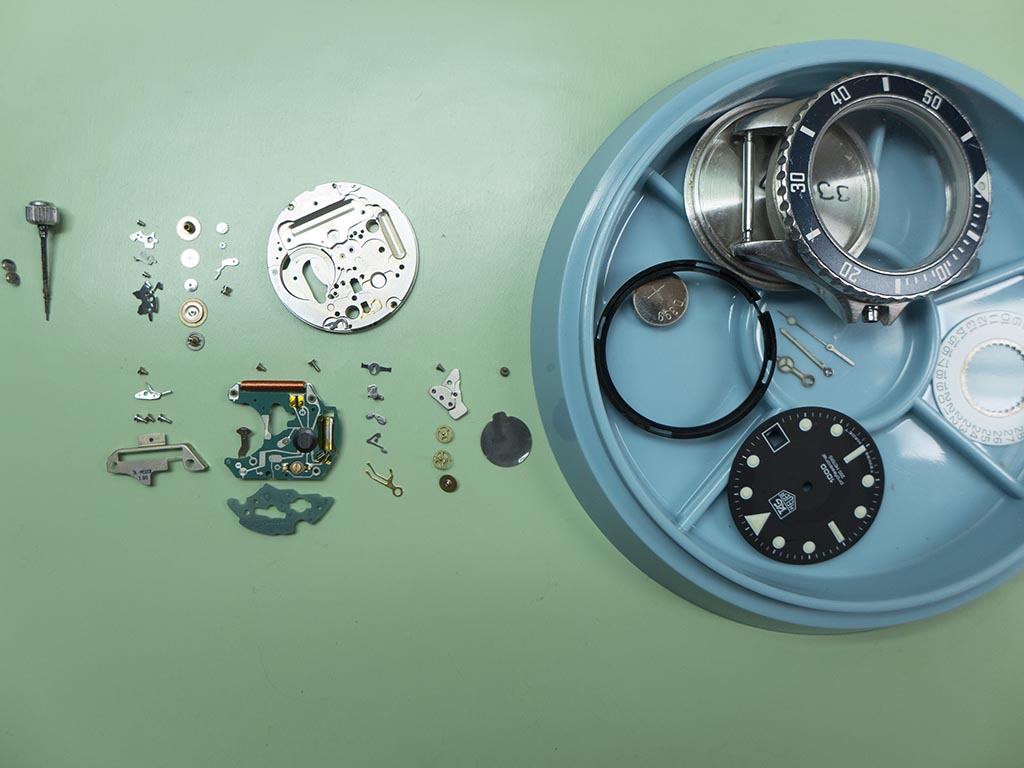

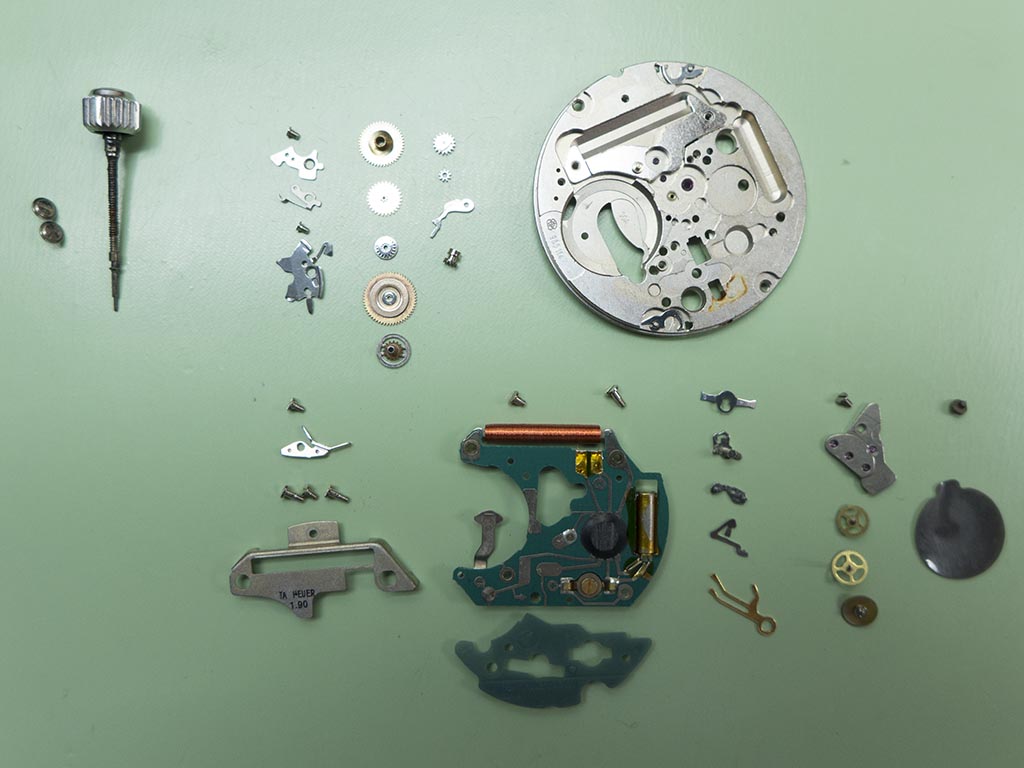

The movement was fully stripped ready for cleaning.

P1020312a

P1020314a

Whilst the components were cleaning I tackled the missing dial foot, these are so easy to break off as there’s only a tiny section holding the foot to the dial. The area where the new foot was going was cleaned.

P1020315a

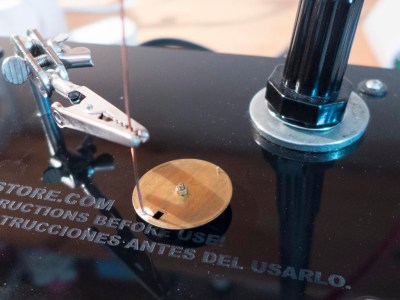

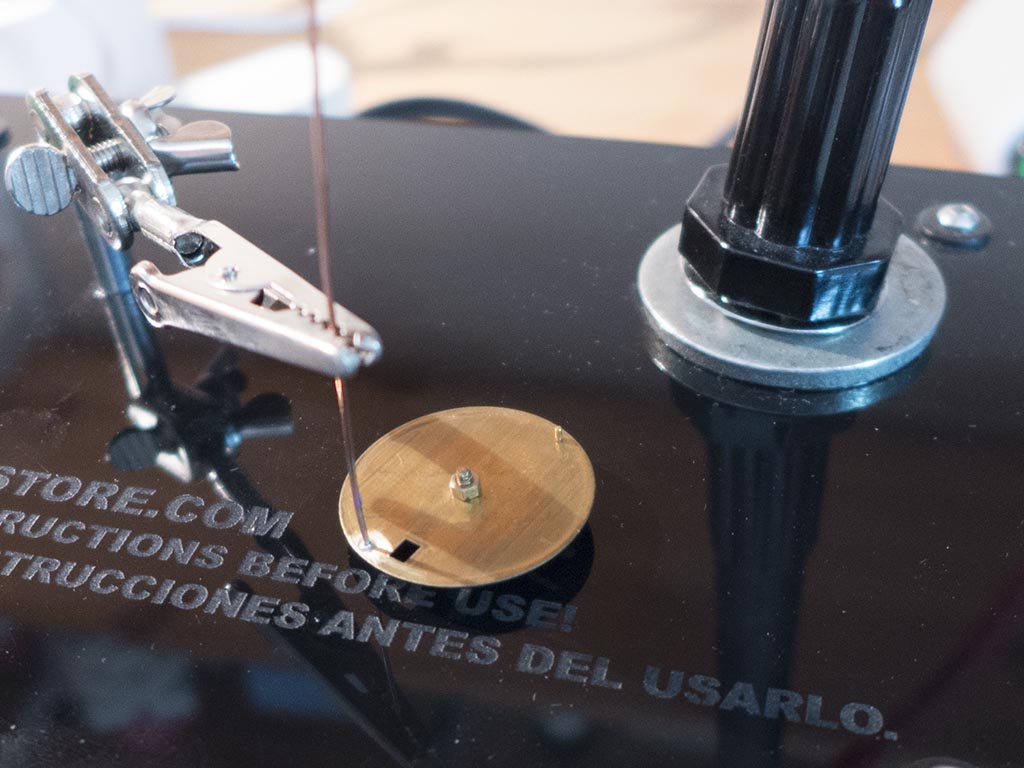

A suitable guage copper wire was selected, cleaned and fluxed. The dial and wire were positioned in the soldering machine and a quick blast of current was applied via the carbon rod.

P1020317a

The foot is now attached and no damage to the front of the dial.

P1020318a

Trim to size and job done.

P1020319a

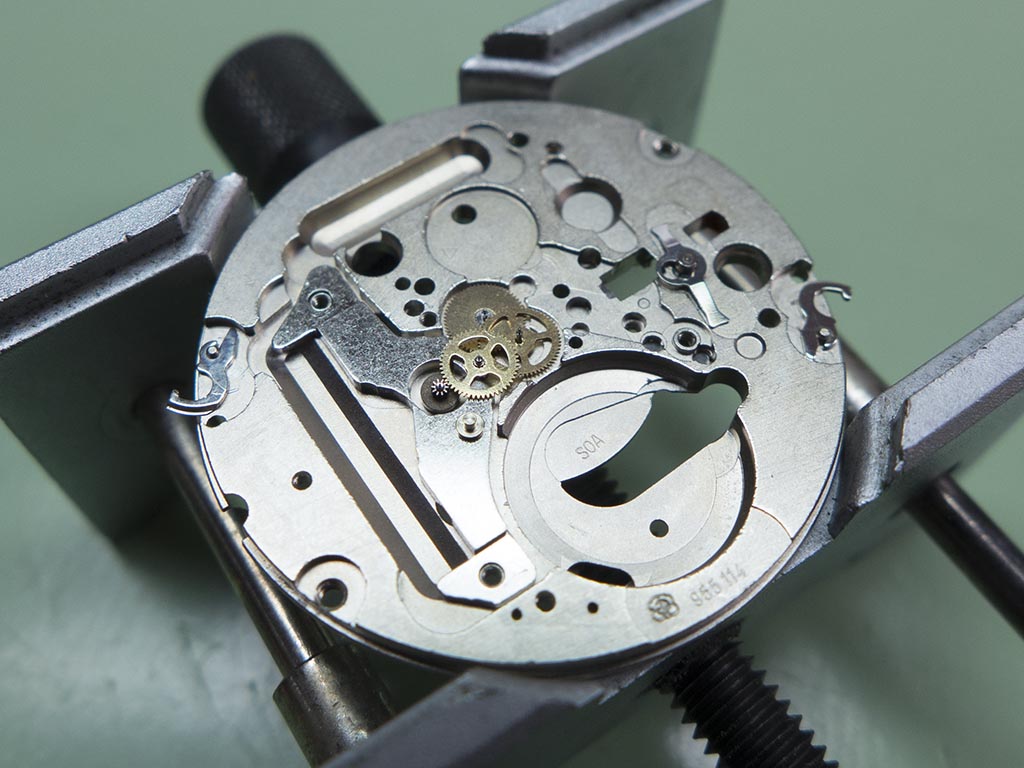

The movement reassembly began after inspection, the only thing of concern was a slightly corroded minute wheel which cleaned up nicely.

P1020320a

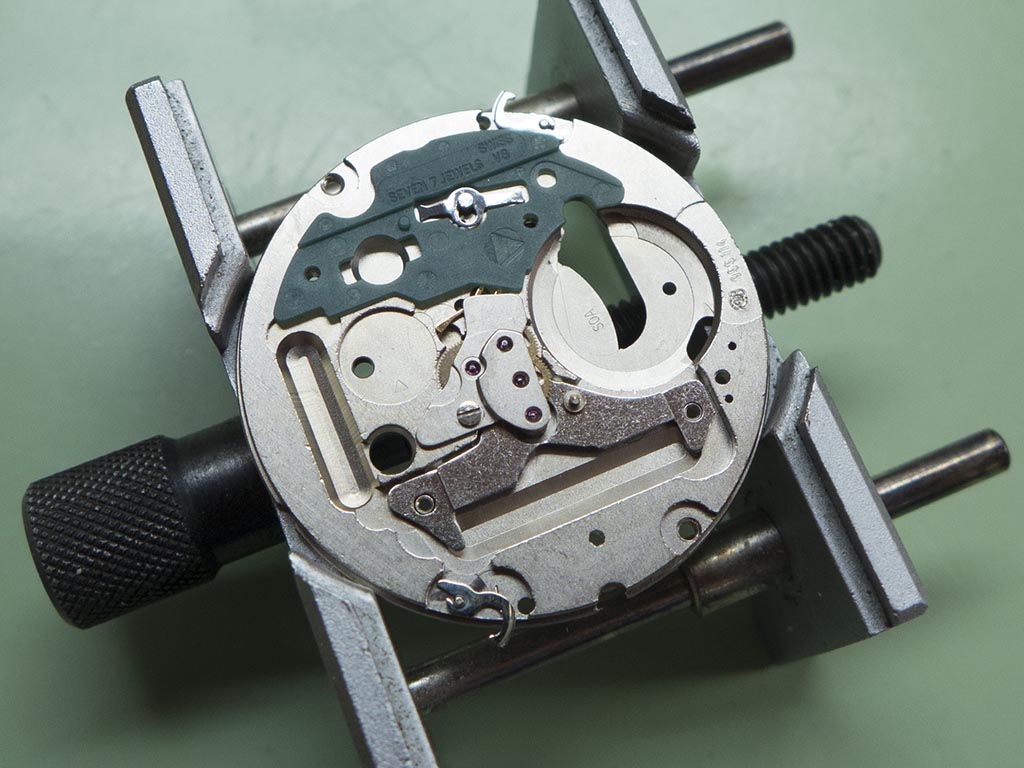

The train bridge is back on in this shot.

P1020321a

The movement side completed.

P1020322a

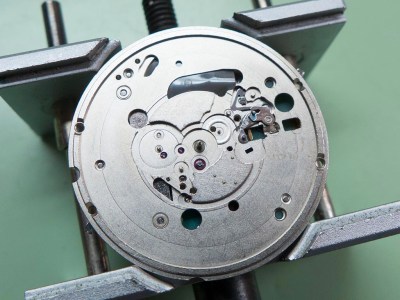

The keyless work coming together. One point with these calibres is the three components you can see have to be fitted before the circuit block is fitted on the other side as the set lever is clipped to the plate from that side.

P1020323a

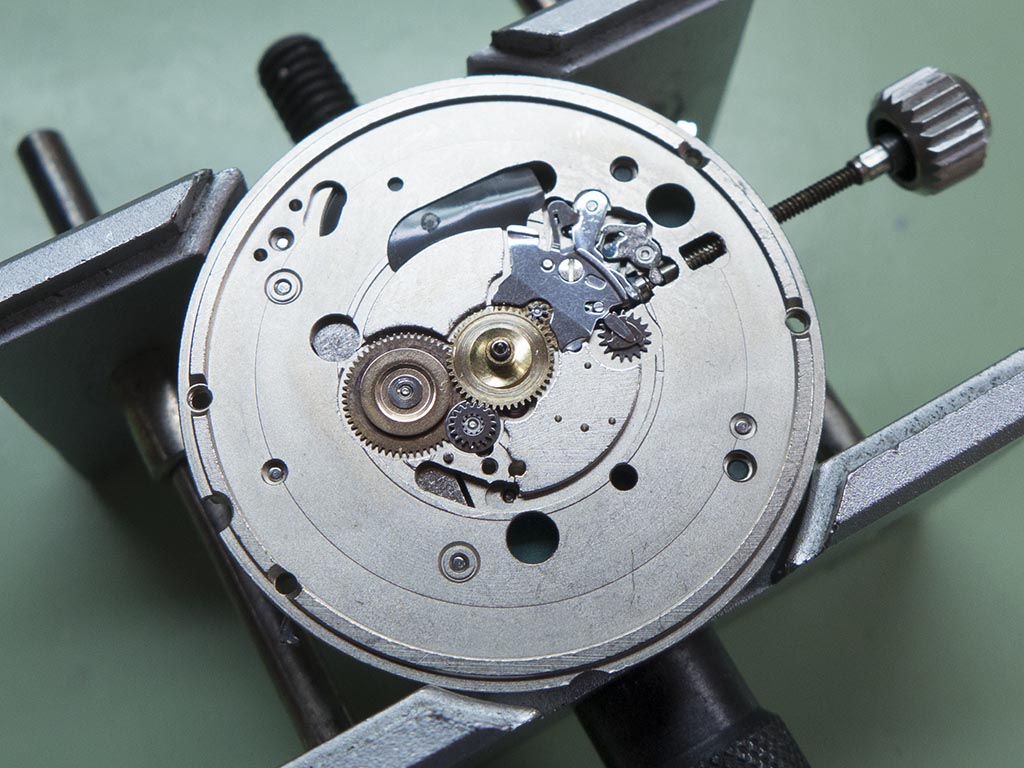

Ready for the date wheel.

P1020324a

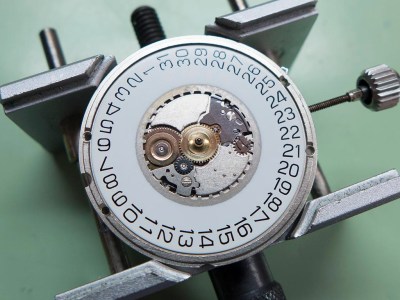

And ready for the dial.

P1020325a

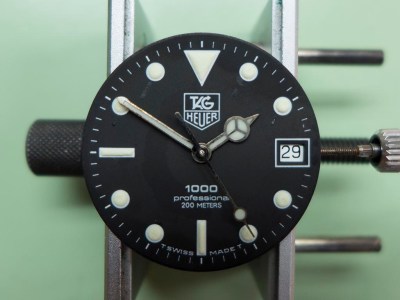

Dial and hands fitted.

P1020326a

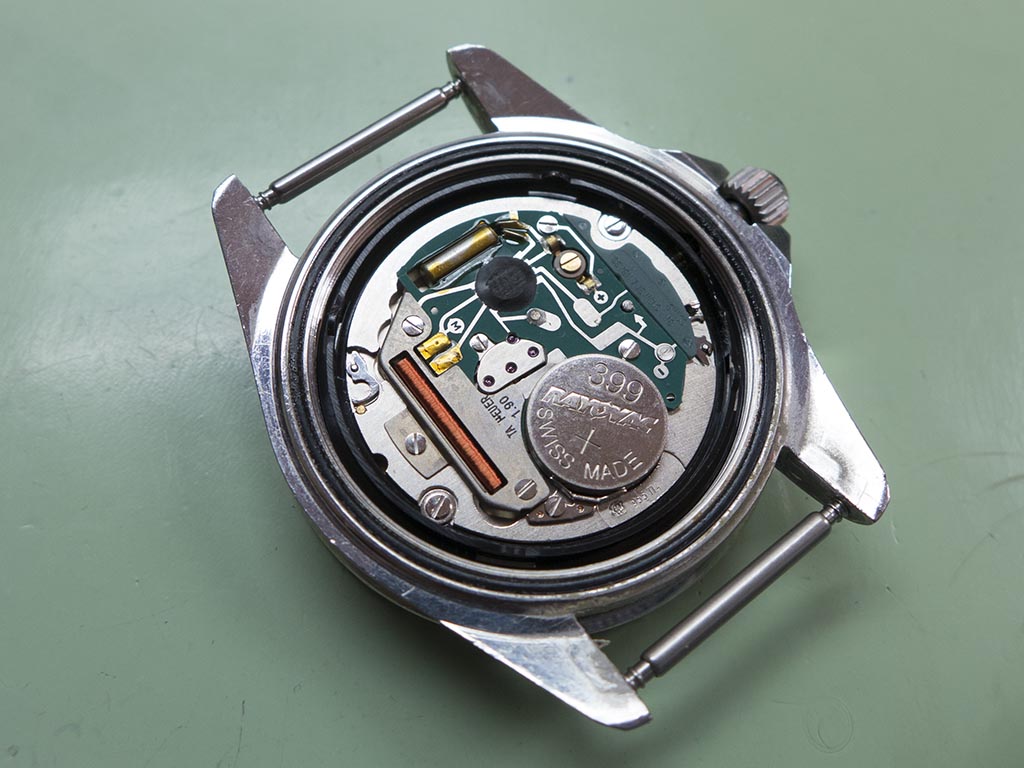

The movement recased along with a new battery.

P1020327a

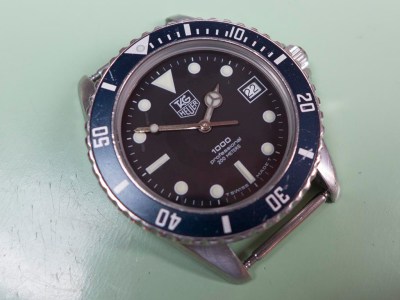

The watch completed, these Tag 1000’s are lovely little classic dive watches.

P1020328a

P1020329a

P1020330a



6 comments

      1. Oh..! I see. I guess you used rodico? or brush? to remove the stains. I was just wondering what is the usual practice in cleaning and coloring a dial. I am planning to not entirely repaint but to fill in some of the areas on or edges of a dial where it has chips due to the water damage.

        Best

        – Sean –

        Like

      2. Most watchmakers will clean a dial with rodico or in extreme cases if he’s sure the dial can take it a moistened foam swab (q-tip). Anything else and your courting disaster, it’s the easiest thing in the world for any text, minute tracks or lacquer to disappear before you realise whats happening. I don’t “clean” any dial beyond using rodico without explicit instructions and understanding from the owner that it could all go wrong and he could be looking for a new dial 🙂

        Like
