Seiko 6217-8001

Regular readers will know the 62 series calibres are my favourite vintage Seiko movements, you’ll also know the 62mas is my favourite vintage Seiko divers watch. Another one has been across the bench today so here’s a peek at what I had to contend with. The watch arrived to me after having a relume so the hands are in the little container. As you can see it’s a little scruffy with its scratched crystal but it has the basis of a good honest watch.

P1020488a

A peep at the back tells us this is a horseshoe embossed example from April 1967.

P1020489a

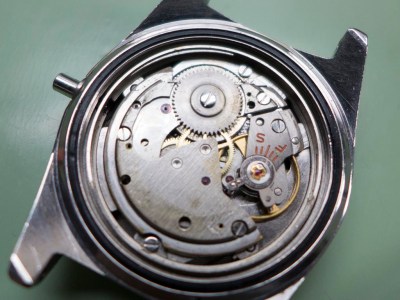

A look inside shows us it’s a bit grubby but it’s all there.

P1020490a

With the rotor and autowind bridge removed I spy a sea of 3 in 1 oil!

P1020491a

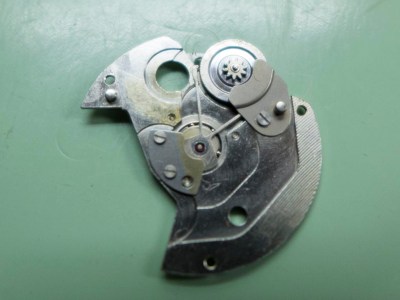

It was everywhere, this is better than finding a dried out rusty movement though. Marginally!

P1020492a

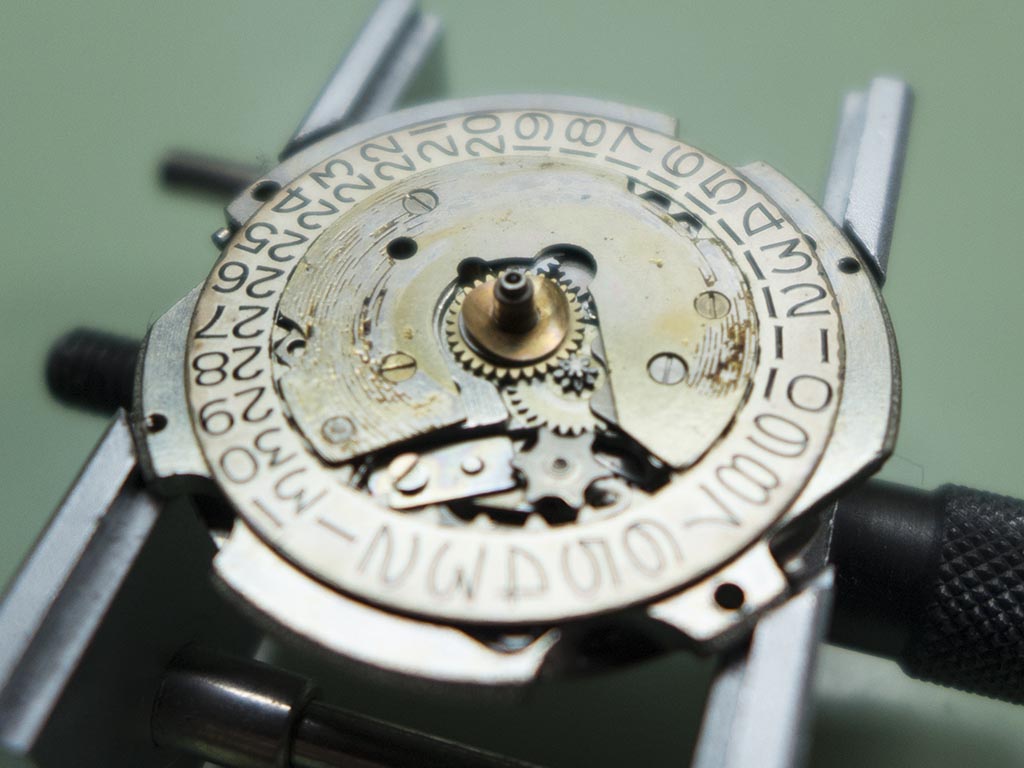

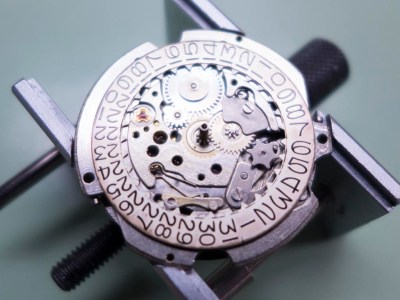

With the dial removed you can see where the oil has spread right through to the between the top plate and dial. The owner was very fortunate it hadn’t spread through to the surface of the dial or even floated all the calendar wheel numerals off as these are only transfer printed on.

P1020493a

Tons of oil below the top plate.

P1020495a

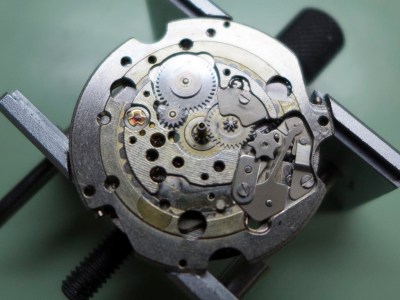

It keeps on coming!

P1020496a

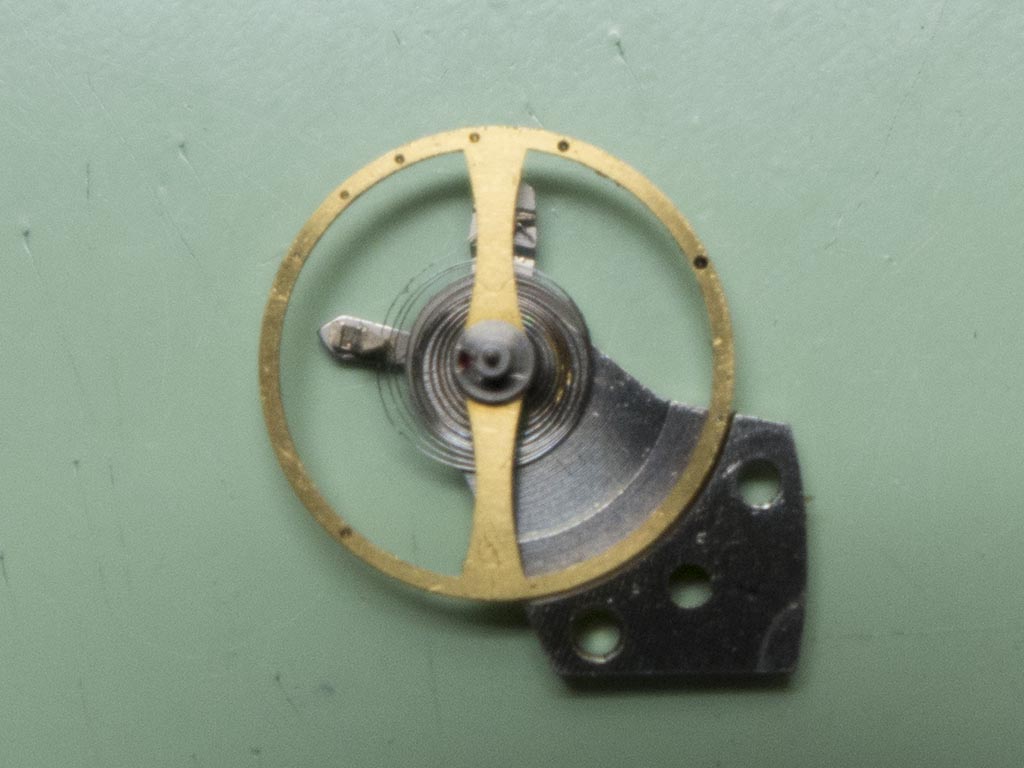

What you don’t want to see is a balance with all the coils stuck together!

P1020499a

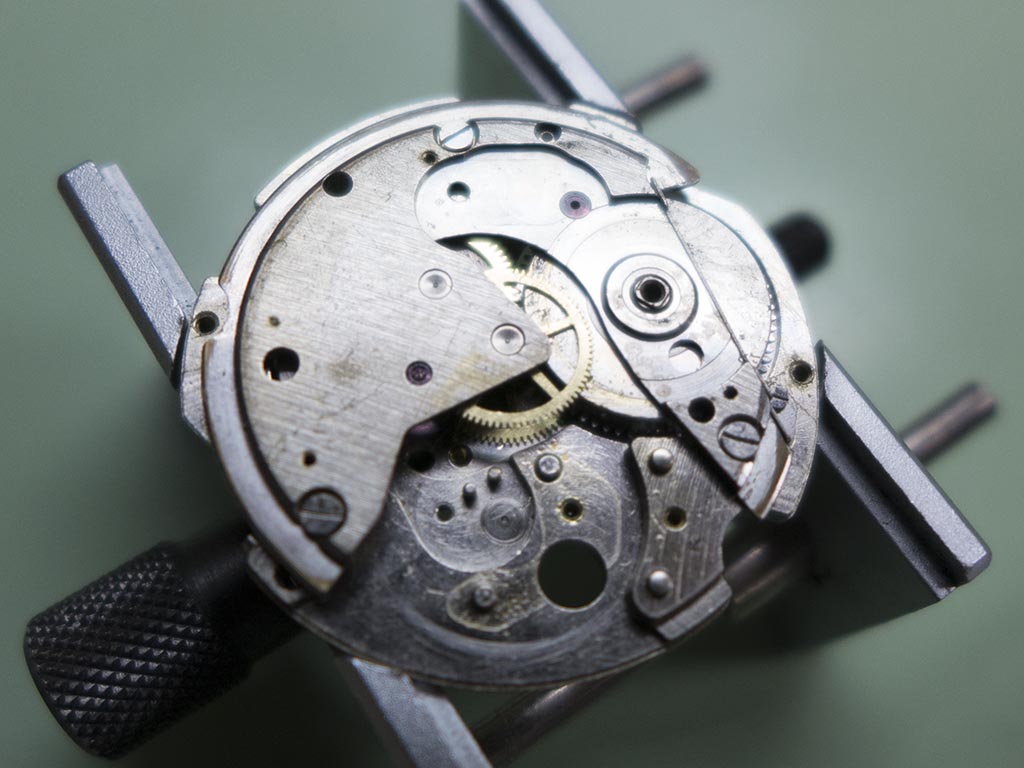

Still swimming in oil….

P1020500a

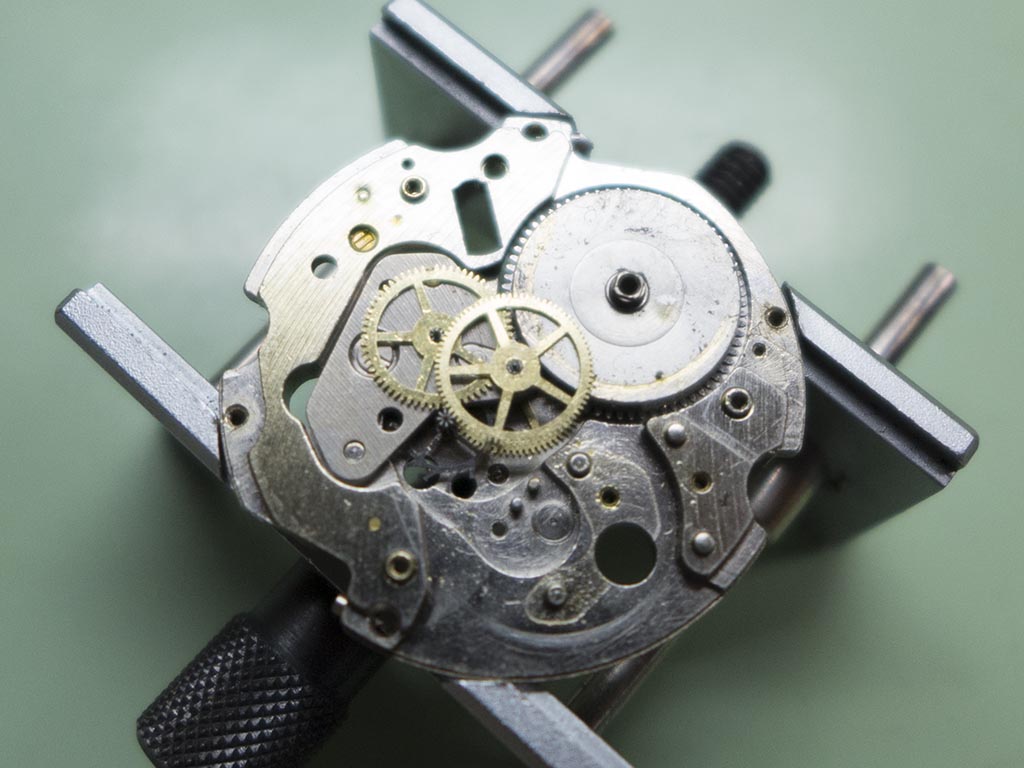

….and yet more oil.

P1020502a

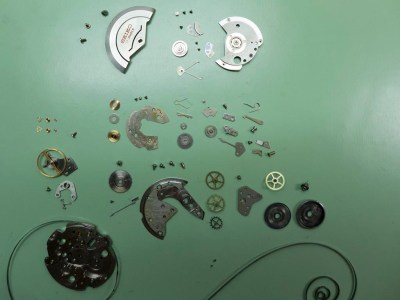

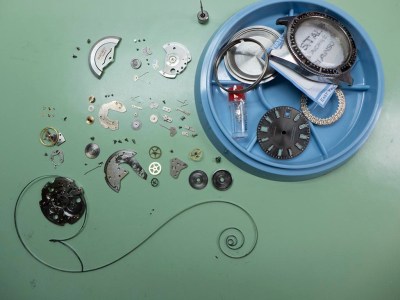

The movement was fully stripped ready for cleaning.

P1020504a

P1020505a

As the movement components were in the cleaner I removed the old crystal and ultrasonically cleaned the case parts.

P1020506a

After cleaning it all looked a lot better.

P1020508a

If you’re fitting a new crystal in a vintage Seiko you need a vintage Seiko press.

P1020510a

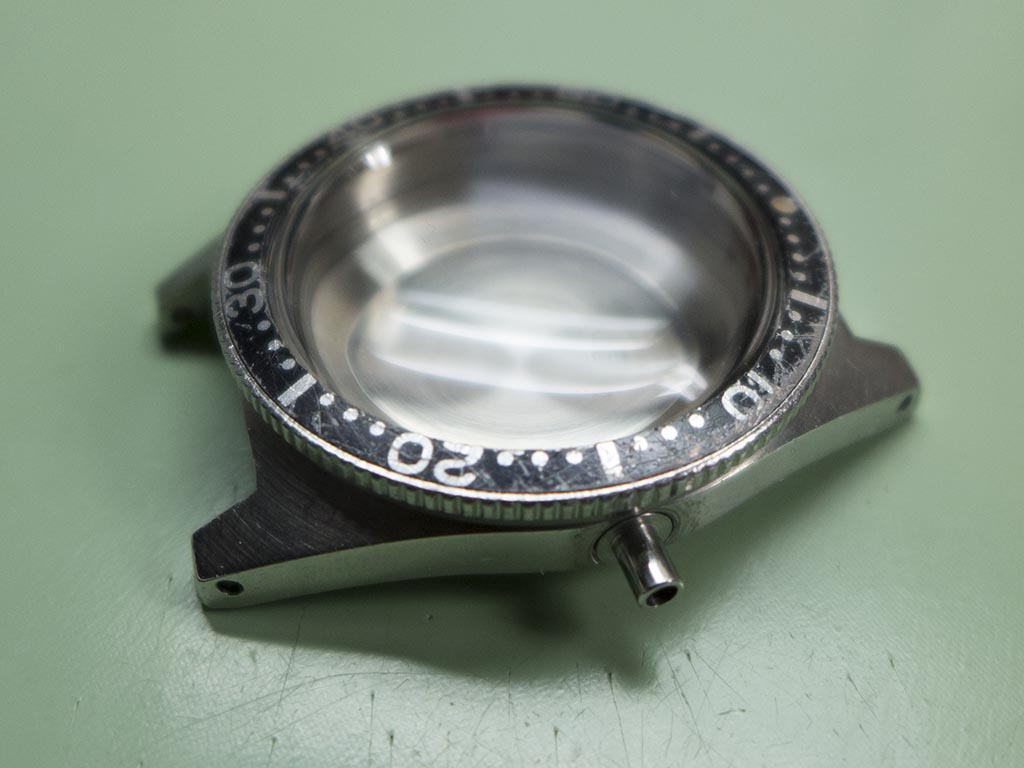

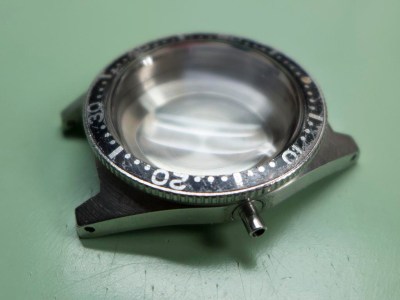

Looking much better with a bezel that now rotates smoothly.

P1020511a

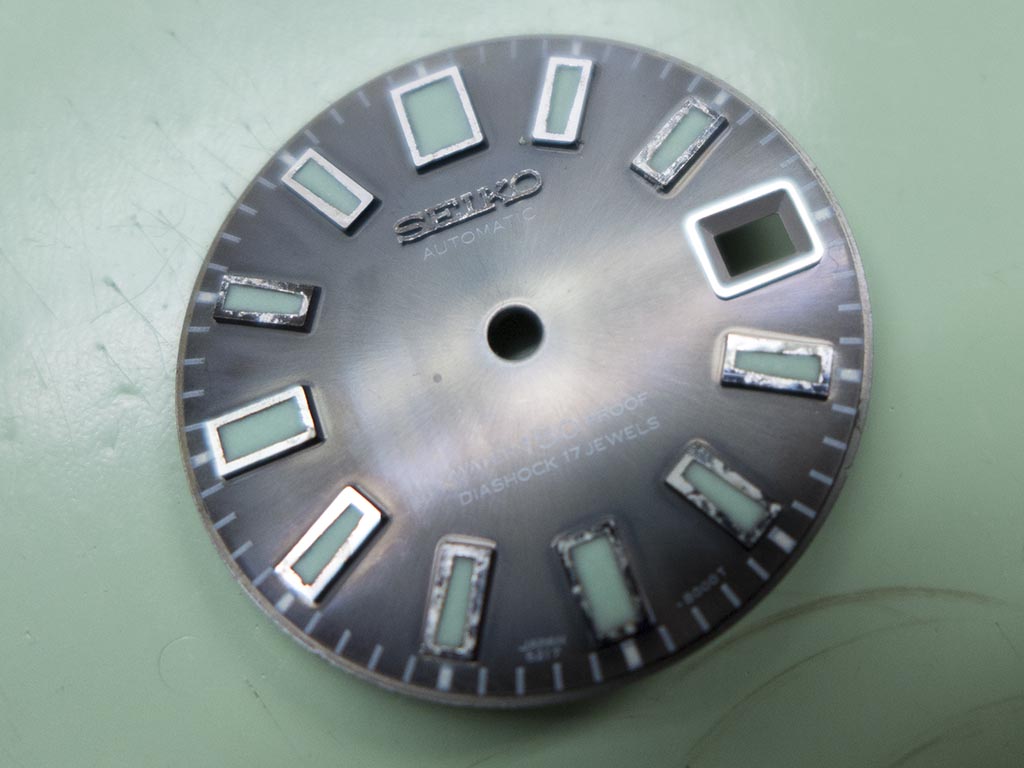

The dial had been relumed but the chrome lume frames were a little corroded.

P1020512a

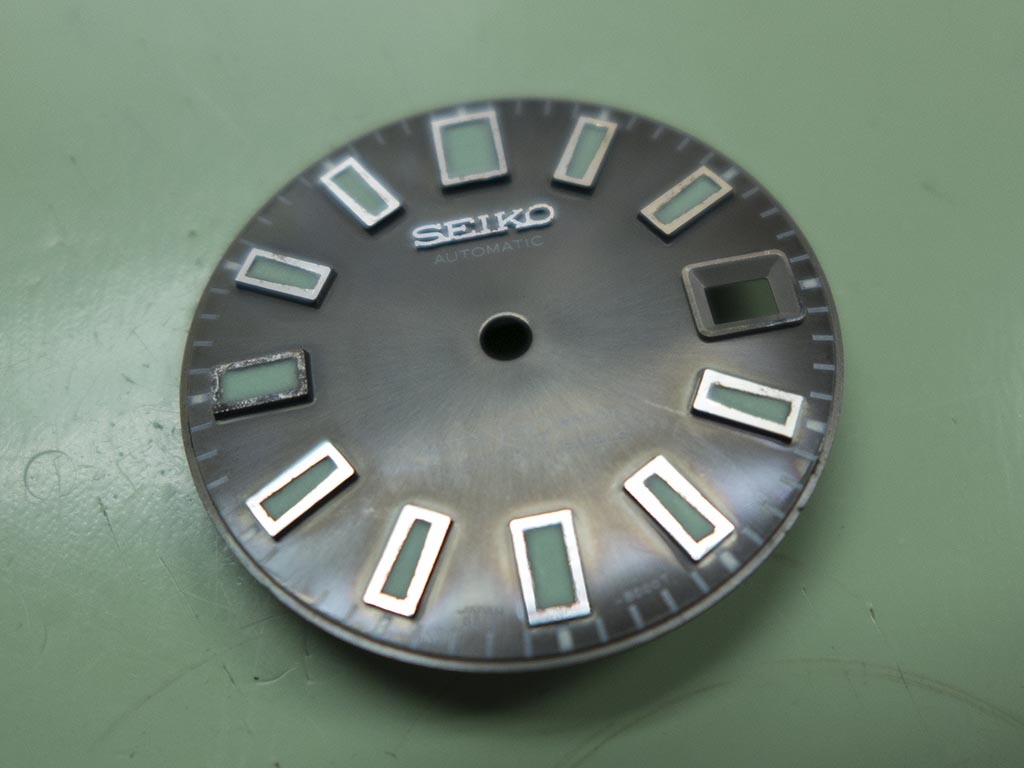

A length of sharpened pegwood and a bit of effort cleaned them up a lot better than they were.

P1020513a

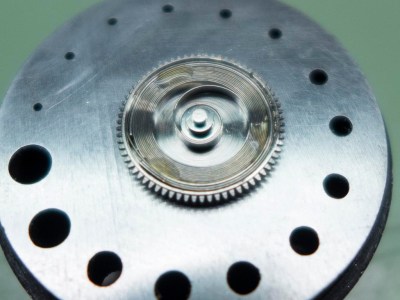

After inspection reassembly began with the mainspring as is usual for me.

P1020514a

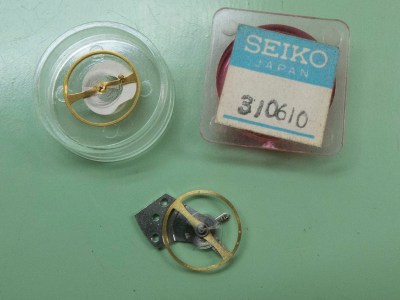

The hairspring was pretty misshapen, both with the coils and in the vertical plane. It didn’t respond at all to correction so a NOS balance/hairspring assembly was fitted and tweaked.

P1020611a

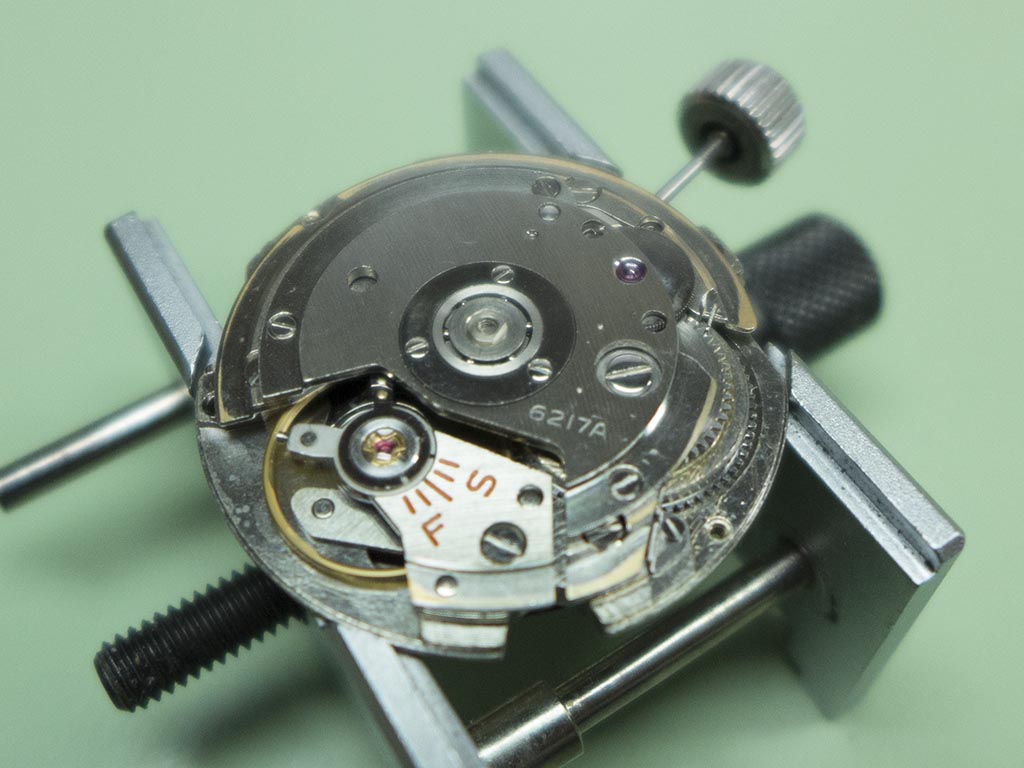

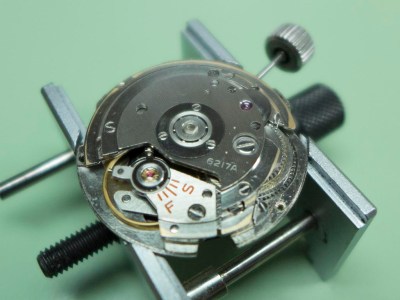

The motion work completed.

P1020517a

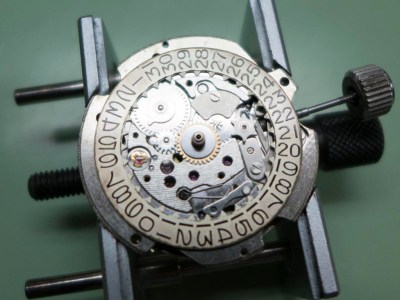

And the calendar side ready for the top plate.

P1020515a

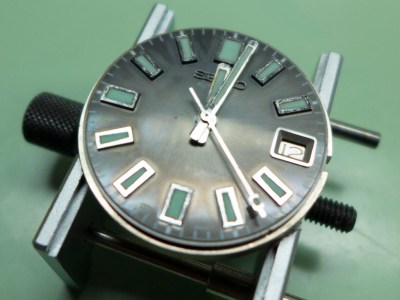

The dial and handset refitted.

P1020518a

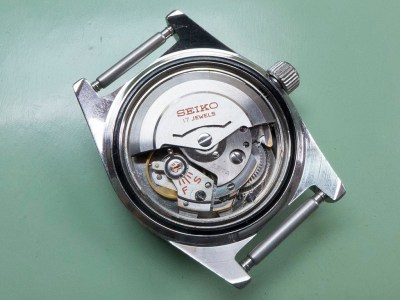

The movement recased and ticking away nicely.

P1020613a

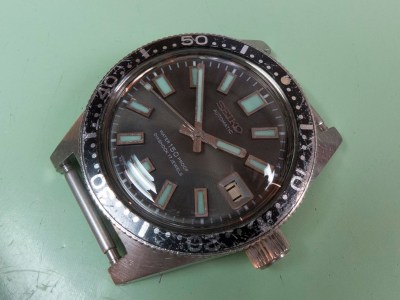

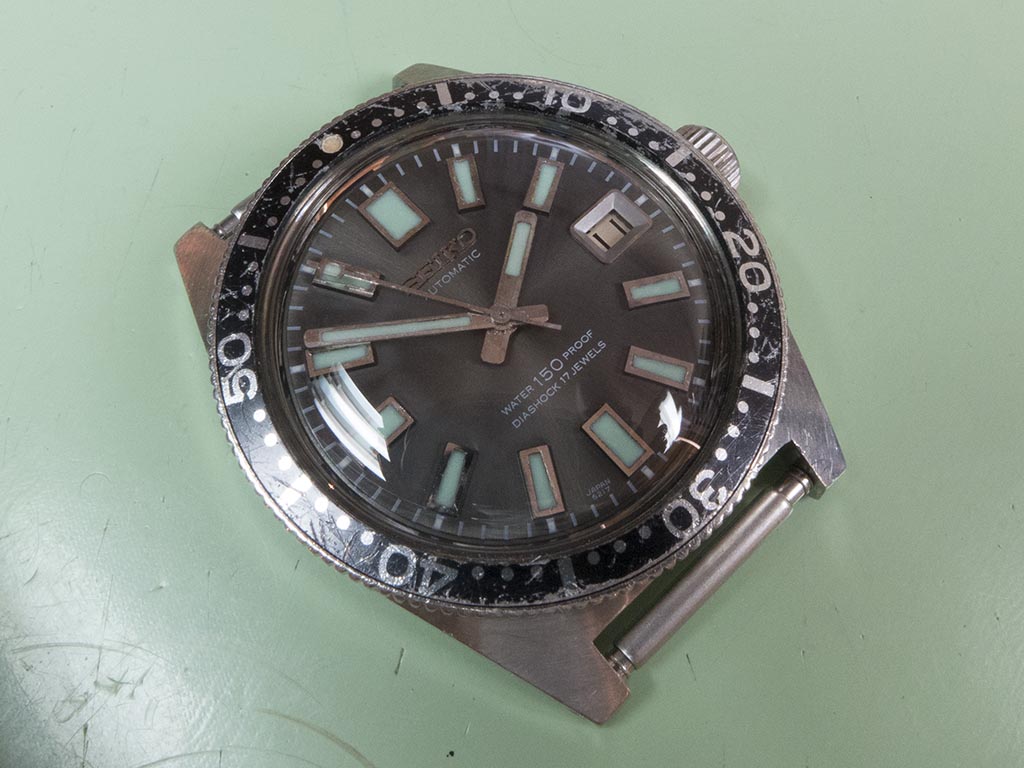

And here she is finished, it’s come a long way from when it arrived, a nice original example in great honest condition!

P1020615a

P1020616a

P1020617a
