Seiko Black Bay mod

Something I’m asked to do occasionally is to modify a watch or “mod” it as this is known. The donor watches are usually Seikos as there is a huge amount of custom parts available for many different models. The watch featured here is a Seiko SXK009 and the parts to be fitted will turn it into a Tudor Black Bay homage. The parts needed to accomplish this are a snowflake handset, a dial, an insert, a polished rehaut or chapter ring and a sapphire crystal was also fitted although not strictly necessary.

P1020619a

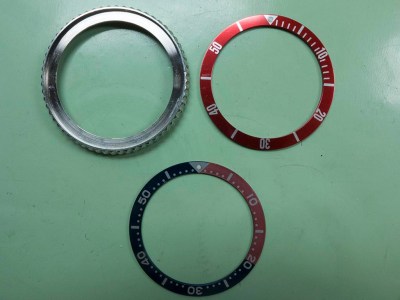

The bezel was popped off and the insert was removed. This leaves a load of sticky adhesive that has to be cleaned off.

P1020620a

The movement is removed and the hands lined up ready for removal.

P1020621a

The dial and handset are removed revealing the day/date wheels that will never be seen again!

P1020622a

The crystal is removed….

P1020623a

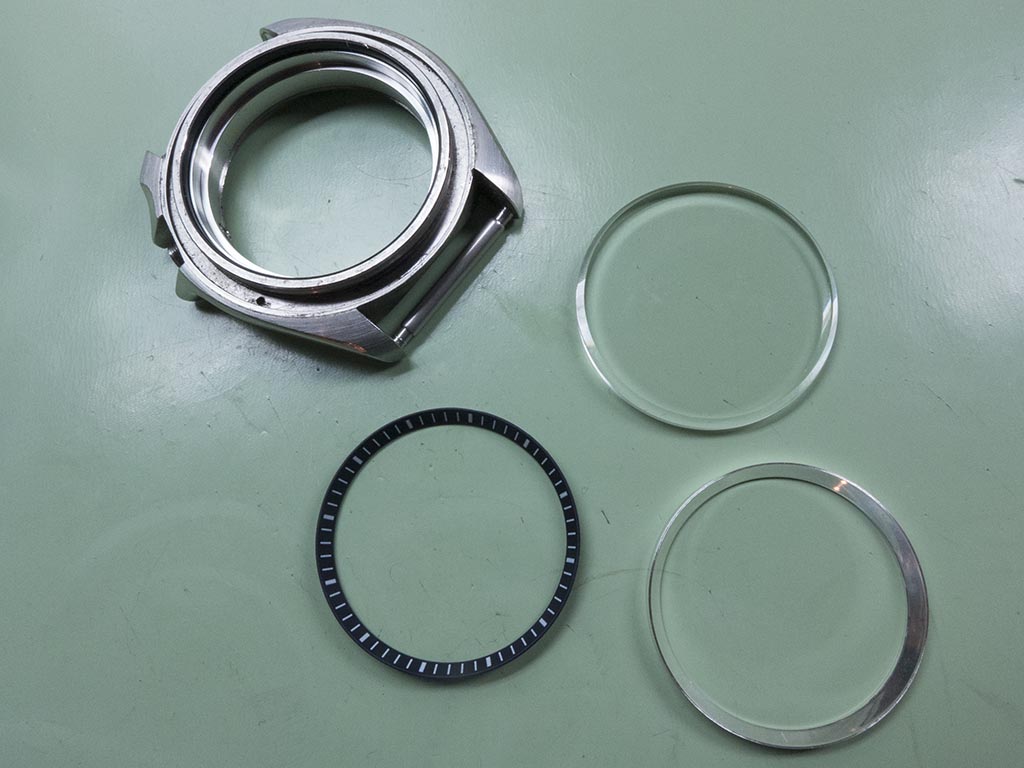

….and the chapter ring is also taken out ready for the polished aluminium one to be fitted.

P1020624a

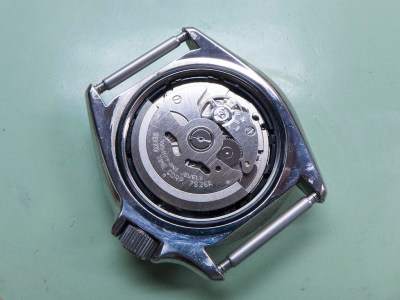

The chapter ring, crystal, dial and handset are fitted and the movement recased. Make sure you grease the seals before closing up!

P1020626a

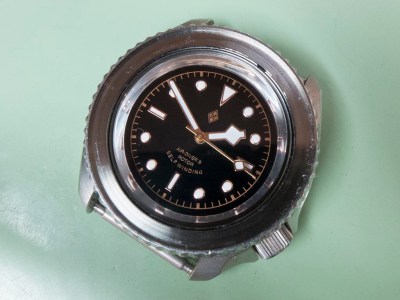

The bezel insert can now be fitted and lined up correctly with the dial.

P1020627

And there she is, jobs a good’un.

P1020628a

The last thing to do is a pressure test to see if it’s water resistant, in the chamber and up to pressure in this shot.

P1020632a

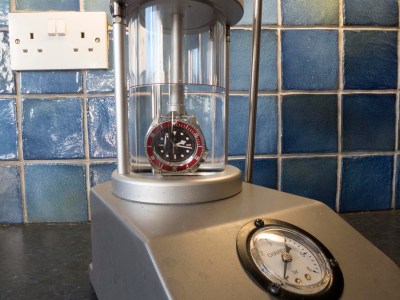

Wait 15 minutes then submerge.

P1020633a

Release the pressure and no streams of bubbles so all’s good.

P1020634a

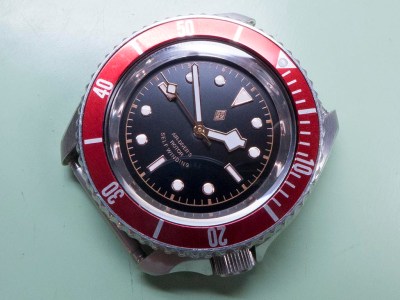

And the end result is a very nice looking functional homage to the Black Bay.

P1020629a

P1020630a
