Thermidor chronograph calibre 12

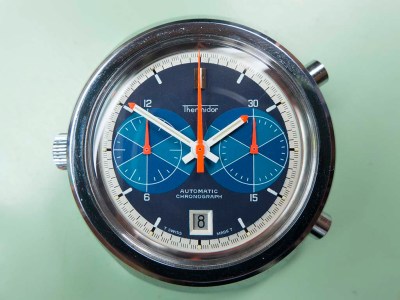

This charming Thermidor twin register chronograph came in for a service recently. What’s interesting about this watch is it’s powered by a Calibre 12 movement, the calibre 11 which preceded it was developed by the ‘Chronomatic’ partnership of Heuer, Breitling, Hamilton-Buren and Dubois-Depraz in an attempt to be the first to the market with an automatic winding chronograph. The calibre 11 was revealed to the press on March 3 1969 in press conferences in NewYork and Geneva and was manufactured until about 1973. The calibre 12 was introduced in 1971 and was produced until 1980. The calibre 12 addressed a few of the issues that appeared with the calibre 11’s, modifications included using lighter jumper springs, a weaker mainspring to drive a redesigned date mechanism, some strengthening of various levers and hammers and a faster beat rate of 21,600 as opposed to the cal 11’s 19,800. This Thermidor cased example has a typically bright seventies style dial and handset design, and you can also see one of the cal 11/12’s more striking features, a 9 o’clock crown.

Thermidor chronograph calibre 12

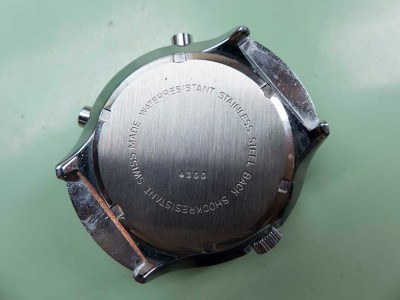

The caseback is a plain affair with just the usual information text stamped on.

Thermidor chronograph calibre 12

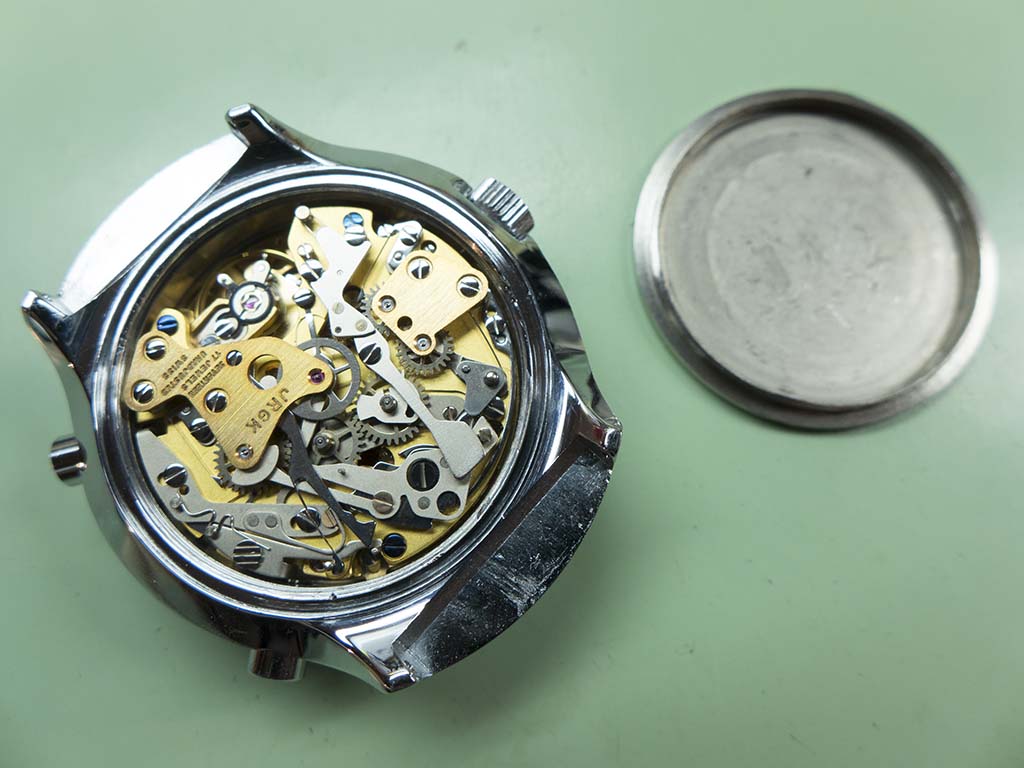

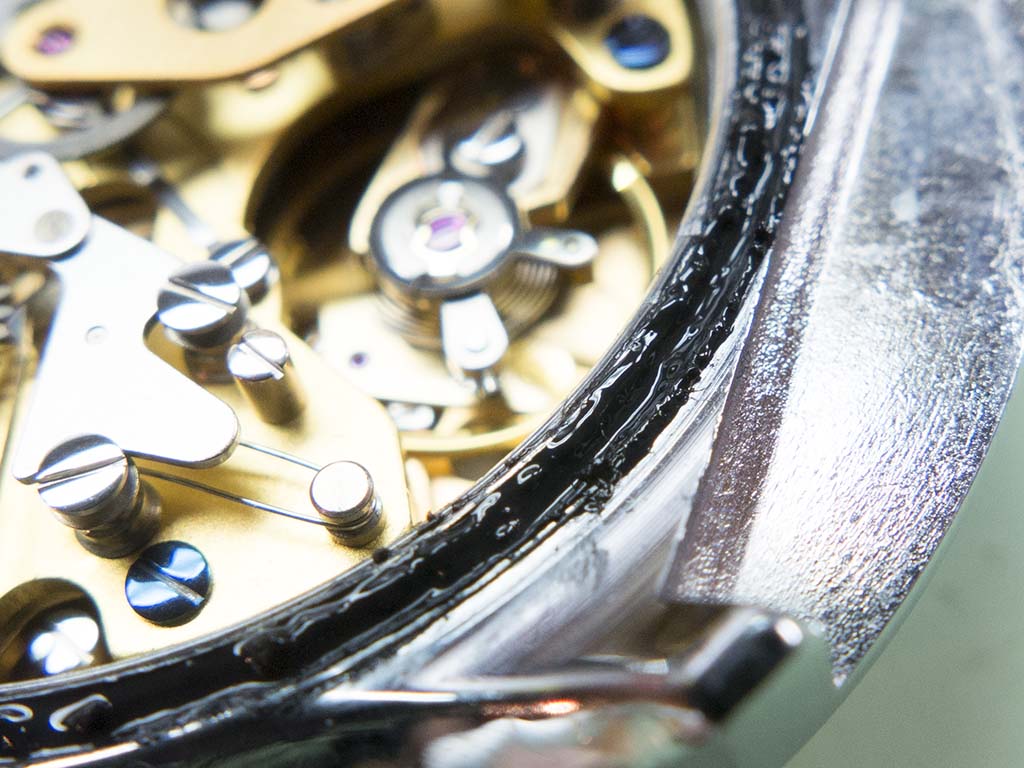

When I removed the caseback I saw the seal had liquified.

Thermidor chronograph calibre 12

This is a problem because when the seal goes like this it gets everywhere and sticks to everything. I can’t uncase the movement without it cleaned off first as if any gets on the dial it ain’t coming off!

Thermidor chronograph calibre 12

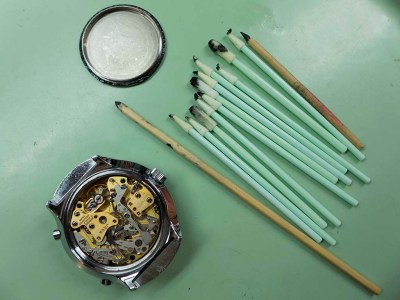

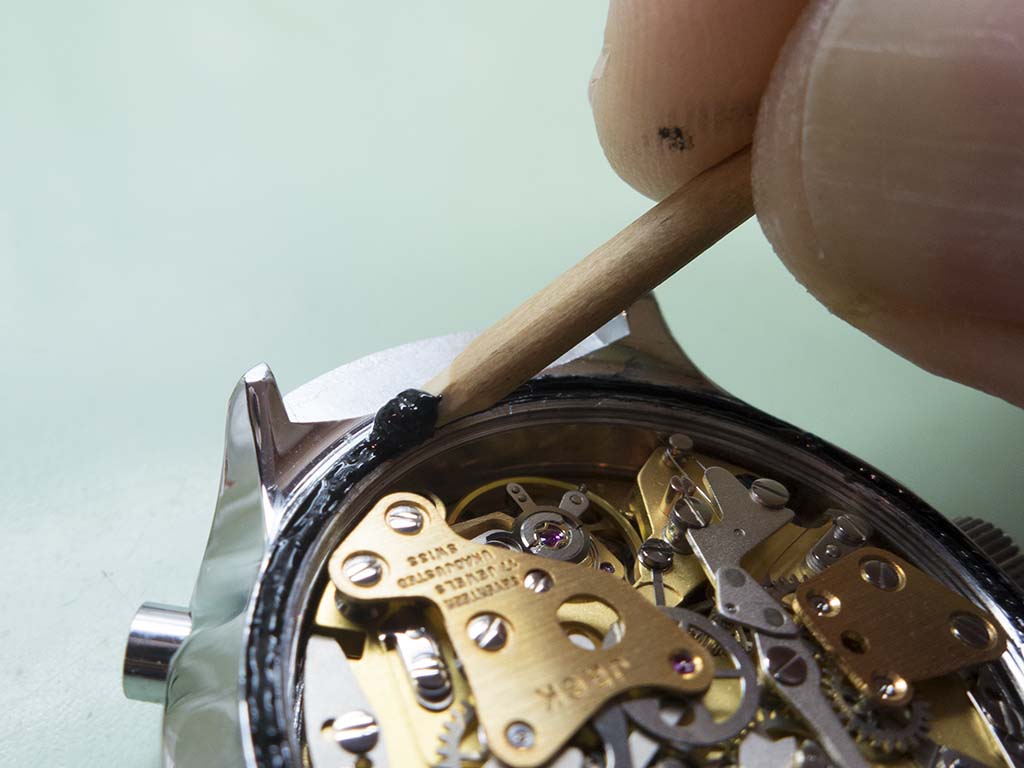

The only way to clean this stuff is laboriously, by hand with pegwood and cotton buds.

Thermidor chronograph calibre 12

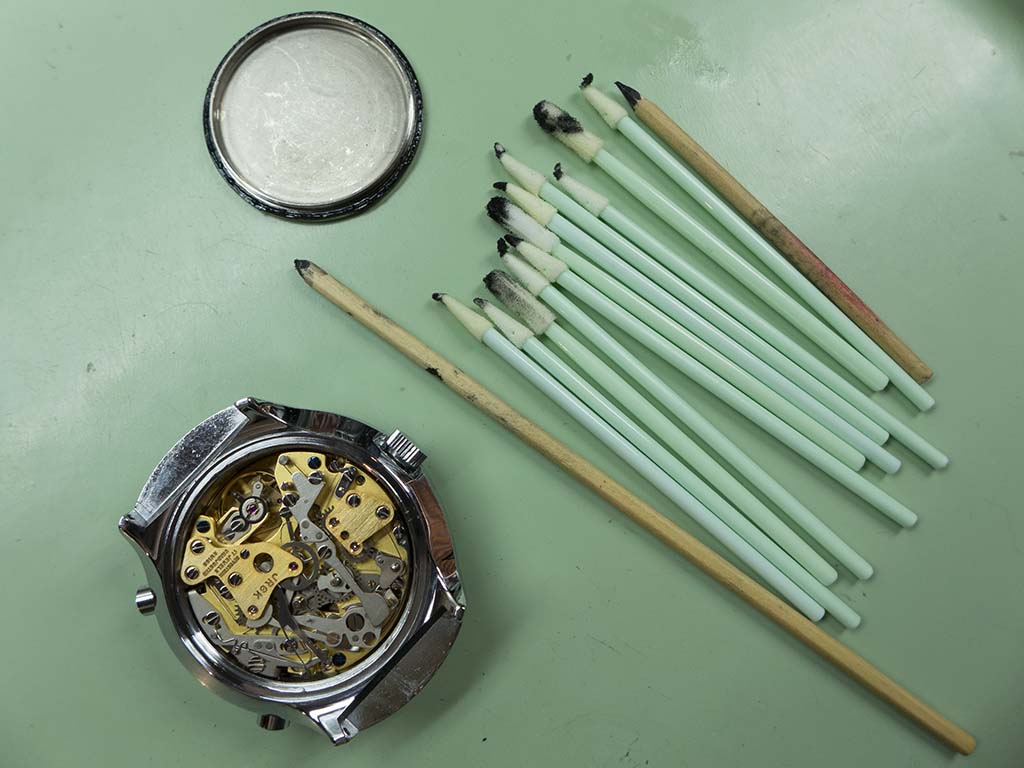

This lot was used just for the case….

Thermidor chronograph calibre 12

….the caseback was a little easier to get clean thank goodness!

Thermidor chronograph calibre 12

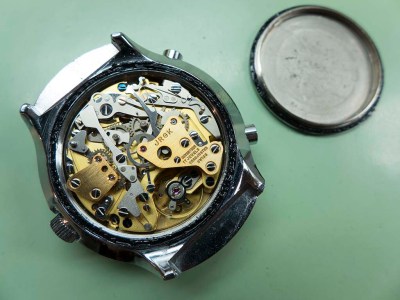

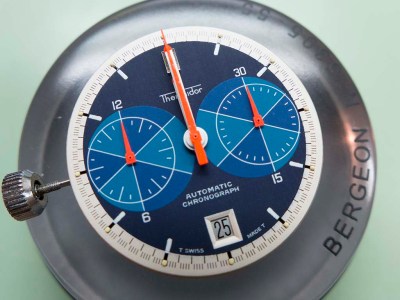

Finally I could uncase the movement. Unusually the crown seal hadn’t degraded, normally when you see a gooey caseback seal the crown and pushers are the same. I noticed the lume on the hour and minute hand was very fragile, I’ll deal with that later.

Thermidor chronograph calibre 12

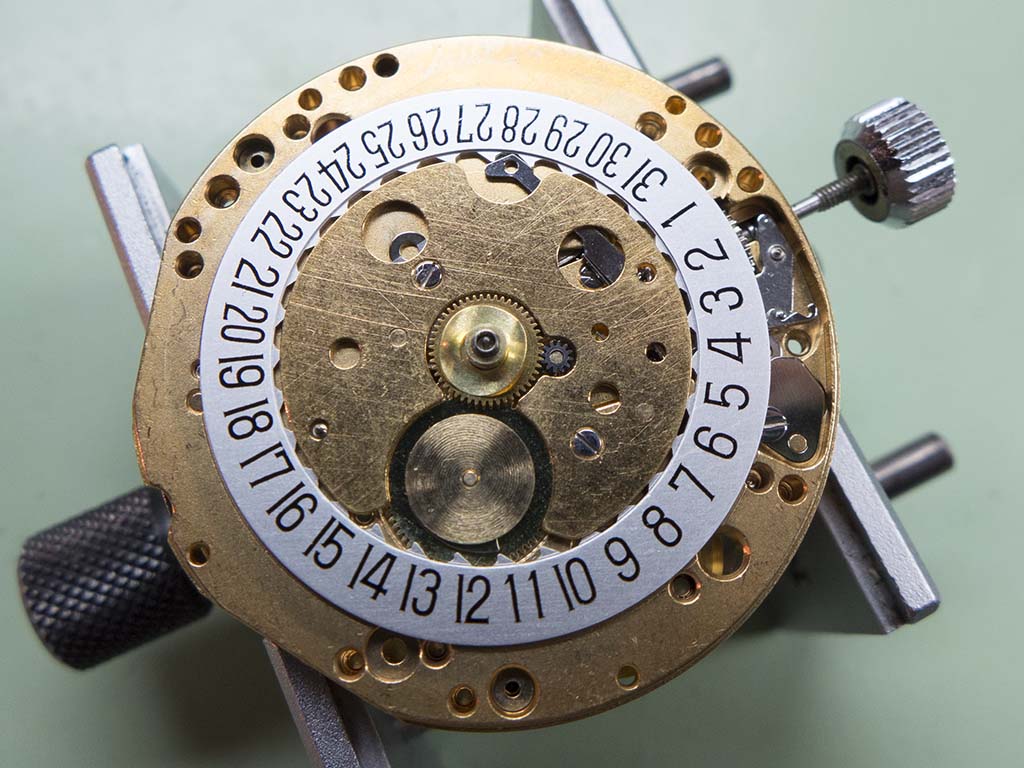

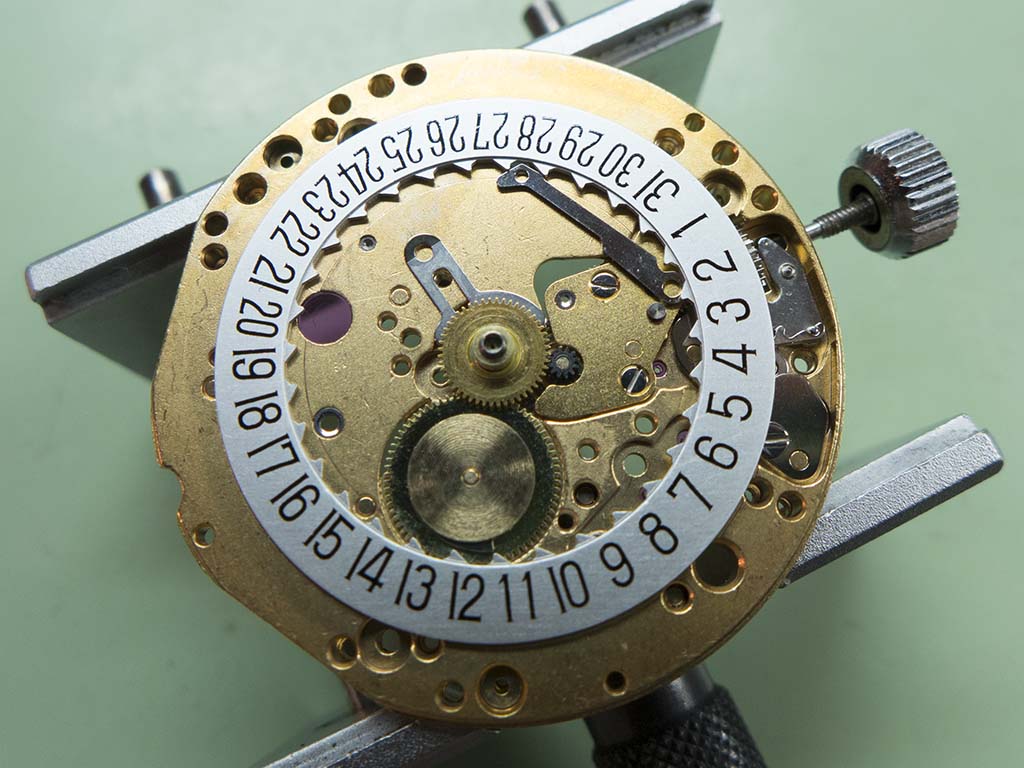

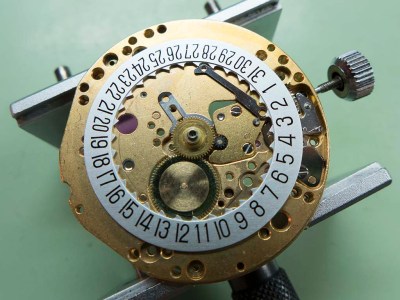

With the handset and dial removed you can see the calender work.

Thermidor chronograph calibre 12

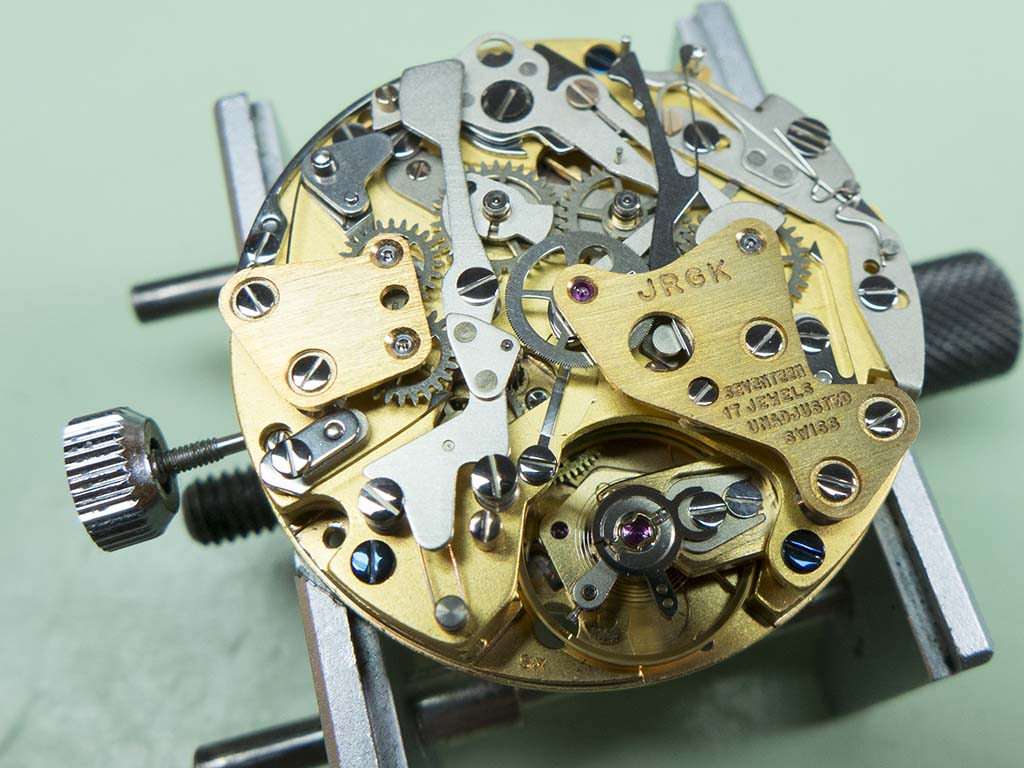

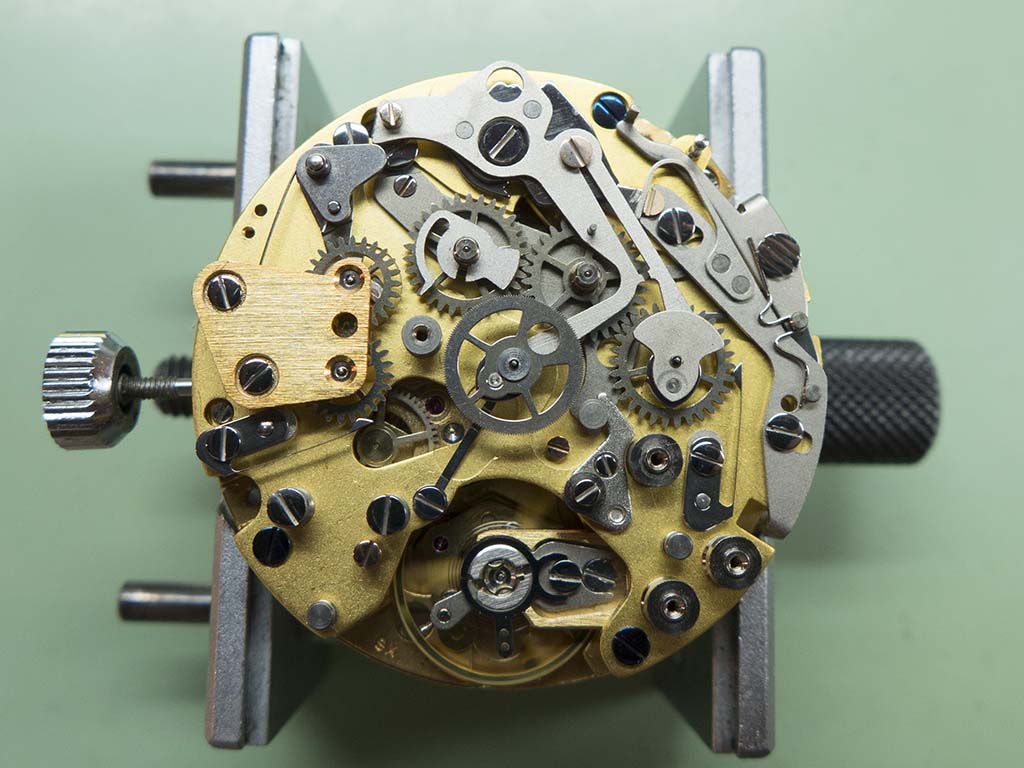

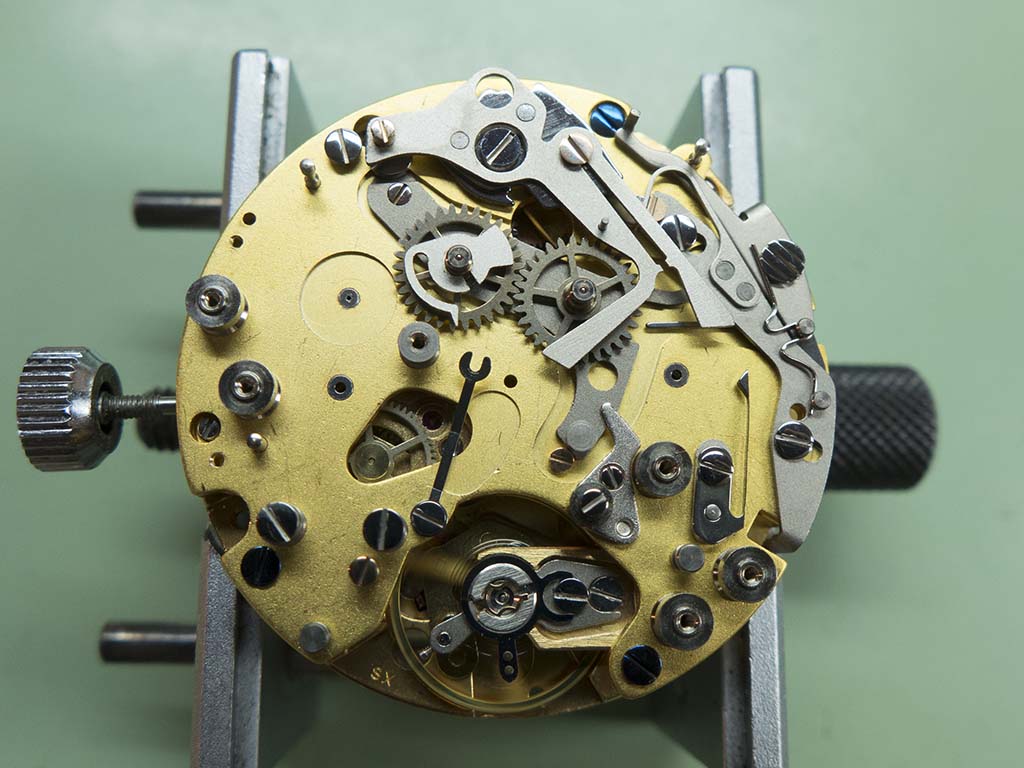

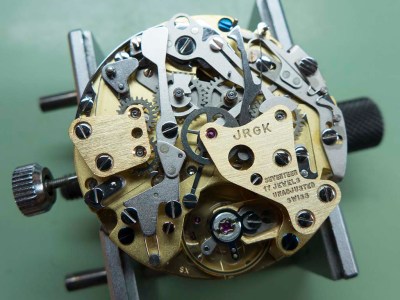

With the movement turned over you can see the cal12 in all its glory. Most cal12’s were gold coloured for some reason, this one must have been manufactured by Kelek under license from the Chronomatic group as the JRGK stands for Jean-Raoul-Gorgerat Kelek.

Thermidor chronograph calibre 12

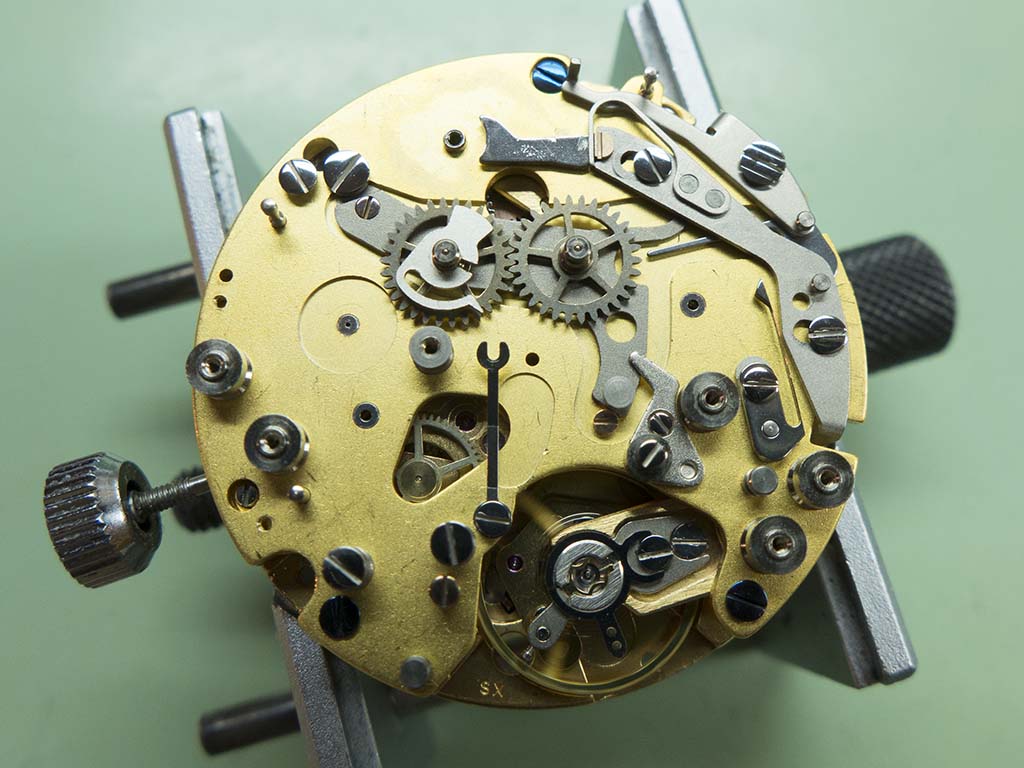

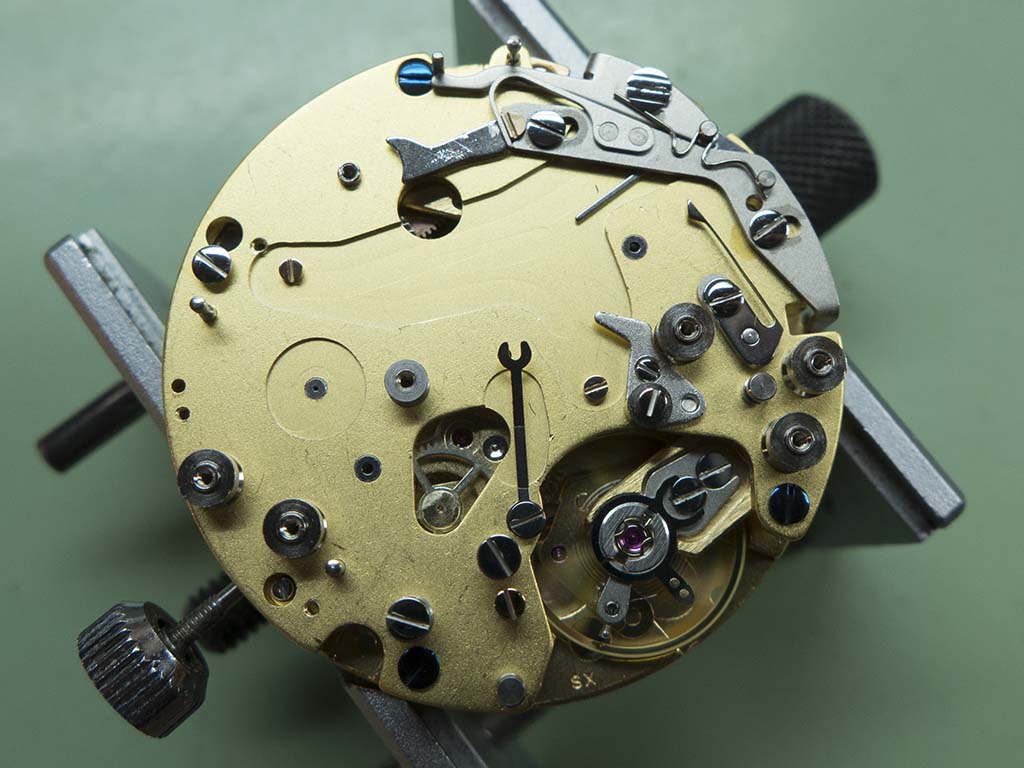

With the chronograph bridge removed I can start stripping the leverwork. Another good feature of the cal11/12’s is the semi modular design, the whole chronograph section can be removed by undoing the three blued screws. I’ll let the pictures do the talking with regards to the stripdown 🙂

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

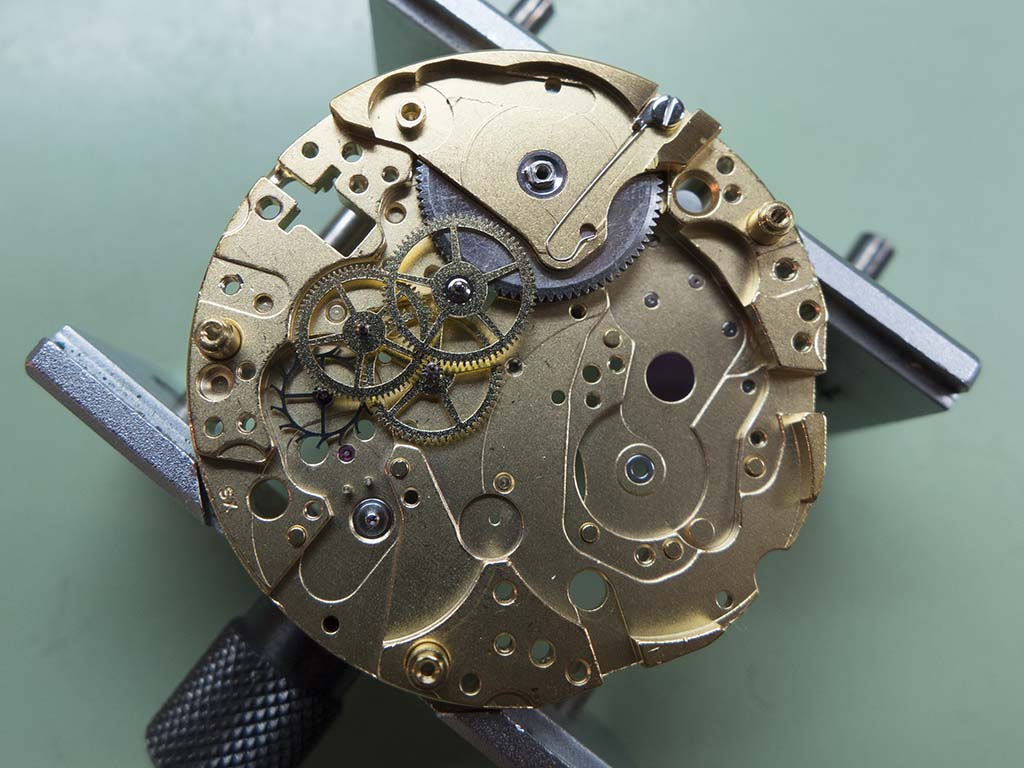

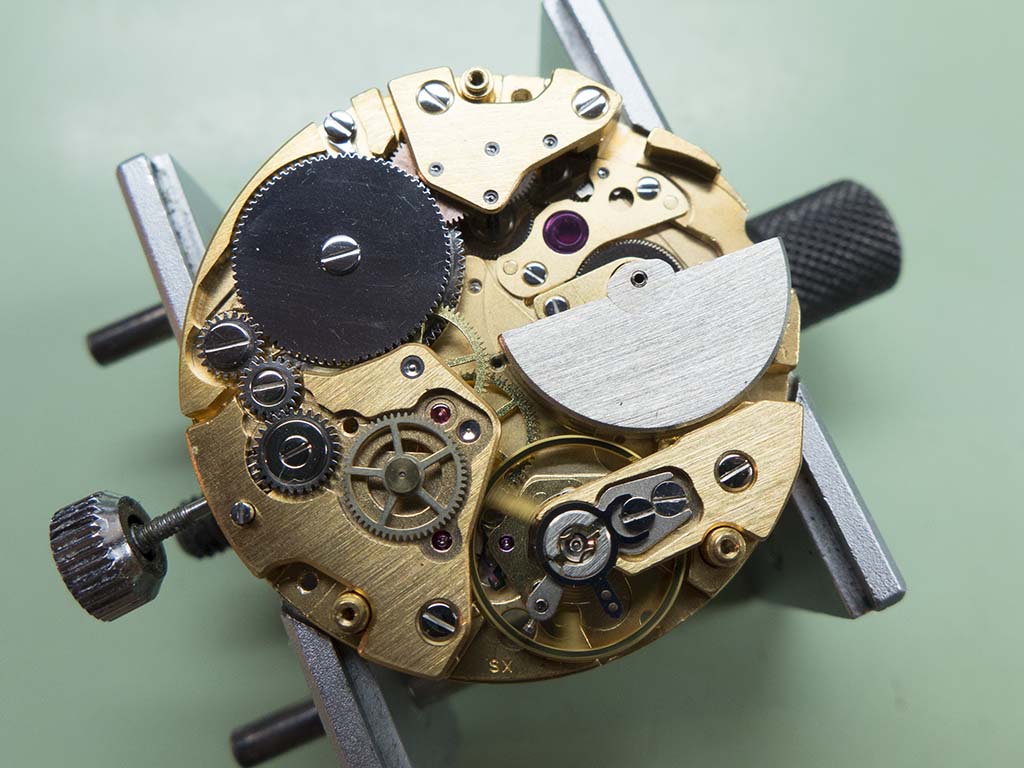

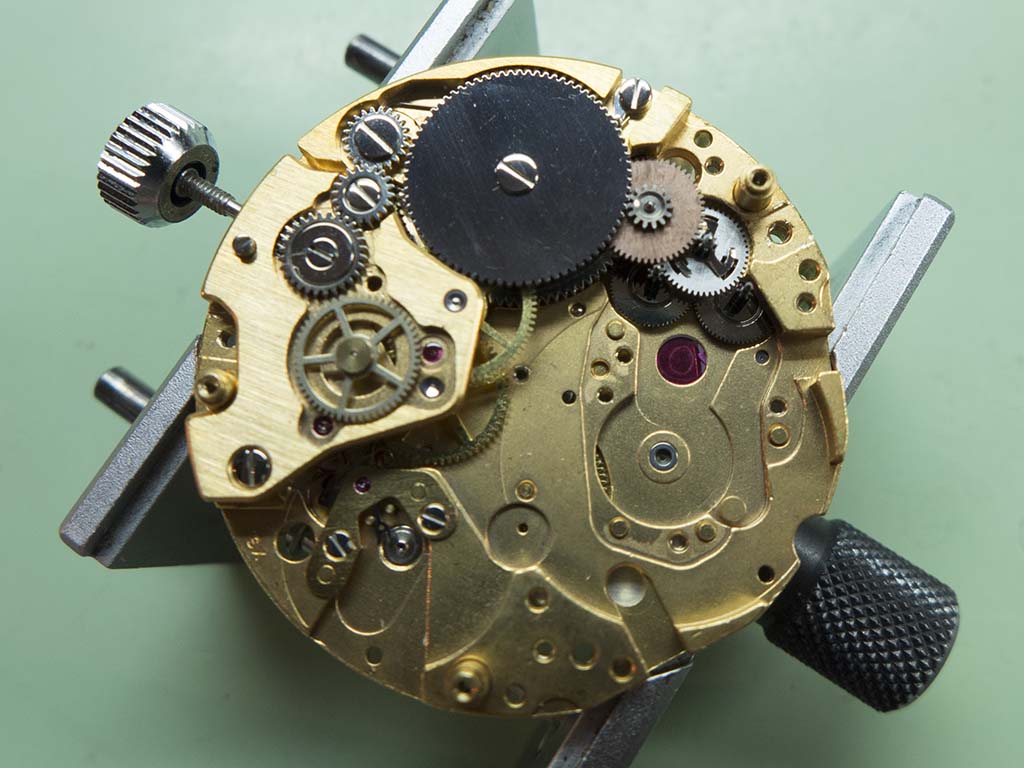

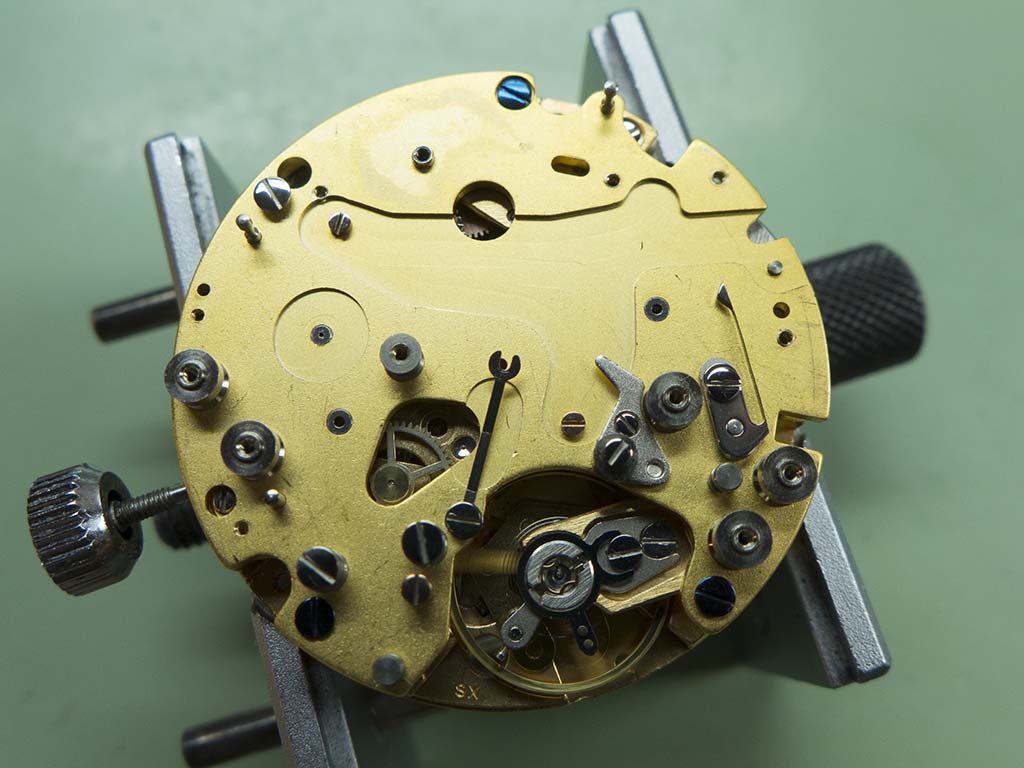

Now the chronograph layer is stripped and the plate removed you can see the actual movement underneath with its microrotor arrangement.

Thermidor chronograph calibre 12

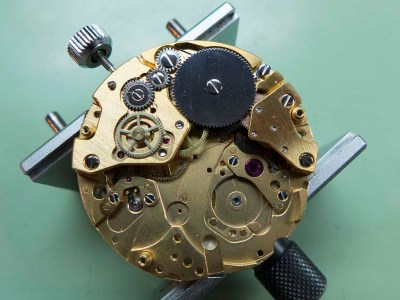

The auto winding part of the movement was developed by Buren based on their Intramatic type movements. The Intramatic used a planetary winding rotor which would in both directions via a gliding pinion which is sandwiched between two large jewels, the bottom one can be seen with the miro-rotor removed.

Thermidor chronograph calibre 12

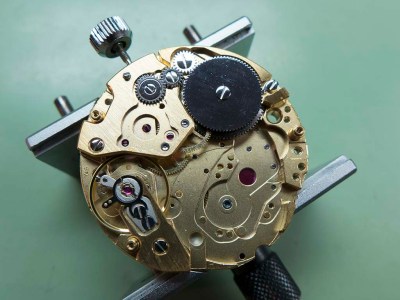

And the top jewel is below that, remember the dial goes on the other side so the top is the bottom in these shots! The unusual winding clutch can be seen on top of the small silver wheel, this component can give these calibres a gritty feel when manually winding them up – it is normal though.

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

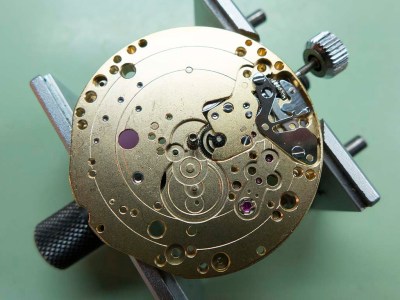

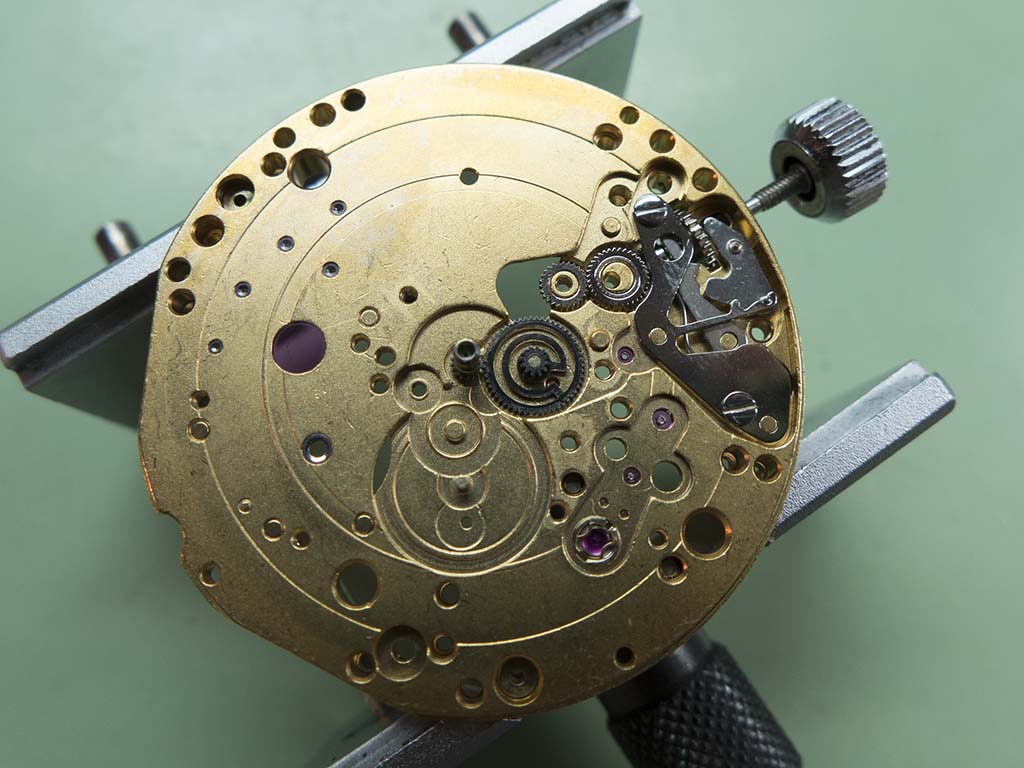

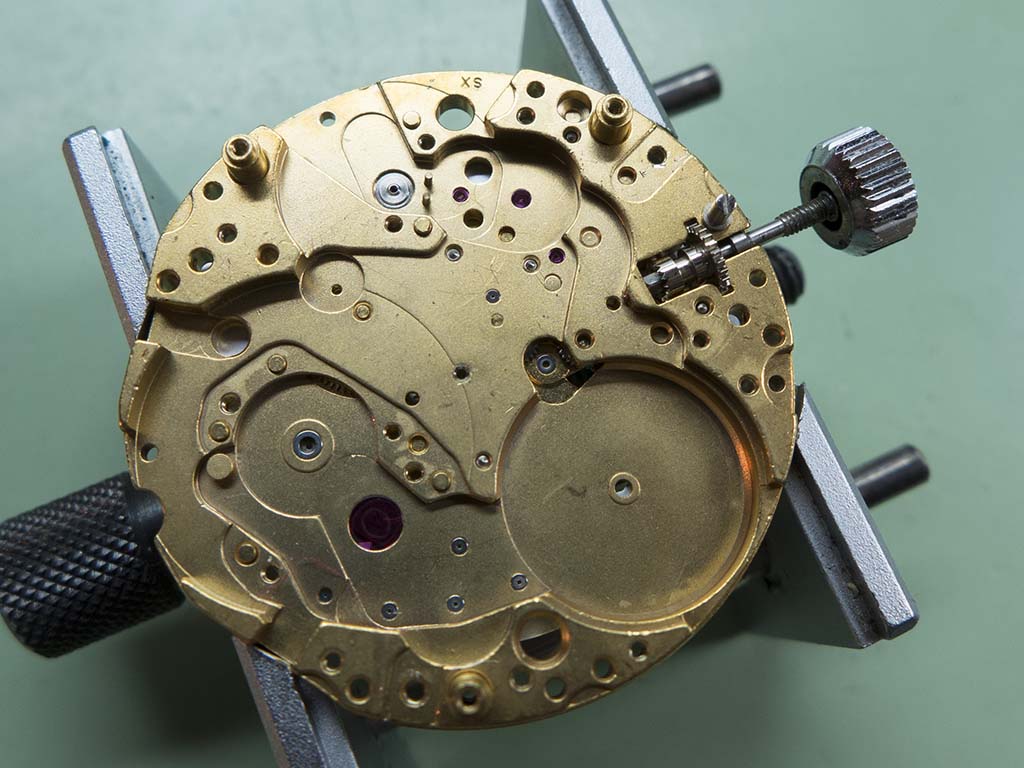

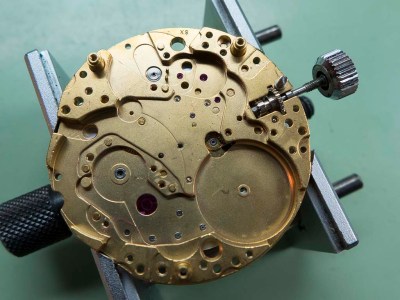

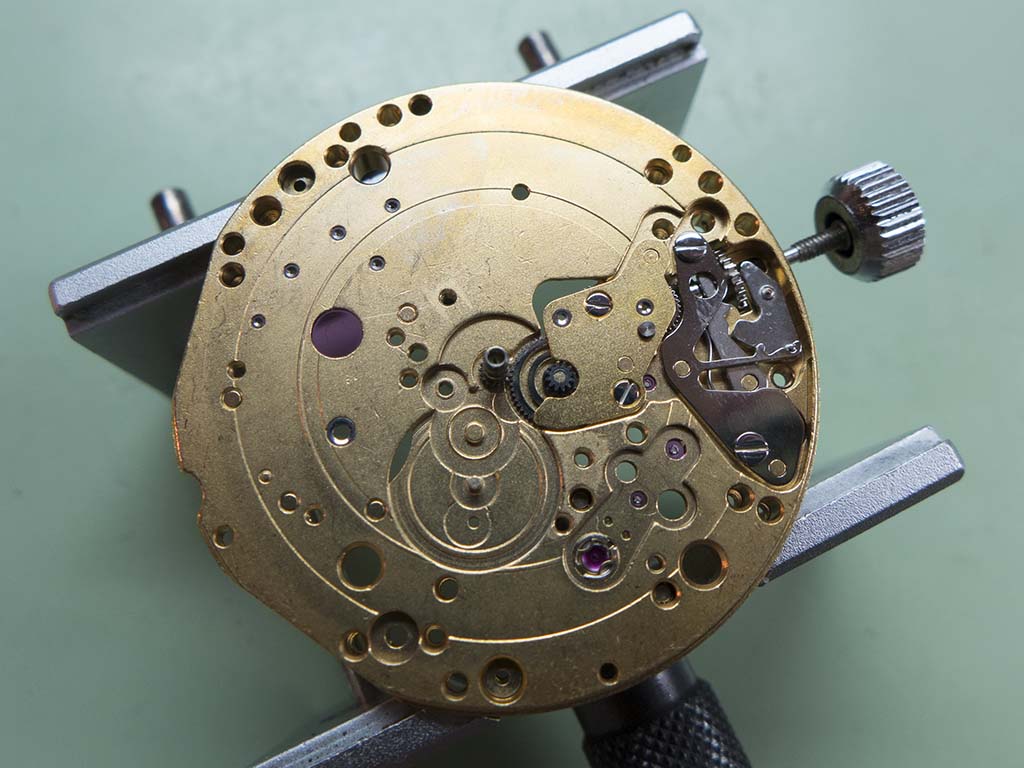

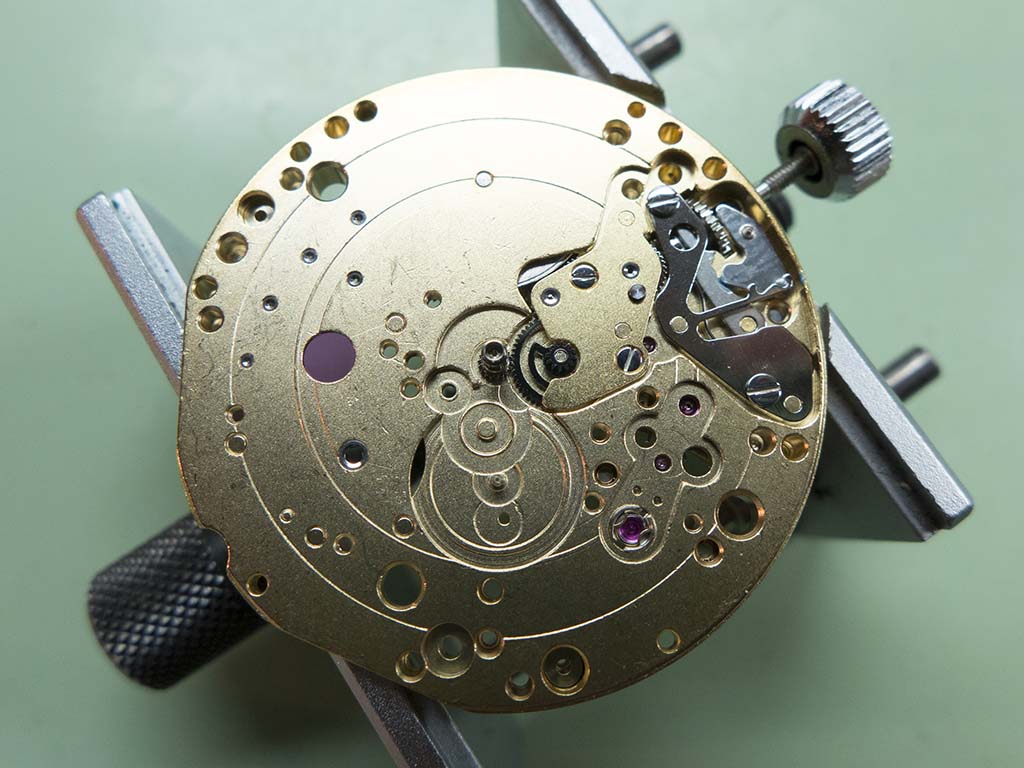

At this point I turn it over and finish stripping the dial side.

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

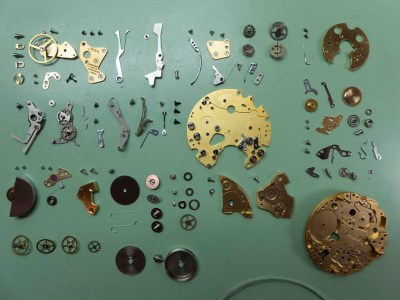

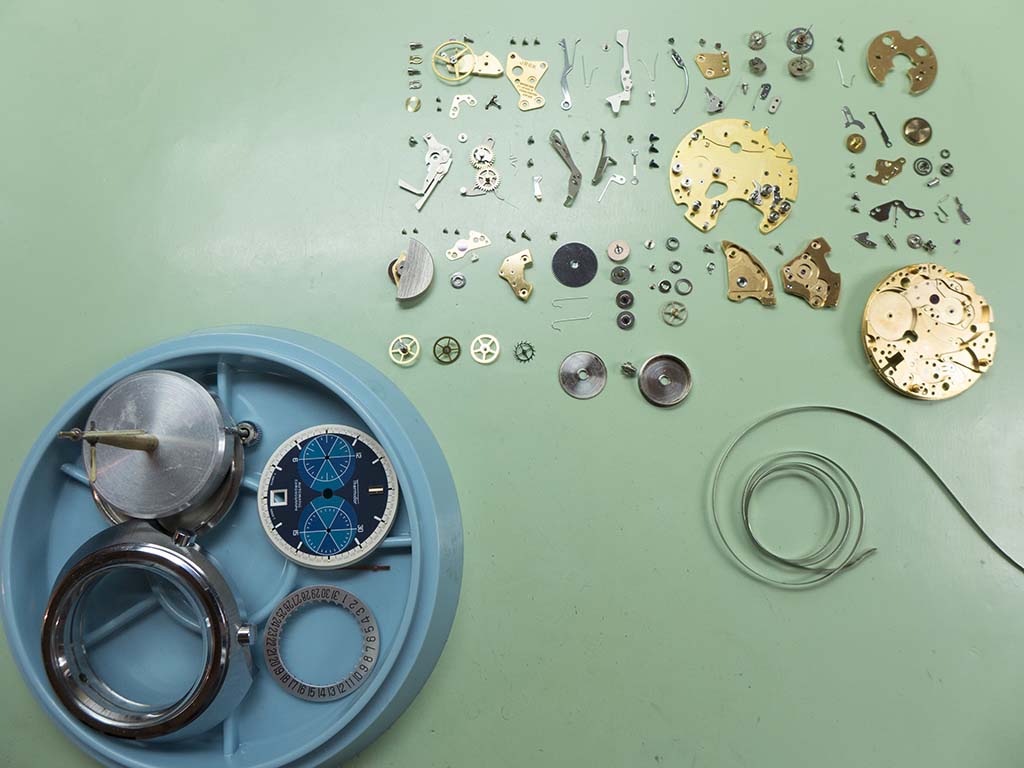

The watch ready for cleaning and inspection.

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

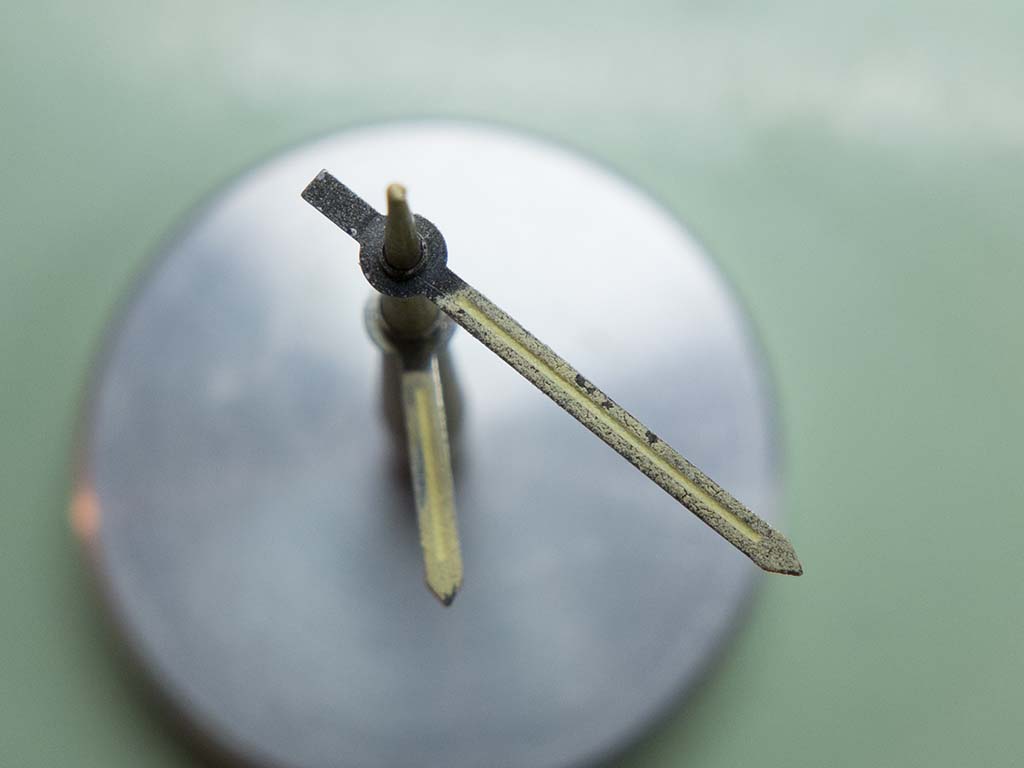

Whilst the components were going through the cleaning machine I sorted out the lume on the hands. There was a crack running the complete length of the minute hand that could only be seen under high magnification.

Thermidor chronograph calibre 12

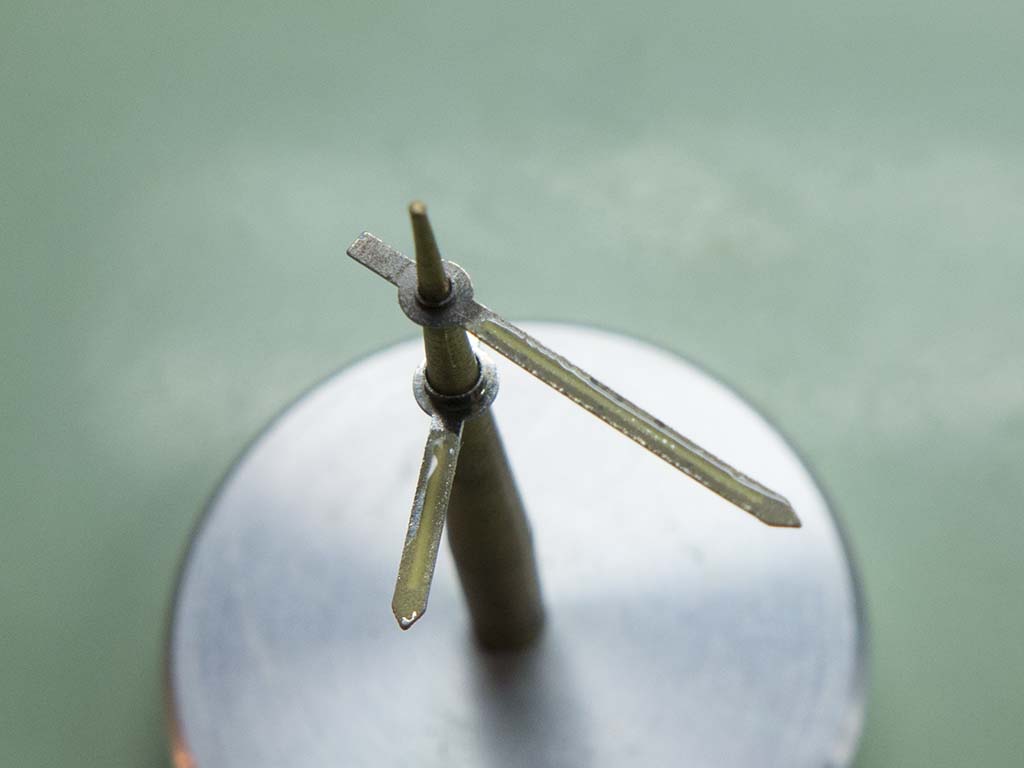

I coated the underside with some lume binder to strengthen up both hands.

Thermidor chronograph calibre 12

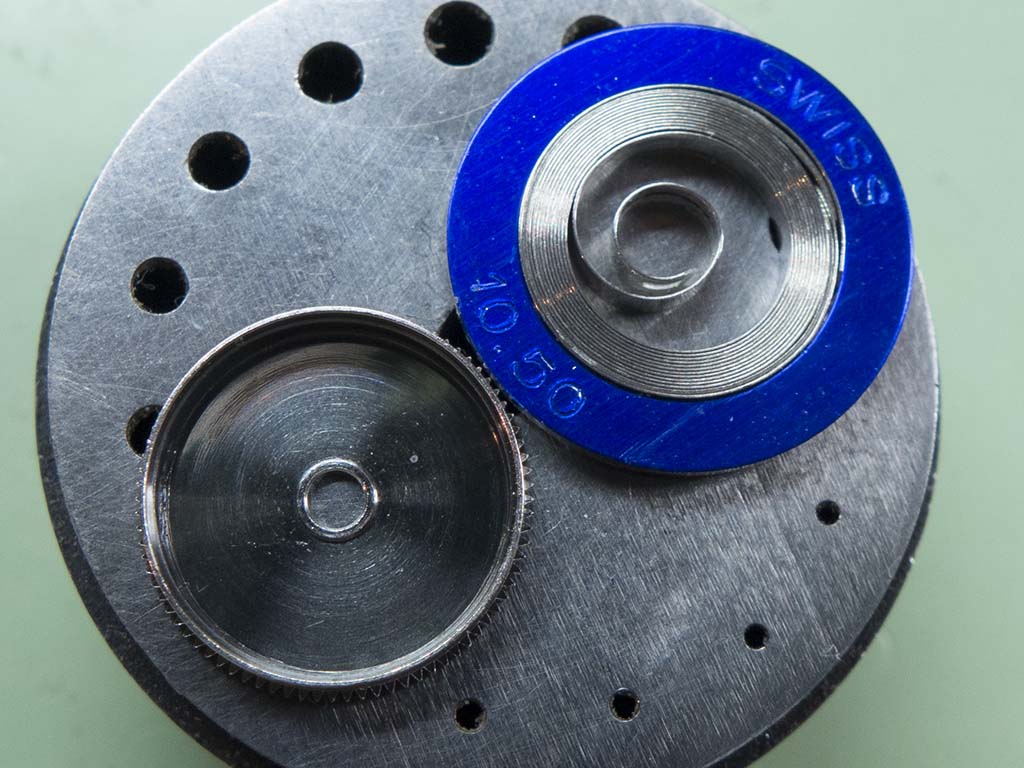

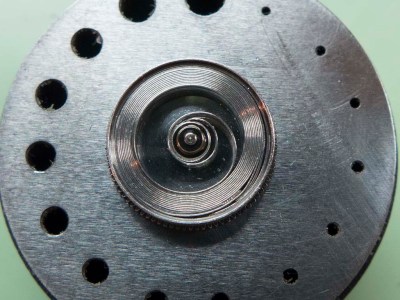

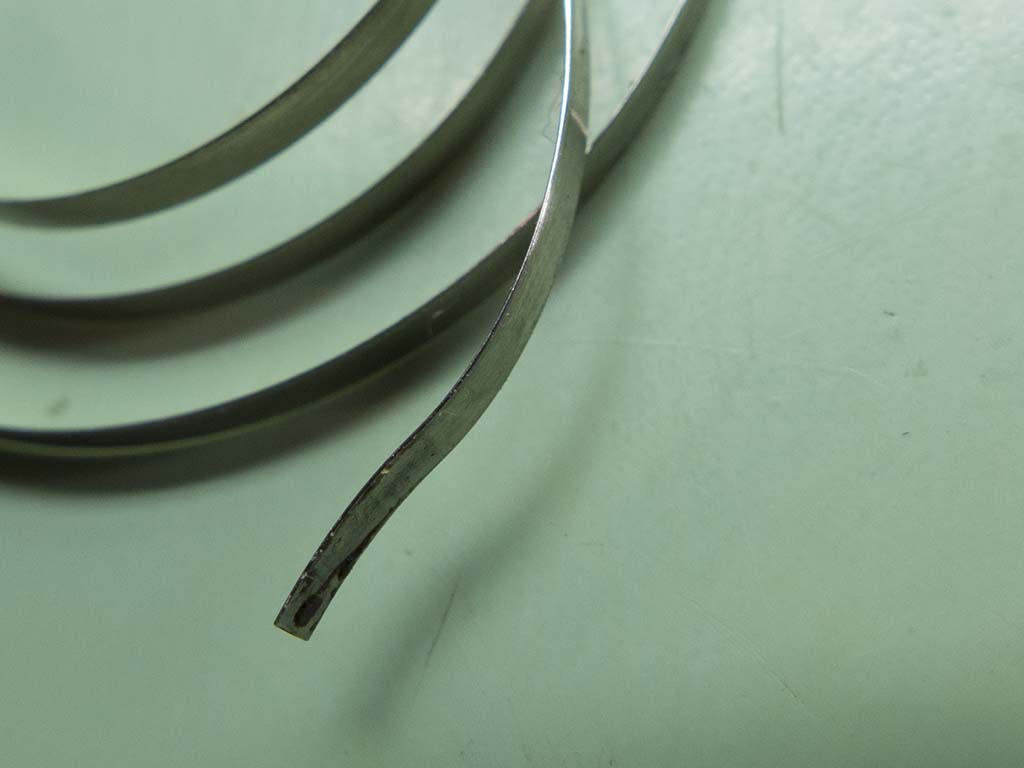

The mainspring had no bridle on the end….

Thermidor chronograph calibre 12

….so a new one was fitted.

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

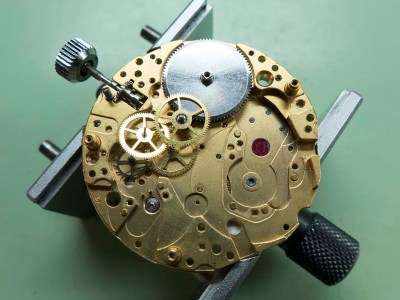

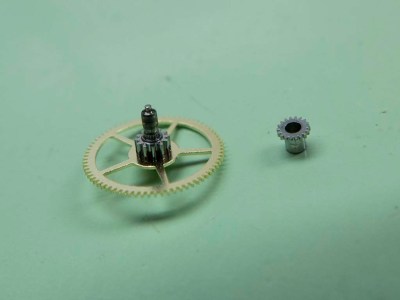

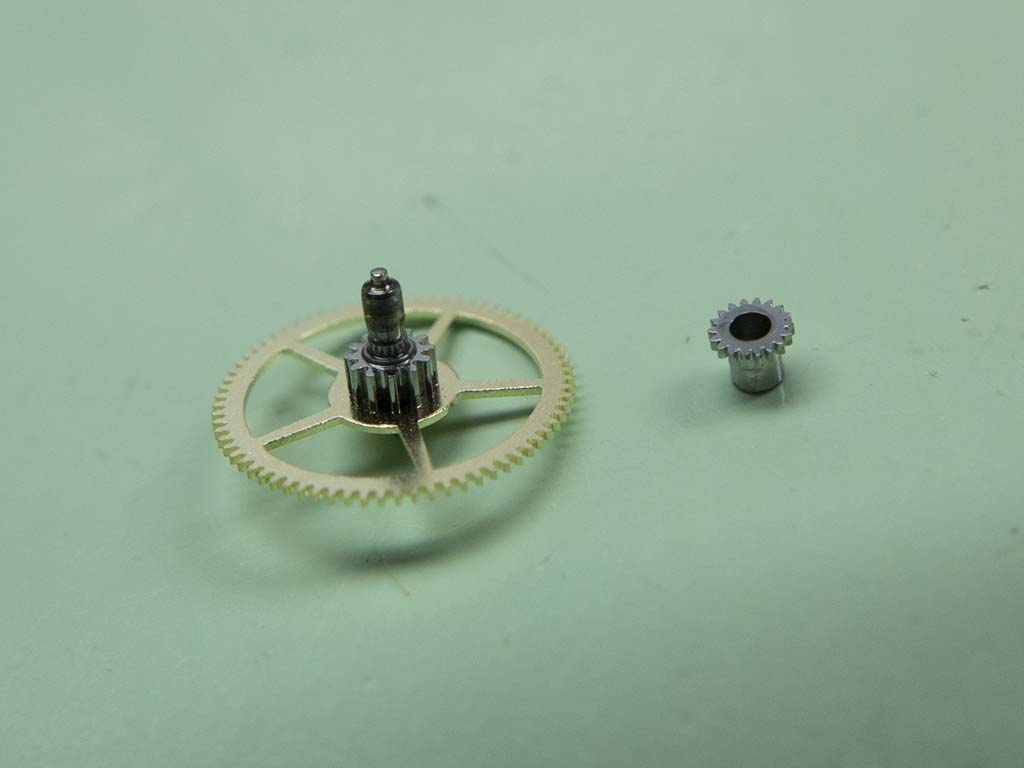

The canon pinion on this particular watch was quite loose so it was tightened up before fitting. It has an unusual pinion being that it’s all housed on the underside of the mainplate.

Thermidor chronograph calibre 12

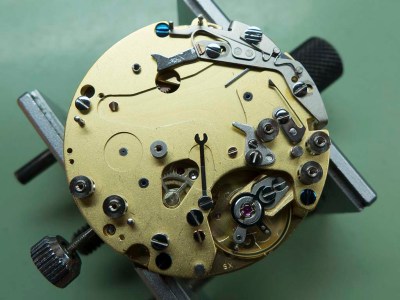

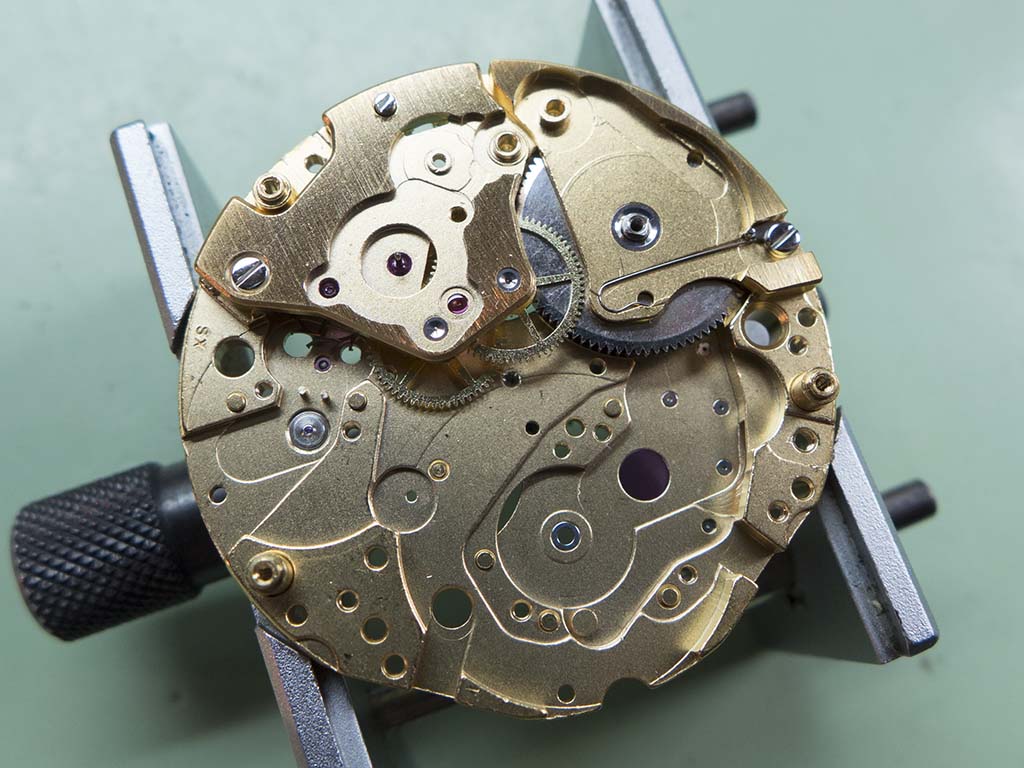

Again I’ll let the pictures do the talking.

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

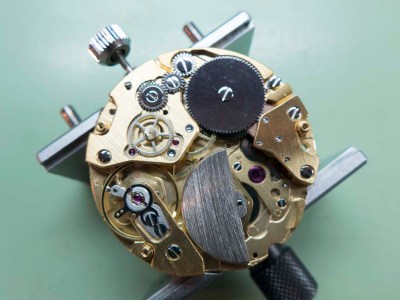

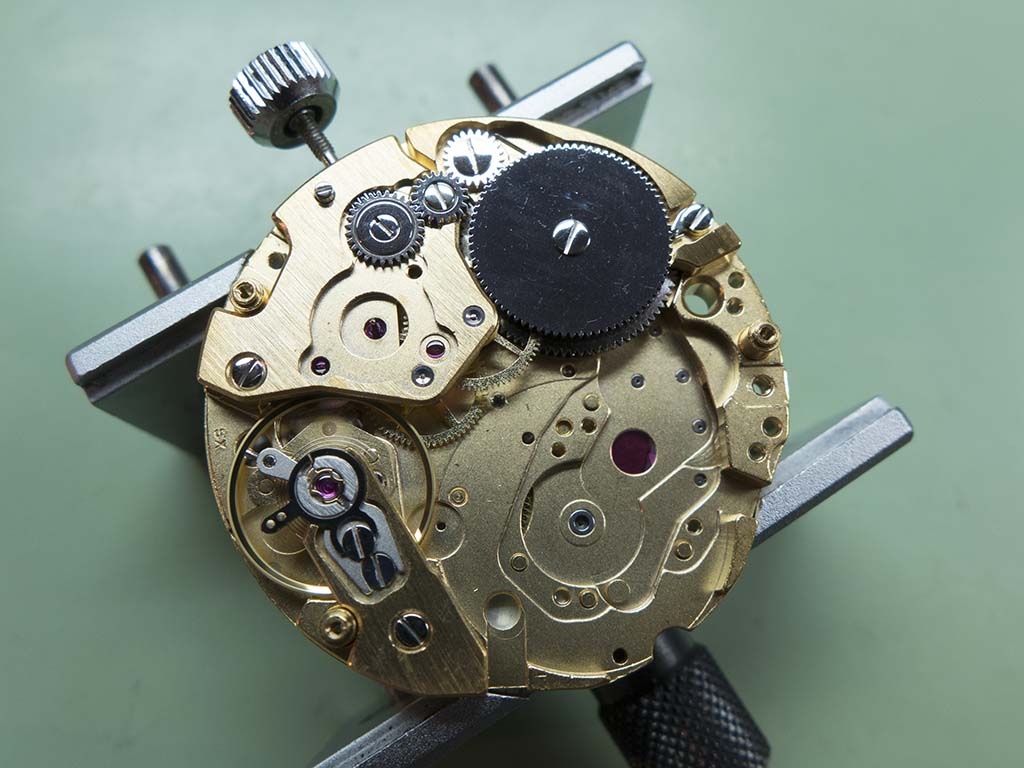

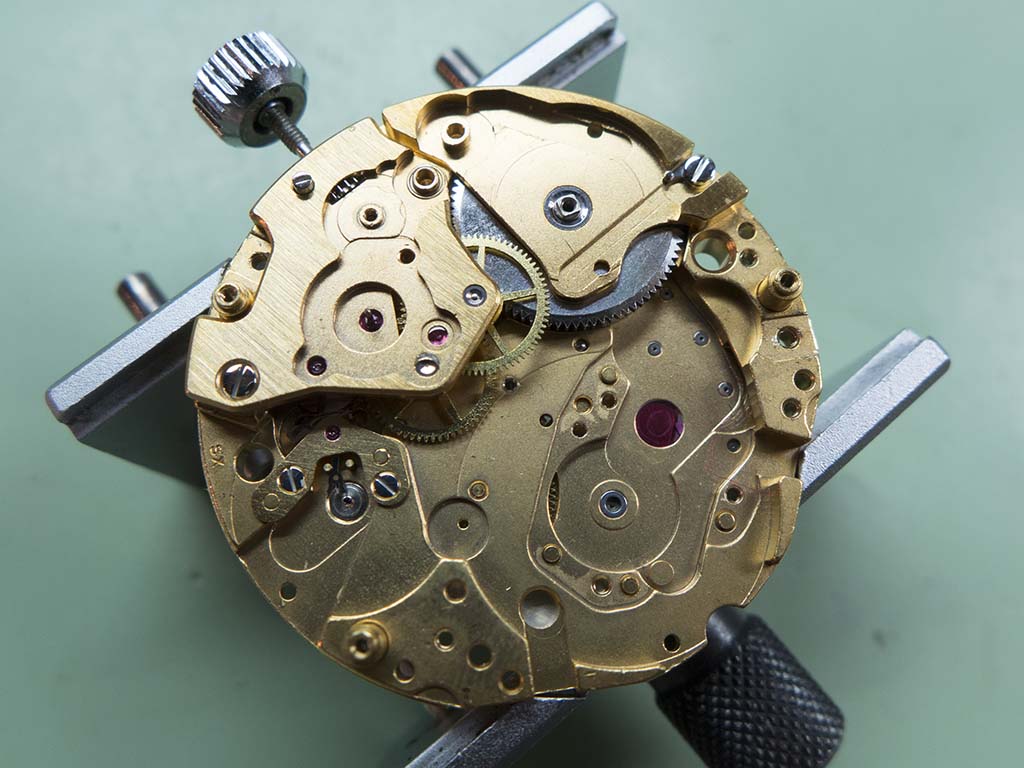

At this point power can be wound on and balance and rough timing adjustments can be made.

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

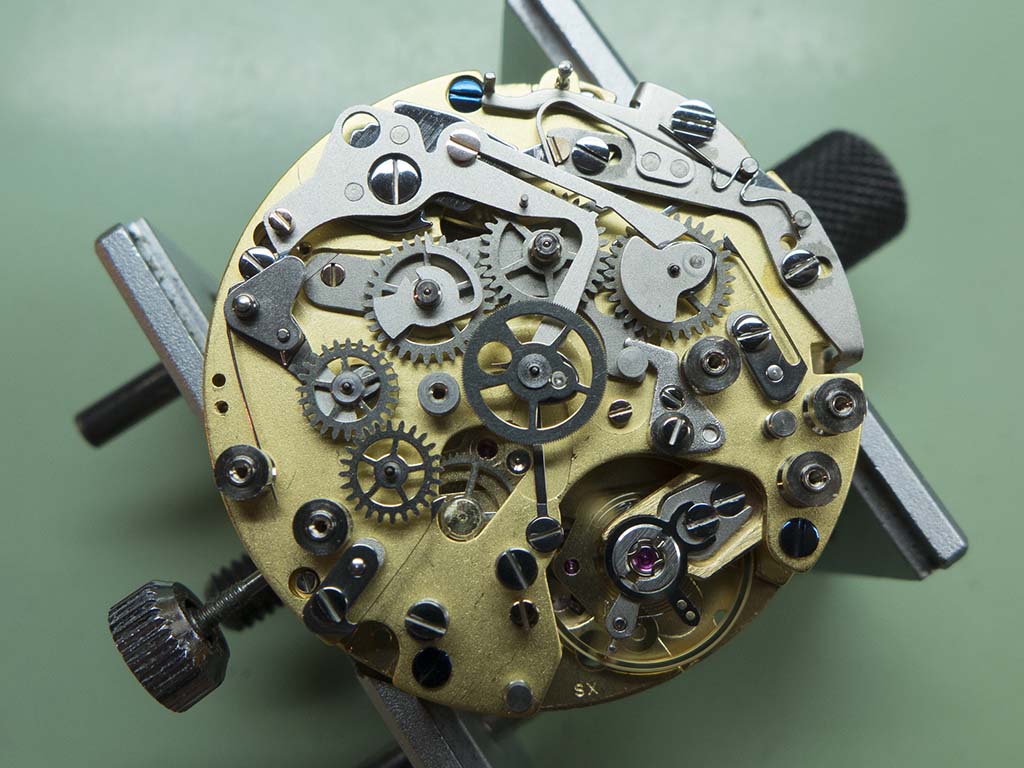

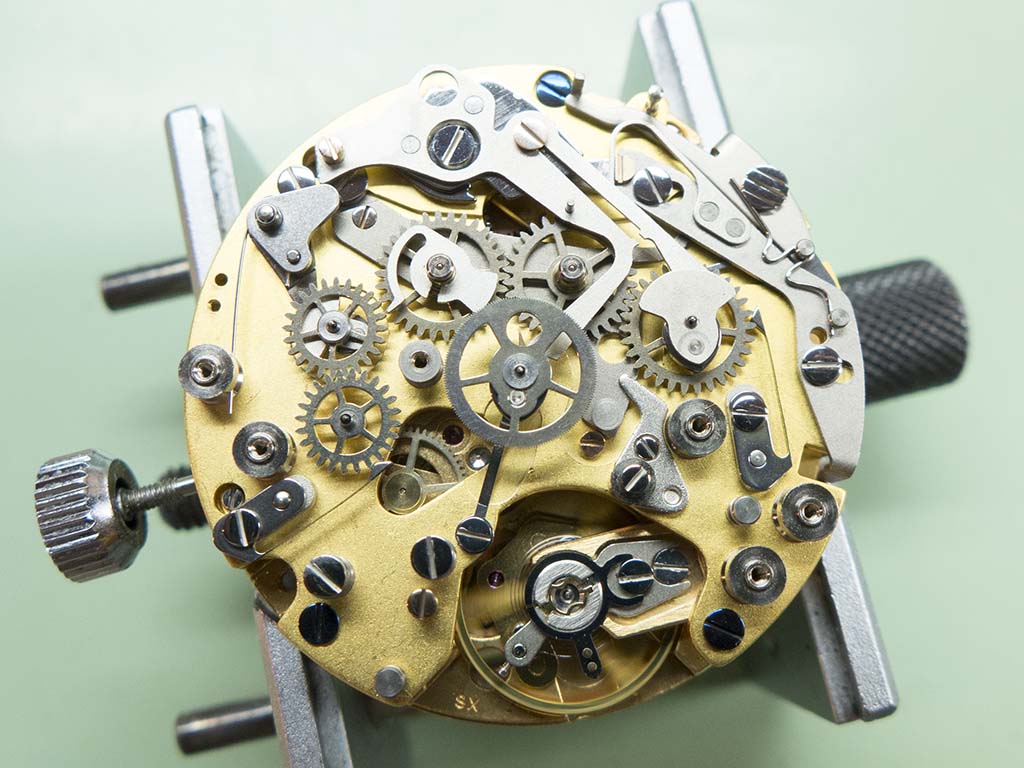

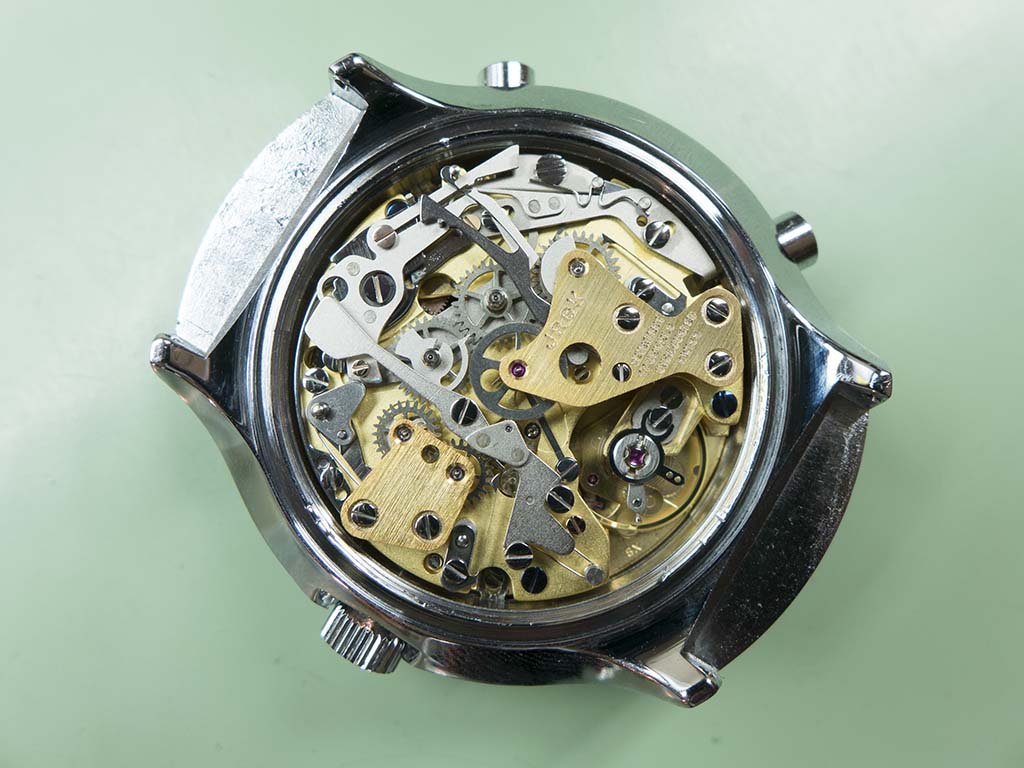

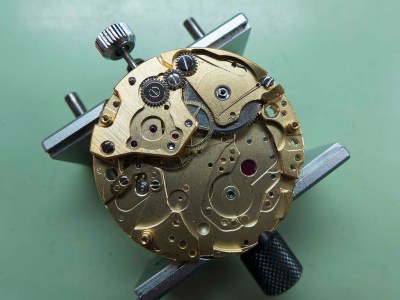

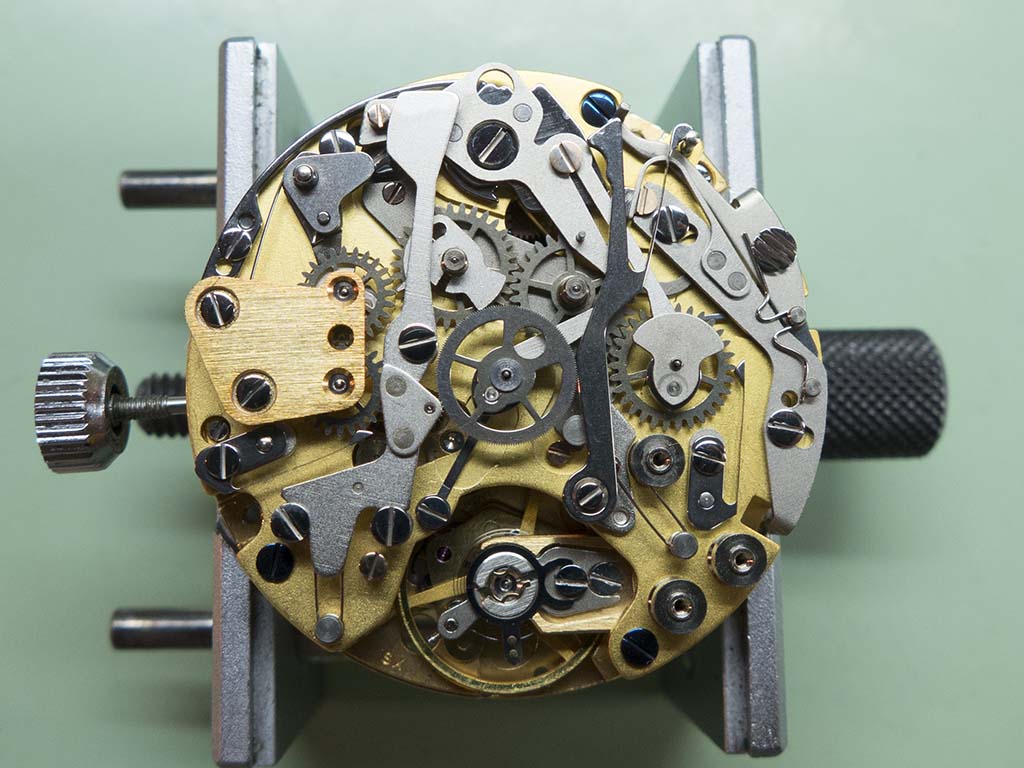

The movement is all back together in this shot….

Thermidor chronograph calibre 12

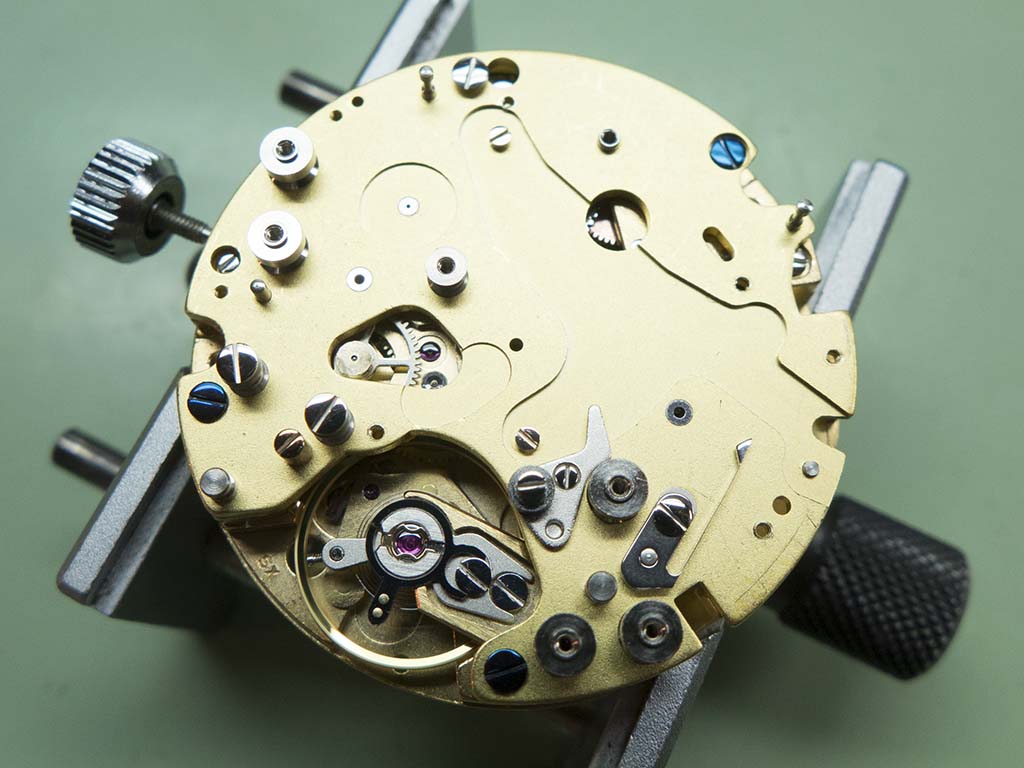

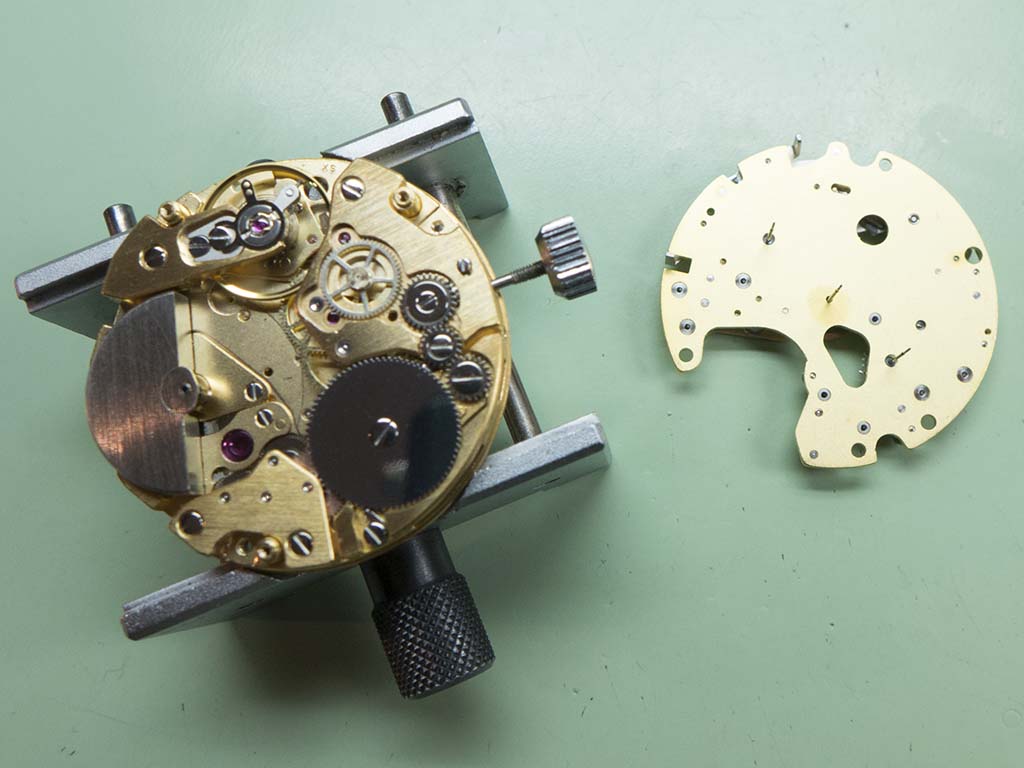

…. and here’s a demonstration of the semi-modular design, the chronograph layer is removed in this shot. You can see the three extended pivots poking through the plate 🙂

Thermidor chronograph calibre 12

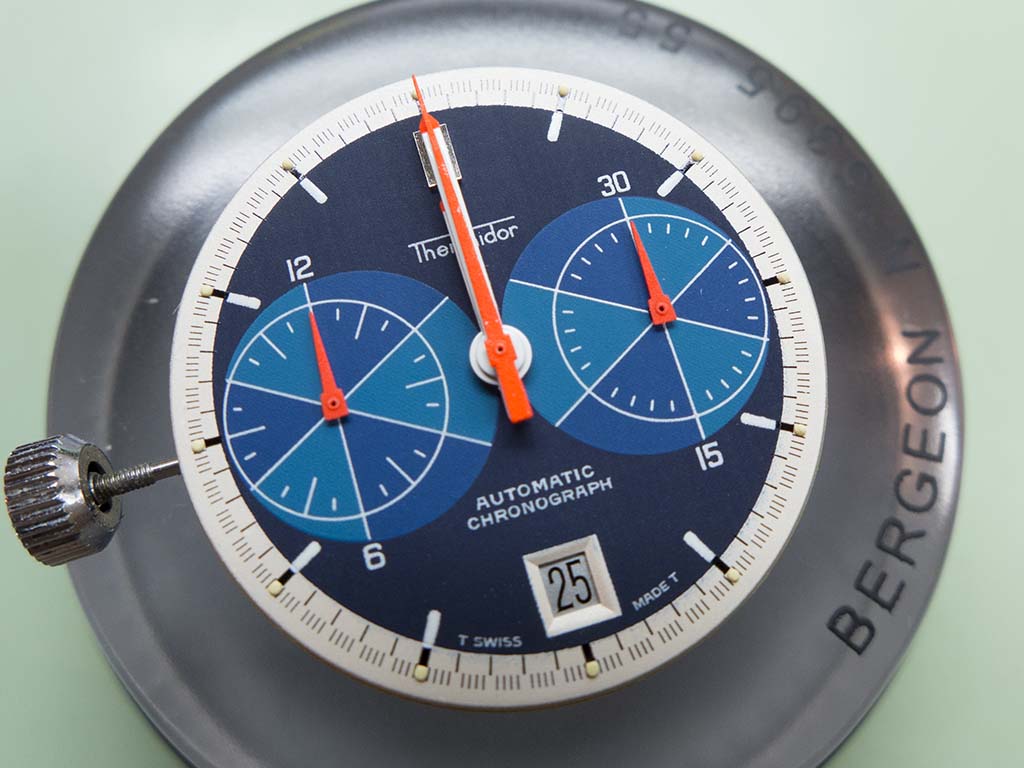

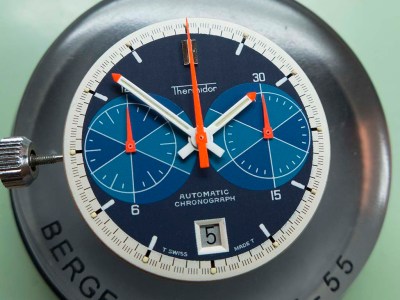

Hands and dial back on….

Thermidor chronograph calibre 12

….movement back in….

Thermidor chronograph calibre 12

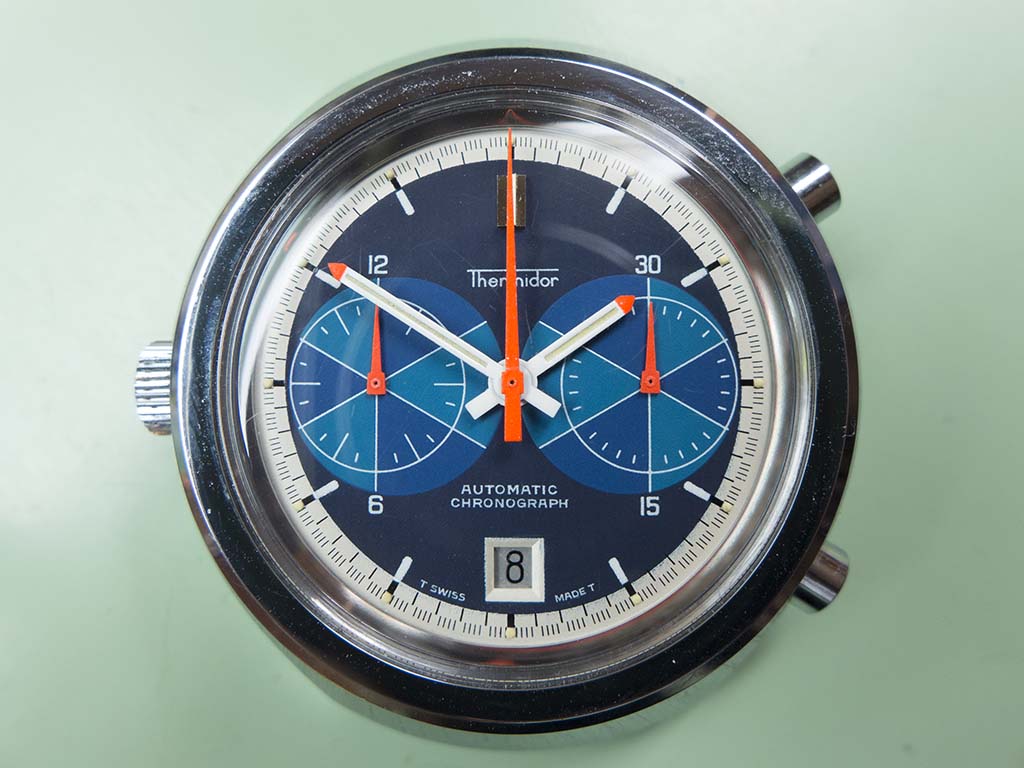

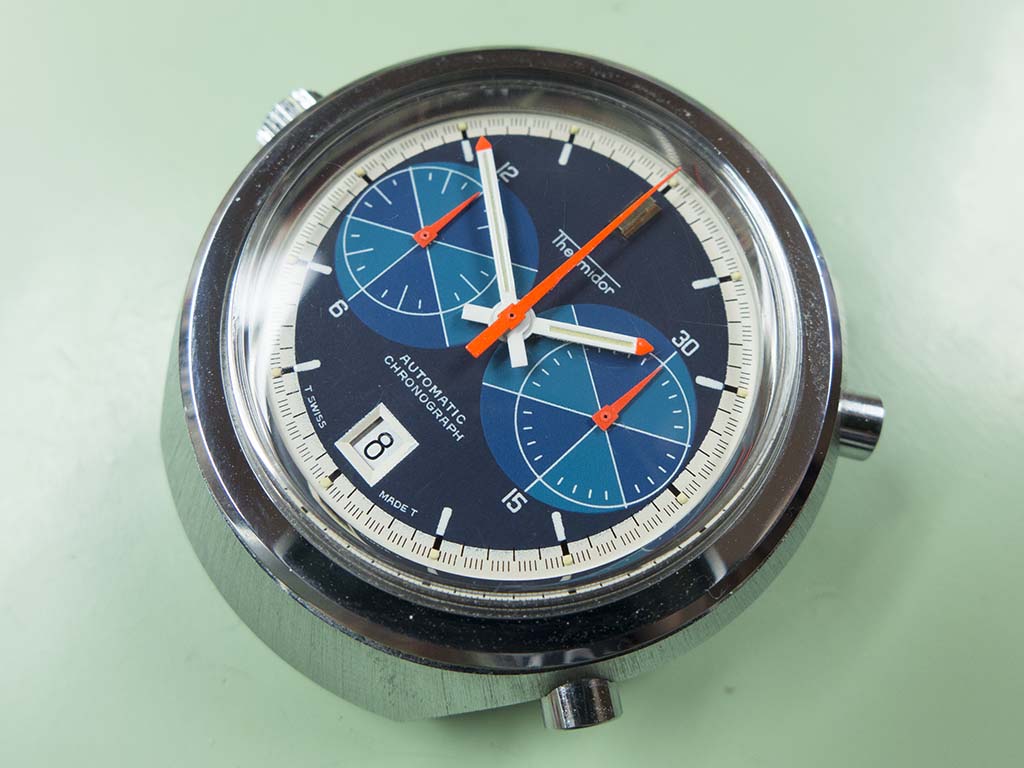

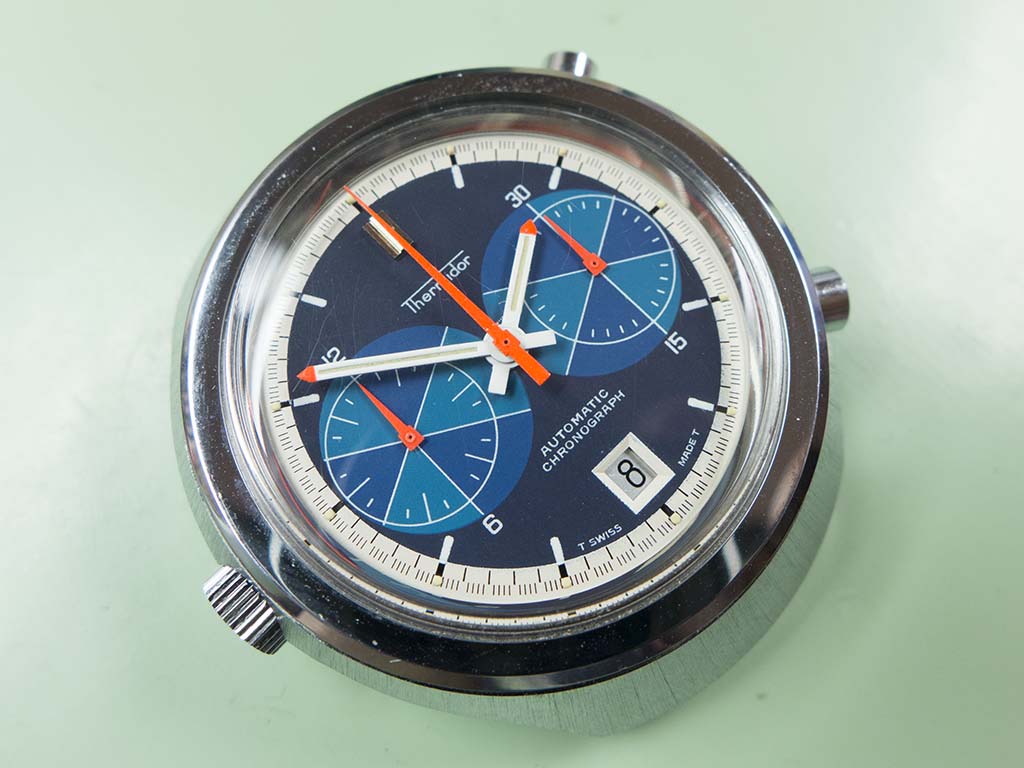

…. the caseback refitted and it’s done. A handsome looking watch I think you’ll agree, these Kelek powered models are an affordable way to try out a cal11/12 powered chronograph.

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

Thermidor chronograph calibre 12

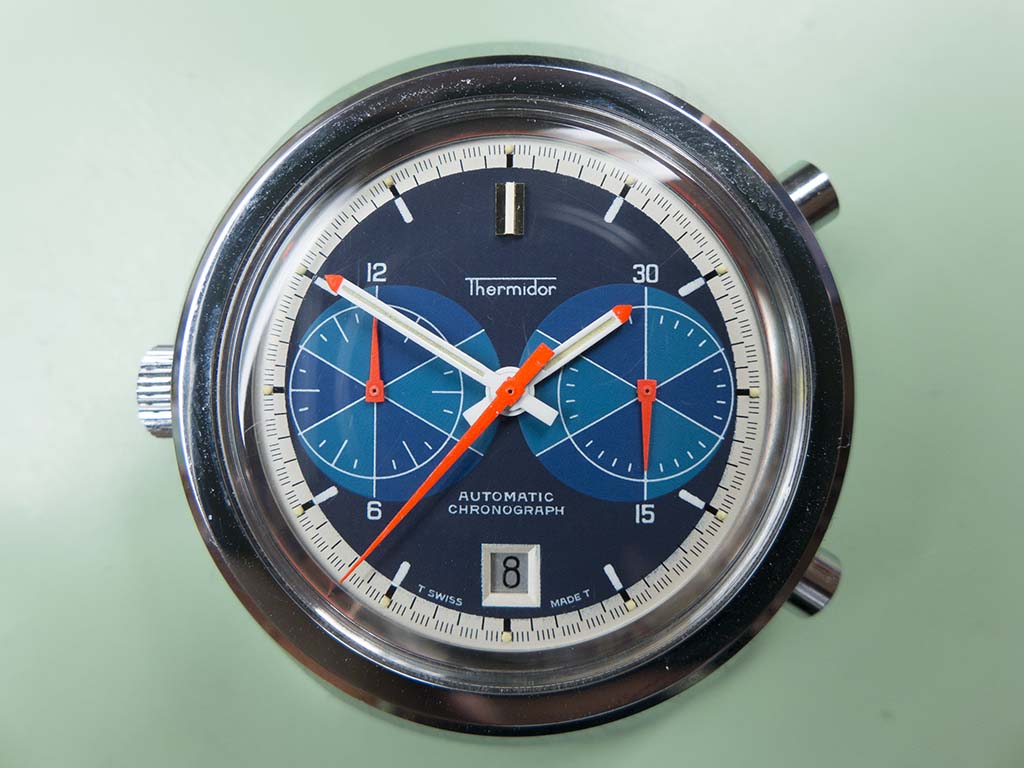

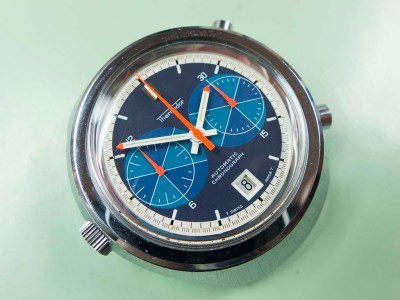

A quick shot with the chronograph running 🙂

Thermidor chronograph calibre 12
