Seiko 6217-8001

I’ve previously featured a 62mas where I said it’s one of my favourite vintage Japanese dive watches, so there’s no apologies for featuring another. This example came in for a movement service and was in pretty good shape considering the age. The hands are missing because it came to me via James Hyman who’d already relumed the dial and handset, there’s no point putting the hands back on if they’re coming straight off again!

P1010975a

With the caseback removed the movement looks in reasonable shape with no obvious signs of butchery!

P1010977a

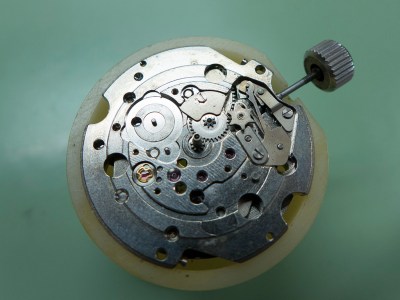

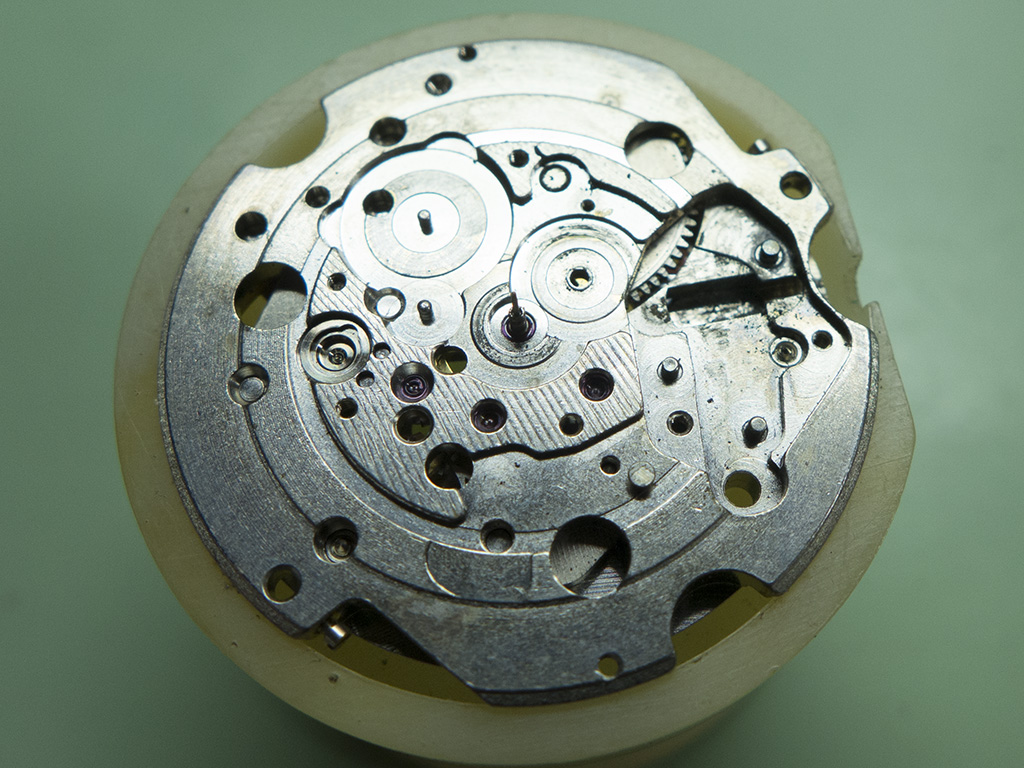

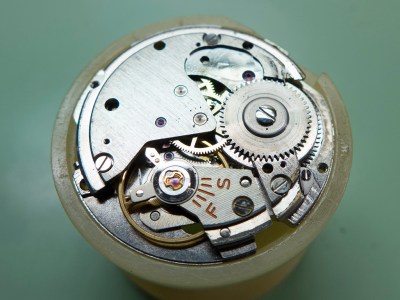

During the strip down it continued to look good, just dried lubricants visible, these are the little black dots here and there, and are actually a mixture of dry lubricant and tiny particles of metal! Heres a few pictures of what you can typically expect to see in a movement that hasn’t been serviced for a good few years.

P1010978a

P1010979a

P1010980a

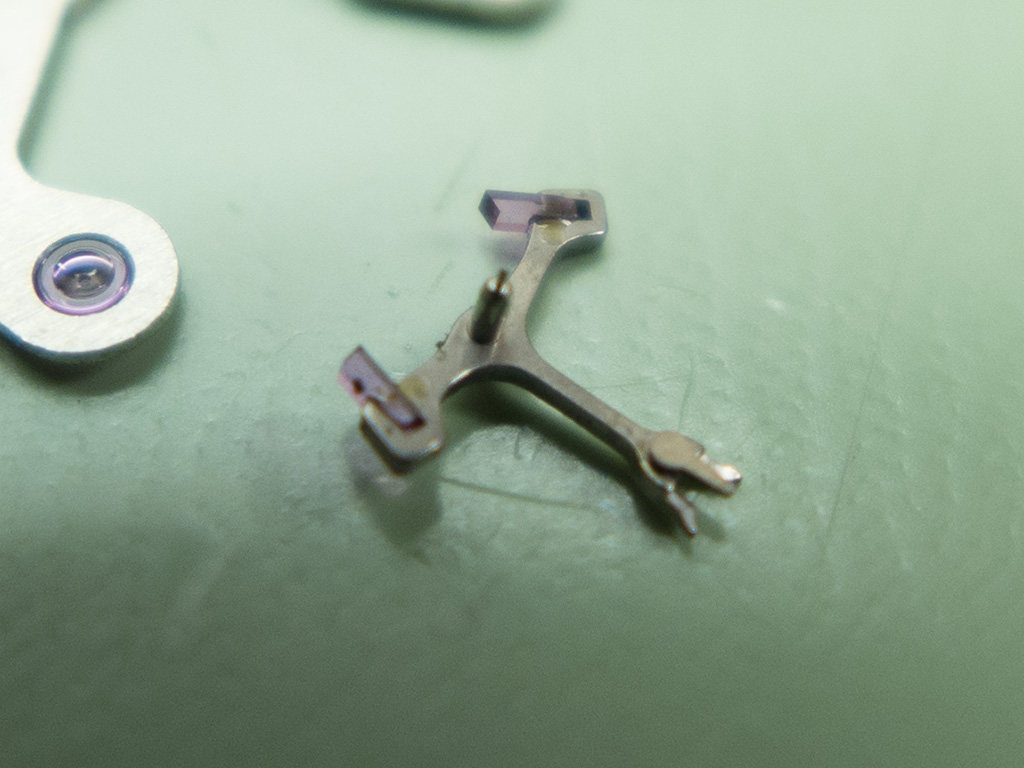

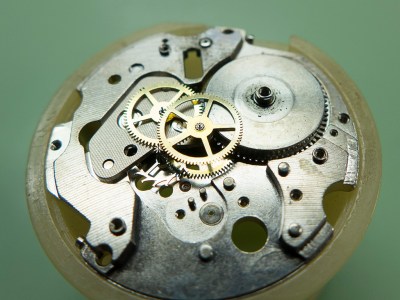

It had even migrated to the pallet fork. It doesn’t take much to stop a mechanical movement and I’m sure if this wasn’t already stopping it wouldn’t be long before it id.

P1010981a

P1010982a

P1010983a

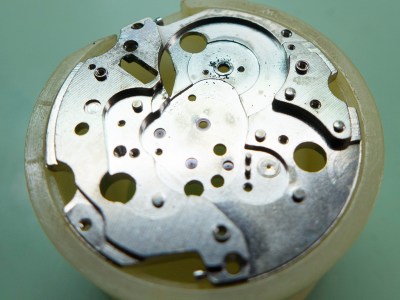

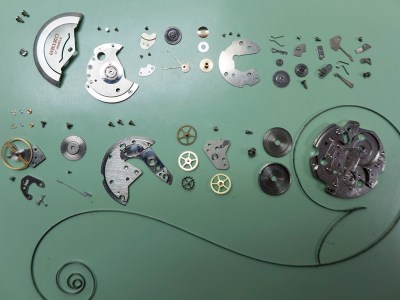

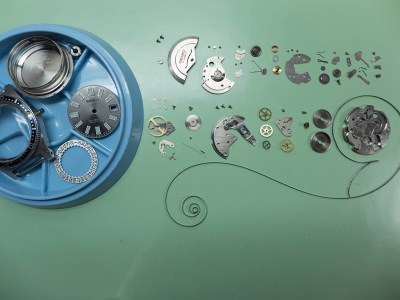

With the movement fully stripped it was ready for a trip through the cleaning machine, prior to inspection.

P1010985a

P1010987a

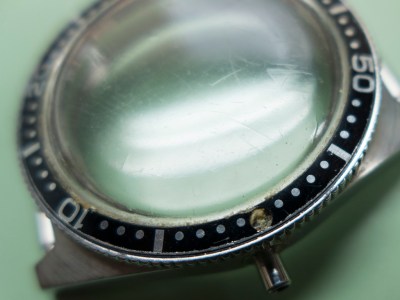

Whilst the components were cleaning I turned my attention to the case. The lume had dropped out of the insert and the bezel was seized solid so there was a couple of jobs there to start with.

P1010988a

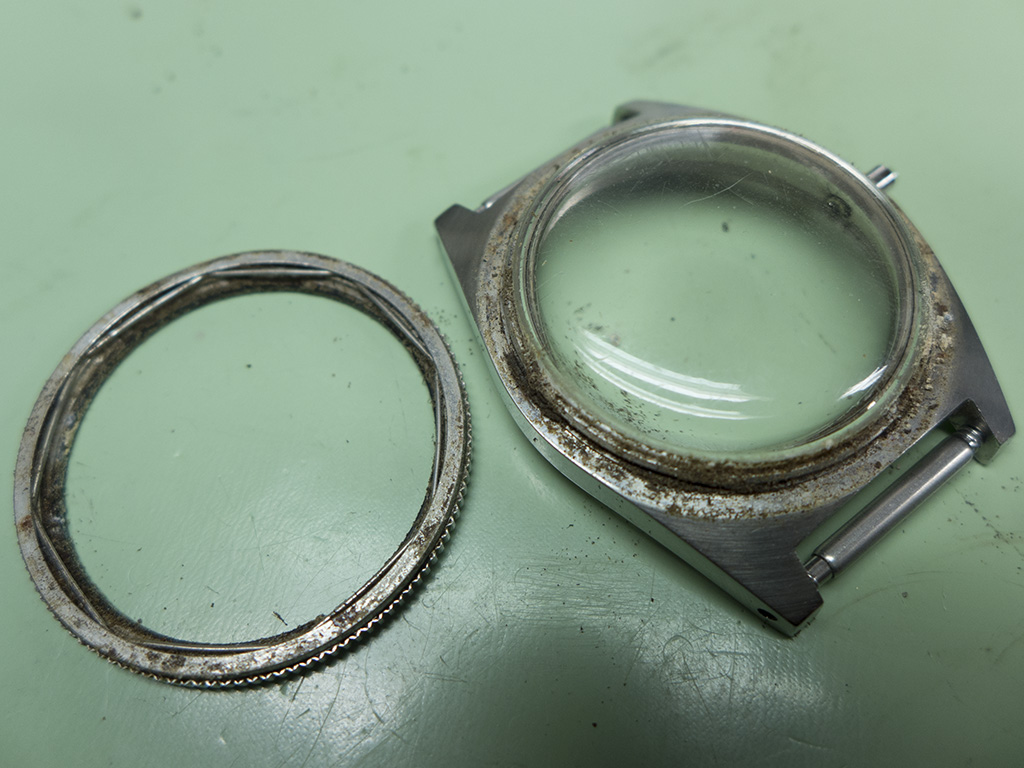

With the bezel finally removed it was hardly surprising it was seized! You can see these earlier bezels (like the 6105-8000 one) are held in place with a wire spring as opposed to an o-ring.

P1010989a

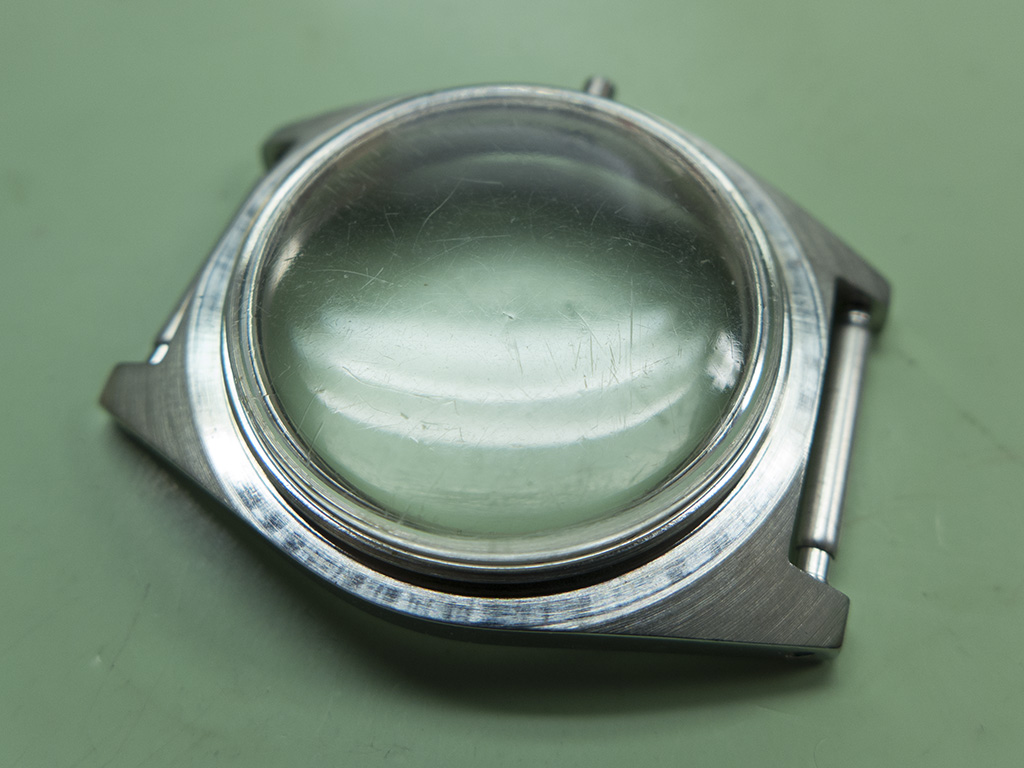

With the case components ultrasonically cleaned I thought the crystal looked a bit worse for wear. As there was no cracking and it looks like the original crystal I decided to polish the worst of the scratching off as opposed to replacing it.

P1010992a

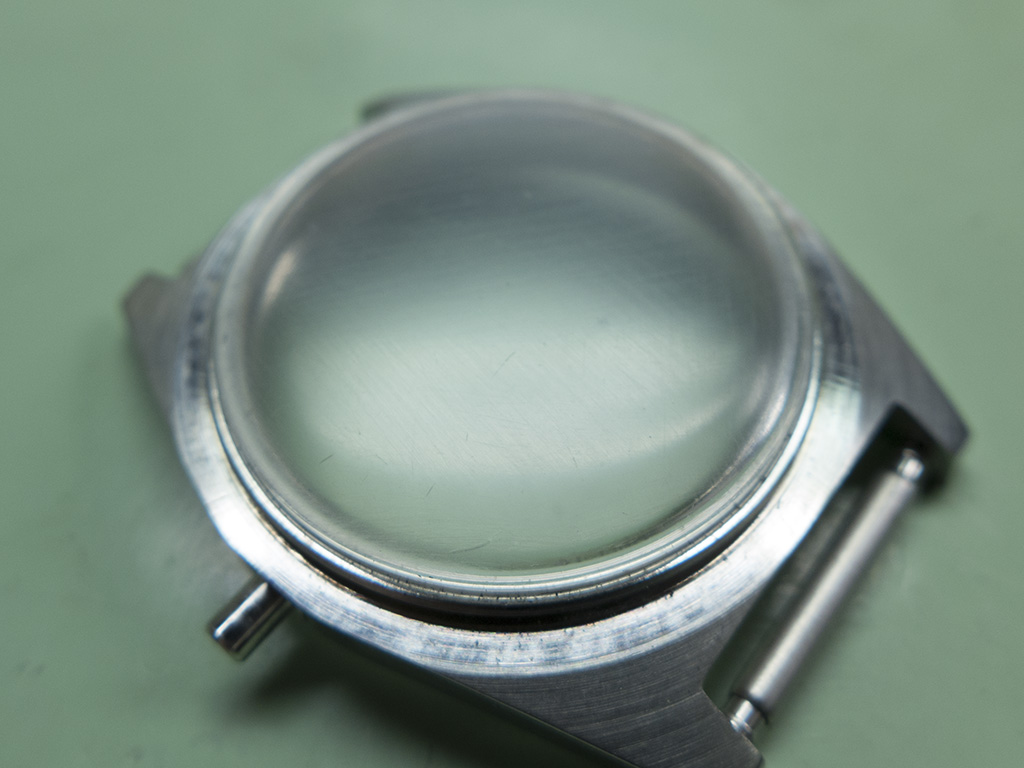

Take a deep breath and attack the crystal with some 2400 grit emery paper, sanding across the direction of the worst scratches. As the marks disappear use finer and finer grit paper…

P1010993a

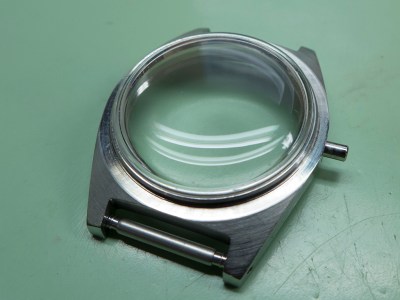

….until you can use some paste to buff it up. Not perfect but a huge improvement, and it’s original!

P1010994a

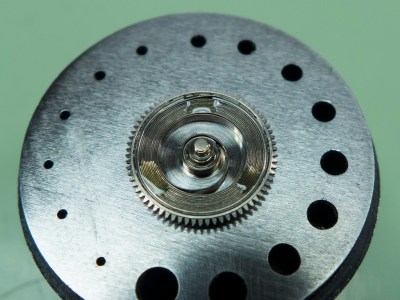

The components were inspected and the rebuild begins with the mainspring, as usual!

P1010995a

The motion work coming together.

P1010996a

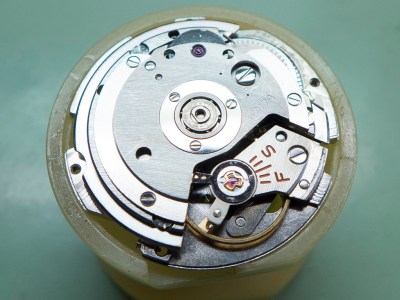

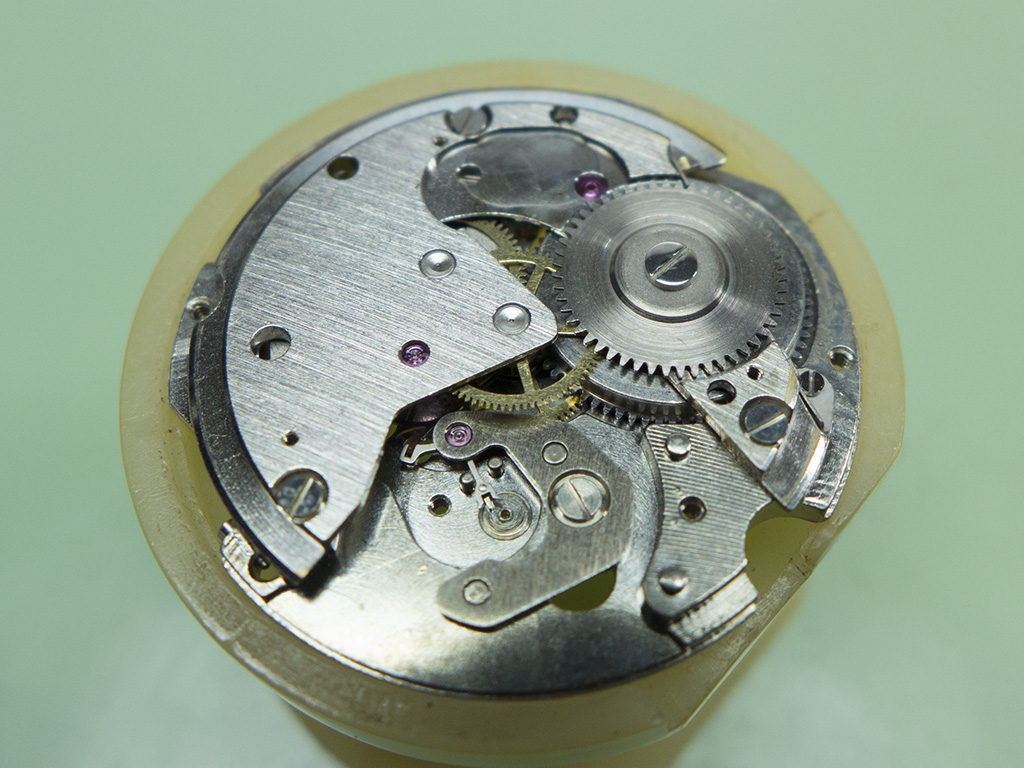

The autowind bridge back on and ticking away nicely.

P1010998a

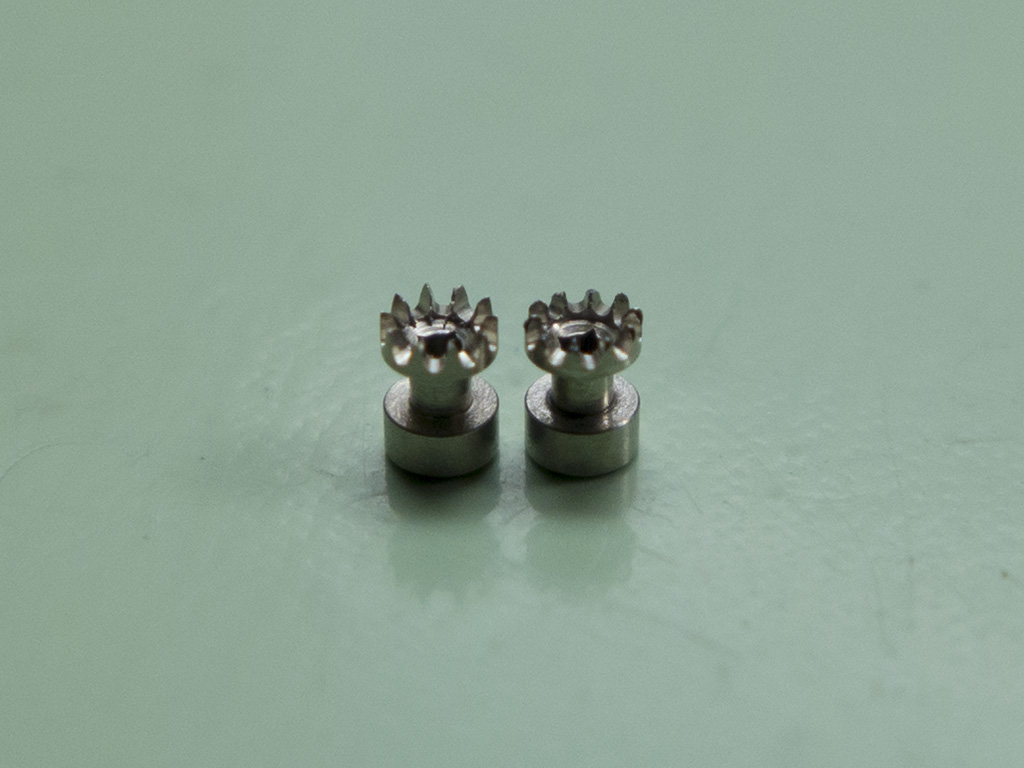

The usual problem with these calibres is a shot clutch and this one was no exception. This component is engaged with the date corrector when the watches crown is pulled out, and it (and the date corrector) tend to wear badly.

P1010999a

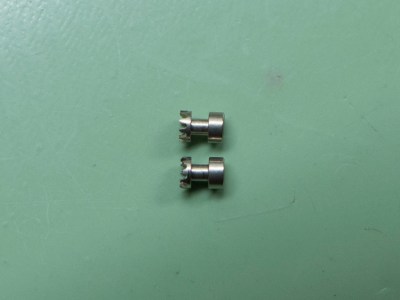

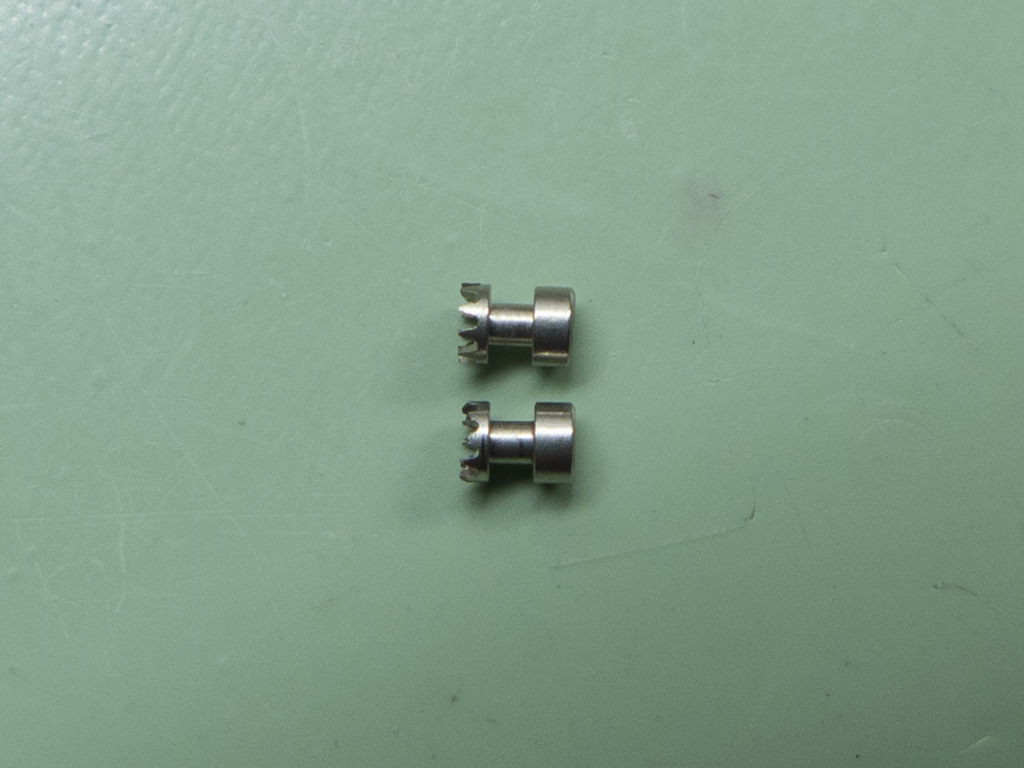

You can see where the teeth have visibly worn down in this shot. These components are very difficult to source these days, this NOS one came all the way from Australia.

P1020001a

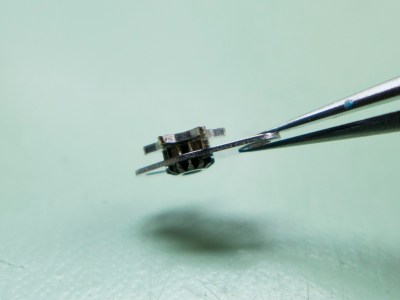

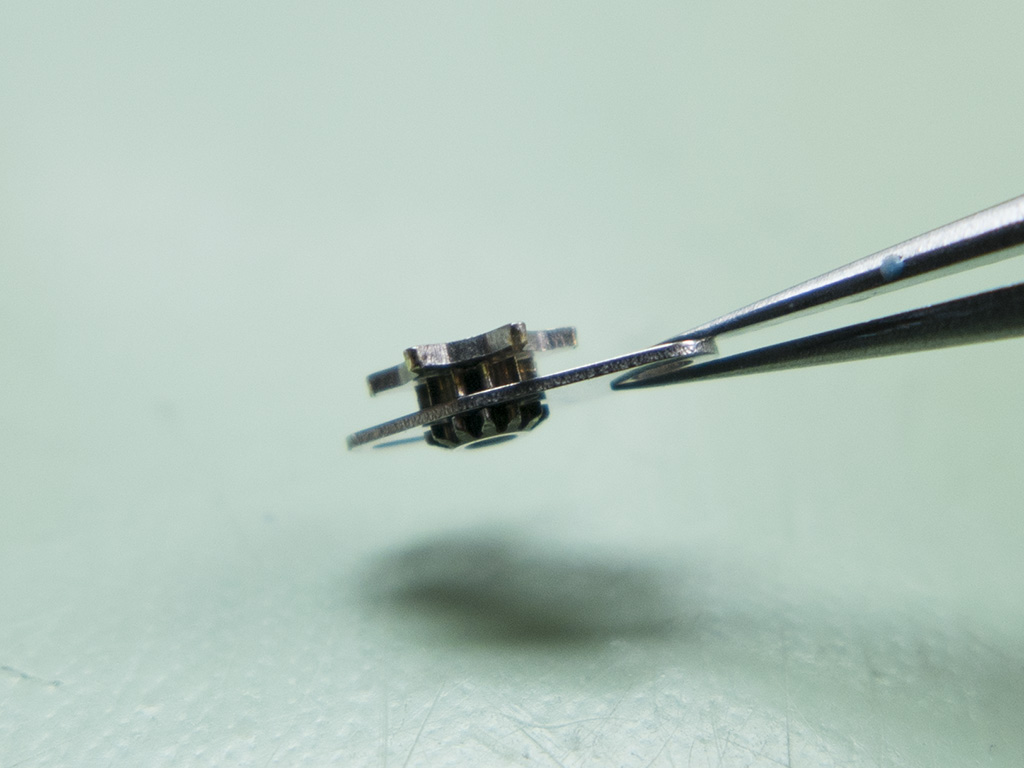

When the clutch is shot the date corrector is normally worn too, but this one was actually in pretty good shape so it was reused.

P1020002a

The keyless work reassembled.

P1020003a

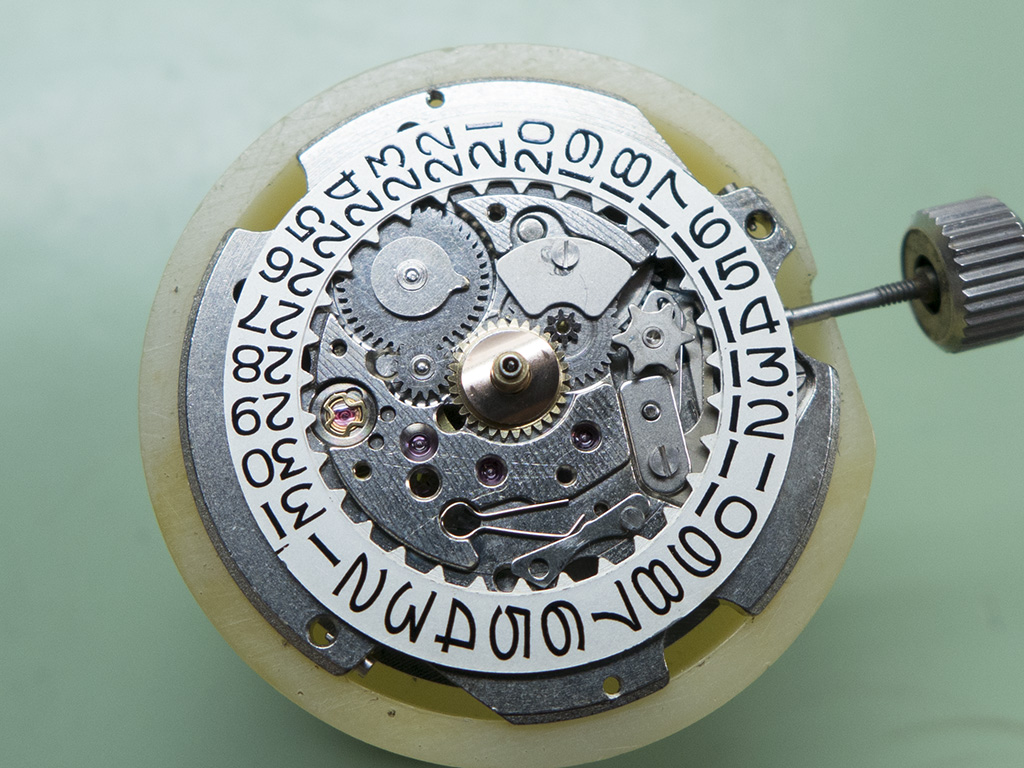

Ready for the top plate to be fitted.

P1020004a

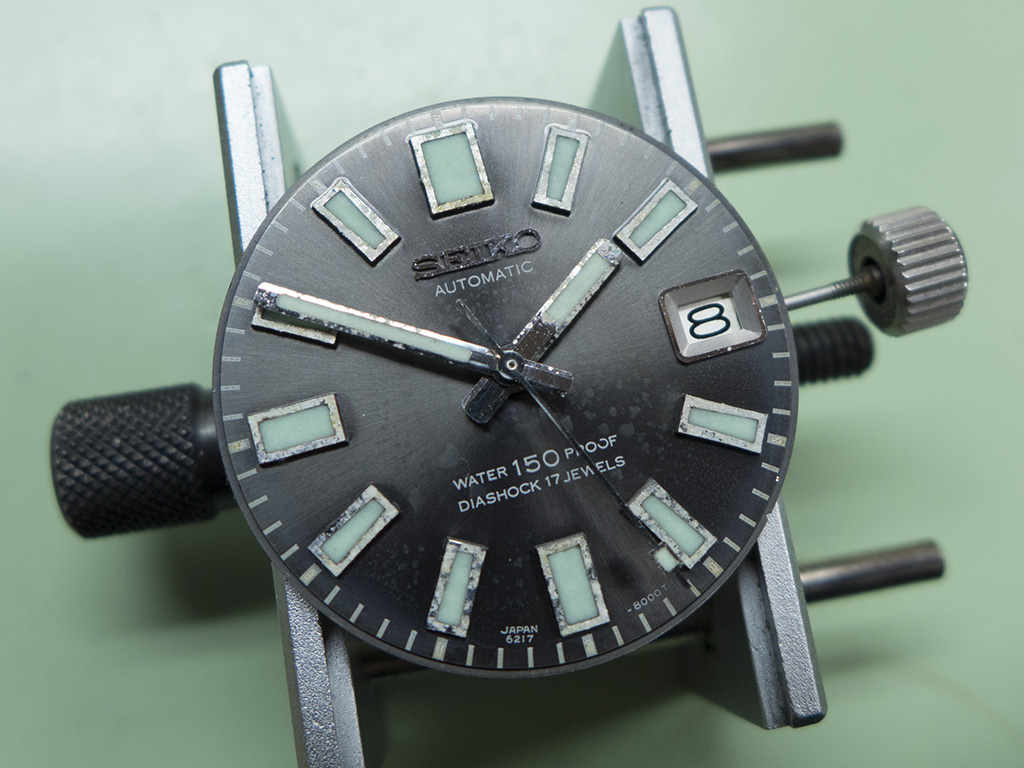

The relumed dial and hands refitted.

P1020005a

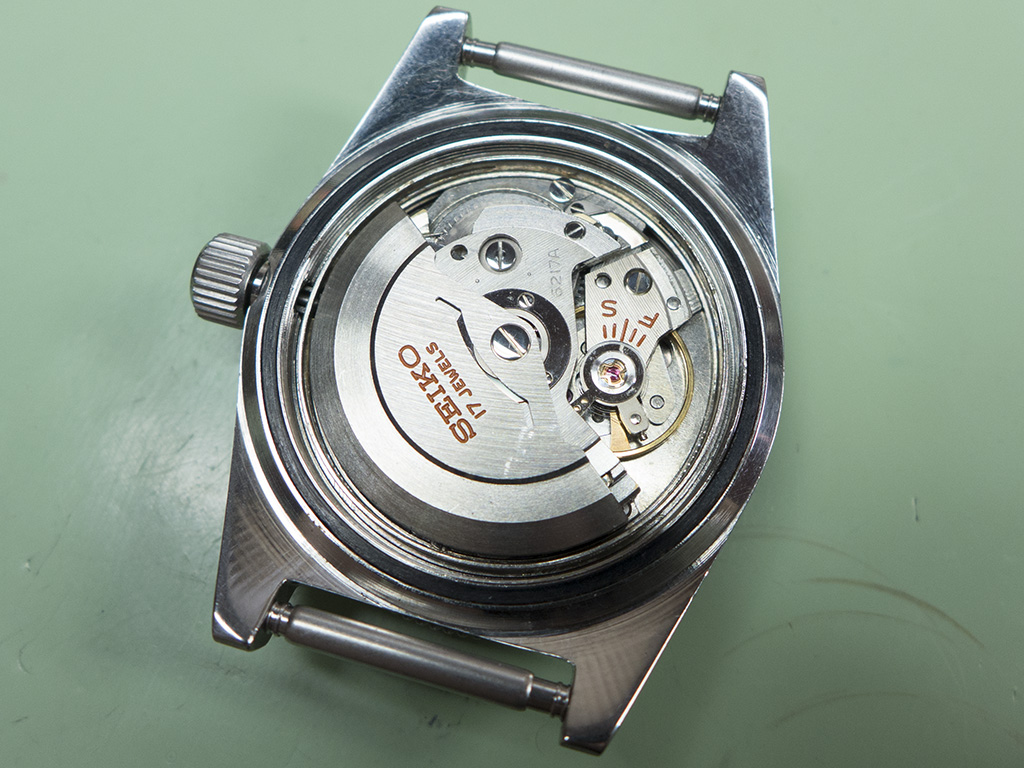

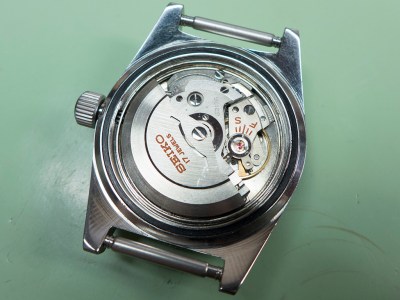

The movement is recased in this shot.

P1020006a

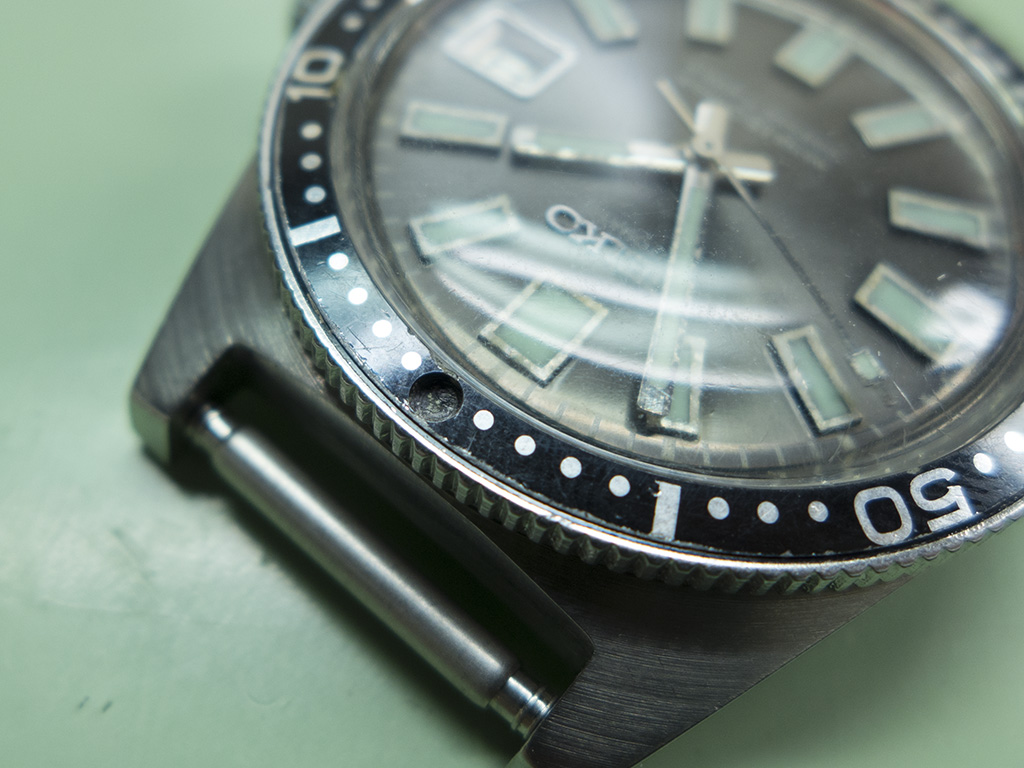

The remnants of the old lume was removed from the bezel and a tiny dot was mixed to replace it.

P1020007a

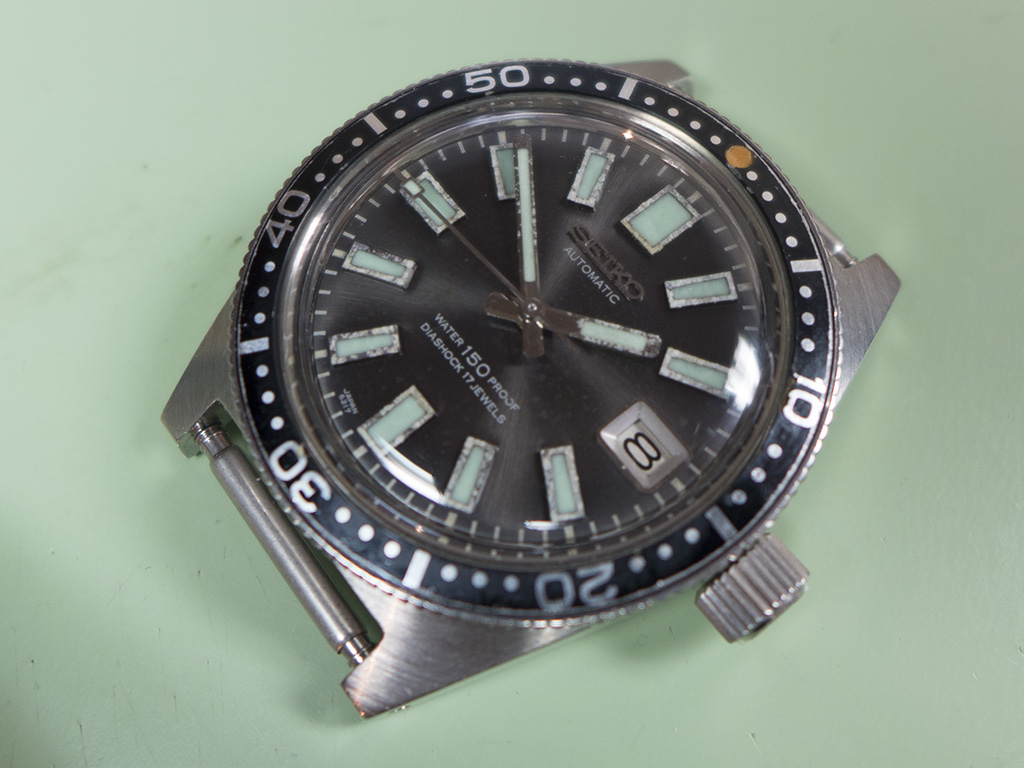

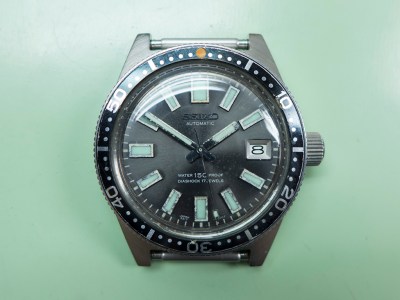

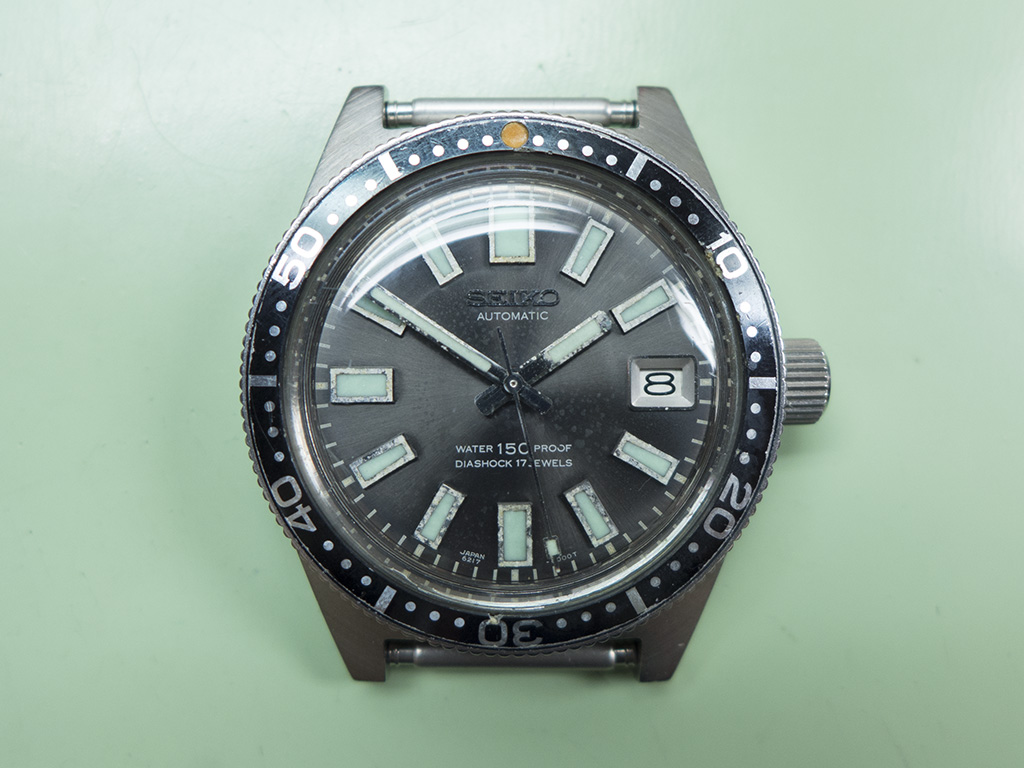

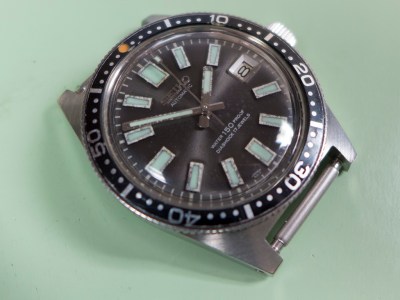

Original 62mas bezel insert pips tend turn this browny colour after nearly 50 years, so now it still has the correct vintage look. It’s turned out beautifully – have I mentioned how much I like these 62mas’s?

P1020008a

P1020009a

P1020010a

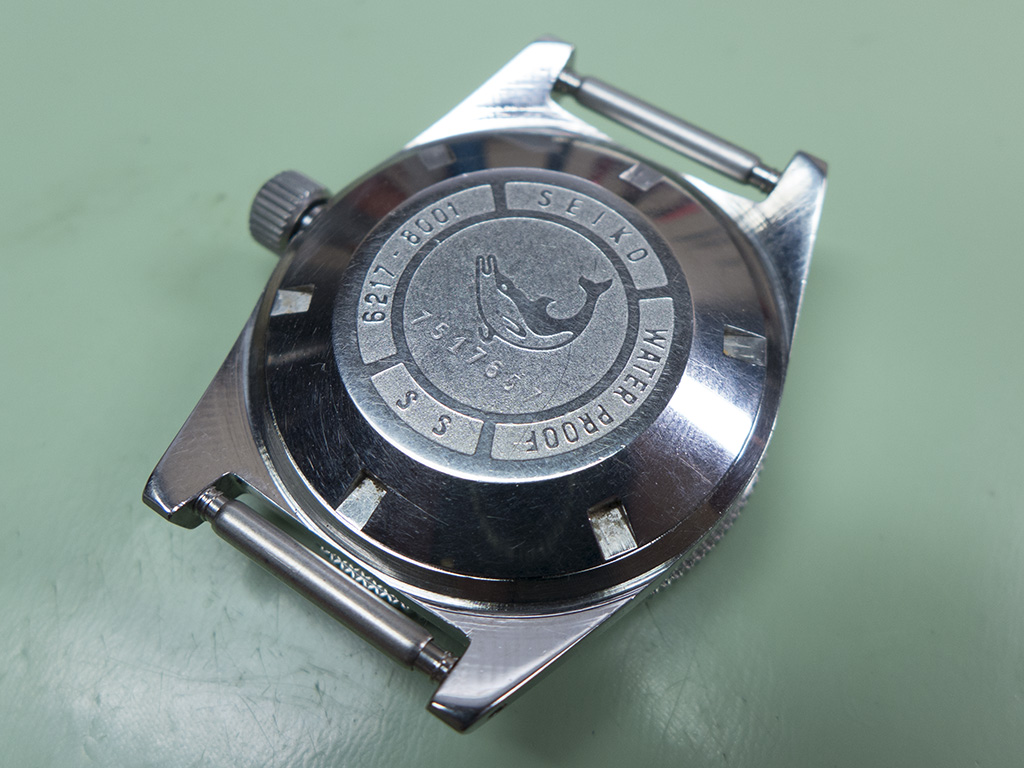

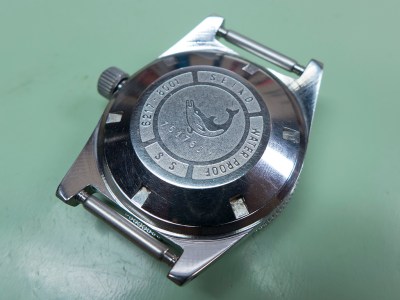

And finally what a cracking caseback, beautifully sharp. These ones from 1967 seem to survive better than the earlier ones for some reason.

P1020011a
