Universal Genève Polerouter Sub

Back in the mid fifties Universal Genève provided Scandinavian Airline crews with precision wristwatches incorporating strong antimagnetic capabilities when the airline opened their new European to California routes that cut 1,000 kilometers off the Journey. These routes were the first that actually crossed over the North pole hence the antimagnetic properties of the watches. The first commercial flight was made on 15th November 1954 and this was a huge event for Scandinavia at the time. On board the flight were the Prime Ministers of Denmark, Sweden and Norway as well as a group of prominent journalists, and there were reported crowds of over 10,000 people to witness the planes departure. Universal Genève introduced the Polerouter (or Polarouter as the model was then called) to mark this auspicious occasion. It was actually created and designed by Gerald Genta, and started life with the calibre 138 automatic movment with a centrally pivoted “bumper” rotor assembly. However, this was soon superceded by the calibre 215 automatic with its famous patented “microtor” movement. It was at this time the models name was changed to Polerouter. The example featured is a Polerouter Sub which is powered by the calibre 1-69 movement (with date) and was introduced in 1962, the calibre 69 was identical apart from having no date complication. This particular example was a non runner and the hands were locked in position, turning the crown to try and adjust them had no effect.

poleroutera

With the caseback removed you can see the famous Microtor assembly, a novel approach to autowinding!

P1020442a

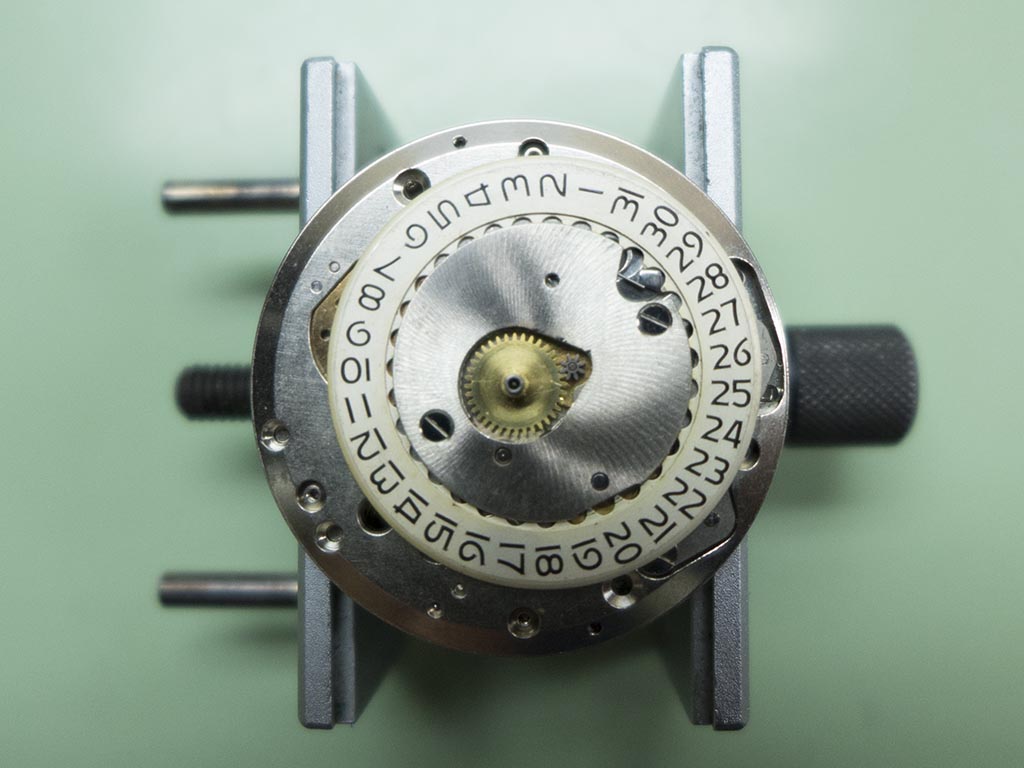

With the hands and dial removed you can see another feature of the calibre 1-69, the offset date ring.

P1020444a

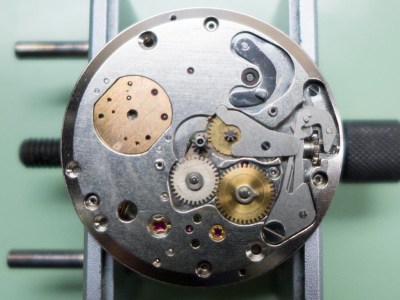

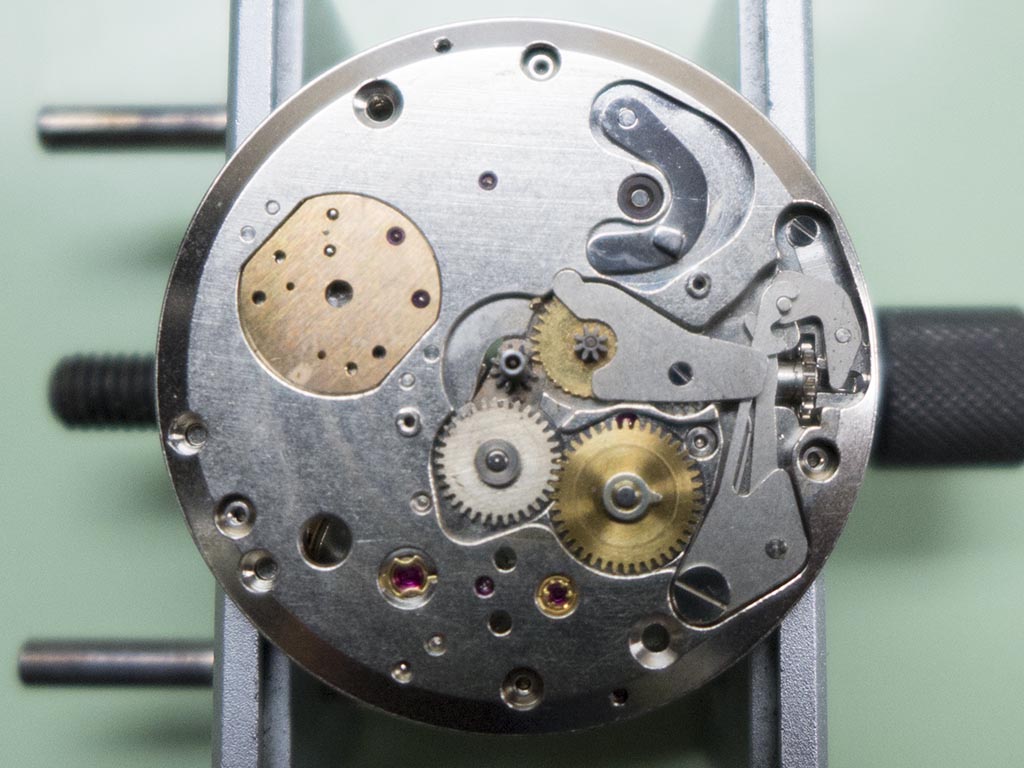

With the top plate removed we can begin to see why the hands are stuck. The canon pinion is seized solid to the centre wheel, so much so that as someone has tried to force the hands around with the crown it’s managed to strip several teeth off the minute wheel before snapping one off the canon pinion.

P1020445a

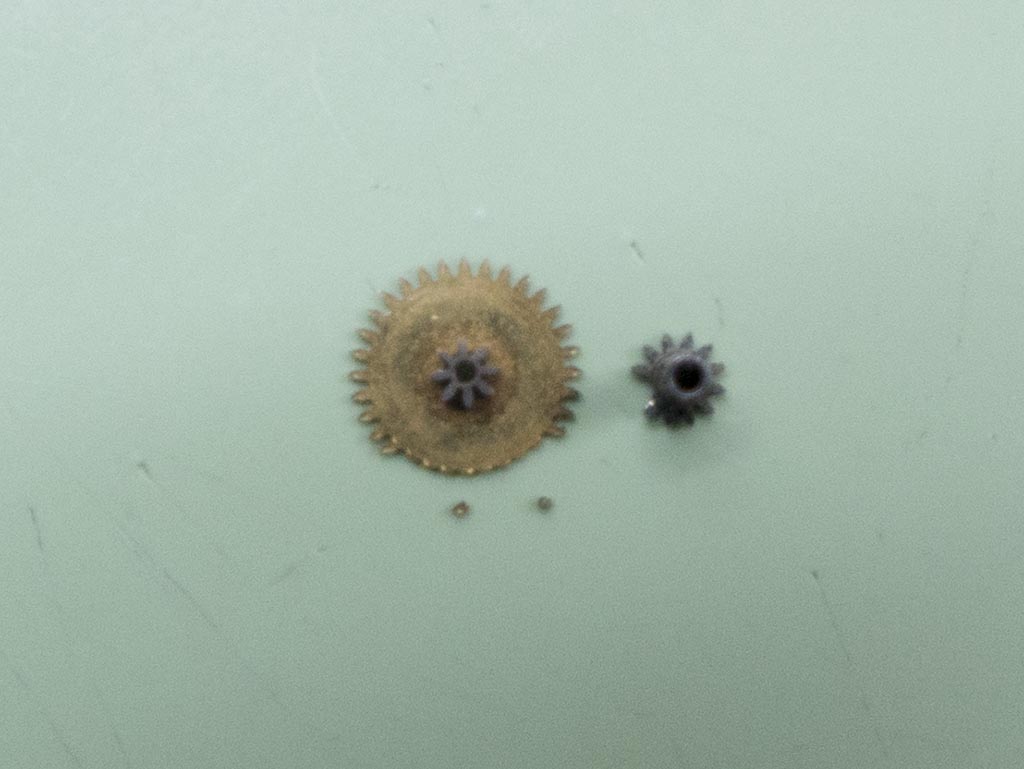

The canon pinion took some removing, I had to soak it overnight with some penetrating oil before I could get it to budge.

P1020447a

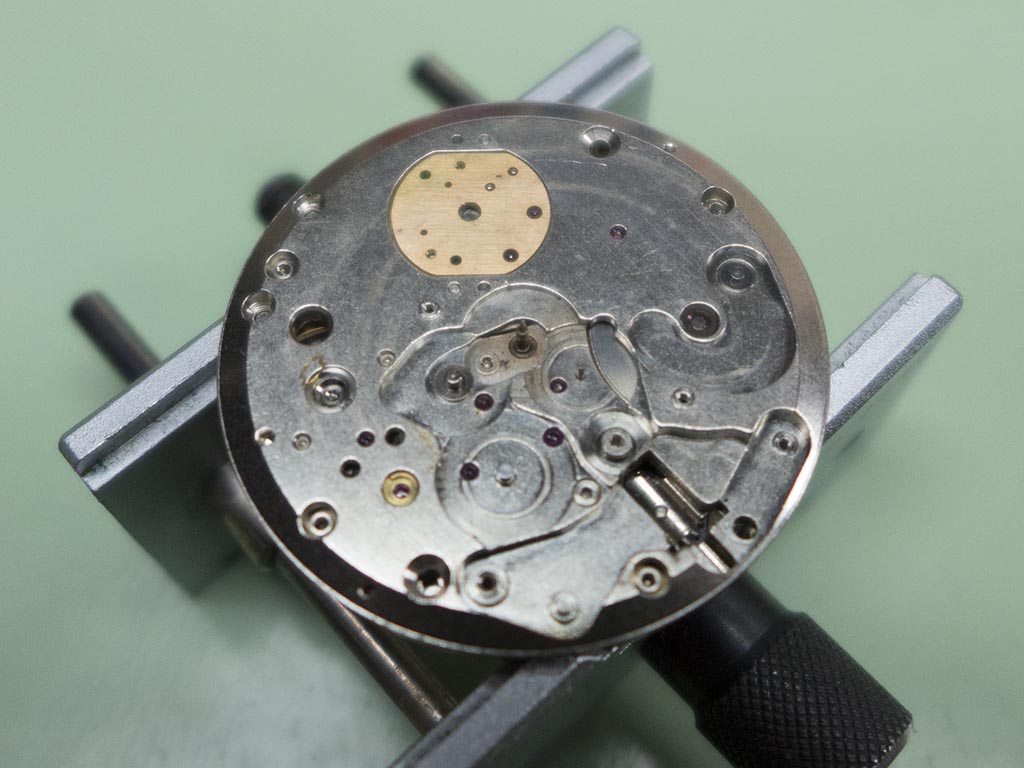

Finally the calendar side was stripped!

P1020448a

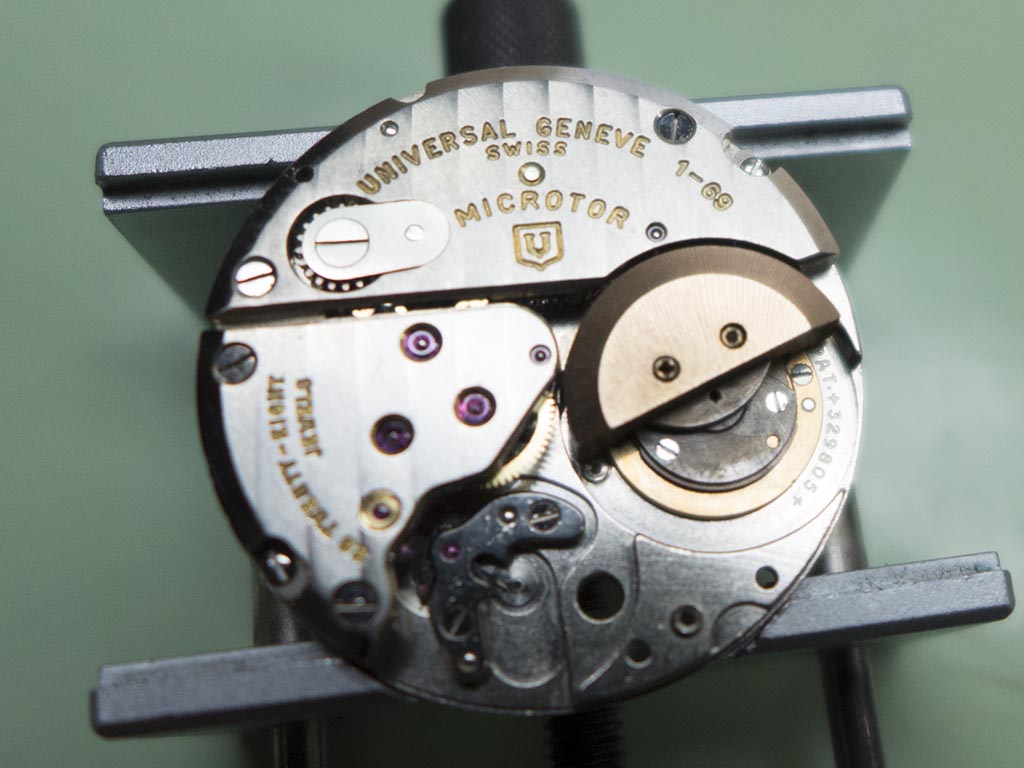

Dissassembly began on the motion work side beginning with the balance assembly.

P1020449a

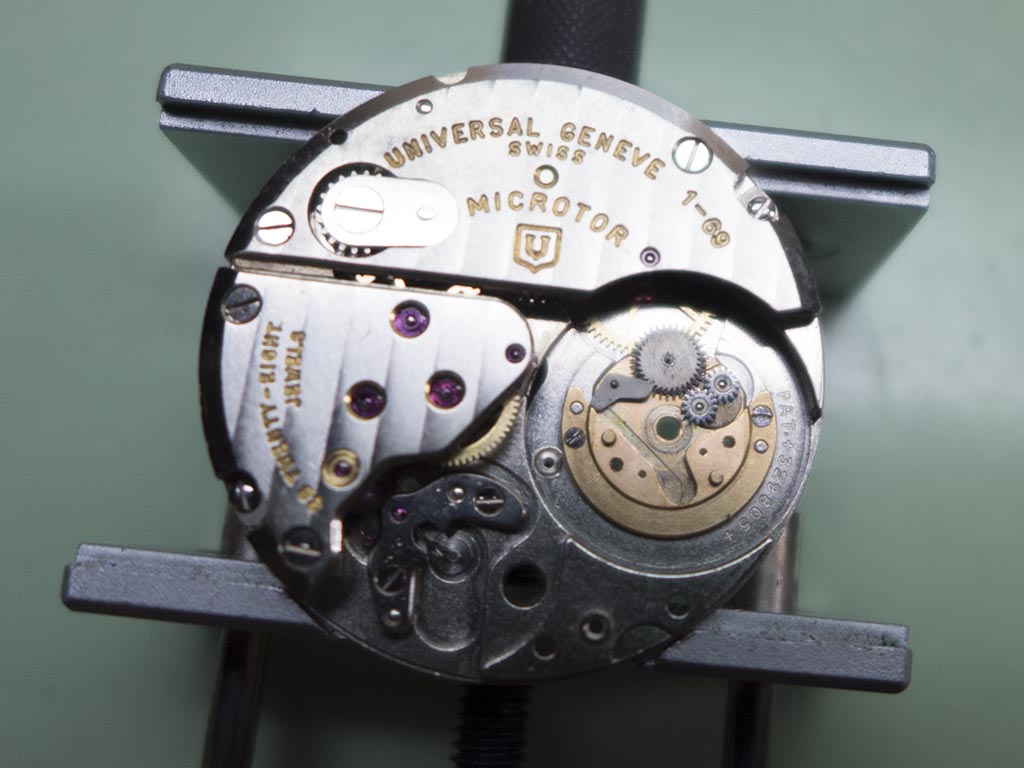

You can see the tiny reverser wheels under the microtors top plate in this shot.

P1020451a

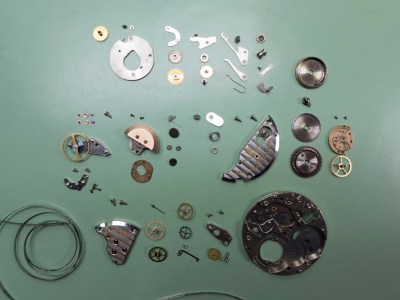

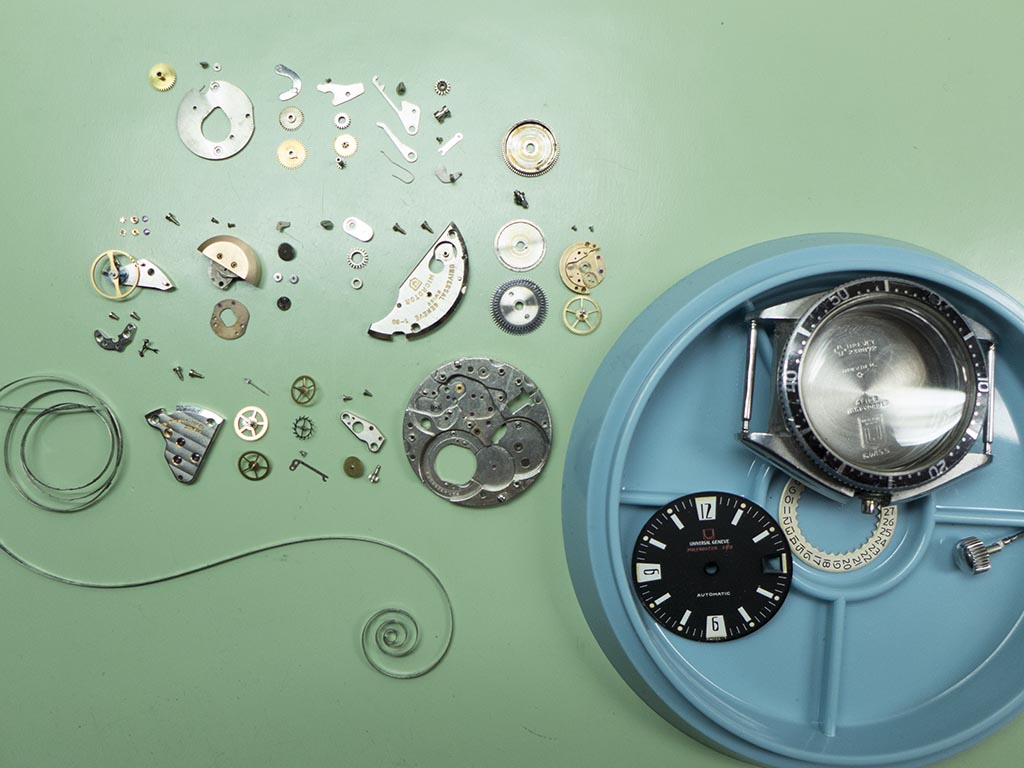

The whole movement was stripped ready for cleaning.

P1020457a

P1020458a

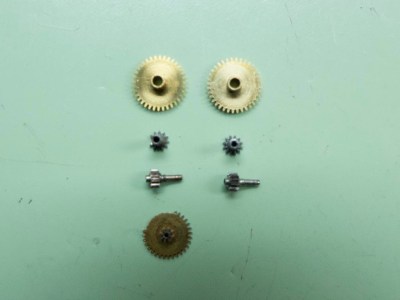

A replacement canon pinion was sourced along with an hour wheel and centre wheel, this still meant we were missing the minute wheel though.

P1020459a

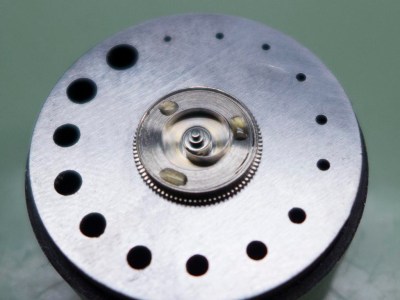

After cleaning and inspection reassembly started.

P1020463a

Here the train wheels are placed in position ready for the top plate.

P1020466a

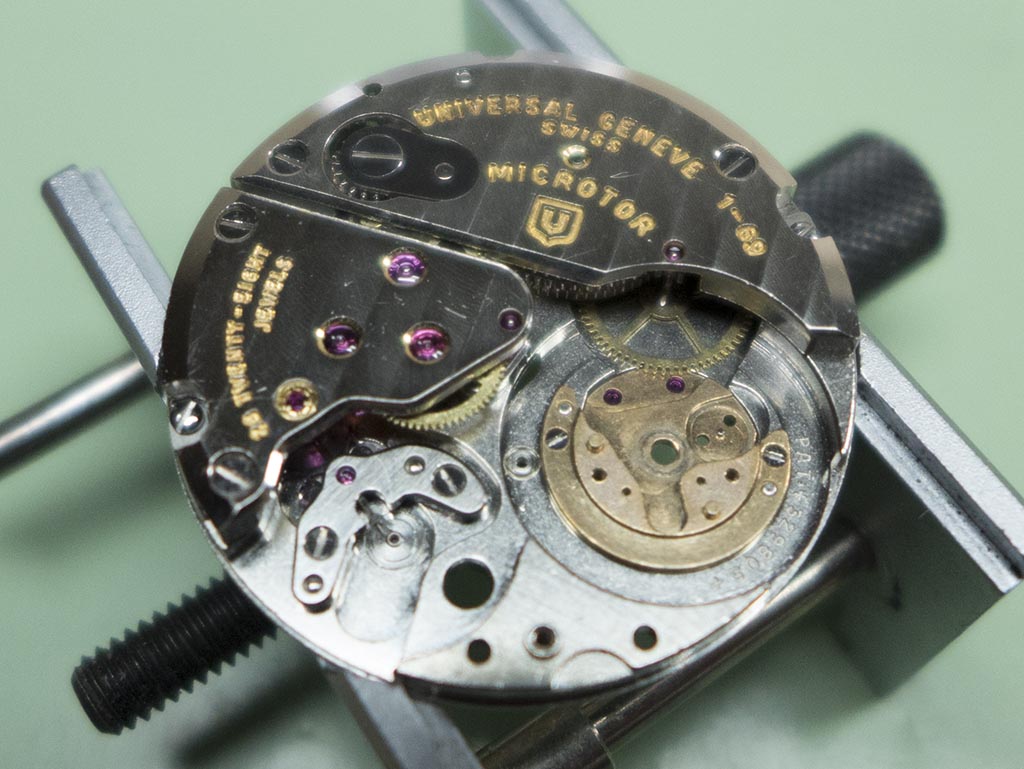

Coming together nicely.

P1020468a

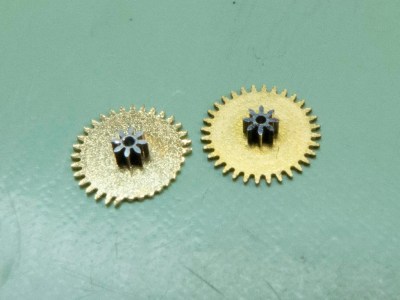

A replacement minute wheel was eventually sourced….

P1020567a

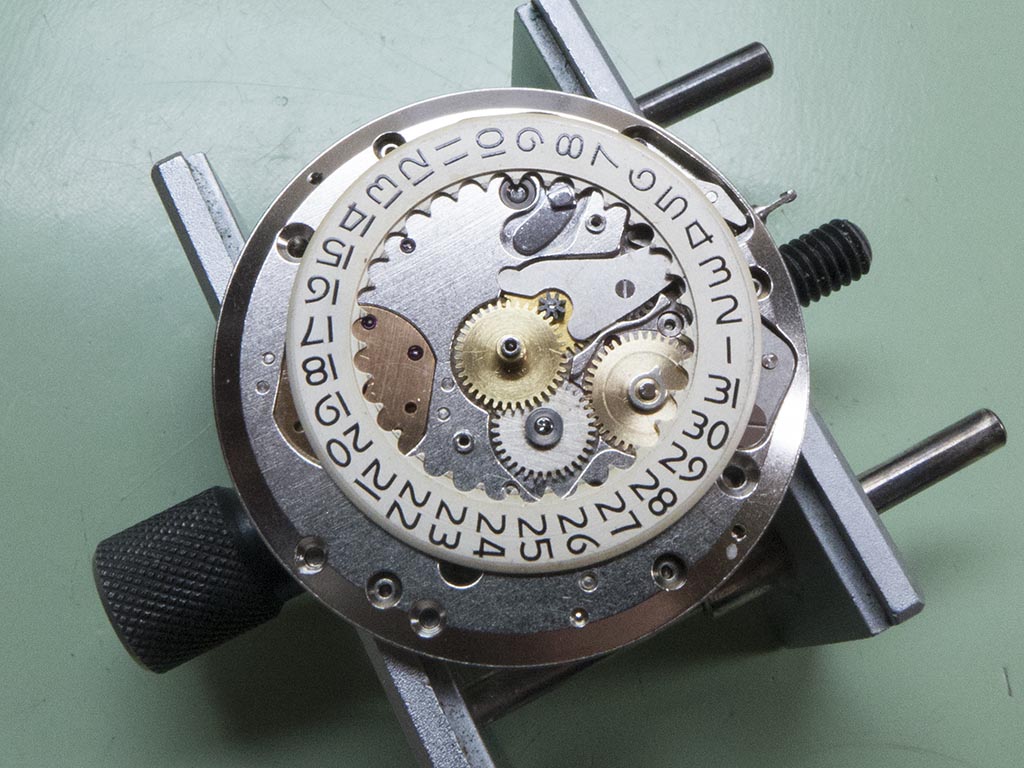

….and the movement could then be completed.

P1020568a

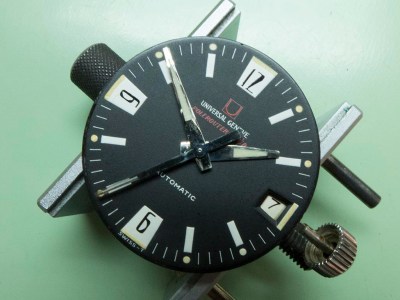

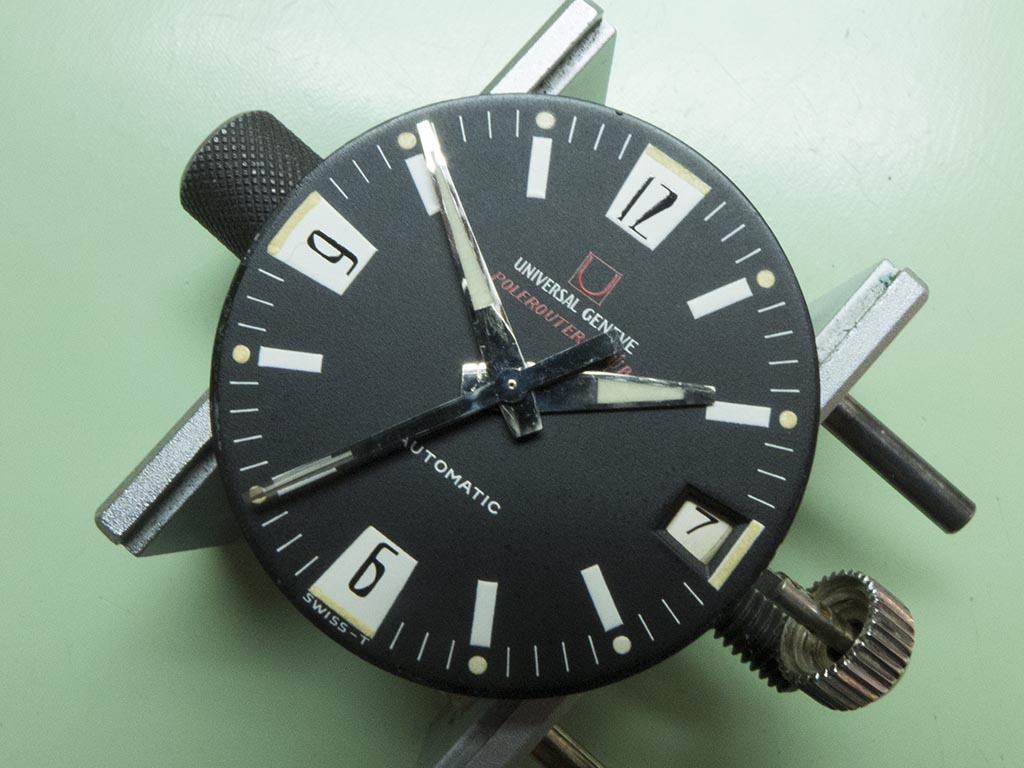

In the meantime the hands had been relumed to match the original colour, these were then fitted after the dial had gone back on.

P1020571a

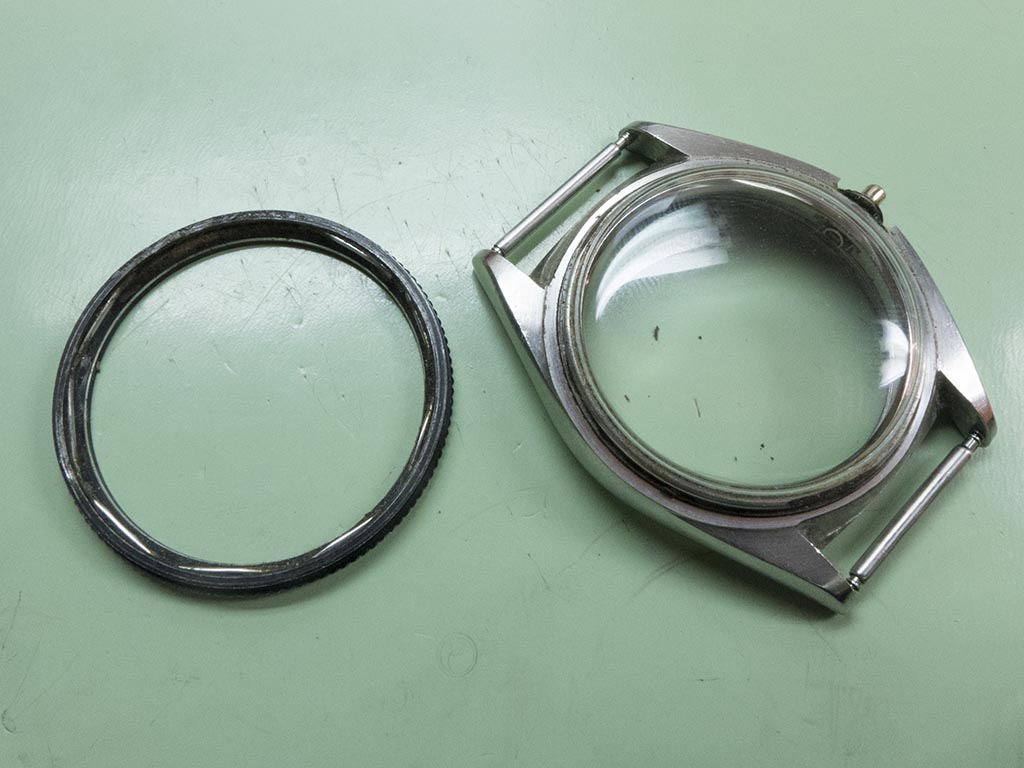

Attention now turned to the case which was stripped and ultrasonically cleaned.

P1020570a

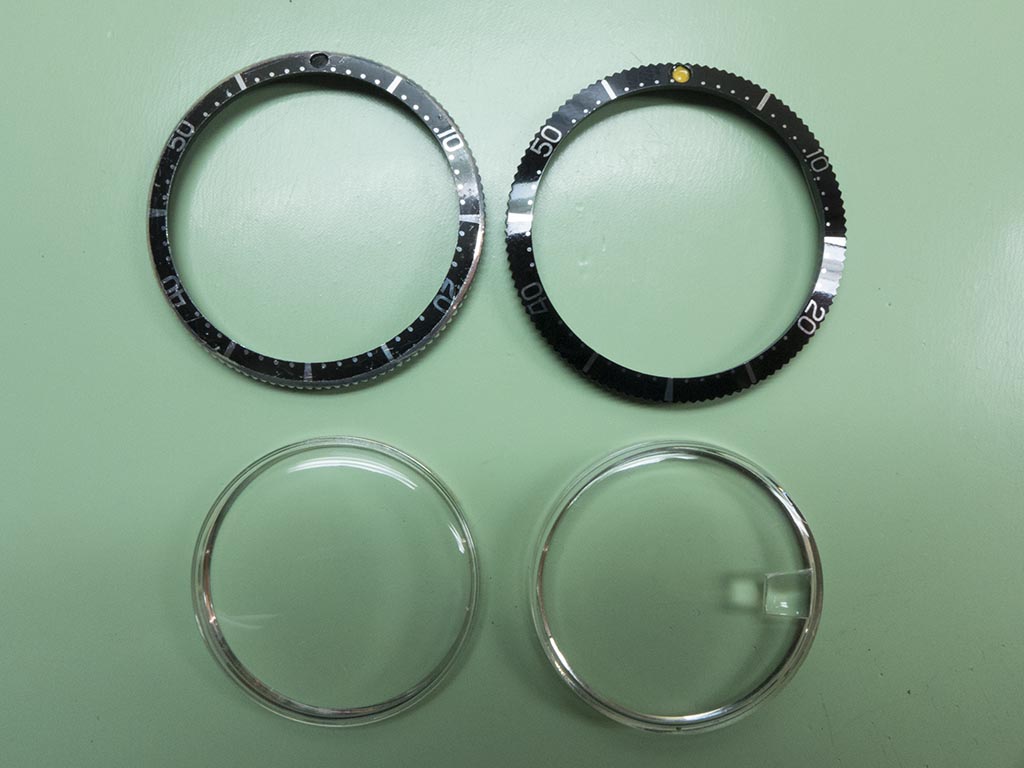

The existing crystal was incorrect as it didn’t have the tiny “U” symbol in the centre, nor the trapezoidal date magnification window. A couple of better crystals were sourced along with a better condition bezel.

P1020574a

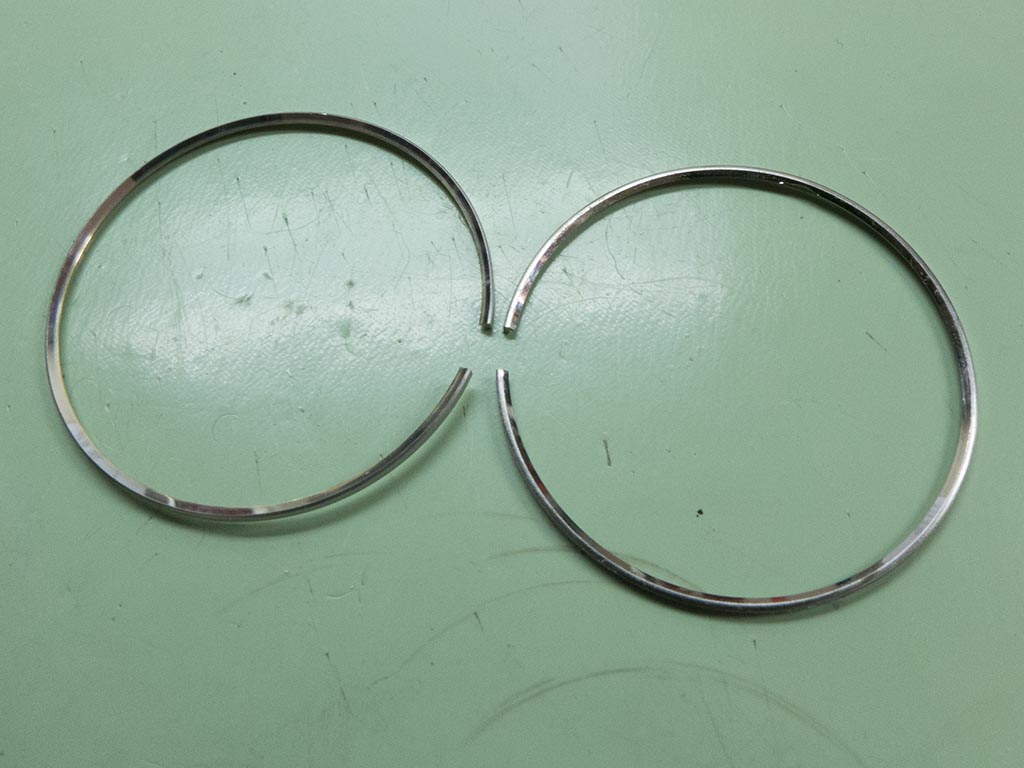

Out of the two replacement crystals the better crystal was married with the best tension ring.

P1020575a

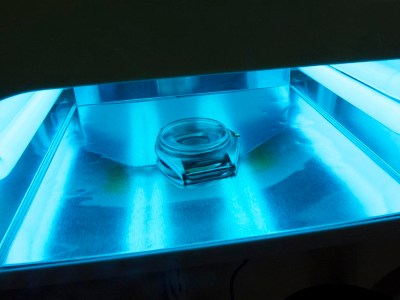

The crystal was then glued in place and cured in the UV oven.

P1020576a

The new bezel was installed and it was then ready for the movement.

P1020577a

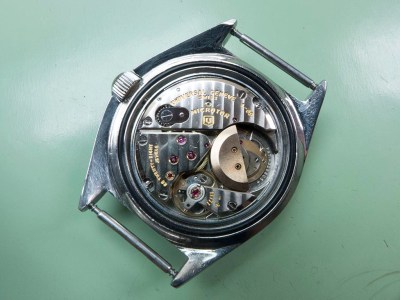

The movement was duly fitted….

P1020581a

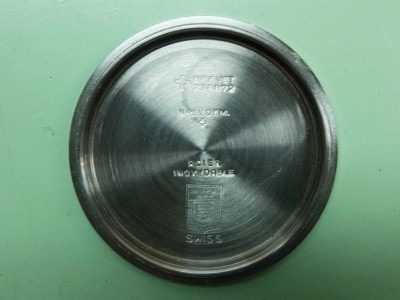

Before the caseback was screwed back on. You can see the Brevet markings and UG logo inside the cover, the outside is undecorated.

P1020582a

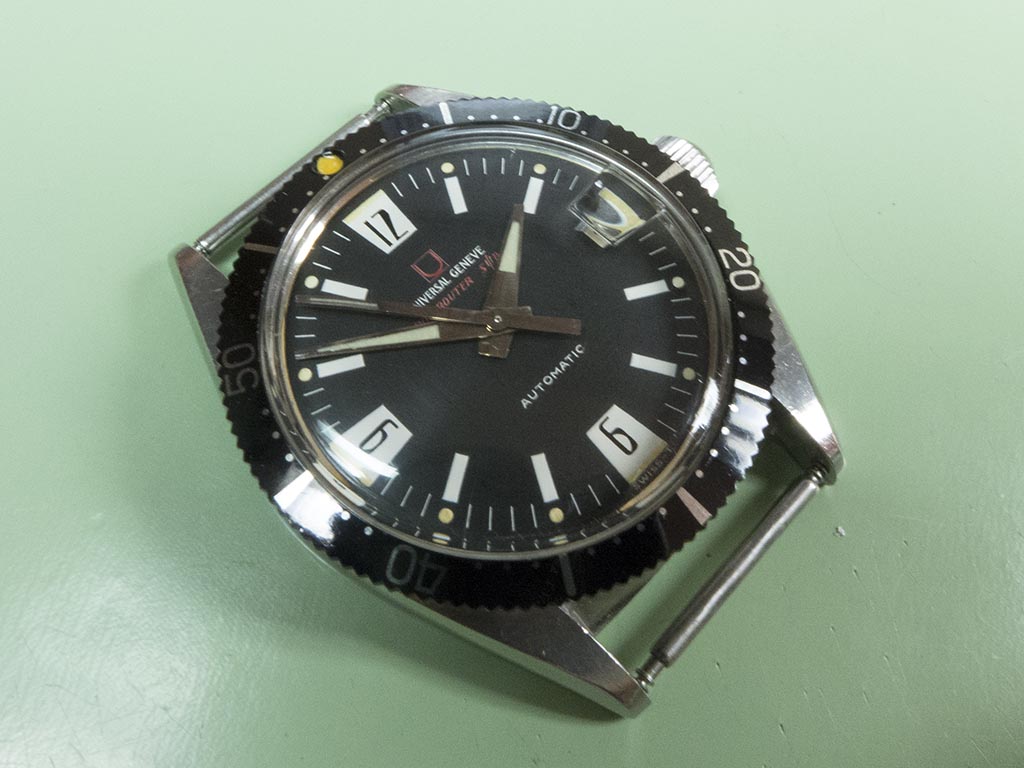

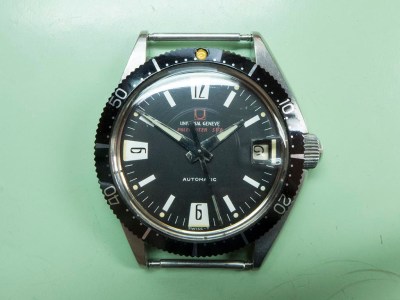

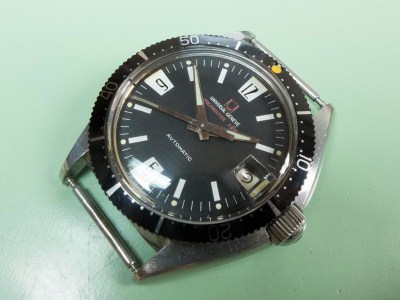

And here she is now, ready for a few more years of service. A vast improvement on how she arrived I think you’ll agree!

P1020583a

P1020584a

P1020585a
