Omega SMP Quartz

Omegas Seamaster Professional series of watches have been produced since 1993 but the Seamaster series was actually introduced in 1947, with that history behind them you can see they are a very popular watch with the non collector market as well as collectors. The SMP comes in many different variations including chronographs, GMT’s, divers and even an APNEA model with a unique timing function for the apnea free-diving breathing technique! In addition to this they come in a huge array of sizes from ladies models through to the 49.2mm Railmaster version, and many different limited editions versions celebrating their link with the Bond movies. This particular quartz powered model came in for a full movement service and basic pressure test.

P1020936

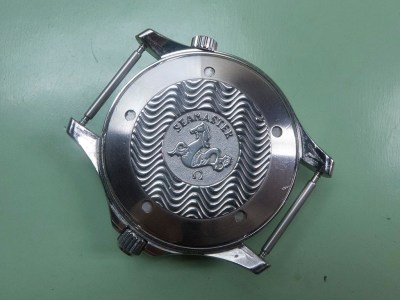

The wavy caseback design is also embossed with Omegas Hippocampus logo.

P1020937a

Remove the caseback and the soft iron antimagnetic shield can be seen.

P1020938a

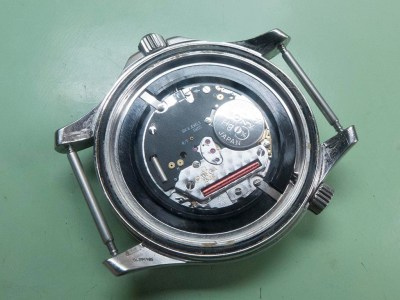

Remove the shield and the calibre 1538 movement can be seen.

P1020939a

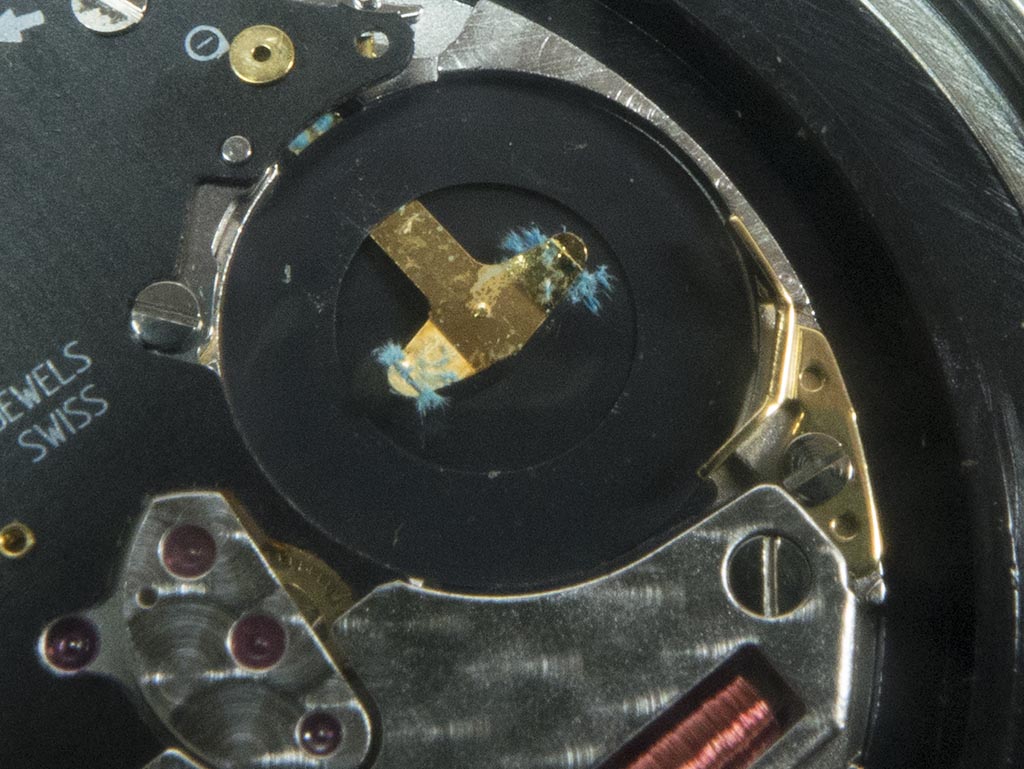

Underneath the battery some corrosion is present, this is a killer for quartz watches if left unchecked, it can rot through terminals and destroy circuit boards.

P1020940a

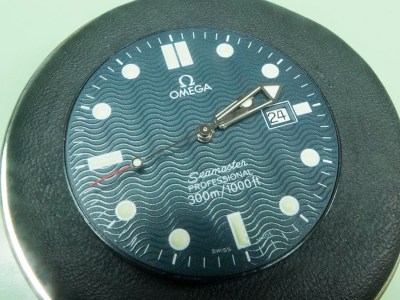

With the movement uncased the decorated “wavy” dial and skeleton hands are revealed.

P1020941a

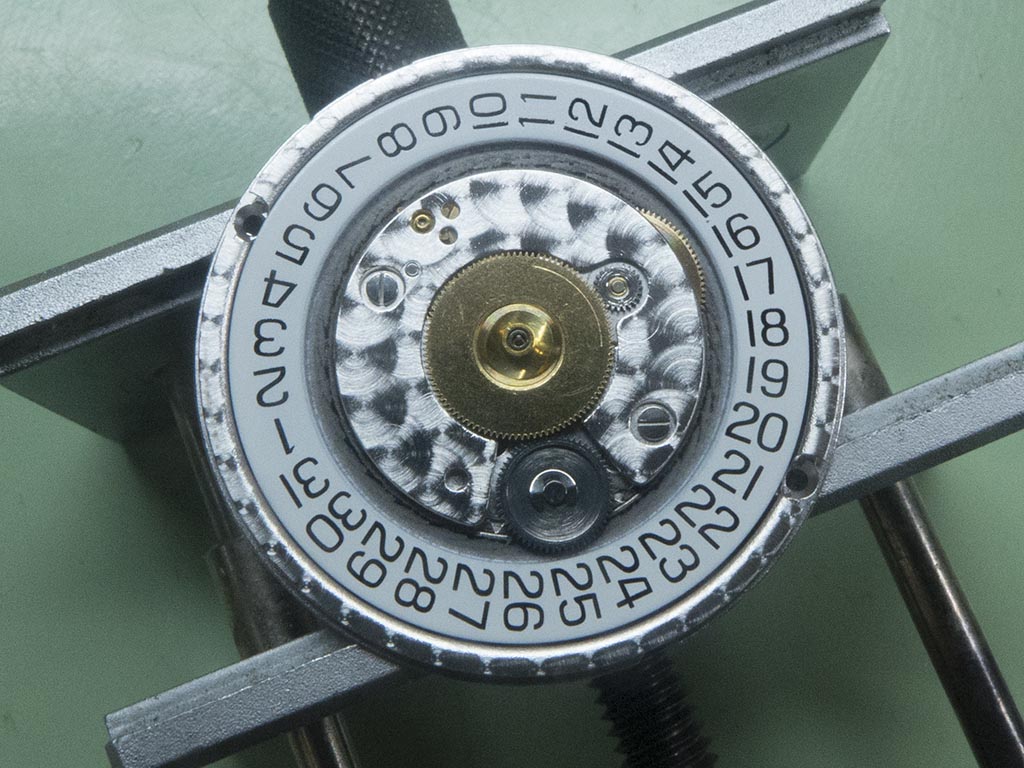

The dial and handset have been removed revealing the calendar components.

P1020942a

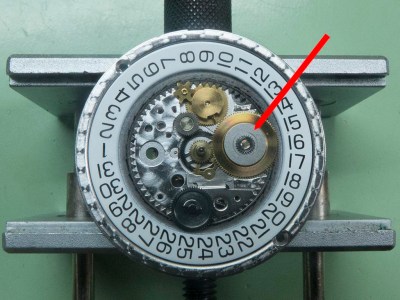

This particular model has Omegas “Time zone” feature which allows the hour hand to be set independently of the minute hand. This works via a clever magnetic clutch, arrowed in the picture. It does make setting the date a faff if it’s 15 days out, but being a quartz it should never get that far out of sync!

P1020943a

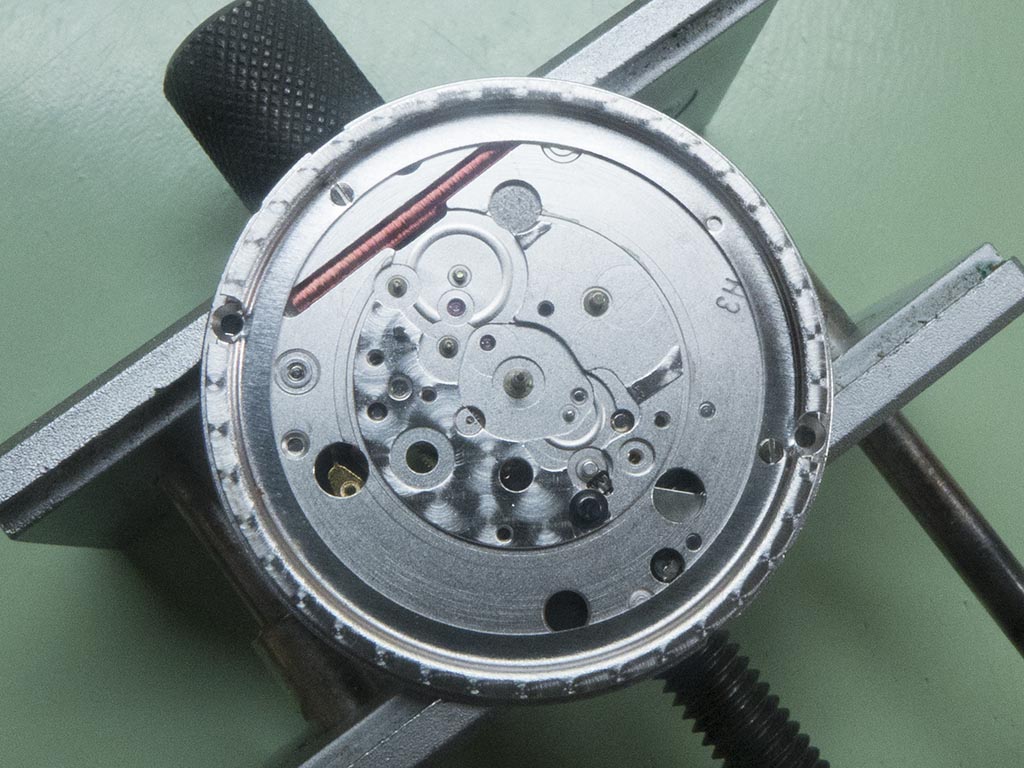

With the calendar components out of the way the bare mainplate can be seen and the lengthy coil is visible through the slot cut in it.

P1020945a

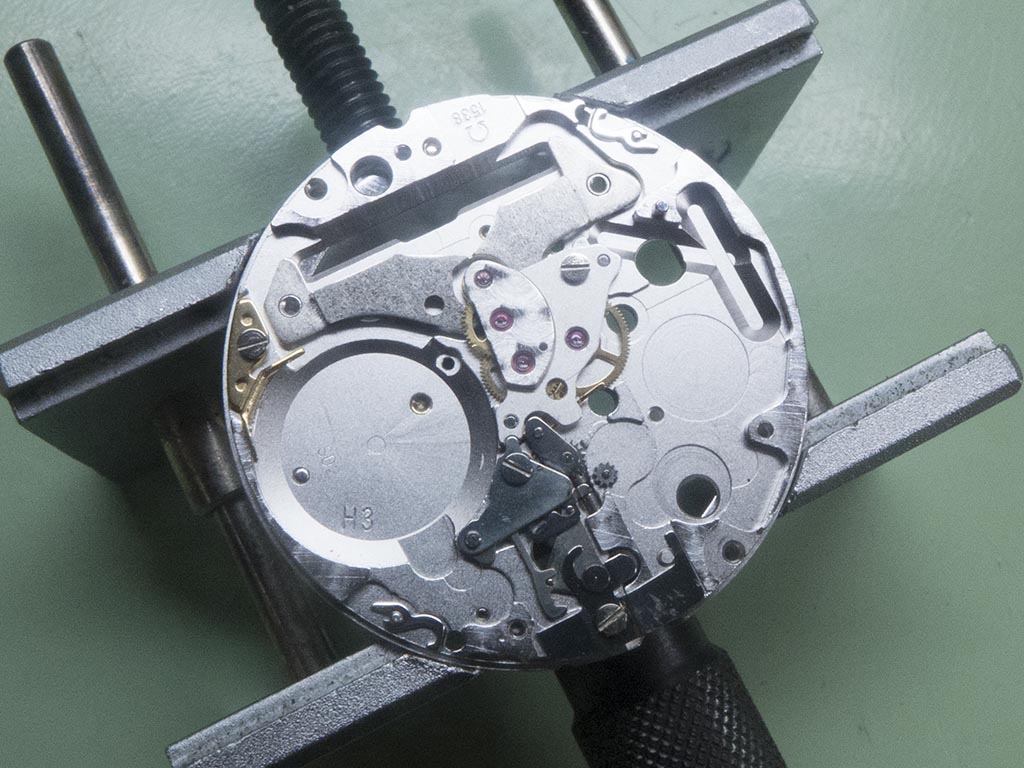

With the movement turned over and the circuit board removed the train and keyless work can be seen.

P1020946a

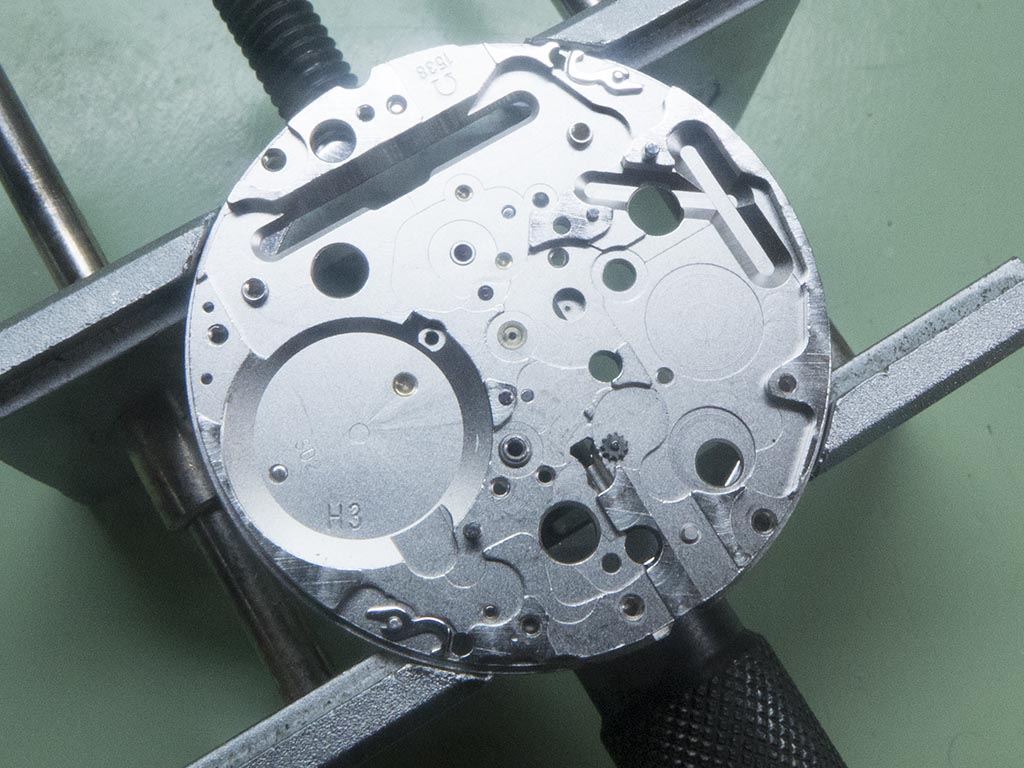

Everything is now removed in this shot….

P1020949a

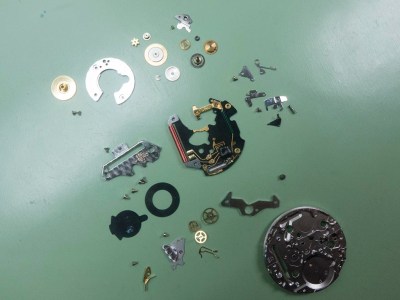

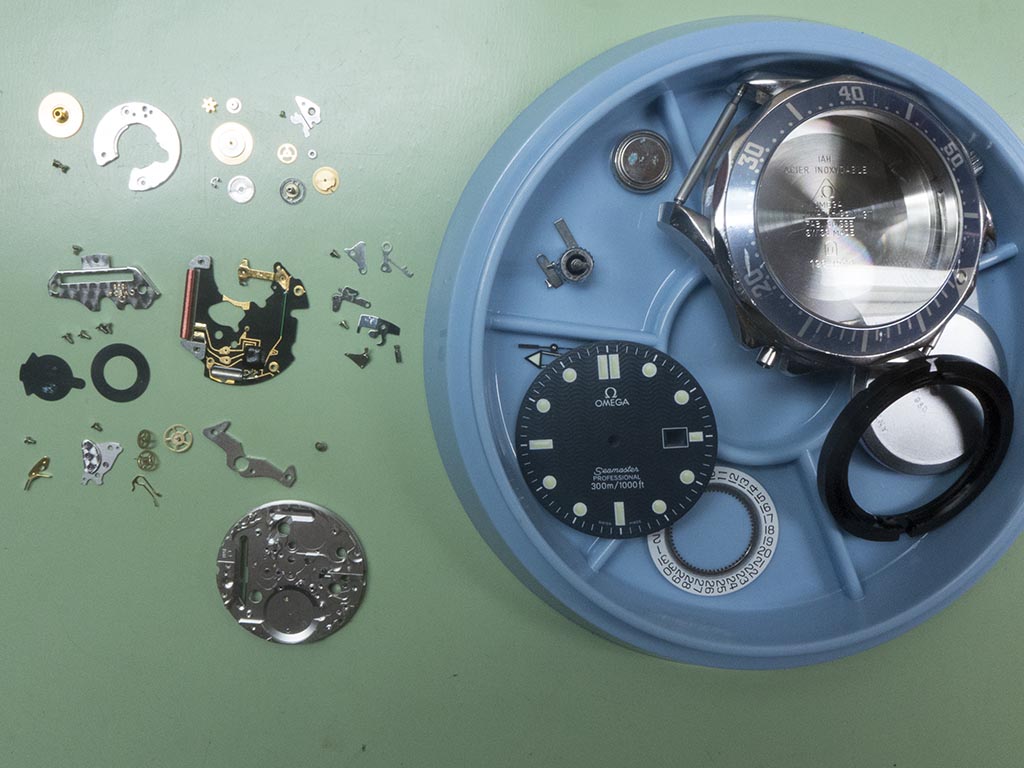

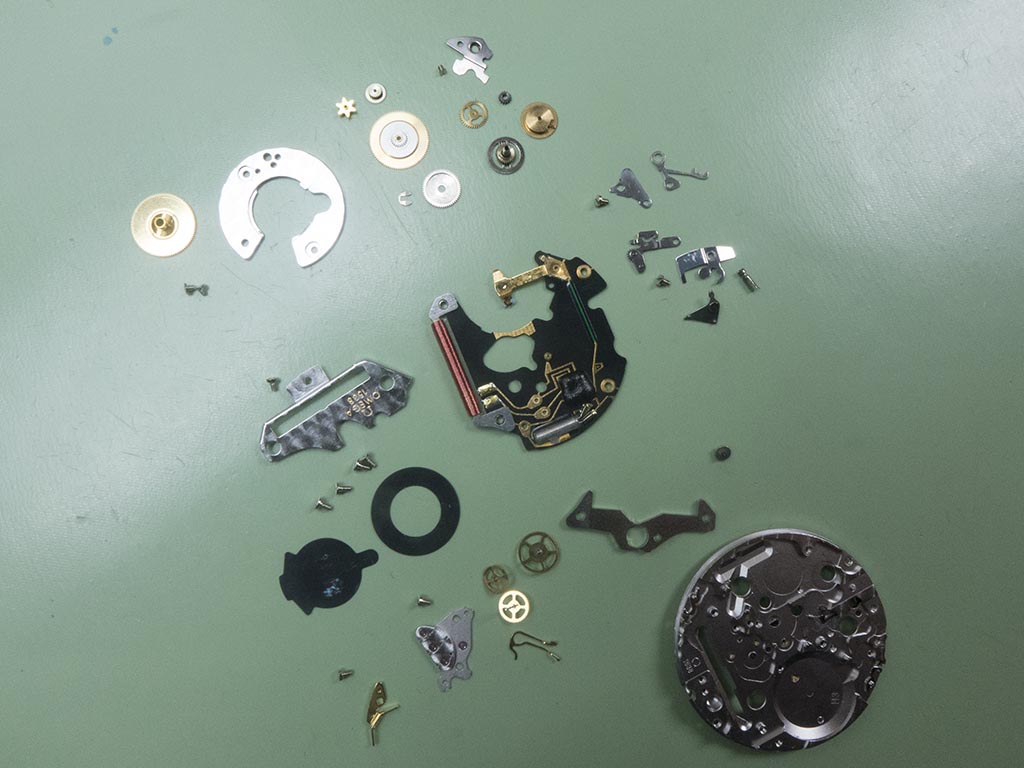

….and it’s all ready for cleaning and inspection.

P1020951a

P1020952a

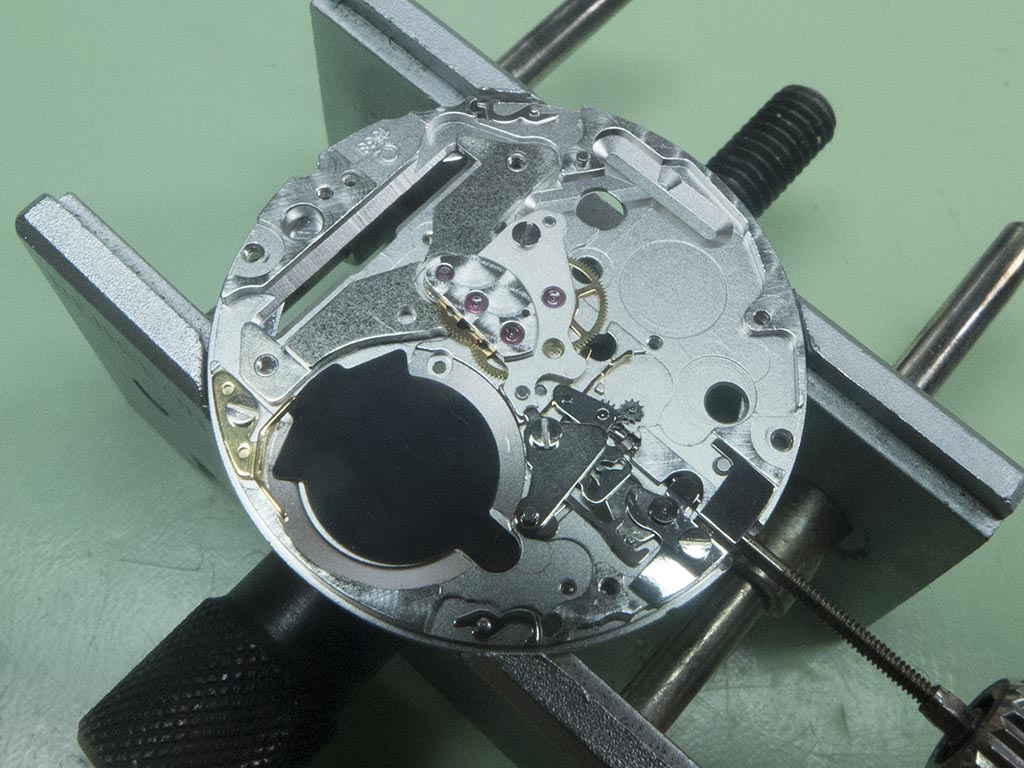

After cleaning the rebuild begins.

P1020954a

P1020955a

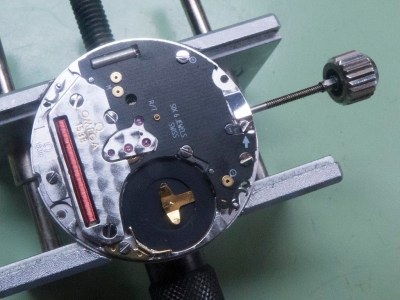

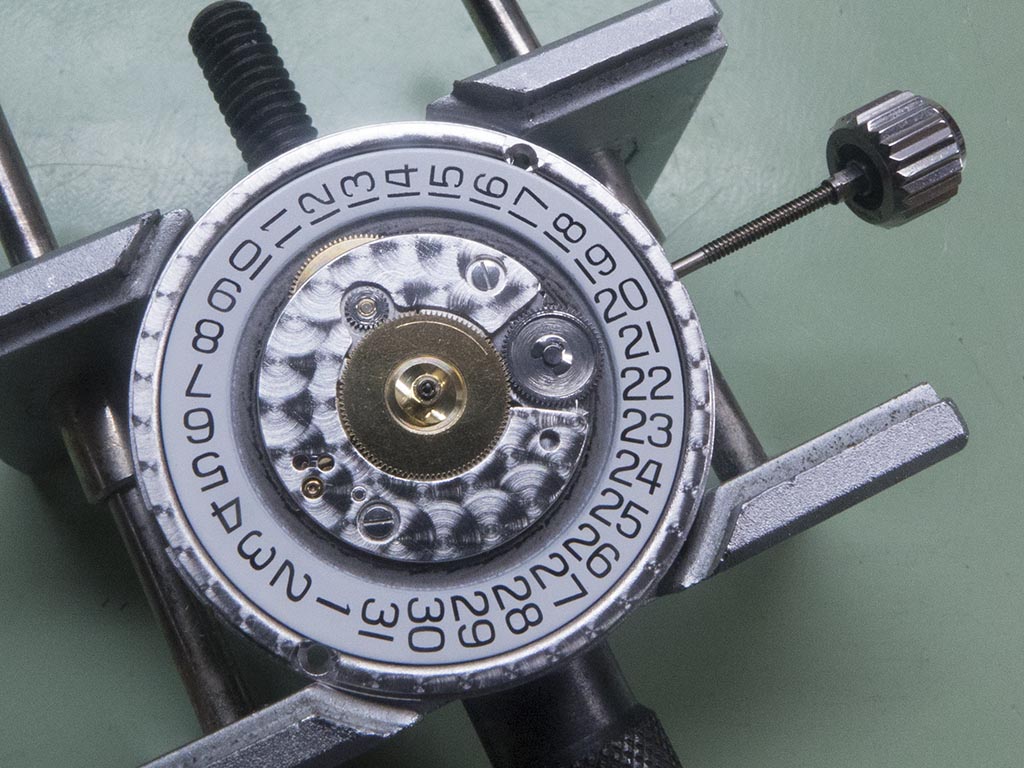

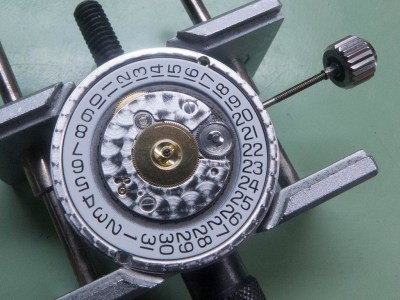

The calendar side completed.

P1020959a

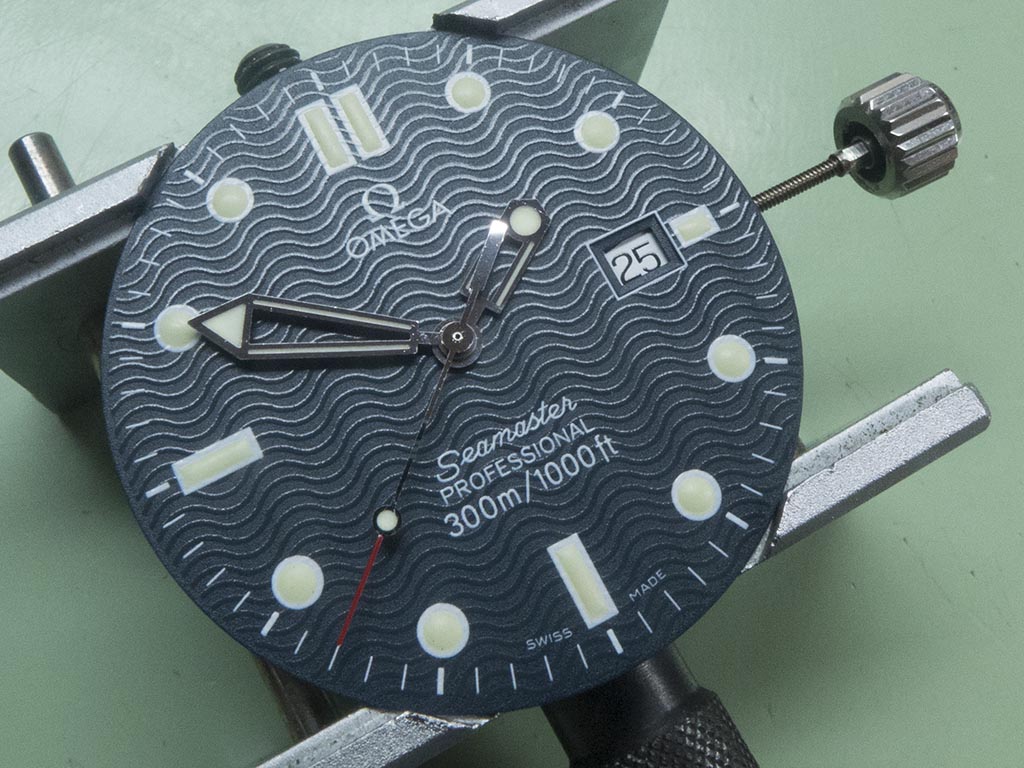

The dial and handset refitted, as ever with quartz movements the fiddly part is getting the seconds hand lined up successfully with the markers. It usually takes me a few attempts before I’m happy!

P1020960a

The movement recased and ready for screwing in place.

P1020961a

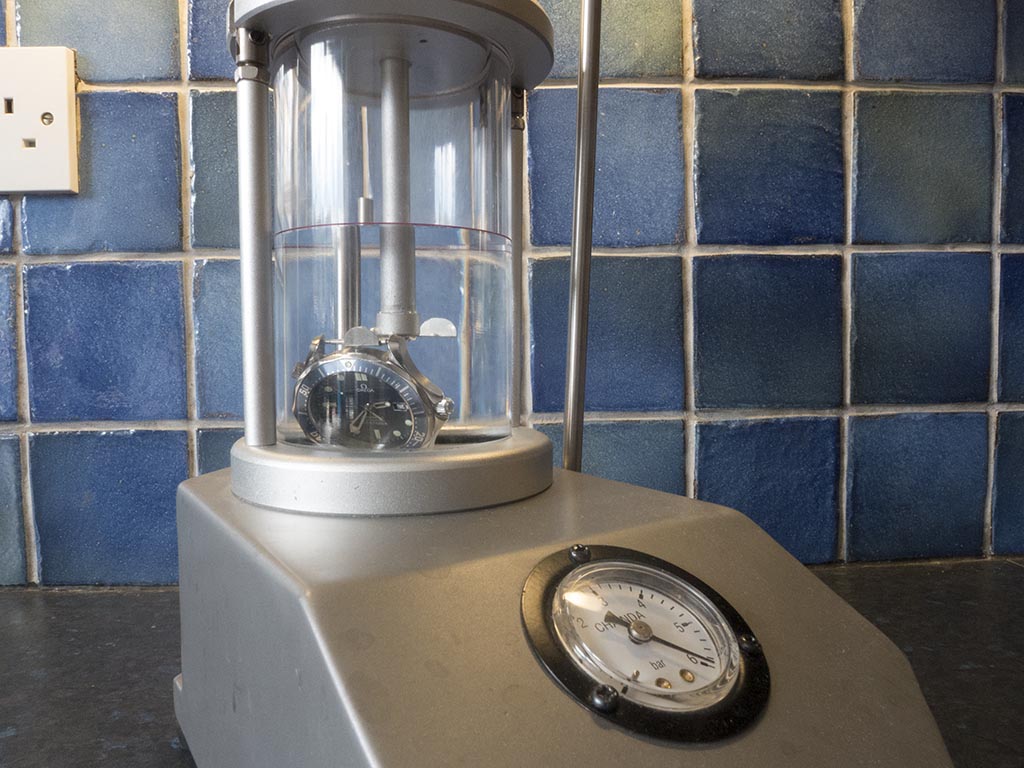

The caseback was replaced and the pressure test completed.

P1020968a

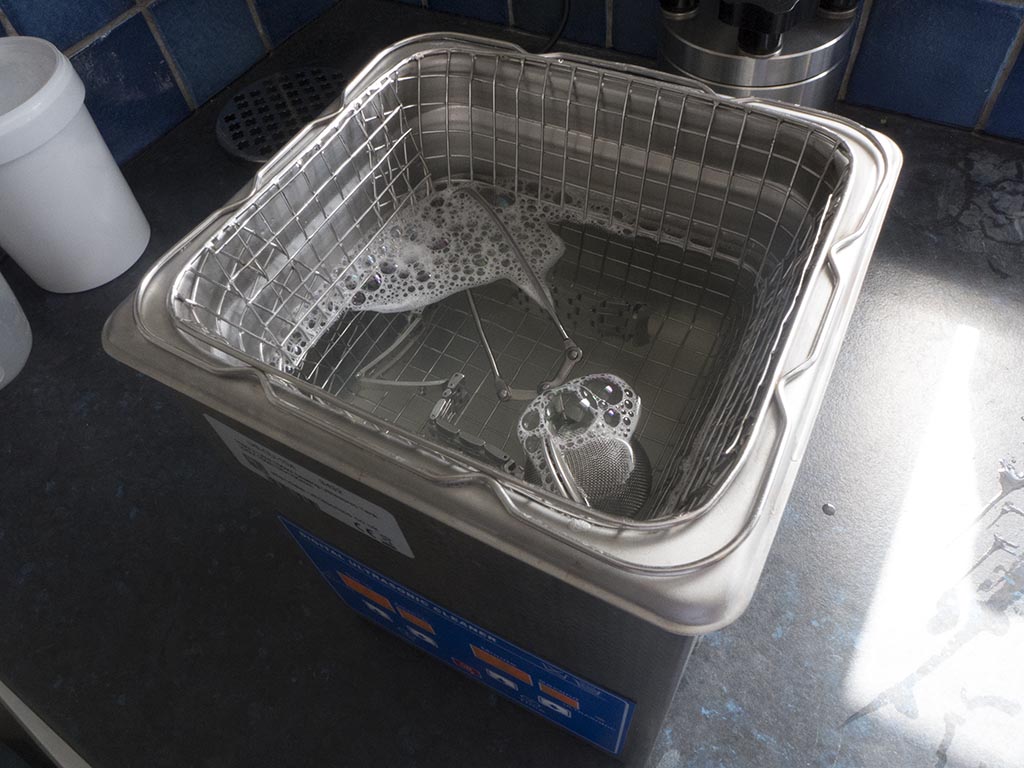

Whilst this was happening the bracelet received an ultrasonic clean.

P1020967a

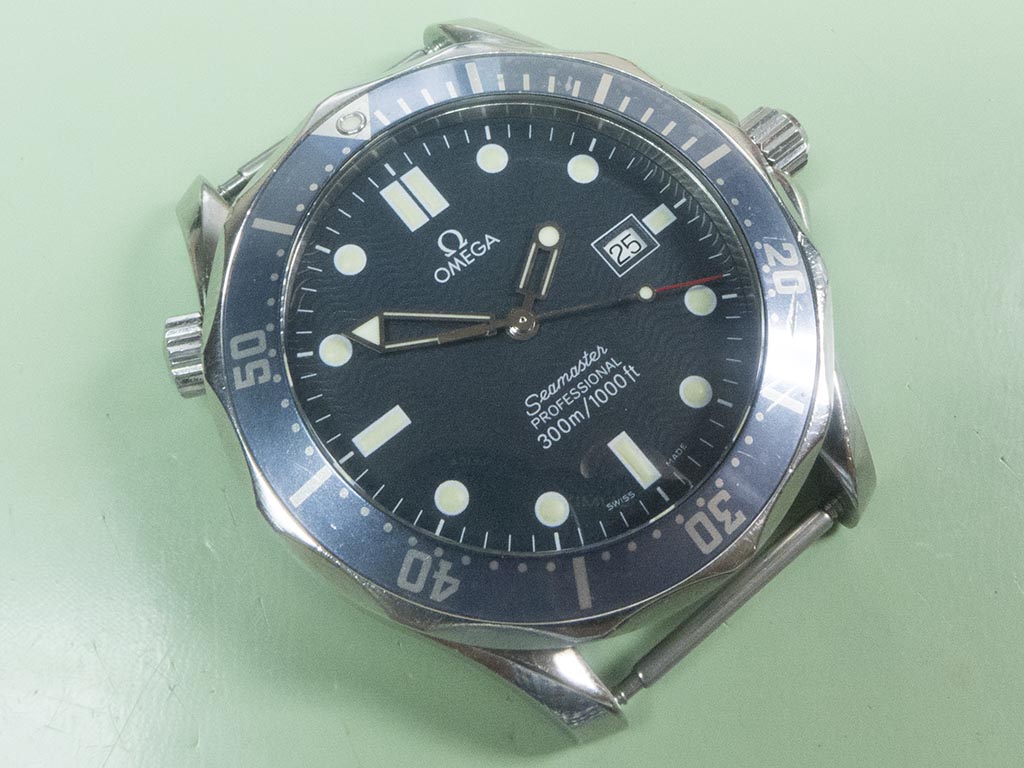

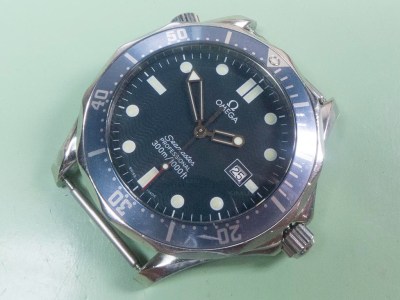

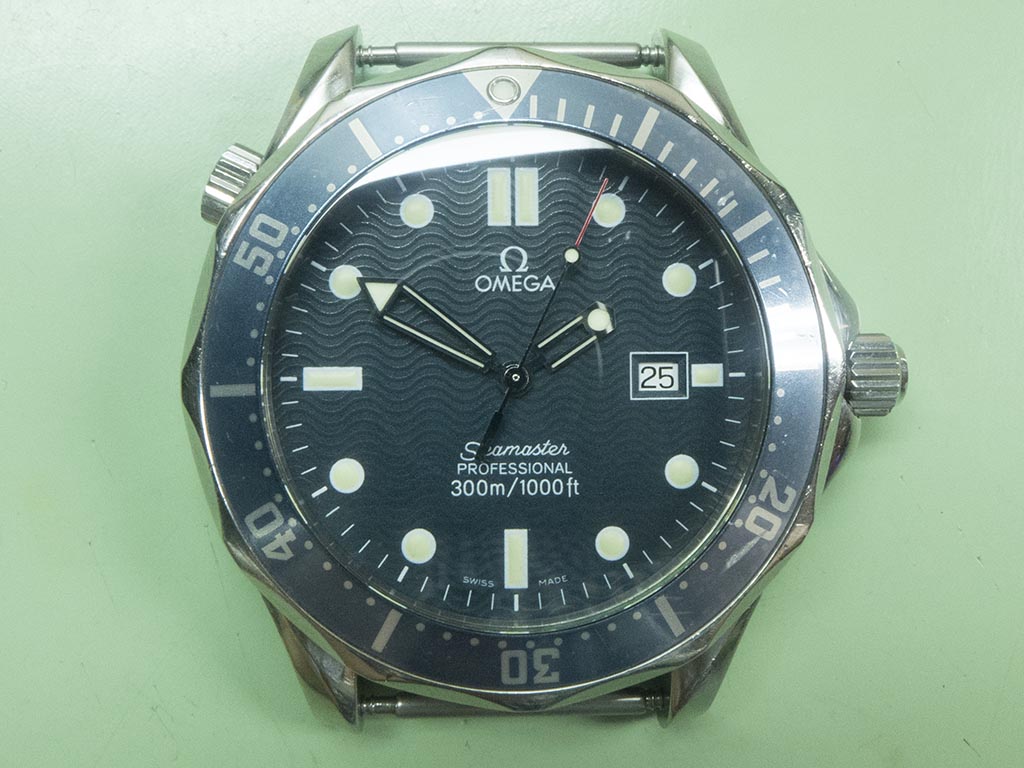

And she’s finished, a lovely example of a watch that’s actually been worn regularly and not sat in a collection box!

P1020963a

P1020964a

P1020965a
