Bulova calibre 11

This little calibre 11 Bulova came in for service recently. Bulova have been manufacturing watches since beginning of the 20th century but the founder actually opened his Jewellery shop for business in 1875 in Maiden lane New York City. Bulova have always been at the forefront of precision and technical development, and are best known for their Accutron range of watches that used a tuning fork instead of the balance wheel as the timekeeping element. The Accutron was released in 1960 and was the worlds first electronic wristwatch. Bulova also has a long history with NASA and provided timekeeping clocks and mechanisms for many space craft including the Apollo missions. Another little known fact is that Bulova produced the first official Radio advert to be broadcast in 1926 and the first official television advert to be broadcast in 1941. Back to the featured watch and as can be seen it’s a little three handed gents watch powered by a 17 jewel, automatic, 18,000bph movement.

P1030181a

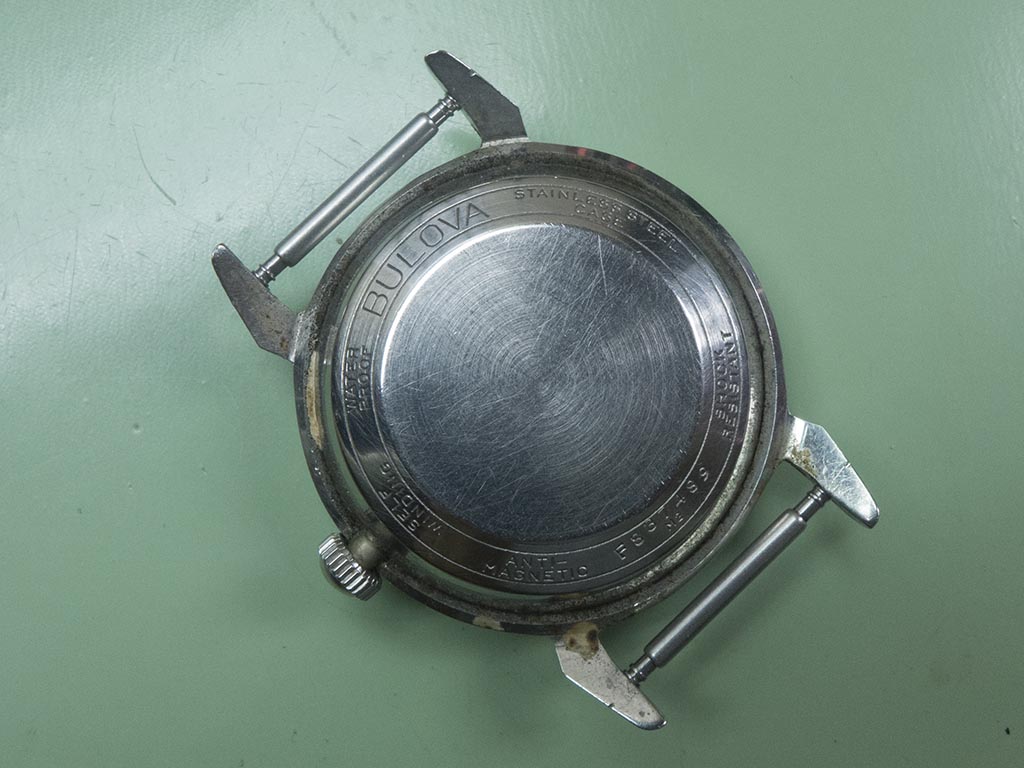

Bulova used an unusual case design on these little waterproof watches, if you look at the rear there appears to be no way of removing the caseback.

P1030182a

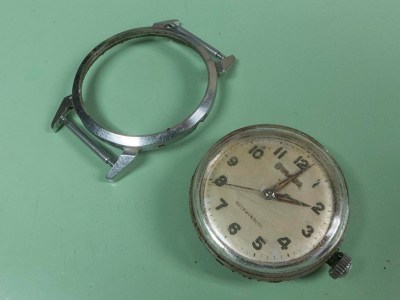

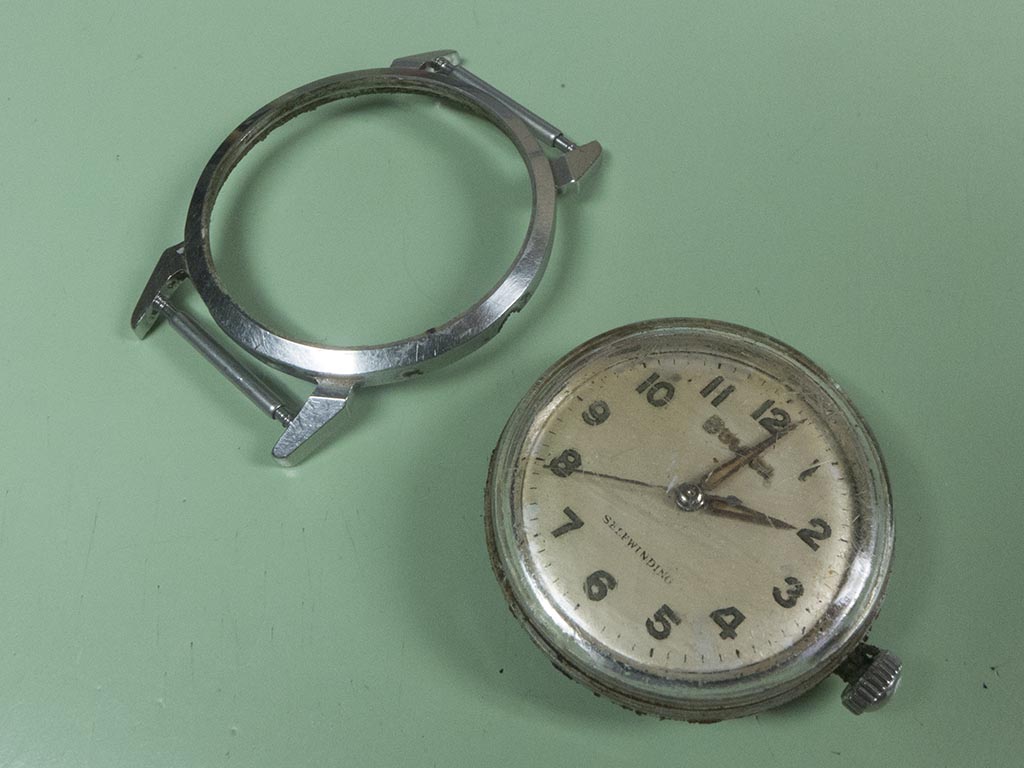

This is because the movement is housed in a module that is pressed into the crystal ring that supports the lugs.P1030184a

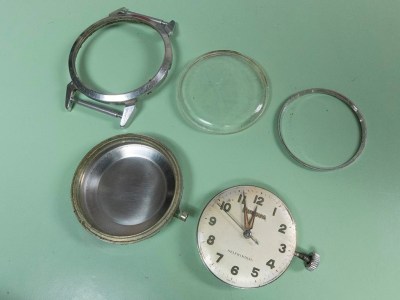

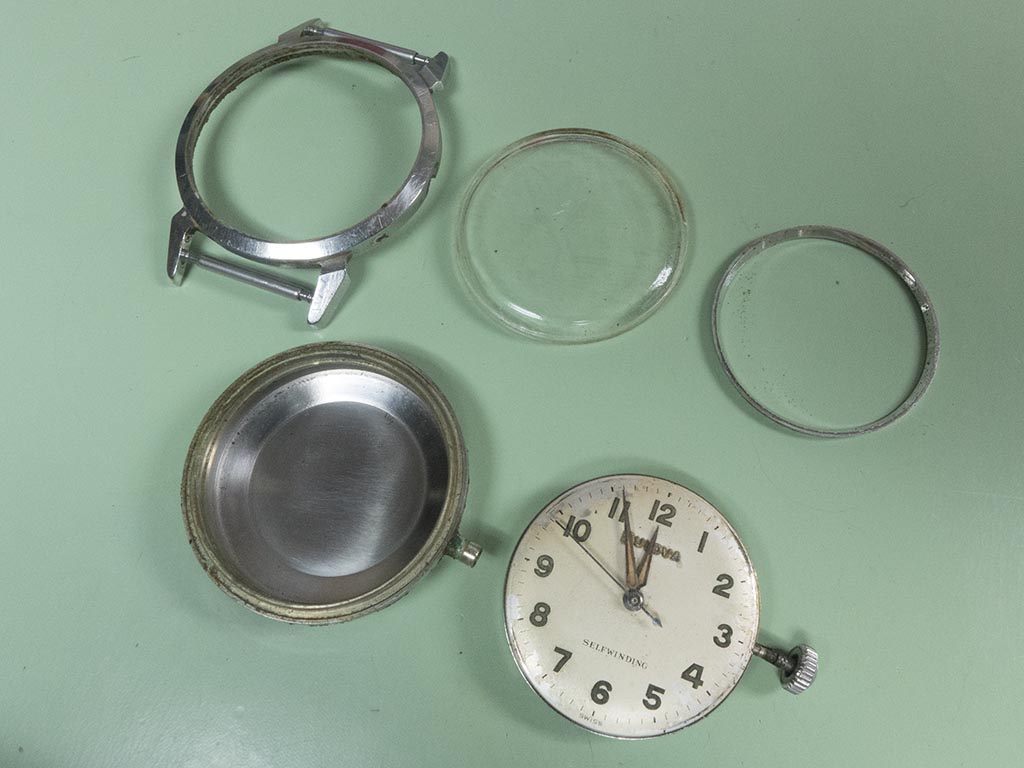

Once the crystal is removed along with the trim ring the movement can be removed.

P1030186a

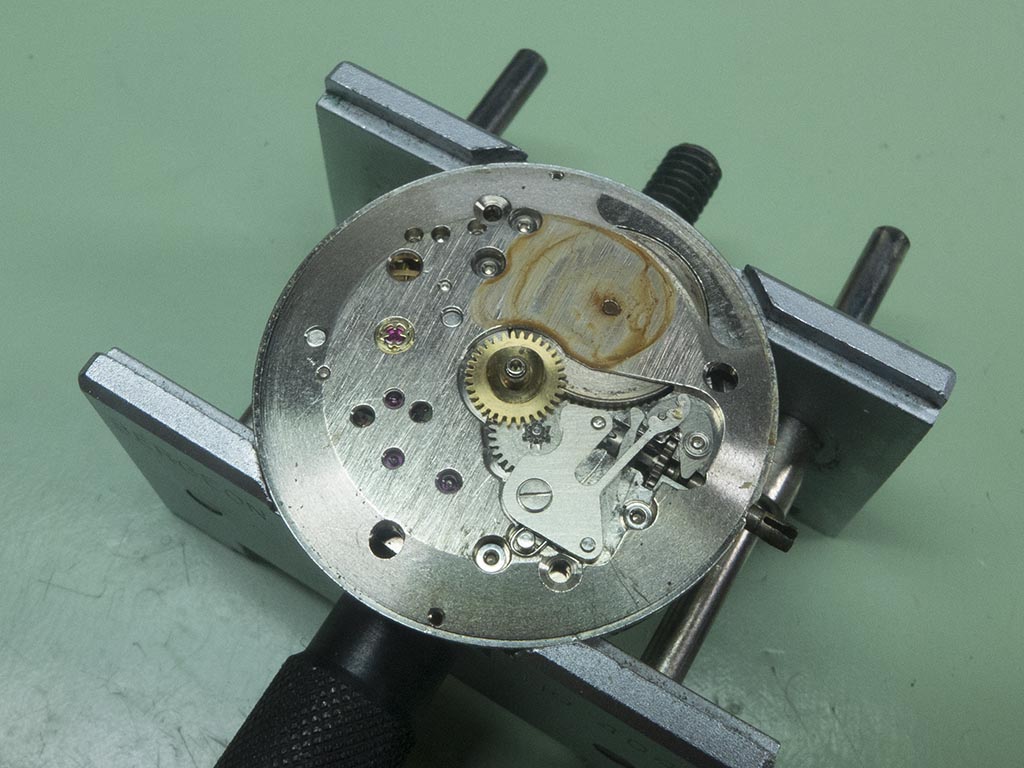

There’s evidence of some water ingress in the past as there’s a bit of rust staining on the top of the mainplate.
P1030187a

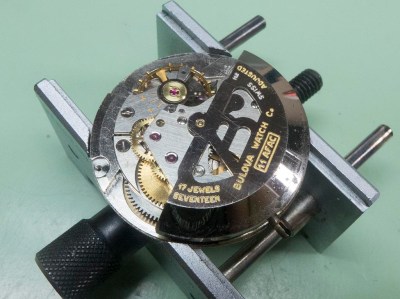

The motion work side looks quite well presented with it’s stylized “B” pierced through the rotor. The 11 AFAC on the rotor denotes it’s an auto sweep second movement.

P1030188a

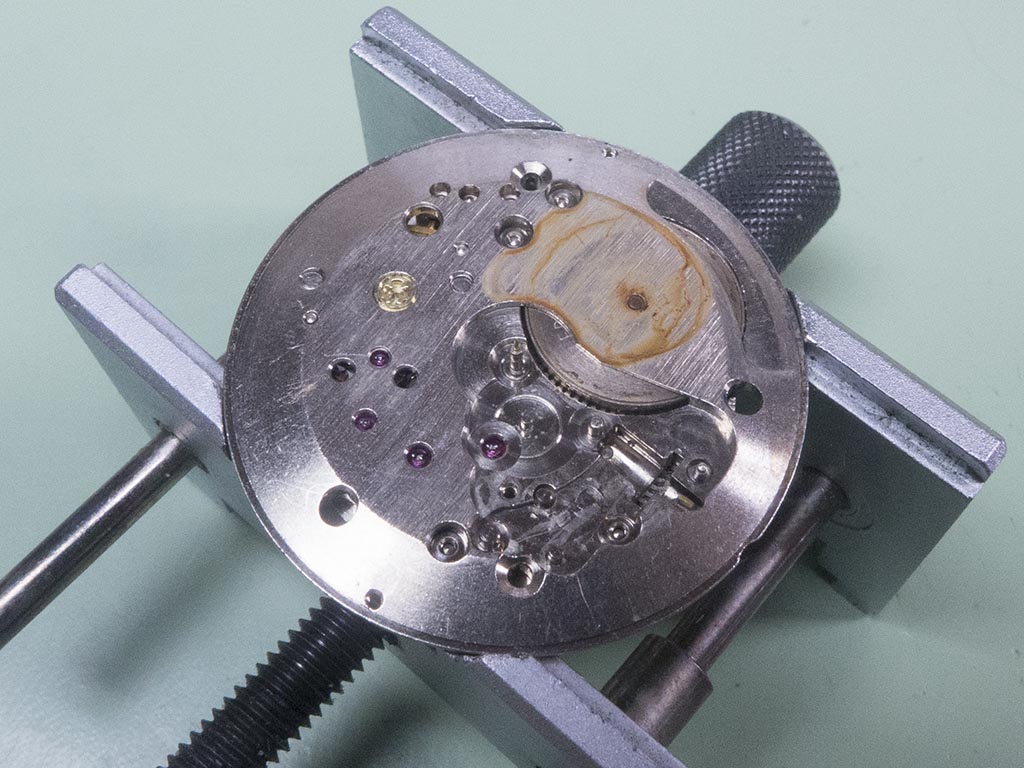

The dial side was soon stripped.

P1030190a

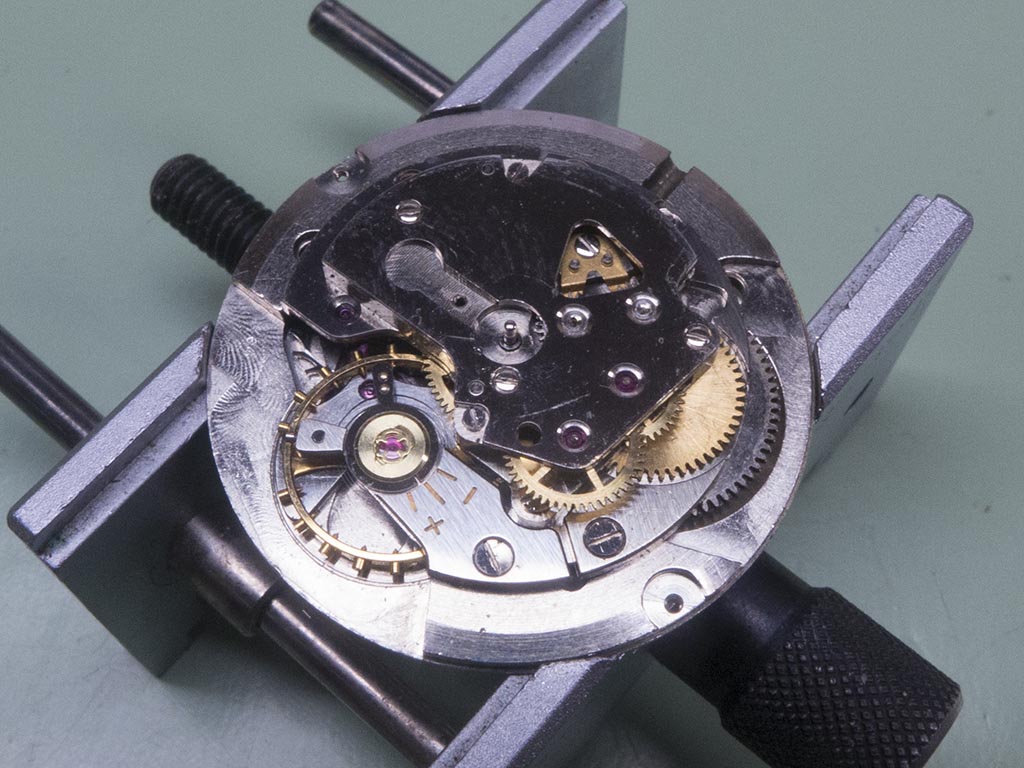

With the Rotor removed you get a clearer view of the movement with it’s weighted balance wheel.

P1030191a

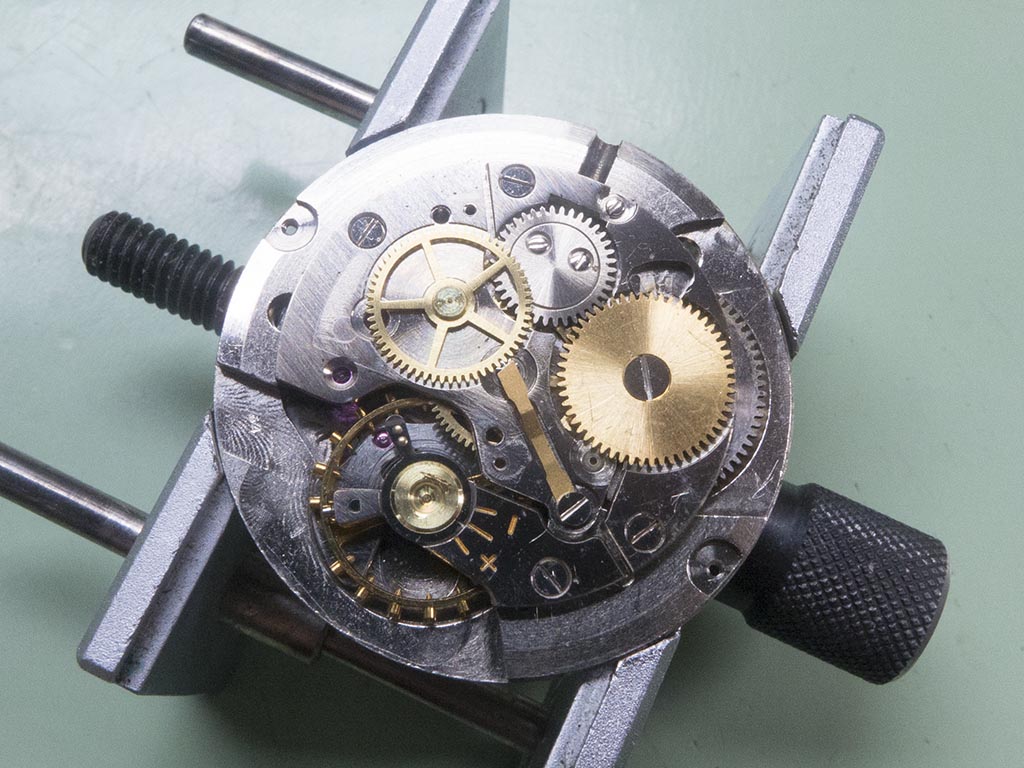

You can see the indirect driven second hand pinion with the top plate removed.

P1030194a

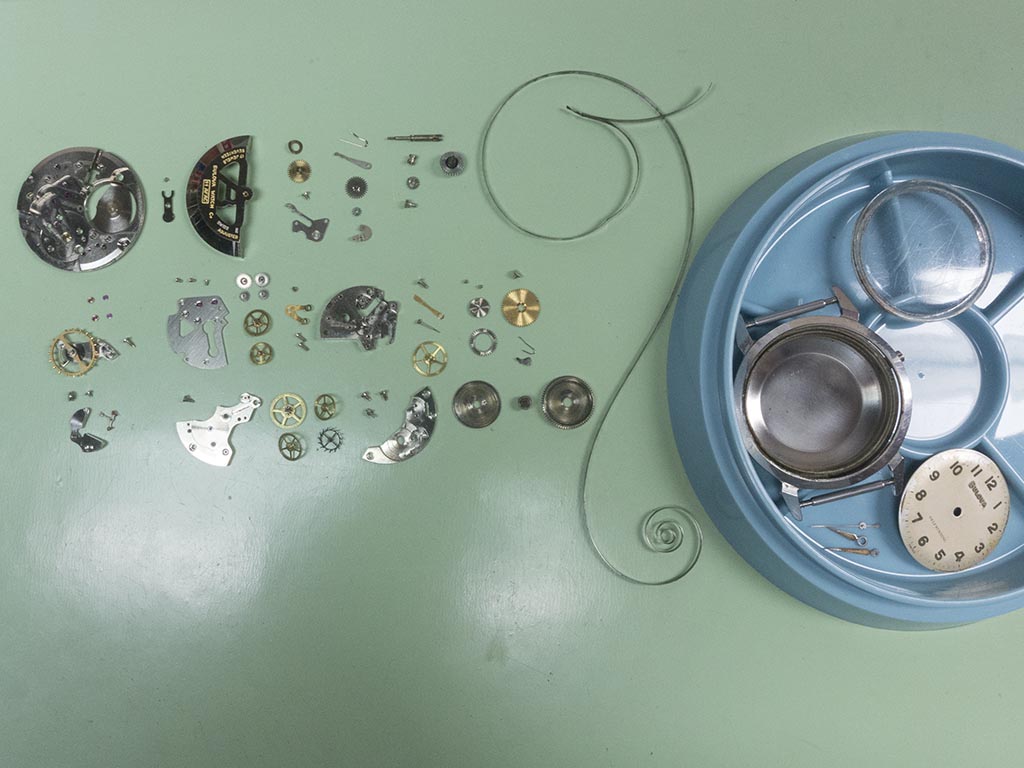

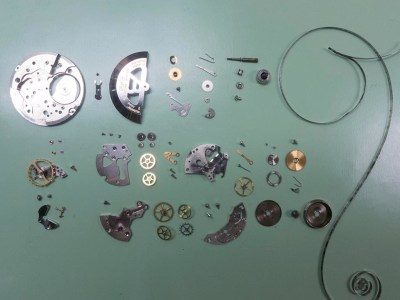

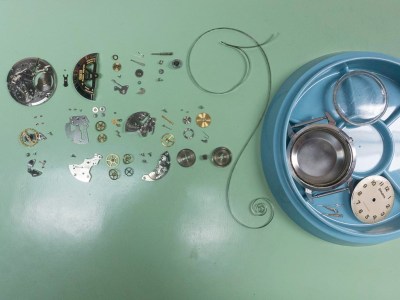

The movement was soon stripped ready for cleaning and inspection.

P1030199a

P1030201a

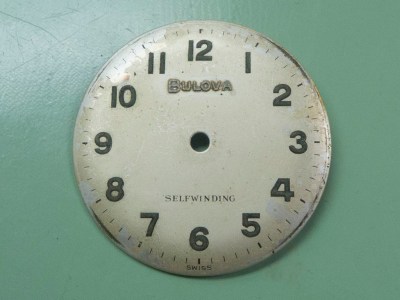

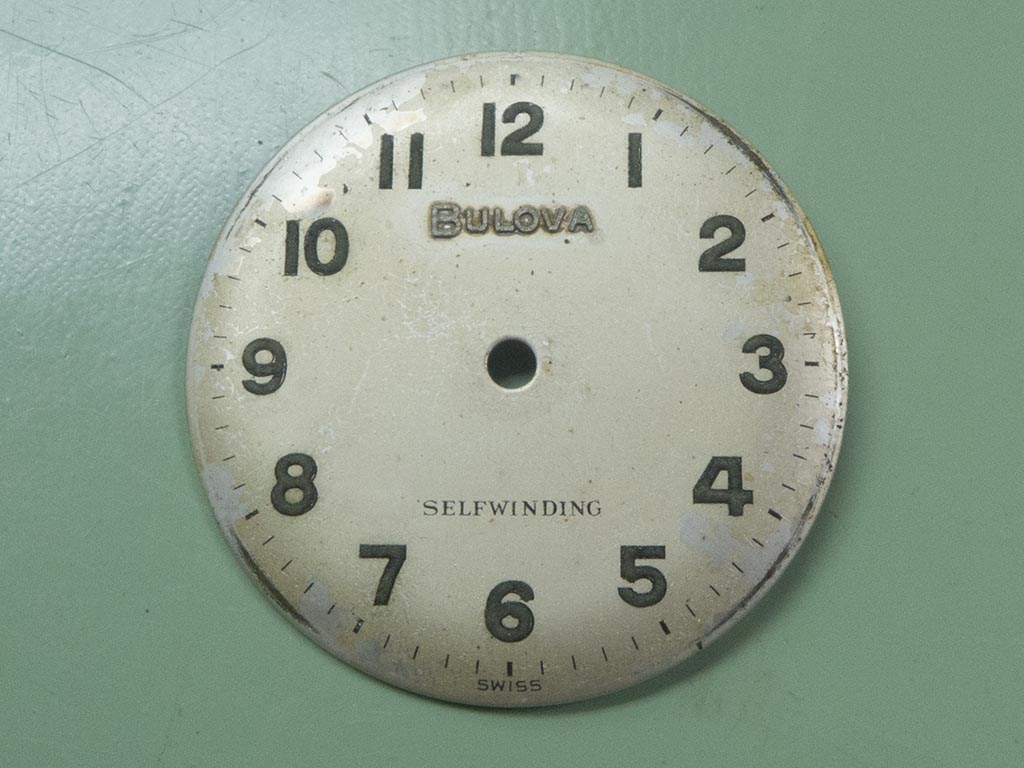

The dial was a little jaded but couldn’t be cleaned as this would have removed the printing, I just removed any loose particles and debris from the surface.

P1030202a

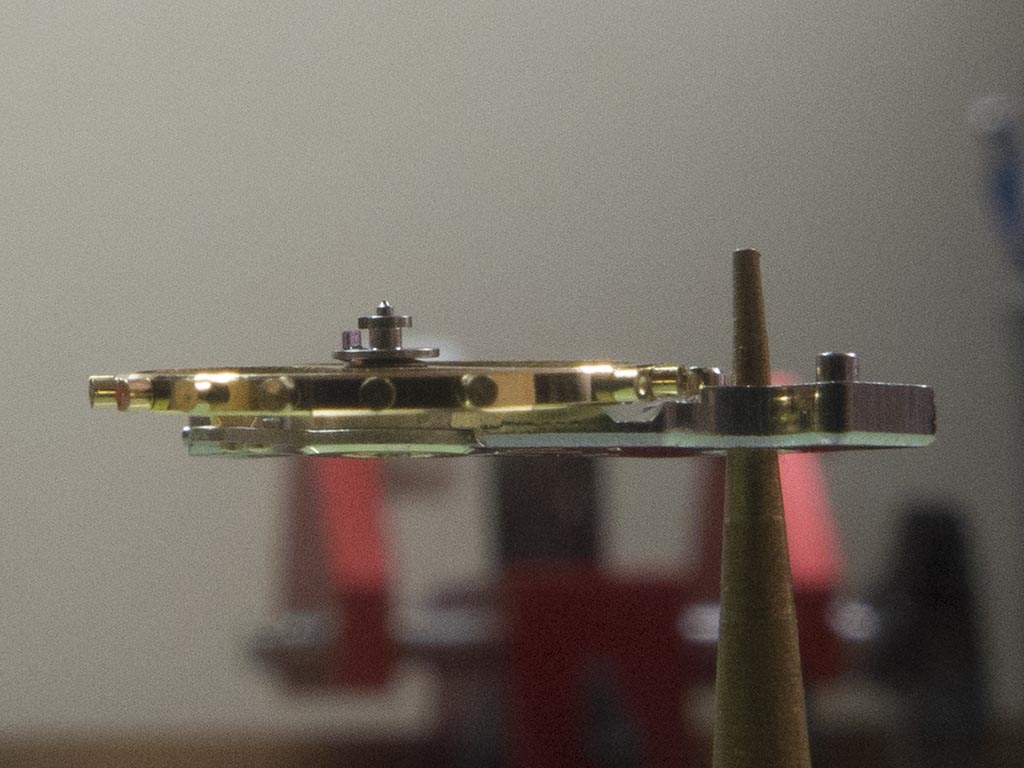

During inspection it was noted that the pinion on the balance staff had snapped off at some point.

P1030210a

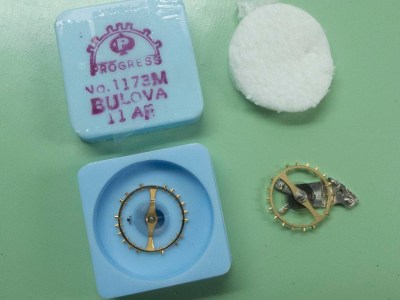

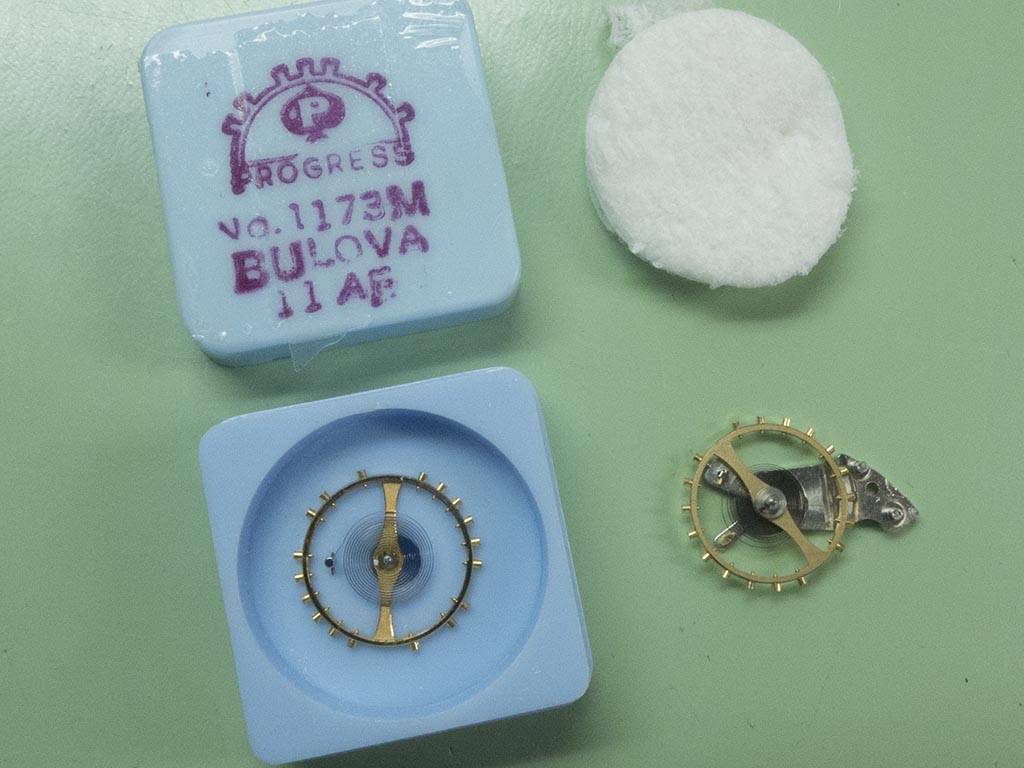

A complete new balance was ordered.

P1030300a

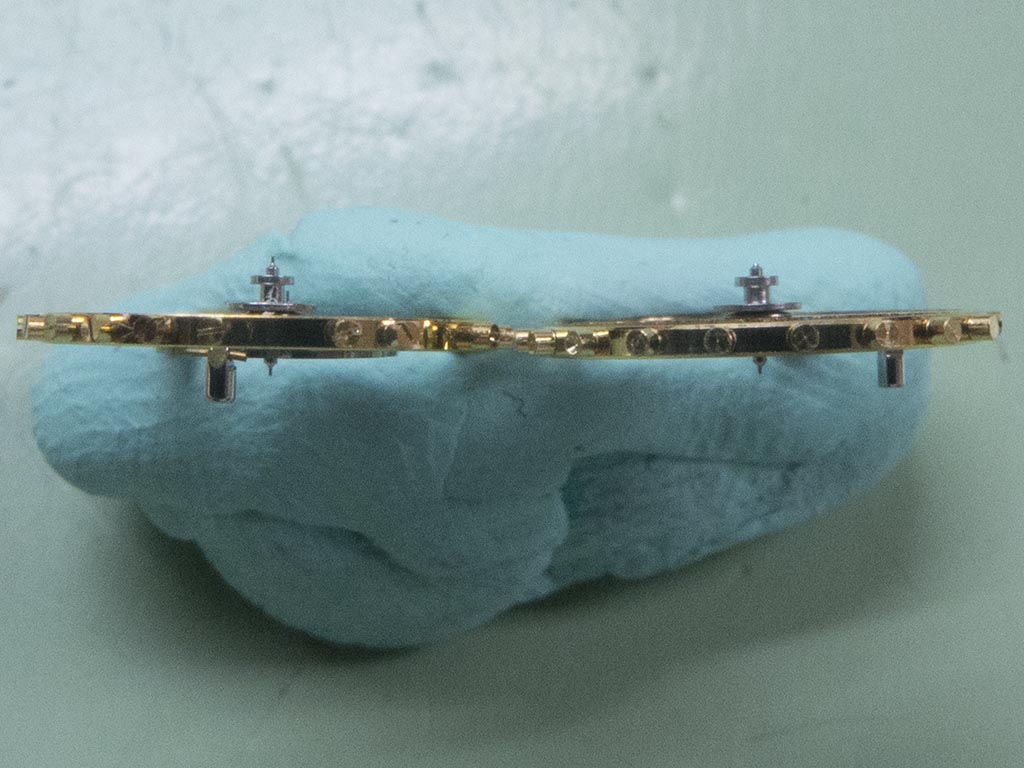

You can see where the tip is missing on the original one.

P1030301a

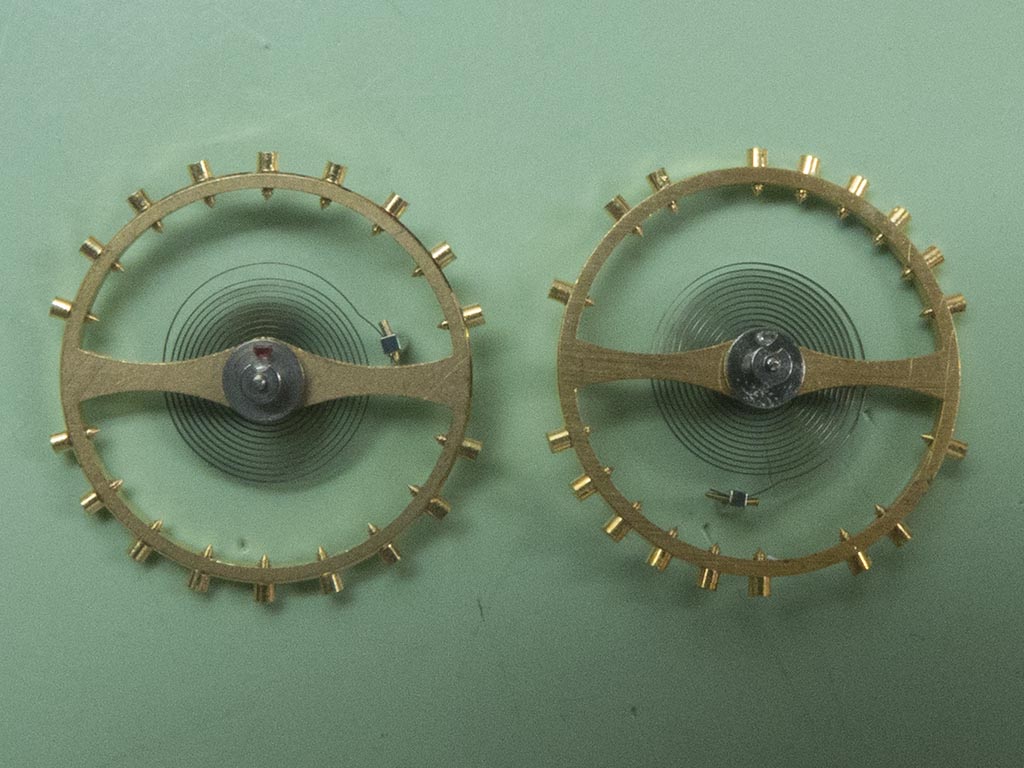

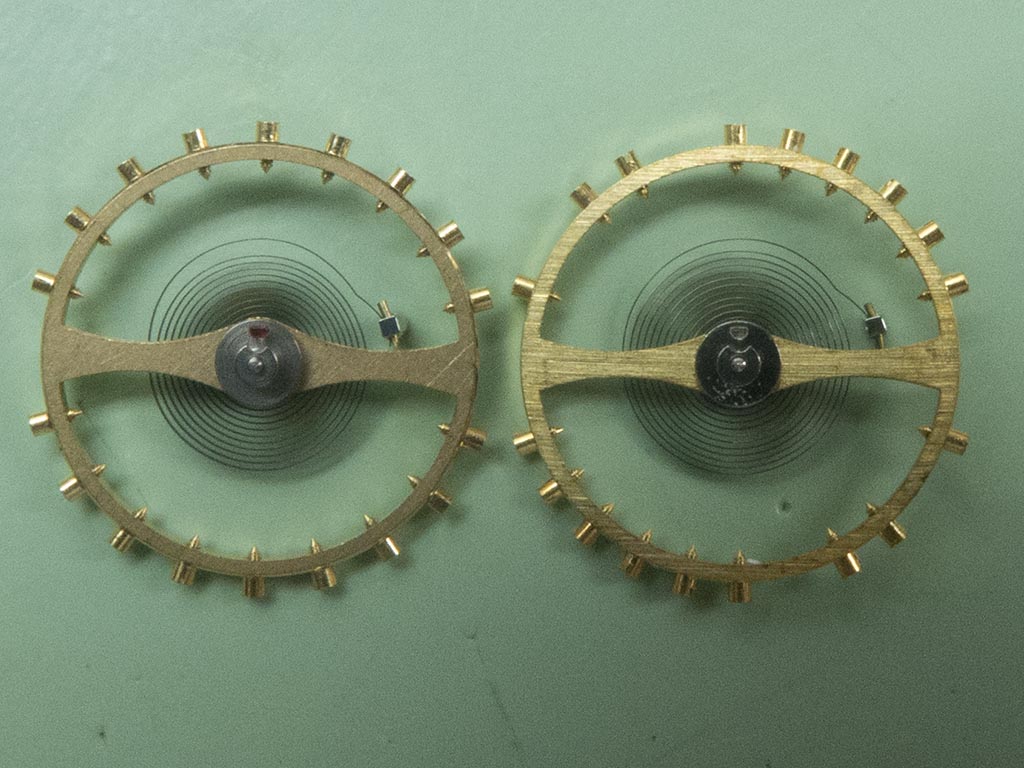

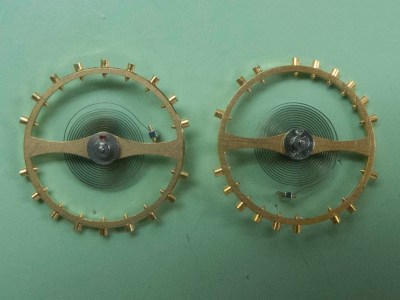

When fitting a new balance you have to ensure the stud on the hairspring is in the same position as the original, on this one it wasn’t.

P1030302a

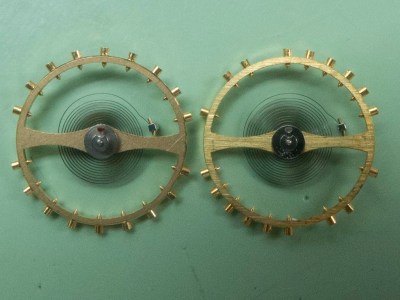

This means the watch won’t run as the impulse jewel won’t be in line with the pallet fork when it’s at rest, to remedy this the position of the stud has to be adjusted.

P1030303a

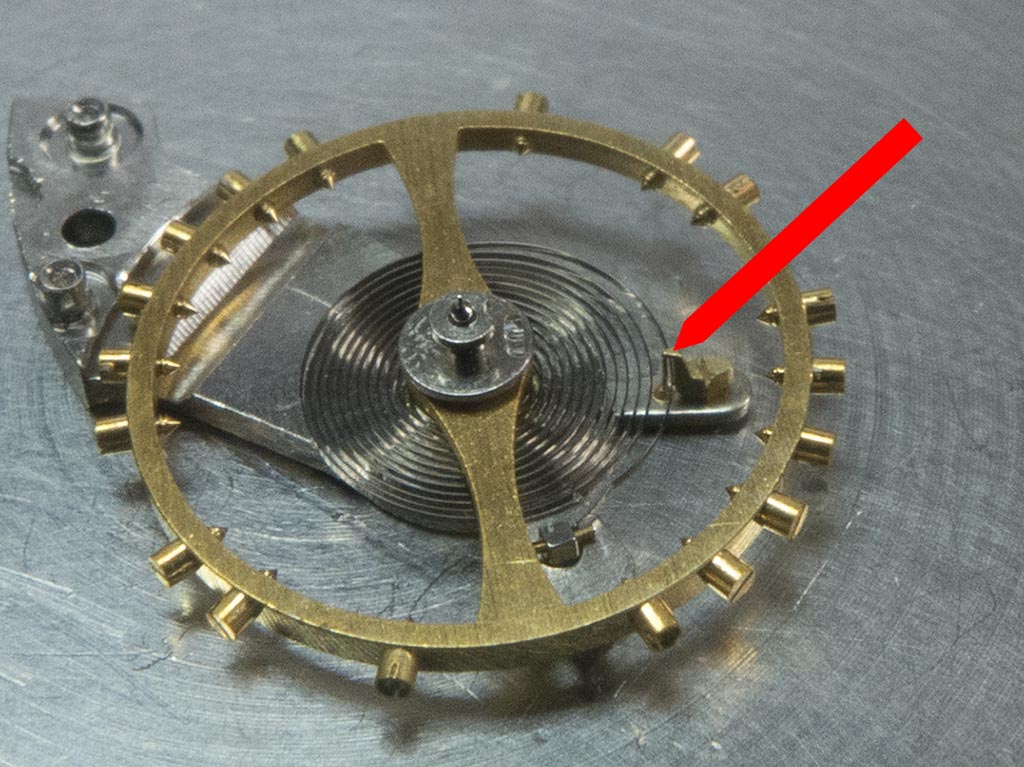

Once this is done the balance can be fitted to the cock. You have to ensure the hairsprings curve passes through the centre of the curb pins.

P1030304a

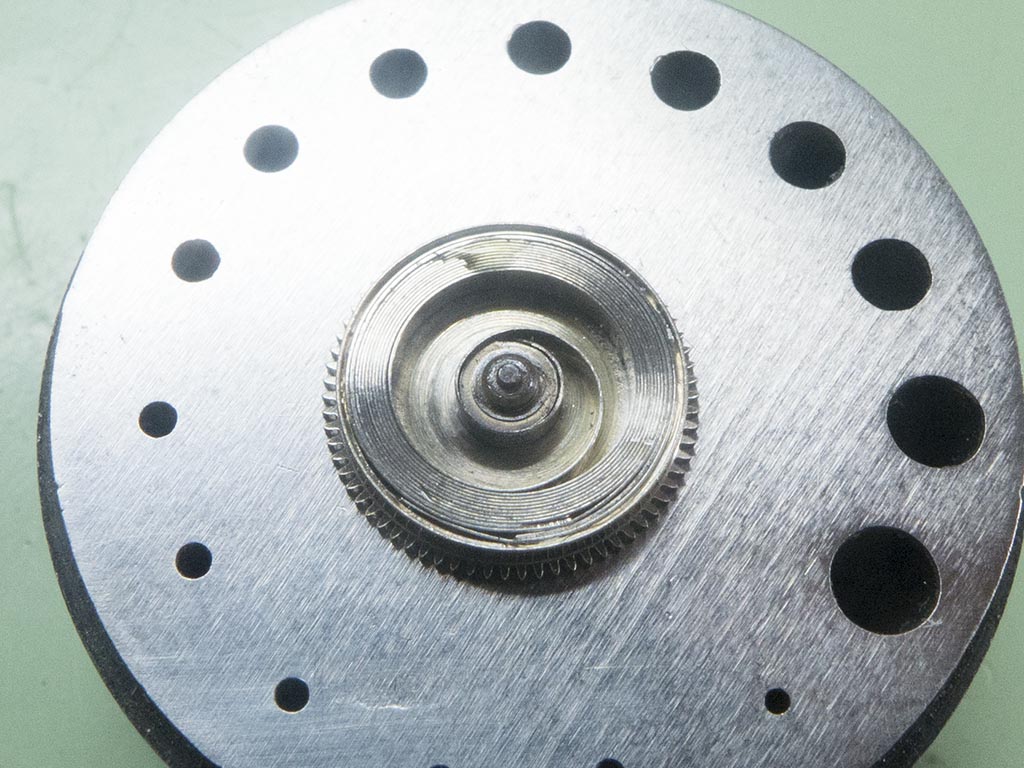

With the balance ready to be refitted the rebuild started in earnest, beginning with the mainspring as is usual for me.

P1030204a

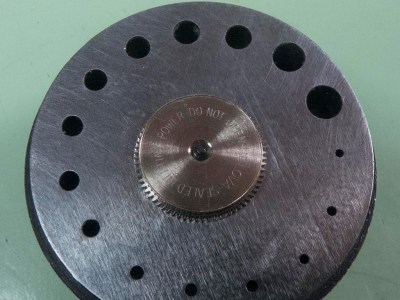

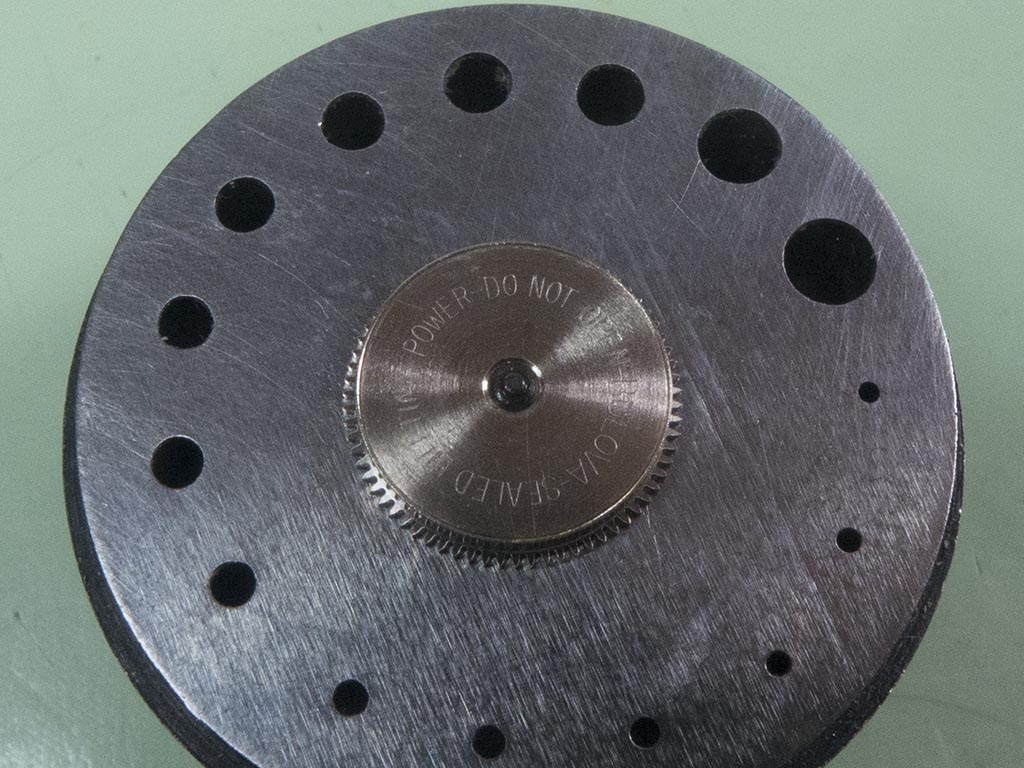

The barrels cap has the legend “Do not open” engraved on it!

P1030205a

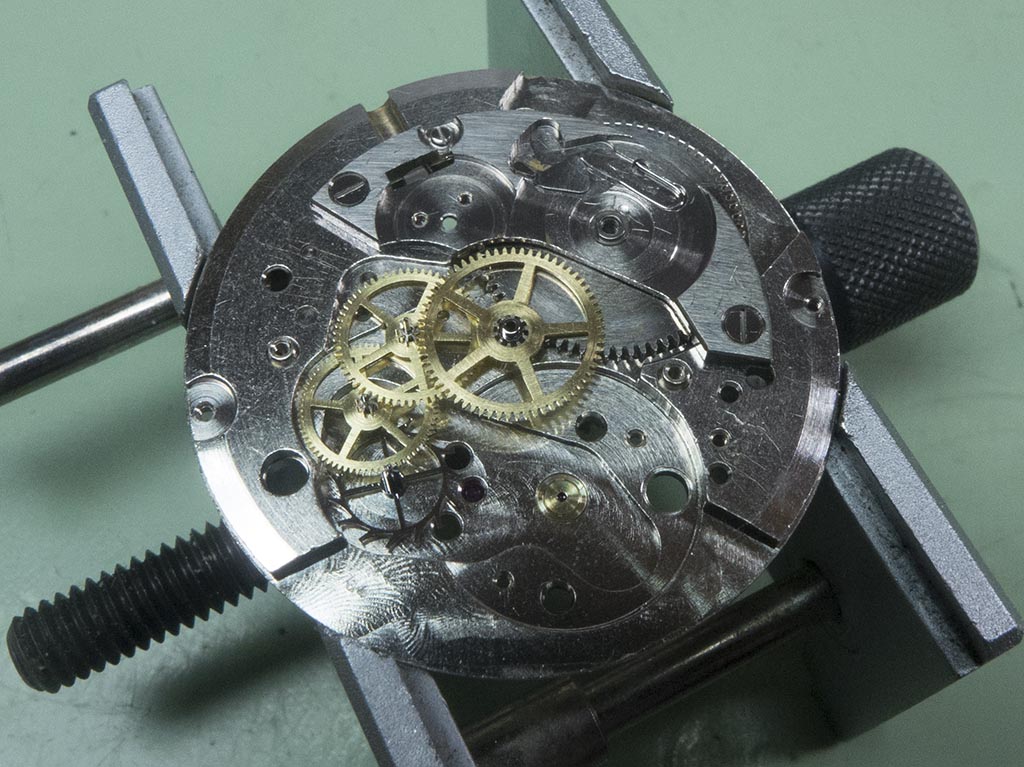

The motion work’s coming together here.

P1030206a

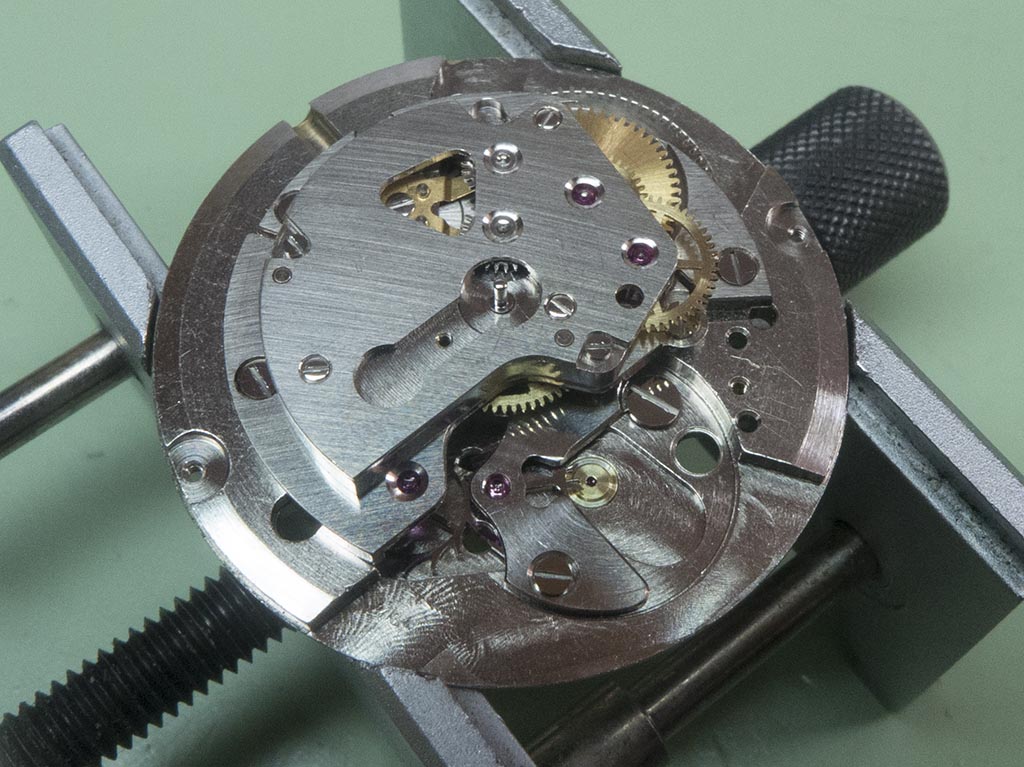

Ready for the new balance in this photo.

P1030211a

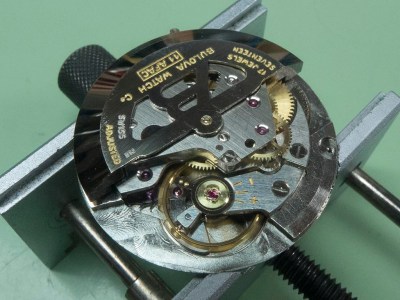

And ticking away nicely here.

P1030305a

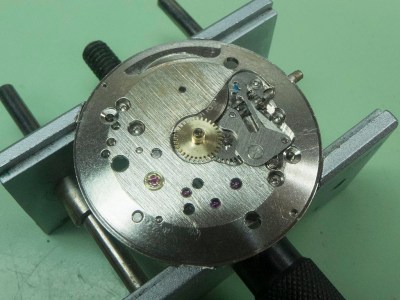

The keyless work was refitted.

P1030212a

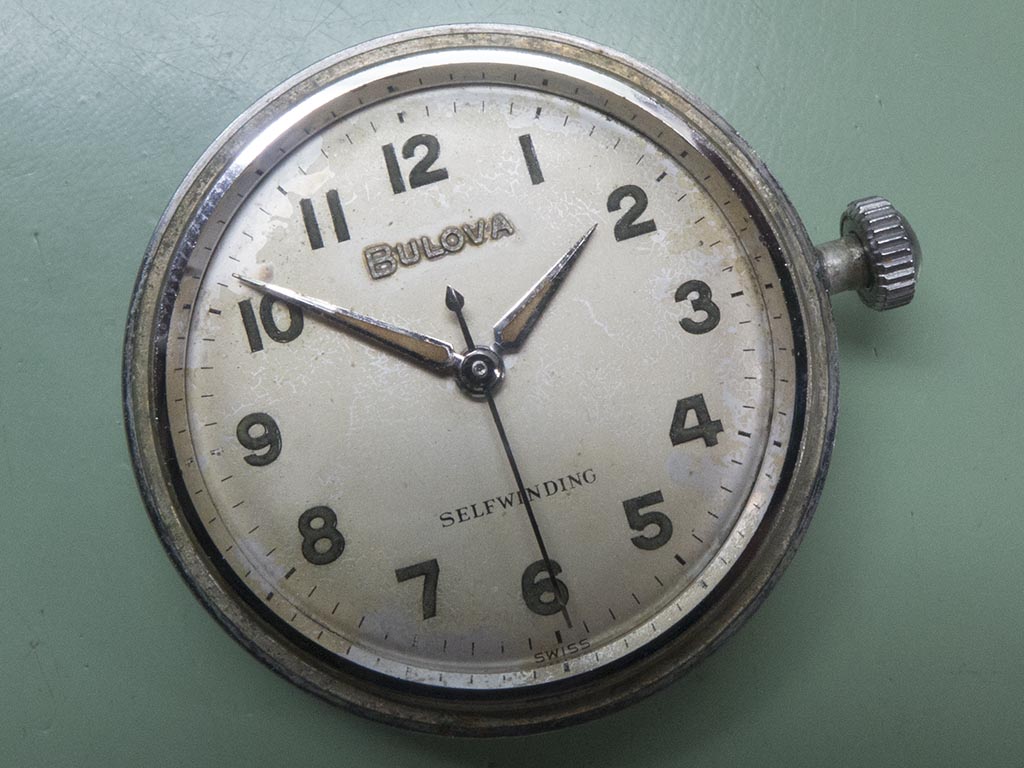

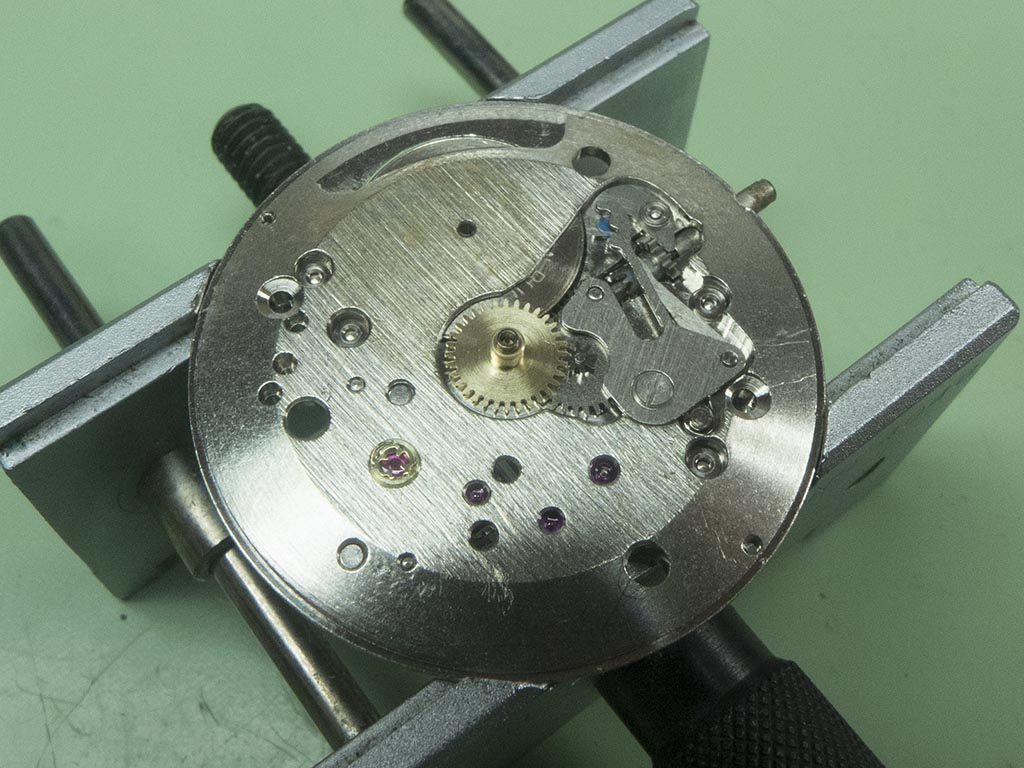

The dial and hands were then reinstalled. The movement was replaced in the case and the trim ring fitted but I then needed to do something with the crystal as it was very scratched.

P1030306a

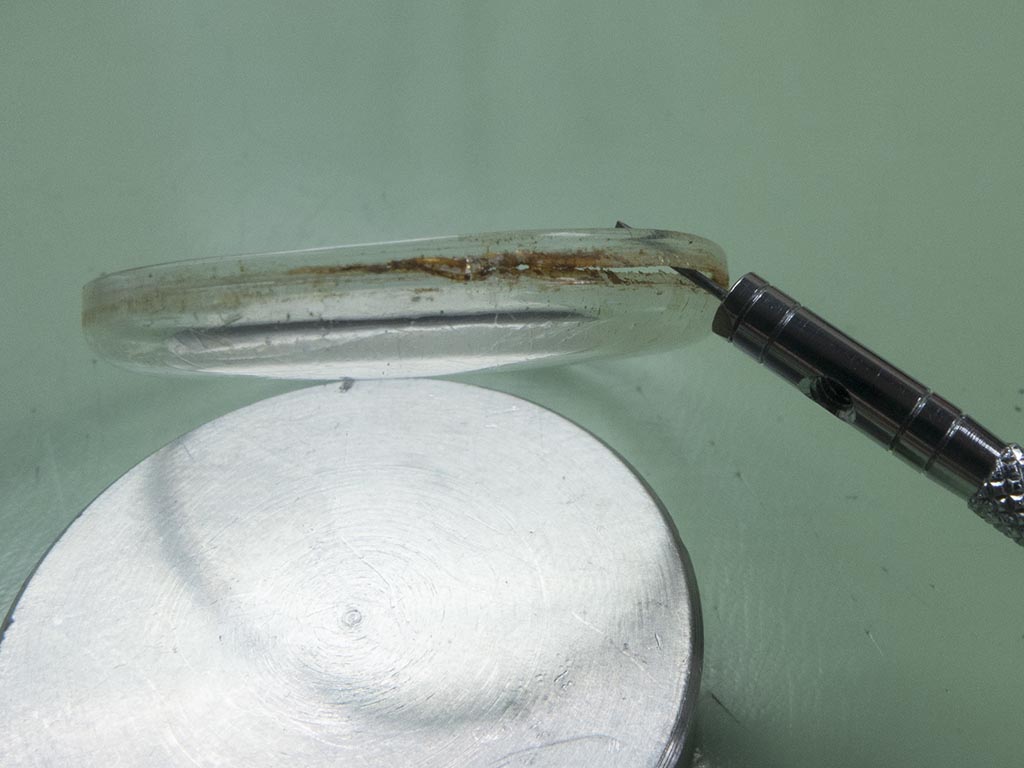

I was hoping I may be able to polish it to be able to keep it with the watch but it was actually cracked halfway around its circumference. At least I now know where the moisture got in!

P1030203a

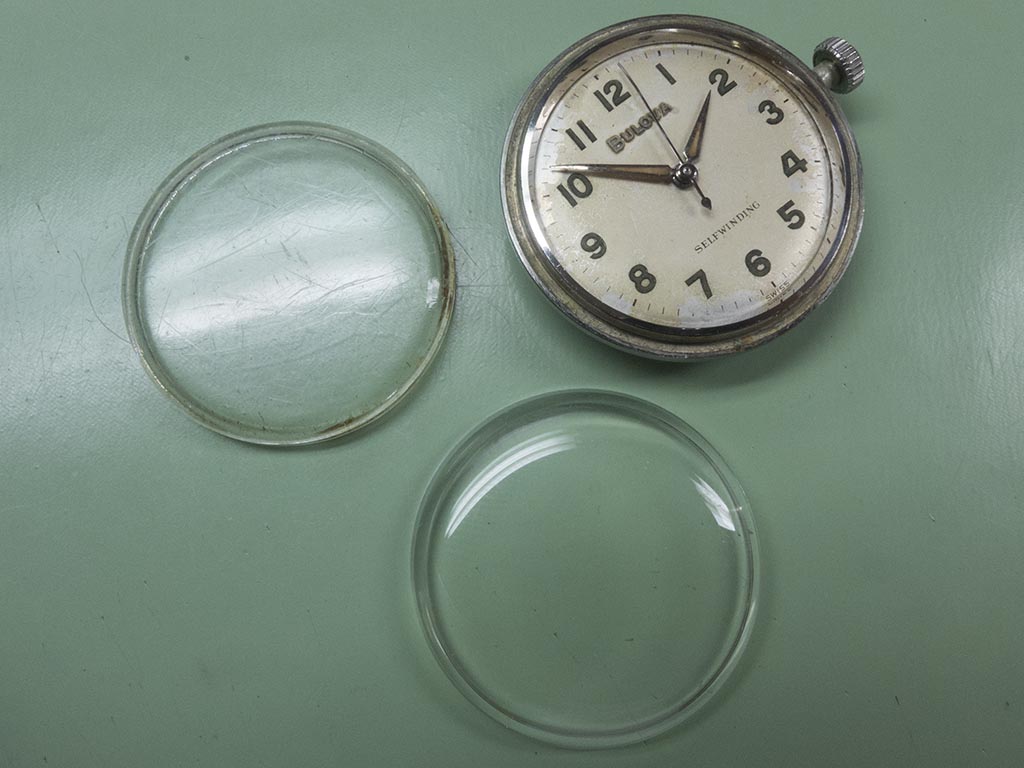

A new crystal was ordered….

P1030307a

….and fitted.

P1030309a

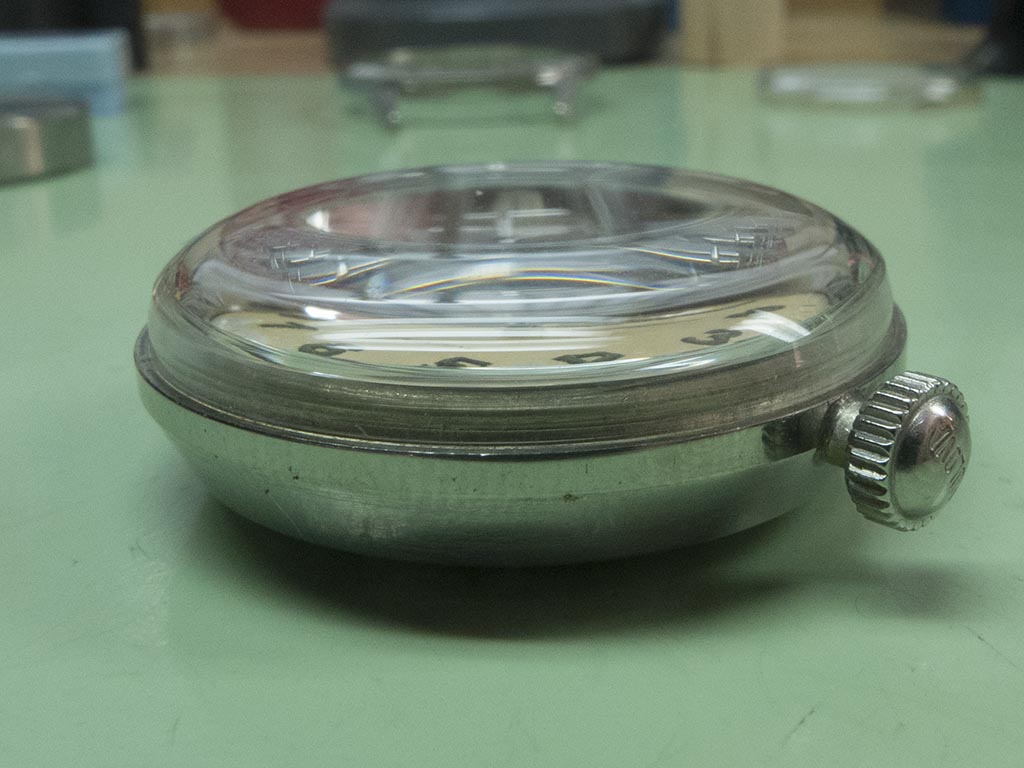

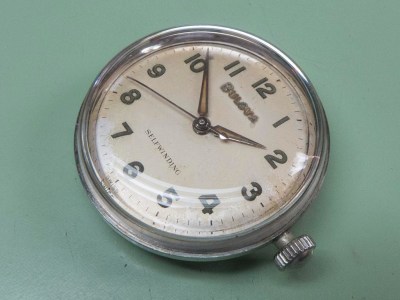

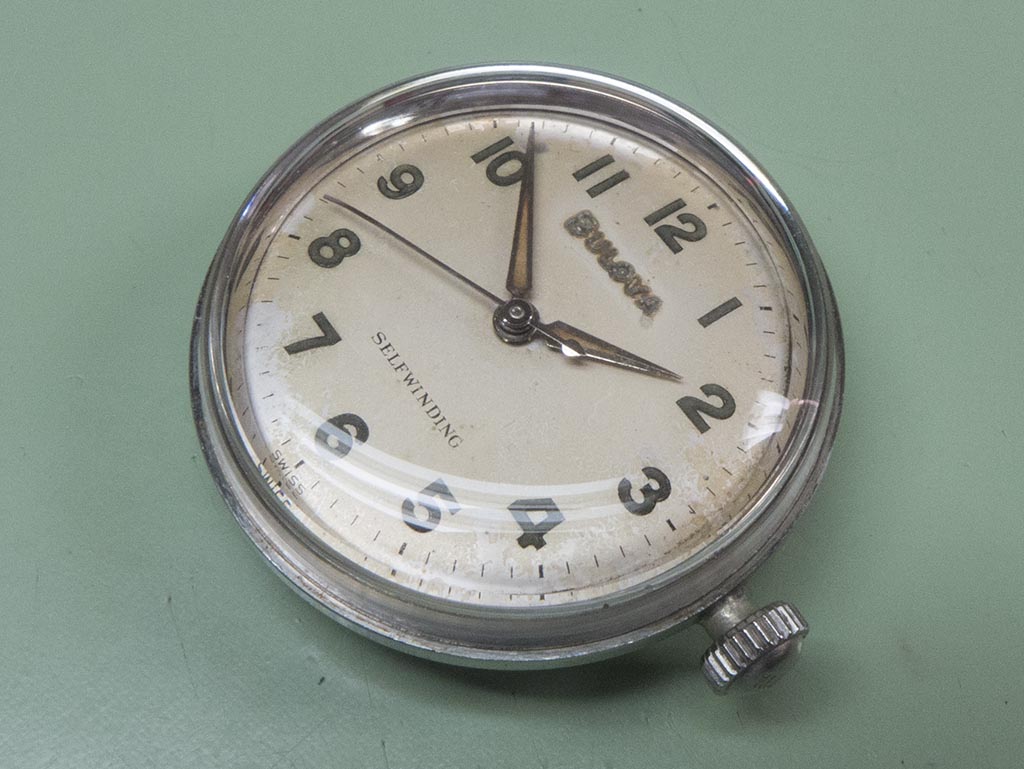

The module was then ready to be pressed into the case.

P1030310a

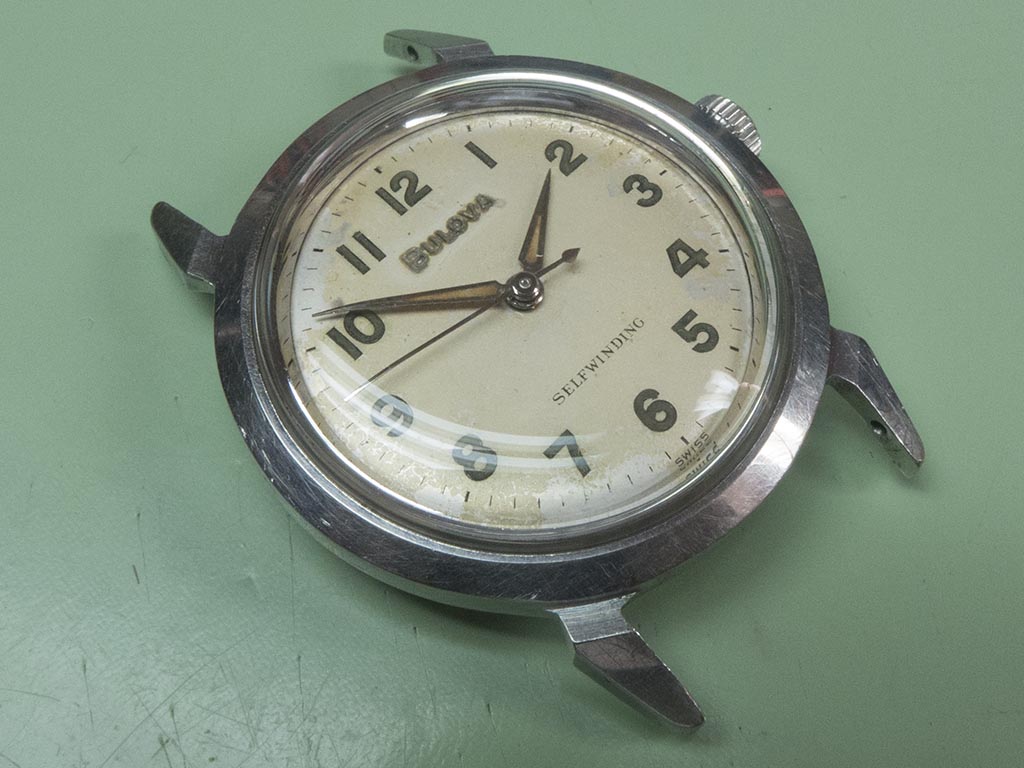

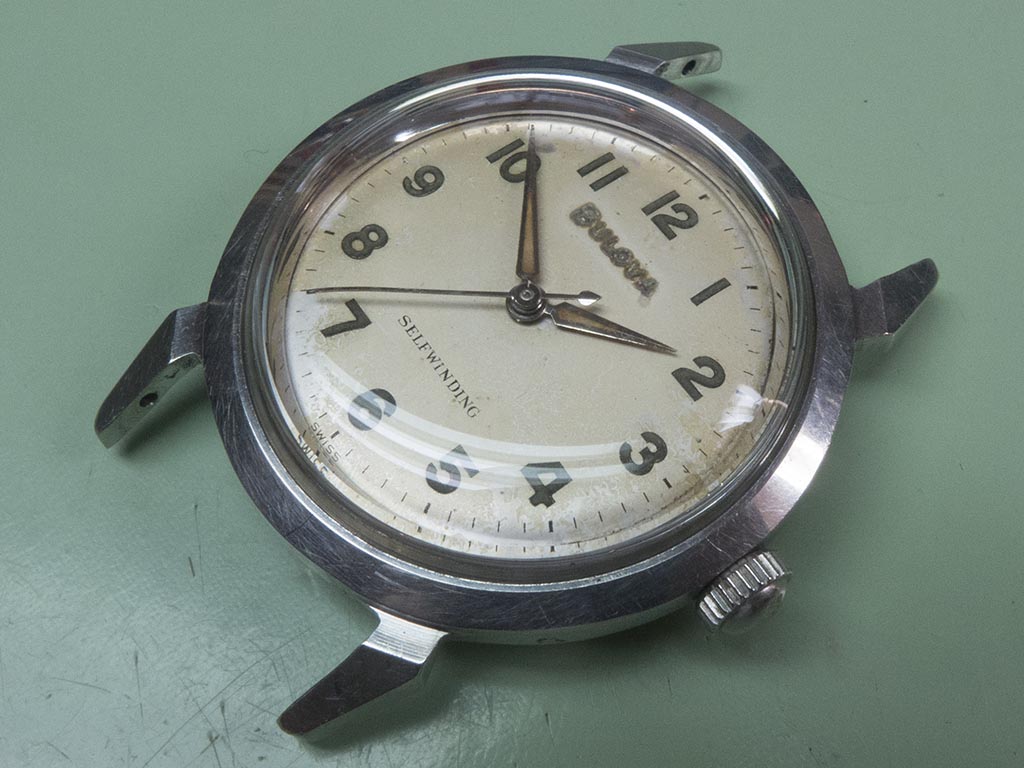

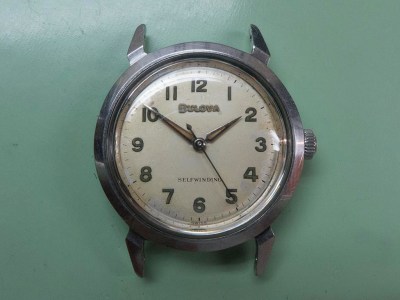

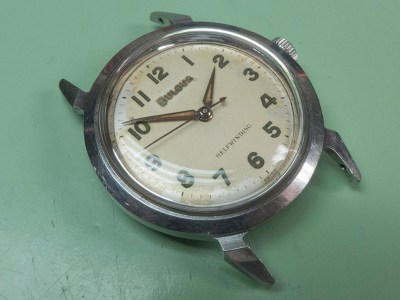

The watch was now finished. The case has distinctive horn lugs that to remind me a little of the Bulova tuning fork logo! A charming little watch I think.

P1030312a

P1030313a

P1030314a
