Omega Speedmaster sticky pusher fix

A sticky pusher or two is not an uncommon occurrence on Omega Speedmasters. This can be caused by a build up of crud inside the pusher tube if the seal has failed but more usually the cause is a broken spring. I thought I’d show how I approach this repair.

P1030283a

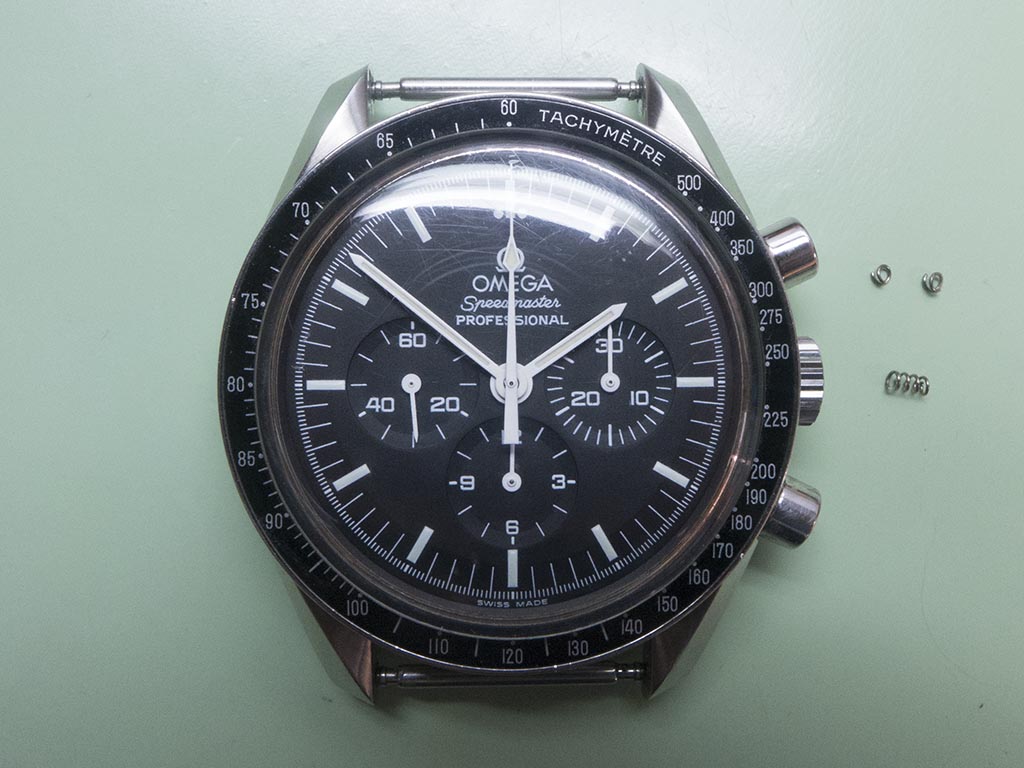

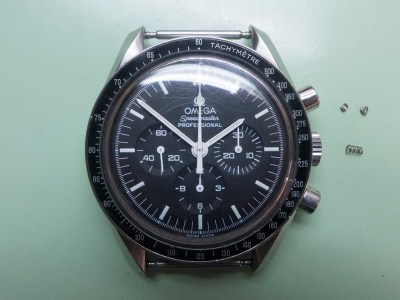

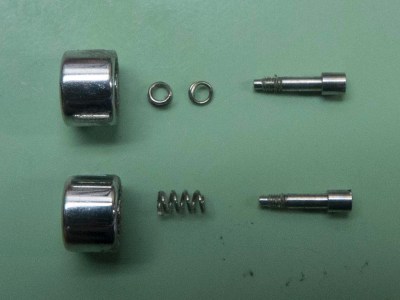

On this particular example the top pusher was sticking, to access the pushers the caseback has to be removed and the movement dropped out of the case. This allows the pusher to be unscrewed from the button and both components can be withdrawn from the case along with the spring that lives inside the pusher tube. With the everything removed this was what greeted me, the top pushers spring was actually in three pieces but I managed to misplace the middle section – oops!

P1030180a

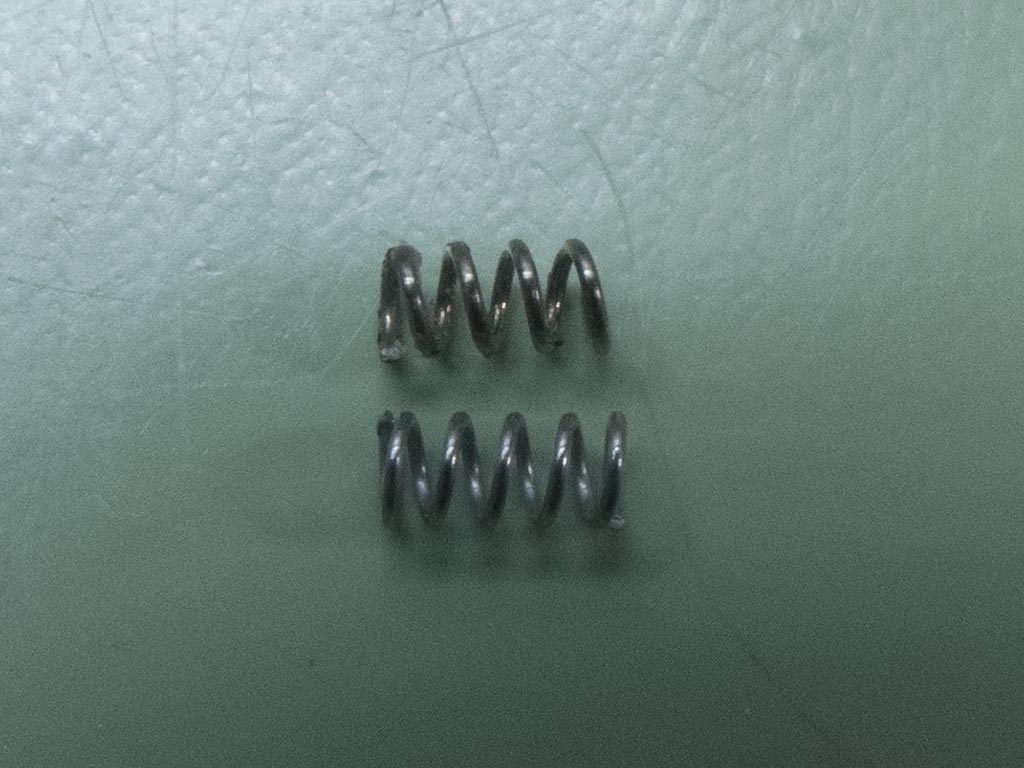

Unfortunately new springs aren’t available separately from Omega for these, you have to buy the whole pusher assembly. However this seems overkill when it’s just the spring that’s at fault so I prefer to buy just the springs from a dedicated spring manufacturer. The replacements are manufactured from stainless steel and are the same dimensions and have an almost identical compression rate as the originals. Whats nice is my replacements have a properly coiled end which allows the spring to sit level in its tube.

P1030278a

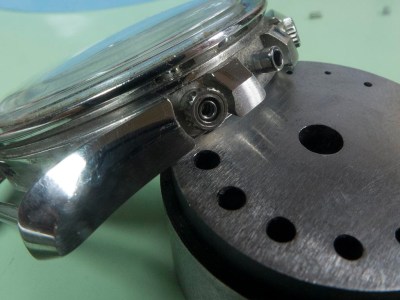

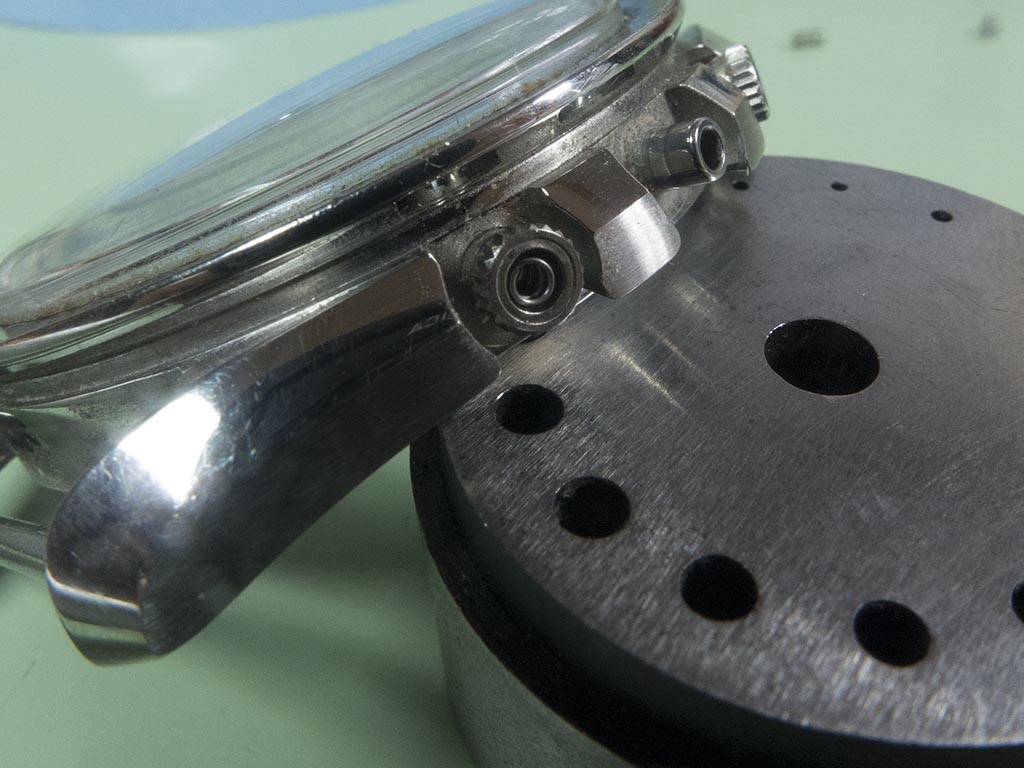

The pusher tube seal is silicone greased then the spring is slid inside. I replace both springs because if one’s failed it won’t be too long before the next goes.

P1030279a

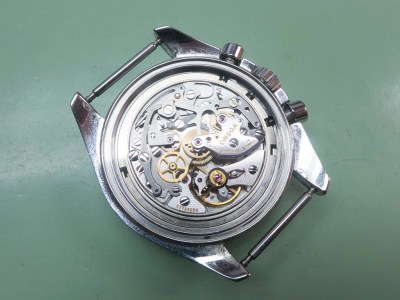

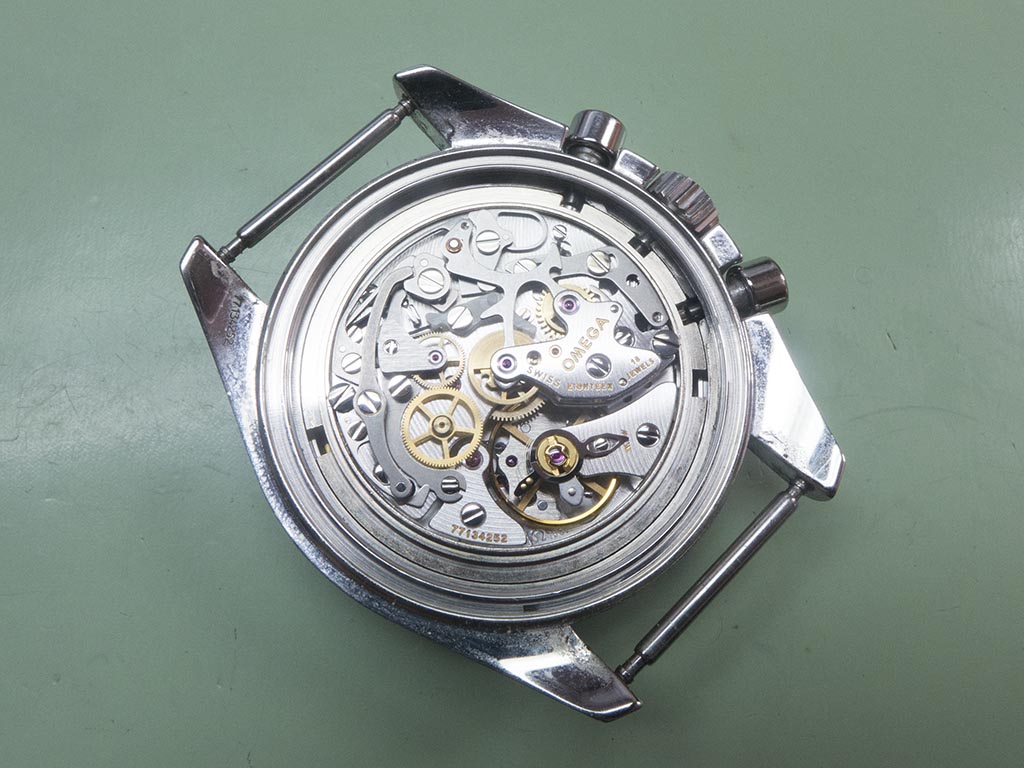

The pushers are replaced and screwed back onto the buttons with a dab of loctite to prevent any unwanted unscrewing. The crown seal gets the same grease then the movement is replaced.

P1030280a

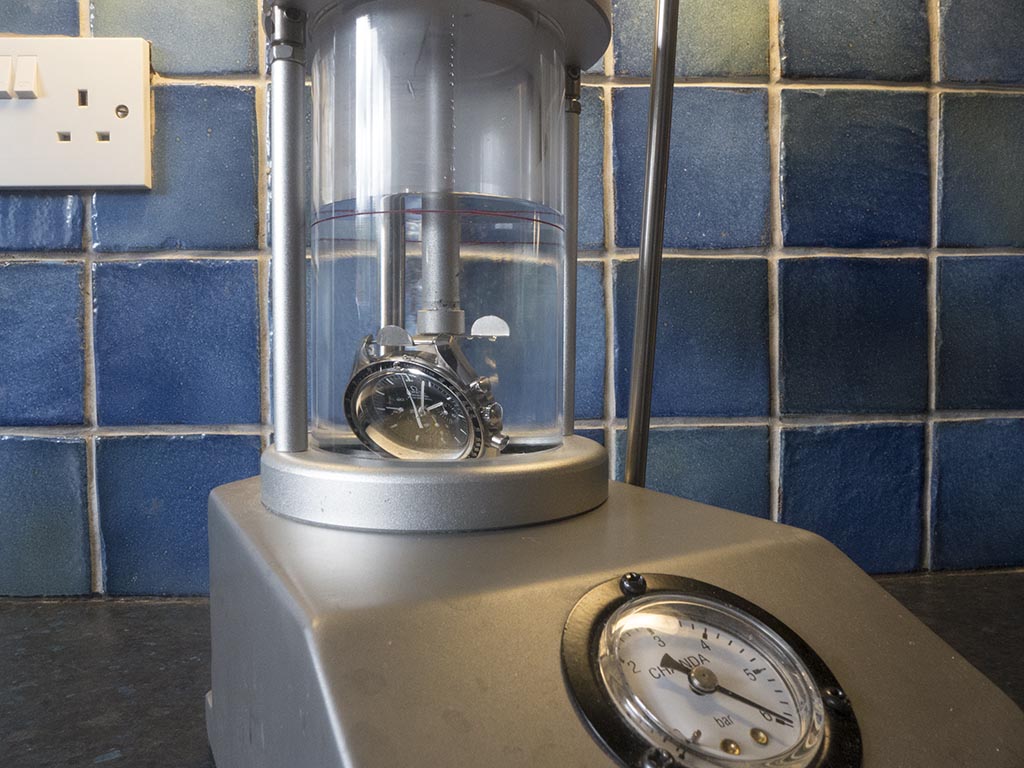

The caseback seal is greased and the case closed up. A quick pressure test shows it’s still water resistant.

P1030298a

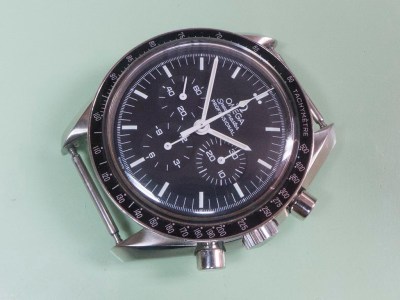

And that’s it, buttons restored to working condition!

P1030281a

P1030282a











3 comments

  1. I’m having an issue removing one of the pushers. It is being very stubborn. Any recommendations? Also, where can I get replacement o-rings & springs for the pushers? Thanks

    Like

    1. If it’s a stuck thread heat is the best bet to get it moving. As I’m sure you know Omega only supply the whole pusher unit so I had these springs manufactured, this means I doubt you’ll find off the shelf ones – at least I couldn’t. To pre-empt your next question I don’t sell parts I’m afraid, I just fix watches!

      Like

      1. I got the pusher free! thanks for your help. The o-rings need to be replaced, do you have a supplier or brand for the o-rings?
